Entwodiksyon
Thank you for choosing the realme Techlife Robot 2-in-1 Vacuum Cleaner with Mopping. This device is designed to provide efficient and convenient floor cleaning with advanced features. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance of your robot vacuum cleaner.
The realme Techlife Robot 2-in-1 Vacuum Cleaner, showcasing konsepsyon elegant li yo ak faktè fòm kontra enfòmèl ant li yo.
Enfòmasyon sou Sekirite
Before using the appliance, please read this user manual carefully and keep it for future reference. This device is intended for indoor use only. Do not use it in commercial or industrial environments. Ensure the charging dock is placed on a flat surface against a wall, with no obstacles within 1 meter in front and 0.5 meters on either side. Keep the device away from water and moisture. Do not allow children or pets to play with the device. Always supervise children when the device is in operation. Do not use the device to clean liquids, burning objects, or sharp objects. Regularly check the brushes and wheels for tangled hair or debris.
Kontni pake
Verifye ke tout atik yo prezan epi yo an bon kondisyon lè w ap debalaje.
- realme Techlife Robot Vacuum Cleaner
- Chaje waf
- Adaptè pouvwa
- Tank Dlo
- Kontwòl Remote
- Bwòs bò (2 pè)
- Main bwòs
- Zouti netwayaj
- Manyèl itilizatè
Pwodwi souview
Top View

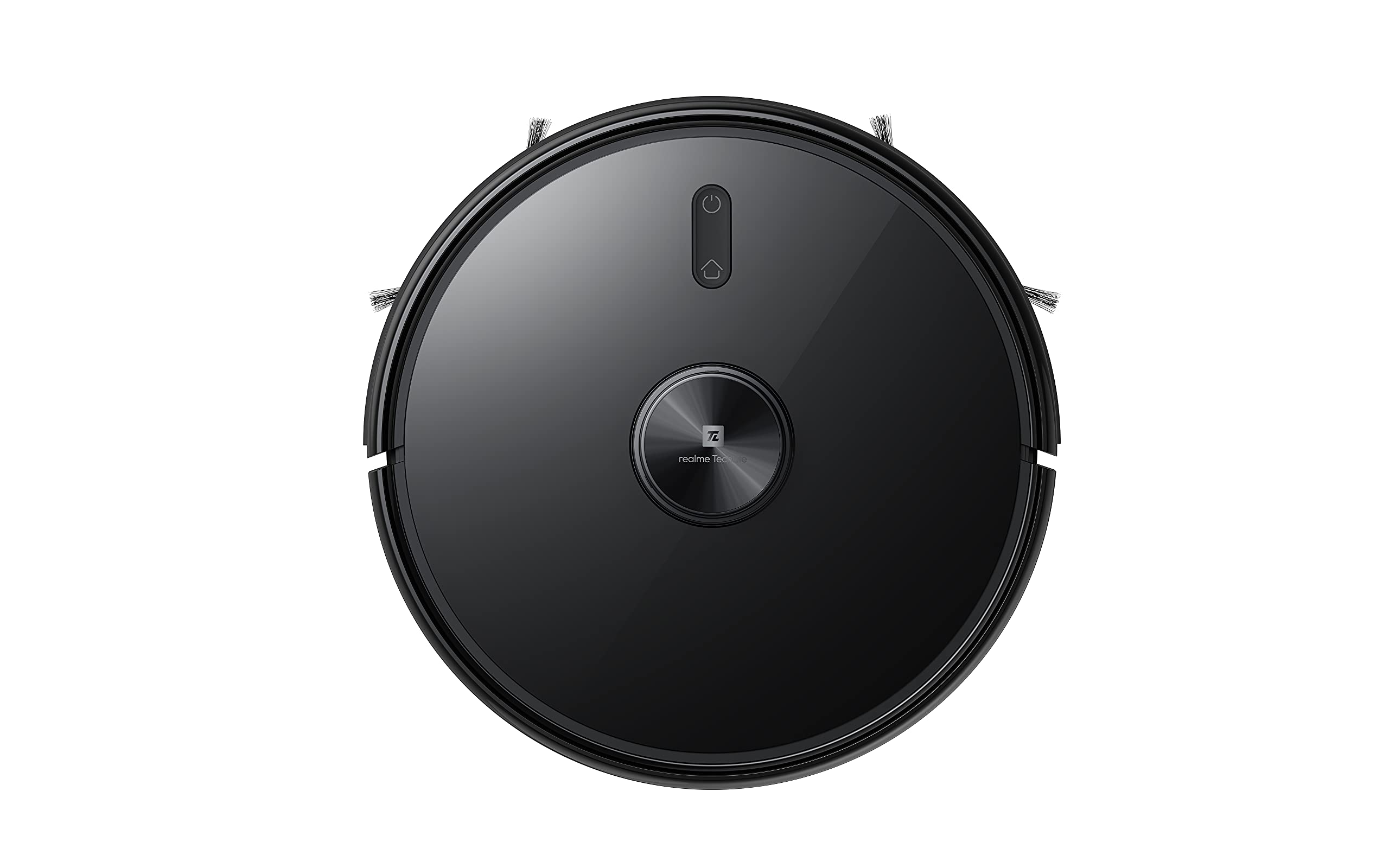

Tèt la view of the robot vacuum, showing the power button and LiDAR sensor housing.
The top of the robot features the LiDAR navigation sensor for accurate mapping and navigation, along with control buttons for starting/pausing cleaning and returning to the charging dock.
Anba View

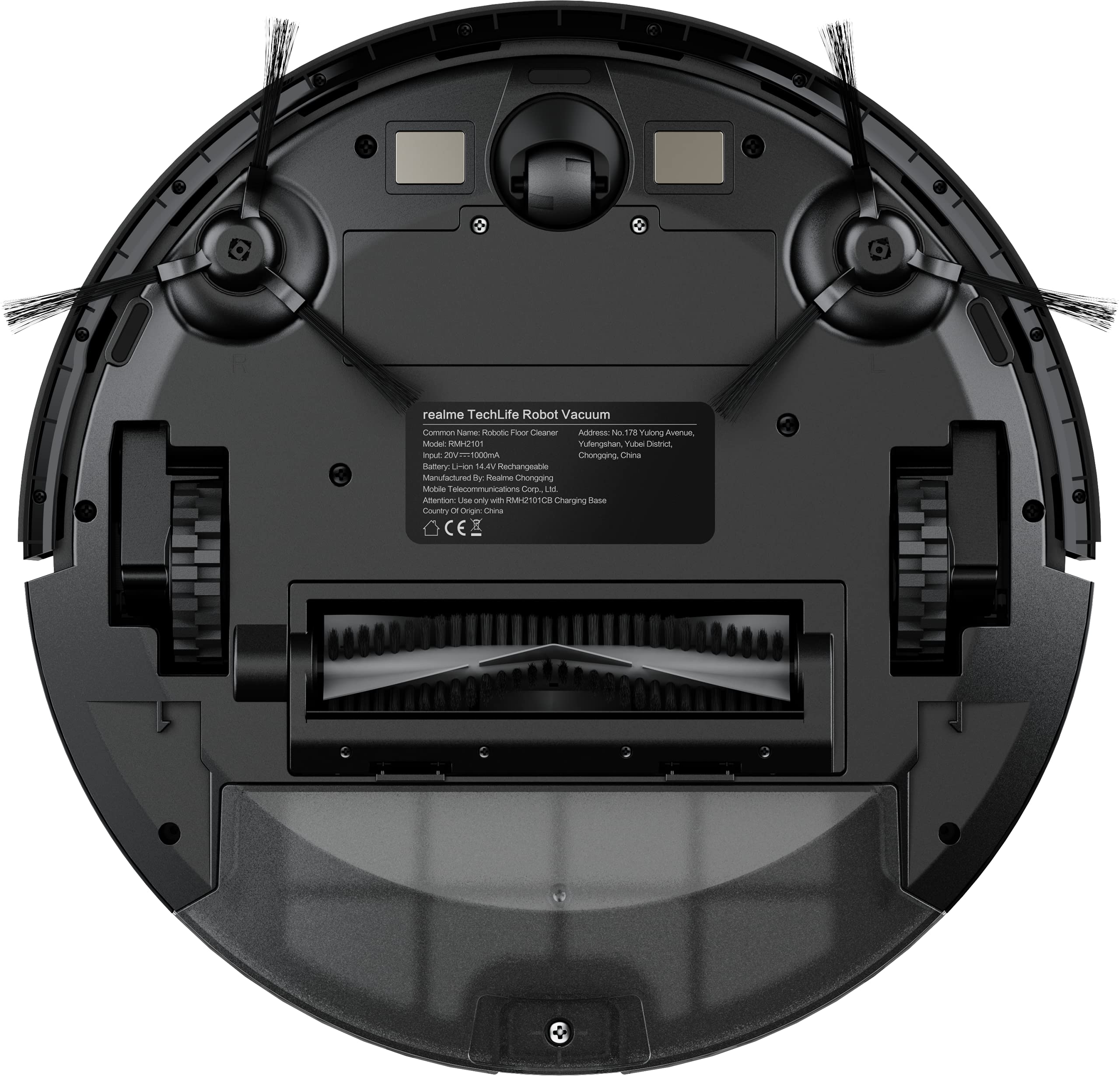

The underside of the robot vacuum, displaying the main brush, side brushes, and wheels.
The bottom of the robot includes the main rolling brush, two side brushes for edge cleaning, driving wheels, and cliff sensors to prevent falls.
Enstalasyon
1. Plasman Dock Chaje a
Place the charging dock against a wall on a hard, level surface. Ensure there are no obstacles within 1 meter (3 feet) in front of the dock and 0.5 meters (1.5 feet) on either side to allow the robot to easily dock and undock.
2. Premye Chajman
Connect the power adapter to the charging dock and plug it into a wall outlet. Place the robot onto the charging dock. The robot will automatically begin charging. For first-time use, ensure the robot is fully charged (approximately 6 hours) before its initial cleaning cycle. The 5200mAh battery provides up to 300 minutes of cleaning time on a full charge.
3. App Connection (realme Link App)
- Telechaje la Realme Link aplikasyon an nan magazen aplikasyon telefòn entelijan ou an.
- Kreye yon kont oswa konekte.
- Follow the in-app instructions to add your realme Techlife Robot Vacuum Cleaner. This typically involves turning on the robot, resetting its Wi-Fi, and connecting to your home Wi-Fi network.
- Yon fwa konekte, ou ka kontwole robo a, view cleaning maps, set schedules, and adjust cleaning modes remotely.
Enstriksyon Operasyon
1. Kòmanse yon sik netwayaj
Press the power button on the robot or use the realme Link app to start a cleaning cycle. The robot will use its advanced LiDAR navigation technology to map your home and plan an efficient cleaning path.
The robot vacuum actively cleaning a hard floor surface in a modern living space.
2. Netwayaj mòd
The robot offers 4 cleaning modes, which can be selected via the app or remote control:
- Oto Netwaye: Robo a netwaye tout zòn nan avèk entèlijans.
- Netwaye tach: Netwaye yon zòn espesifik pi entans.
- Netwayaj kwen: Konsantre sou netwayaj sou mi yo ak kwen mèb yo.
- Netwayaj Pwograme: Fikse lè espesifik pou robo a netwaye otomatikman.
The 3000Pa strong suction power ensures effective removal of dust and debris across various floor types.
3. Fonksyon mop
To use the mopping function, fill the intelligent water tank with clean water and attach it to the robot. The robot features 4 water output modes, allowing you to adjust water flow based on floor surface and cleaning requirements. The Y-shape cleaning path is specifically designed for effective mopping.
The robot vacuum performing its mopping function on a hard floor, demonstrating its 2-in-1 capability.
4. Smart Features
- realme Link App Control: Control cleaning force, schedule tasks, and monitor progress in real-time.
- Katografi plizyè etaj: The robot can build and memorize maps for multiple floors, improving cleaning efficiency.
- Asistan vwa konpatibilite: Supports Google Assistant and Alexa for convenient voice control.
The robot vacuum navigating and cleaning under furniture, highlighting its low-profile konsepsyon.
Antretyen
Regular maintenance ensures the longevity and optimal performance of your robot vacuum cleaner.
1. Vide Bwat Pousyè a
Open the top cover of the robot and remove the dust box. Empty its contents into a trash bin. Clean the filter regularly by tapping it gently to remove dust. Rinse the dust box with water if necessary, ensuring it is completely dry before reinserting.
2. Netwaye bwòs prensipal la
Remove the main brush cover and lift out the main brush. Use the provided cleaning tool to cut and remove any tangled hair or debris. Reinstall the main brush and cover.
3. Netwayaj Bwòs Side
Periodically check the side brushes for wear or entanglement. Remove any hair or debris. If brushes are damaged, replace them with new ones.
4. Cleaning the Water Tank and Mopping Pad
After each mopping session, empty any remaining water from the tank. Remove and clean the mopping pad. Wash the mopping pad thoroughly and allow it to air dry completely before reuse.
5. Netwayaj Capteur ak Kontak Chaje
Wipe the cliff sensors, wall sensors, and charging contacts on both the robot and the charging dock with a clean, dry cloth to ensure proper function.
Depanaj
Si ou rankontre pwoblèm ak aspiratè robo ou a, gade solisyon komen sa yo:
- Robo a pa chaje: Asire w ke waf chaj la limen epi kontak chaj robo a pwòp epi byen aliyen ak waf la.
- Robo bloke oswa ap navige yon fason iregilye: Clear any obstacles, loose cables, or rugs that may be impeding movement. Clean the sensors.
- Aspirasyon pòv: Empty the dust box, clean the filter, and check the main brush for blockages.
- Mopping not working: Ensure the water tank is filled, properly installed, and the mopping pad is attached. Check water output settings in the app.
- Pwoblèm koneksyon aplikasyon an: Ensure your robot and smartphone are connected to the same 2.4GHz Wi-Fi network. Restart the robot and your router if necessary.
- Bri etranj: Check the main brush, side brushes, and wheels for any foreign objects or debris.
For persistent issues, consult the realme Link app for further diagnostics or contact customer support.
Espesifikasyon
| Karakteristik | Spesifikasyon |
|---|---|
| Mak | realme |
| Non modèl | 6941399050860 |
| Karakteristik espesyal | LiDAR Navigation, Smart |
| Koulè | Nwa |
| Dimansyon pwodwi | 33L x 33W x 7H santimèt |
| Lavi batri | 100 Minutes (Mopping), 300+ Minutes (Vacuuming) |
| Kapasite batri | 5200mAh |
| Pouvwa pou aspirasyon | 3000Pa |
| Kapasite bwat pousyè | 0.3 lit |
| Metòd kontwòl | Remote, App (realme Link), Voice (Google Home, Alexa) |
| Nivo bri | Jis 55dB |
| Manifakti | Realme |
Garanti ak sipò
Your realme Techlife Robot 2-in-1 Vacuum Cleaner is covered by a limited warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, service, or inquiries, please visit the official realme support websit la oubyen kontakte liy dirèk sèvis kliyan yo. Kenbe resi acha w la kòm prèv acha pou reklamasyon garanti.
