1. Entwodiksyon
This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your U.S. Solid Motorized Ball Valve. This 1-inch stainless steel valve features a full port design, 9-24V AC/DC compatibility, and a 2-wire auto-return setup, making it suitable for various home automation and industrial applications. Please read this manual thoroughly before installation and operation.
2. Enfòmasyon sou Sekirite
WARNING: Failure to follow these safety instructions may result in property damage, serious injury, or death.
- Asire w ke ekipman pou kouran an dekonekte anvan nenpòt enstalasyon, antretyen oswa depanaj.
- Verifye ke voltage and current ratings of your power source match the valve's requirements (9-24V AC/DC).
- Install the valve in an environment suitable for its IP65 rating, protecting it from dust and water jets.
- Pa depase presyon maksimòm fonksyònman an ki se 10 bar.
- Ensure proper threading (NPT) and secure connections to prevent leaks.
- This valve is designed for fluid control; do not use it for purposes other than its intended application.
3. Pwodwi Features
- San danje epi serye: Constructed from 304 stainless steel, ensuring durability and an estimated life expectancy of 80,000 to 100,000 cycles.
- NPT Threading: Features 1-inch quality 304SS NPT threads, designed to minimize pressure loss with its full port bore.
- Wide Voltage Range: Operates effectively across a 9V-24V AC/DC range, opening or closing the valve in 3-5 seconds.
- 2-Wire Automatic Return Setup: Simple two-wire connection. The valve largely de-energizes after closing and returns to fully open if power is removed.
- Alternative to Solenoid Valves: Automatically cuts off power once fully open or fully closed, reducing the likelihood of overheating.
4. Espesifikasyon
| Spesifikasyon | Valè |
|---|---|
| Materyèl | Stainless Steel (304SS) |
| Mak | US Solid |
| Gwosè Koneksyon Antre | 1 pous |
| Kalite Koneksyon Inlet | Tiyo Nasyonal Konik (NPT) |
| Maksimòm Presyon Fonksyònman | 10 ba |
| Kantite pò | 2 |
| Kalite valv | Valv boul |
| Pwa atik | 1.65 liv |
| Nimewo Modèl Atik | USS-MSV00073 |
| Dimansyon (L x W x H) | 5.2 x 4.02 x 3.31 pous |
5. Enstalasyon ak Enstalasyon
5.1. Debalaj ak Enspeksyon
Carefully remove the motorized ball valve from its packaging. Inspect the valve for any signs of damage during transit. Ensure all components are present and intact before proceeding with installation.

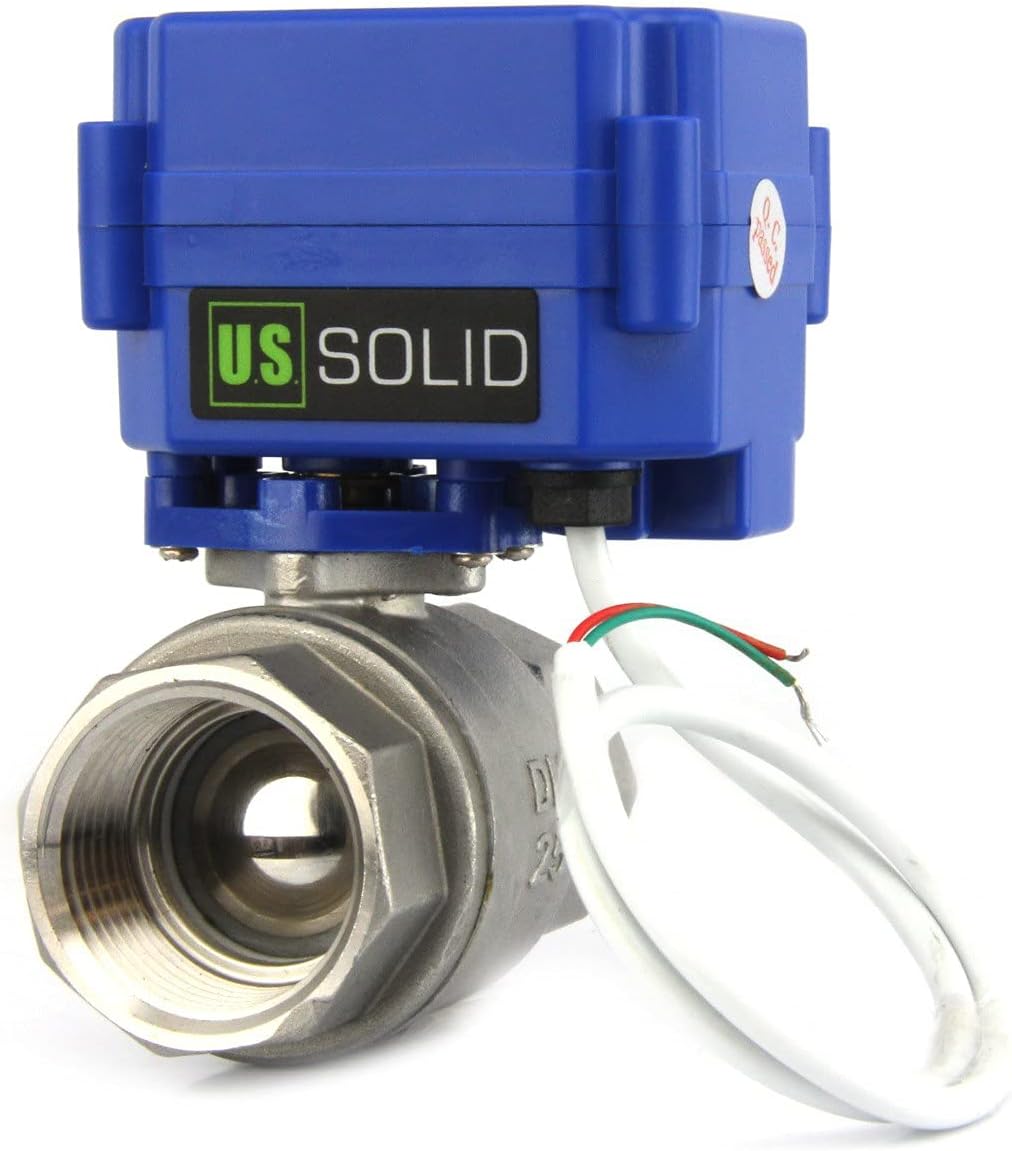

Figi 1: Devan view of the U.S. Solid Motorized Ball Valve.
5.2. Enstalasyon Fizik
The valve features NPT threading for secure pipe connections. Apply appropriate thread sealant (e.g., Teflon tape) to the male pipe ends before screwing them into the valve. Ensure connections are firm and watertight to prevent leaks.
Figure 2: Proper application of Teflon tape for a watertight seal.
5.3. Electrical Wiring (2-Wire Auto Return)
The 2-wire auto return motorized ball valve is designed for simple electrical connection. It operates by energizing one wire to open the valve and de-energizing it to allow the valve to return to its default (open or closed) position. For this model, the valve is normally open and closes when power is applied.
Video: Detailed instructions on how to wire the U.S. Solid 2-wire auto return Motorized Ball Valve.
Refer to the wiring diagram below for correct connections:
Figure 3: 2-Wire Auto Return Wiring Diagram for DC and AC power sources.
- Connect the red wire to the positive (+) terminal of your power source.
- Connect the green wire to the negative (-) terminal of your power source.
- When power is applied, the valve will close. When power is removed, the valve will automatically return to its fully open position.
6. Operasyon Enstriksyon
6.1. Operasyon debaz
This motorized ball valve operates on a simple 2-wire auto-return principle. The valve's default state is normally open. When electrical power (9-24V AC/DC) is supplied to the red and green wires, the internal motor activates, rotating the ball to the closed position. Once the valve is fully closed, a limit switch minimizes power consumption. When the power supply is interrupted or removed, the valve automatically returns to its fully open position.
- Pou fèmen valv la: Apply 9-24V AC/DC power to the red (positive) and green (negative) wires. The valve will rotate to the closed position in approximately 3-5 seconds.
- Pou ouvri valv la: Remove the power supply from the red and green wires. The valve will automatically rotate back to the fully open position.
7. Antretyen
Regular maintenance ensures the longevity and optimal performance of your motorized ball valve.
- Enspeksyon peryodik: Regularly check the valve and connections for any signs of leaks, corrosion, or physical damage.
- Netwayaj: Keep the exterior of the valve and actuator clean and free from debris. Use a soft, damp twal pou netwaye. Pa sèvi ak pwodui netwayaj abrazif oswa solvan.
- Koneksyon elektrik: Periodically inspect electrical wiring for secure connections and insulation integrity.
- Depo: If storing the valve for an extended period, ensure it is clean, dry, and stored in a temperate environment.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Valve does not open/close | Pa gen pouvwa oswa fil elektrik kòrèk. | Check power supply and verify wiring according to Section 5.3. |
| Valv la pa louvri/fèmen nèt | Obstruction in the valve or low voltage. | Inspect the valve for debris. Ensure power supply is within 9-24V AC/DC range. |
| Leakage from connections | Improperly sealed threads or loose connections. | Disconnect power, reapply thread sealant (Teflon tape), and tighten connections. |
| Valve makes unusual noise | Internal mechanical issue or debris. | Disconnect power. If noise persists or operation is affected, contact customer support. |
9. Garanti ak sipò
U.S. Solid stands by the quality of its products. This motorized ball valve comes with a 1-year warranty or money-back promise, ensuring customer satisfaction. For technical support, warranty claims, or any inquiries regarding your U.S. Solid product, please visit our official websit oswa kontakte ekip sèvis kliyan nou an.
Websit: www.ussolid.com
We are committed to delivering quality and affordability.
