hansgrohe Vernis Blend Basin Mixer Tap 70 with Pop-Up Waste Set

Entwodiksyon

This manual provides detailed instructions for the installation, operation, and maintenance of your hansgrohe Vernis Blend Basin Mixer Tap 70 with pop-up waste set. Please read these instructions carefully before beginning installation or use to ensure proper function and longevity of the product.

Image: The hansgrohe Vernis Blend Basin Mixer Tap 70 in chrome finish, featuring a sleek design suitable for various bathroom styles.

Karakteristik kle

• Konsepsyon intemporel: The Vernis Blend tap offers a harmonious and elegant design suitable for any bathroom or guest toilet.
• Zòn Konfò 70: Bay ample space between the spout and wash basin pou itilizasyon konfòtab.
• Teknoloji AirPower: Enriches water with air for a full, soft water jet with reduced splashing.
• EcoSmart Function: Automatically limits the water flow rate to 5 liters per minute, saving water and energy.
• Durable Ceramic Mixer System: Features a high-quality, smooth-running ceramic mixer system for long-lasting performance.
• Integrated Pop-Up Waste Set: Includes a robust plastic pop-up waste set for convenient opening and closing.
• Suitable for Continuous Flow Heaters: Compatible with continuous flow water heaters.

Image: Illustration of AirPower technology, showing how air is mixed with water to create a softer, less splashing stream.

Image: EcoSmart logo with a water droplet and leaf, symbolizing water and money savings through efficient water usage.

Image: Graphic depicting a ceramic cartridge, highlighting its role in durable and easy operation of the tap.

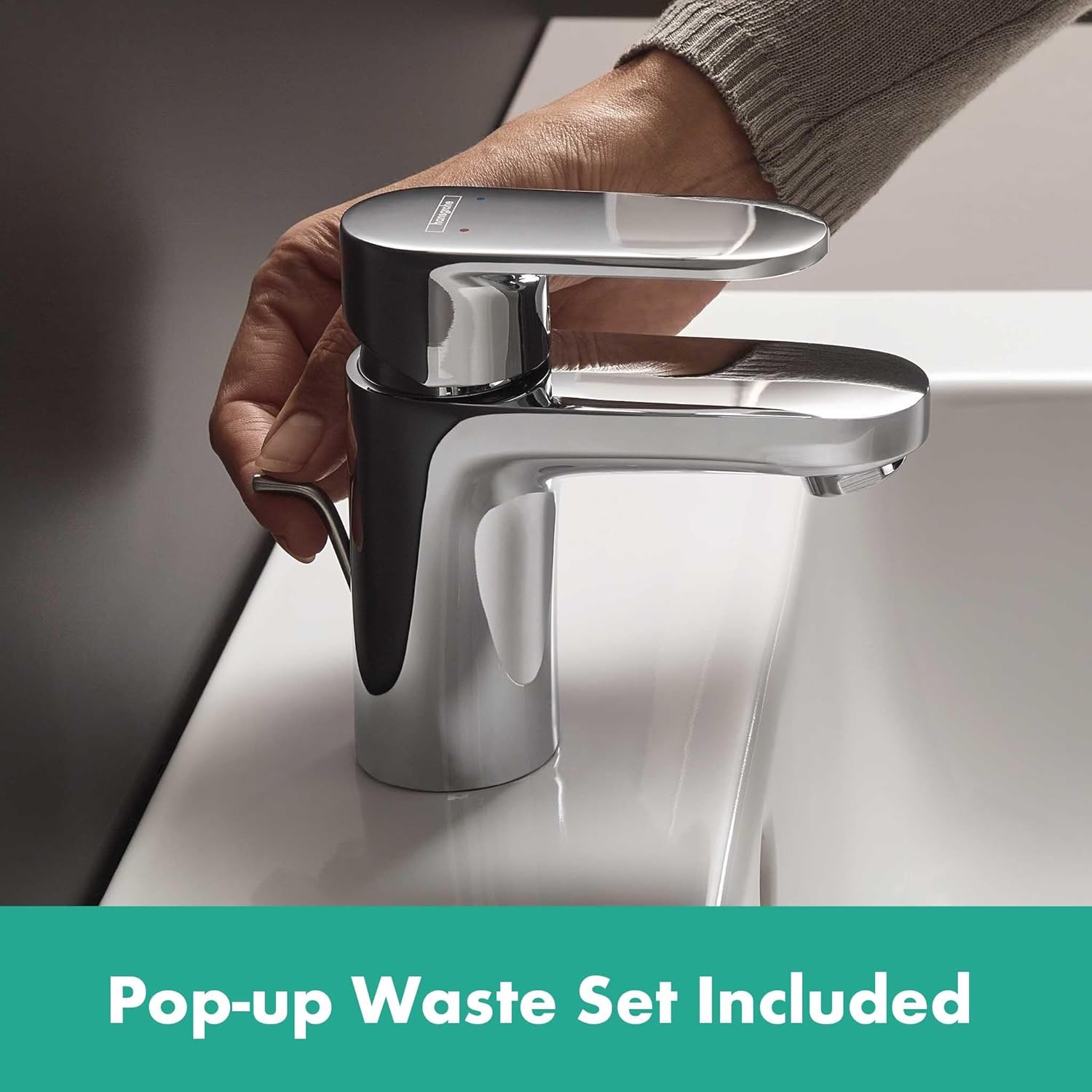

Image: The hansgrohe tap with an illustration indicating the inclusion of a pop-up waste set.

Enstalasyon ak Enstalasyon

The hansgrohe Vernis Blend Basin Mixer Tap is designed for easy deck-mounted installation. It comes with flexible connection hoses (G ⅜) for water connections (size: DN15) and a shaft attachment. Professional installation is recommended to ensure optimal performance and to comply with local plumbing codes.

Etap enstalasyon:

1. Asire w ke ekipman pou dlo a fèmen nan valv prensipal la.
2. Prepare the mounting surface on the basin, ensuring it is clean and dry.
3. Insert the tap into the designated hole on the basin.
4. Secure the tap from underneath the basin using the provided shaft attachment.
5. Connect the flexible hoses to the hot and cold water supply lines. Ensure connections are tight to prevent leaks.
6. Connect the pop-up waste set according to the included instructions.
7. Yon fwa tout koneksyon yo byen fèm, louvri tiyo prensipal dlo a dousman epi tcheke si gen flit.
8. Test the tap's operation for both hot and cold water flow.

Image: Visual representation of the easy installation process for the hansgrohe basin mixer tap, showing the tap being secured to the basin.

Enstriksyon Operasyon

The hansgrohe Vernis Blend Basin Mixer Tap features a single lever for intuitive control of water flow and temperature.

Kontwòl koule dlo ak tanperati:

• To turn the water on, lift the lever handle.
• To increase water flow, lift the lever further.
• To adjust water temperature, move the lever left for hot water and right for cold water.
• To turn the water off, push the lever handle down completely.

Pop-Up Waste Set Operation:

• The integrated pop-up waste set is operated by a small lever located at the back of the tap base.
• Pull the lever up to close the drain and fill the basin.
• Push the lever down to open the drain and allow water to flow out.

Antretyen

Regular cleaning and maintenance will help preserve the dazzling look and functionality of your hansgrohe tap.

Enstriksyon netwayaj:

• Use only mild soap and water or a specialized faucet cleaner.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the chrome finish.
• Wipe the tap with a soft, damp cloth, then dry thoroughly with a clean, soft cloth to prevent water spots and maintain its shine.
• For stubborn water spots or mineral deposits, a solution of equal parts white vinegar and water can be used, followed by rinsing and drying.

Depanaj

If you encounter any issues with your hansgrohe Vernis Blend Basin Mixer Tap, please refer to the following common troubleshooting tips:

Koule Dlo ki ba:

• Check if the main water supply valve is fully open.
• Inspect the aerator at the tip of the spout for mineral buildup or debris. Clean or replace if necessary.
• Ensure the flexible connection hoses are not kinked or obstructed.

Fuites:

• Tcheke tout koneksyon yo pou wè si yo byen sere. Pa sere yo twòp.
• If leaking from the handle, the ceramic cartridge may need inspection or replacement. Contact customer support for assistance.

Pwoblèm Kontwòl Tanperati:

• Verifye ke tou de liy ekipman pou dlo cho ak frèt yo konekte byen epi yo konplètman louvri.
• If the issue persists, the ceramic cartridge might require professional inspection.

Pou pwoblèm ki pa rezoud ak etap sa yo, tanpri kontakte sèvis kliyan hansgrohe.

Espesifikasyon

Detailed technical specifications for the hansgrohe Vernis Blend Basin Mixer Tap 70.

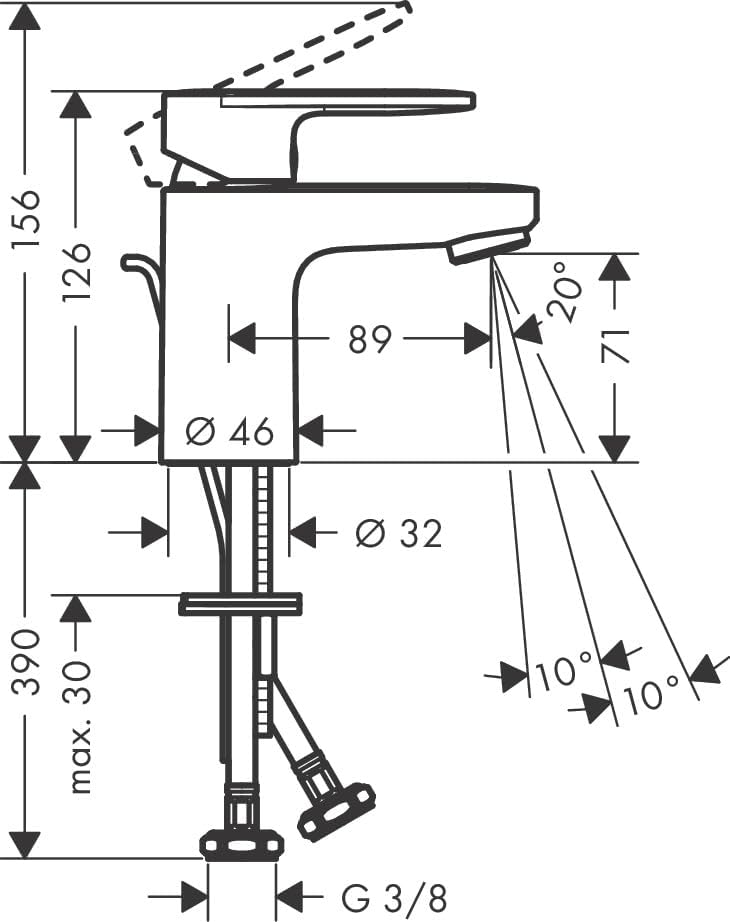

Image: Technical drawing illustrating the dimensions and installation details of the hansgrohe Vernis Blend Basin Mixer Tap 70.

Garanti ak sipò

Your hansgrohe Vernis Blend Basin Mixer Tap 70 comes with an extended warranty, ensuring peace of mind regarding its quality and durability. Spare parts are guaranteed to be available for up to 15 years after the product range has been discontinued.

For warranty claims, technical assistance, or to purchase spare parts, please contact hansgrohe customer support through their official website or authorized service centers. Please have your model number (71550000) and proof of purchase ready when contacting support.

For more information, visit the official hansgrohe store: Magazen hansgrohe
