Ledvion Lyra LED Wall Light Instruction Manual

Entwodiksyon

The Ledvion Lyra LED Wall Light is a versatile lighting fixture designed for both indoor and outdoor applications. Constructed from high-quality aluminum, it features a timeless and industrial design. This black wall light is equipped with a standard E27 socket, allowing users to select their preferred E27 LED bulb (not included). With an IP44 protection rating, the fixture is resistant to dust and water splashes, making it suitable for various environments, including gardens, patios, and indoor spaces.

Image: The Ledvion Lyra LED Wall Light installed on an outdoor wall, providing illumination to a patio area.

Enstriksyon Sekirite

• Always disconnect the main power supply before attempting any installation, maintenance, or bulb replacement.
• Installation should be performed by a qualified electrician if you are not confident in your ability to safely handle electrical wiring.
• Ensure the mounting surface is structurally sound and capable of supporting the weight of the fixture.
• Pa depase wat maksimòm lantage specified for the E27 socket (60 Watts).
• This product has an IP44 rating, indicating protection against solid objects larger than 1mm and water splashes from any direction. It is not designed for submersion in water. Ensure all seals are properly seated during installation to maintain this rating.
• Kenbe timoun ak bèt kay lwen zòn enstalasyon an.

Ki sa ki nan bwat la

Verifye ke tout konpozan yo prezan anvan ou kòmanse enstalasyon an:

• 1x Ledvion Lyra Wall Lamp
• 2x Bouchon Miray Vis
• 2x Vis
• 1x manyèl enstriksyon

Image: The components included in the product packaging: one wall lamp, two screw wall plugs, two screws, and one instruction manual.

Espesifikasyon

Image: Dimensional diagram of the Ledvion Lyra wall light, indicating its width, height, and depth.

Image: The fixture is compatible with any E27 bulb, supporting up to 60 Watts.

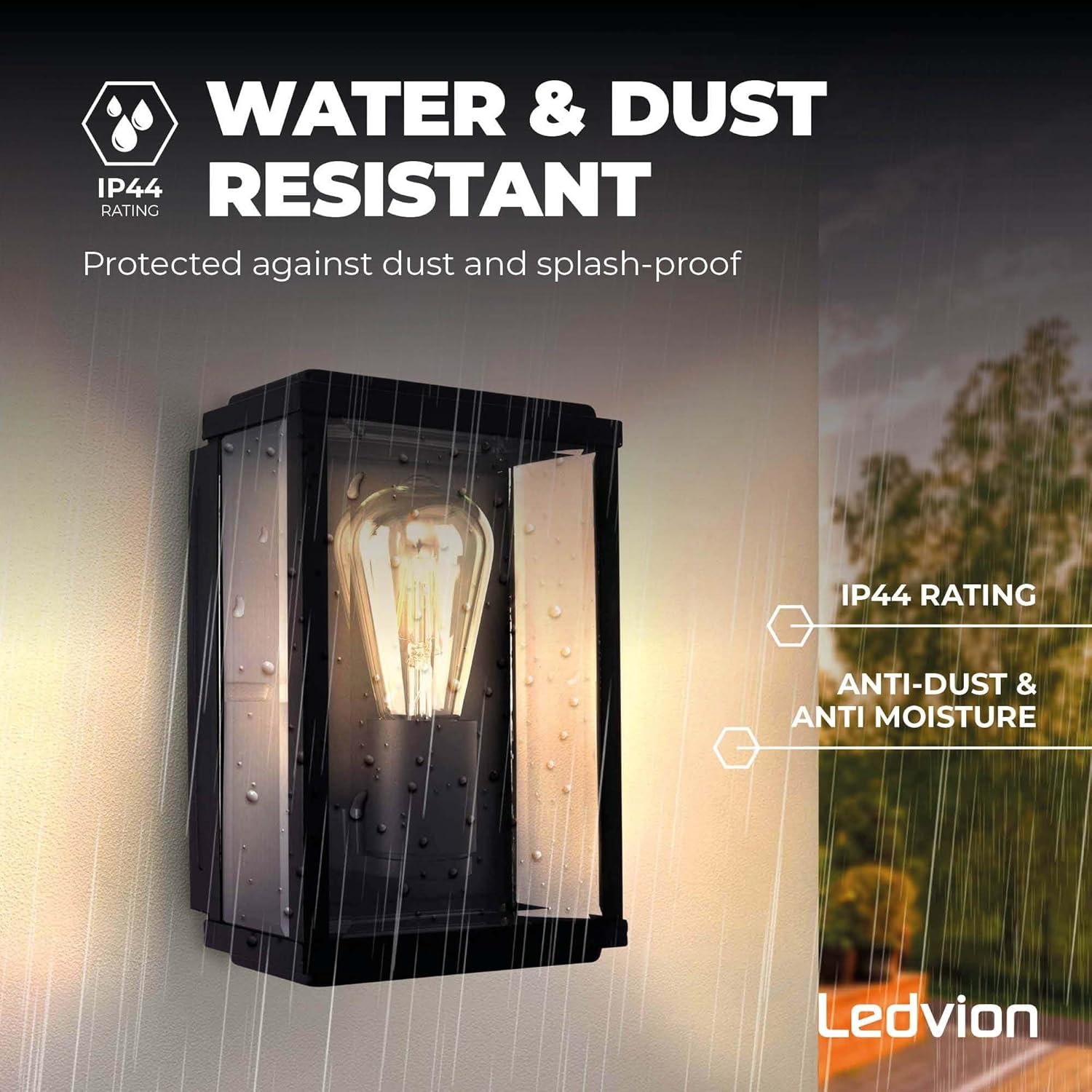

Image: The Ledvion Lyra wall light demonstrating its IP44 water and dust resistance in a simulated rainy environment.

Enstalasyon (Konfigirasyon)

The Ledvion Lyra LED Wall Light is designed for straightforward installation using the provided hardware. Please follow these steps carefully:

1. Prepare Zòn Enstalasyon an: Choose a suitable mounting location on a wall. Ensure the surface is stable and can support the fixture's weight. Turn off the main power supply to the circuit where the light will be installed.
2. Make pwen perçage yo: Hold the mounting bracket against the wall at the desired installation height and mark the drilling points for the screws.
3. Fè twou: Drill holes at the marked points. Insert the provided wall plugs into the drilled holes.
4. Sekirize Support Mounting: Fikse sipò montaj la sou miray la avèk vis yo bay yo. Asire w ke li byen fikse.
5. Konekte fil elektrik: Carefully connect the electrical wires from your wall to the terminal block inside the fixture. Typically, this involves connecting Live (L), Neutral (N), and Earth (E) wires. Ensure all connections are secure and correctly insulated.
6. Monte aparèy la: Carefully align the fixture with the mounting bracket and secure it in place. Ensure all seals are properly seated to maintain the IP44 rating, especially for outdoor installations.
7. Enstale anpoul E27 la: Insert an E27 LED bulb (max 60W, not included) into the socket.
8. Teste limyè a: Restore power to the circuit and test the functionality of the light.

Image: The Ledvion Lyra LED Wall Light installed beside a front door, illustrating a common outdoor application.

Enstriksyon Operasyon

Once the Ledvion Lyra LED Wall Light is correctly installed and connected to the power supply, its operation is straightforward:

• Limen/Etenyen: The light is controlled by a standard wall switch connected to its electrical circuit. Flip the switch to turn the light on or off.
• Kontwòl ekstèn: If connected to an external timer, motion sensor, or smart home system, the light will operate according to the settings of that device.
• Ranplasman anpoul: To replace the E27 bulb, ensure the power is off, unscrew the old bulb, and screw in a new E27 LED bulb (max 60W).

Antretyen

Regular maintenance ensures the longevity and optimal performance of your Ledvion Lyra LED Wall Light:

• Netwayaj: Disconnect power before cleaning. Clean the fixture regularly with a soft, damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or glass.
• Enspeksyon: Periodically inspect the fixture for any signs of damage, loose connections, or wear. Ensure the glass panels are intact and the seals are in good condition, especially for outdoor units.
• Ranplasman anpoul: Replace the E27 bulb as needed. Always ensure the replacement bulb meets the specified requirements (E27 base, maximum 60 Watts).

Depanaj

If you encounter issues with your Ledvion Lyra LED Wall Light, refer to the following common problems and solutions:

• Limyè a pa limen:
  • Check if the main power supply to the circuit is on.
  • Verifye ke switch miray la nan pozisyon 'ON'.
  • Ensure the E27 bulb is correctly screwed into the socket and is not faulty. Try replacing the bulb with a known working one.
  • Inspect the wiring connections inside the fixture to ensure they are secure. (Only perform if comfortable and power is disconnected.)
• Limyè tranbleman:
  • Check the E27 bulb for any damage or loose connection.
  • Ensure the power supply to the fixture is stable.
• Water Inside Fixture (for outdoor use):
  • Ensure all seals and gaskets were properly seated during installation.
  • Check for any cracks or damage to the glass panels or the fixture housing that might compromise the IP44 rating.
  • Verify that the mounting surface is flat and that the fixture is flush against the wall to prevent water ingress from behind.

Garanti

The Ledvion Lyra LED Wall Light is backed by a 3-ane garanti. This warranty covers manufacturing defects and ensures the product's quality and durability, attributed to its robust aluminum construction.

To make a warranty claim, please retain your proof of purchase and contact Ledvion customer support. The warranty period begins from the date of purchase.

Image: The product comes with a 3-year warranty, emphasizing its durable aluminum construction.

Sipò

For further assistance, technical support, or any inquiries regarding your Ledvion Lyra LED Wall Light (Model: LVO10030), please visit the official Ledvion websit la oubyen kontakte depatman sèvis kliyan yo atravè enfòmasyon kontak ki bay sou yo a websit la oswa dokiman acha ou a.

Please have your model number (LVO10030) and proof of purchase ready when contacting support.
