KAIWEETS HT206B Clamp Meter and KM100 Digital Multimeter Instruction Manual

1. Entwodiksyon

This manual provides detailed instructions for the safe and effective use of your KAIWEETS HT206B Clamp Meter and KAIWEETS KM100 Digital Multimeter. Please read this manual thoroughly before operation and retain it for future reference.

2. Enfòmasyon sou Sekirite

WARNING: Always observe safety precautions when working with electrical circuits to prevent personal injury or damage to the meter.

• The HT206B meets safety standard IEC 61010-1, CAT III 600V. The KM100 has passed CE and RoHS certifications and is IEC rated CAT III 600V.
• Both devices feature anti-burn protection with double fuses and overload protection on all ranges (KM100).
• Ensure the rotary switch is set to the correct test range before making measurements.
• Pa eseye mezire voltages oswa kouran ki depase limit maksimòm espesifye yo.
• Inspect test leads for damage before each use. Do not use if insulation is compromised.
• Lè w ap mezire aktyèl ak clamp meter, only clamp the live wire, not the entire power cord.

3. Pwodwi souview

3.1 KAIWEETS HT206B Clamp Mèt

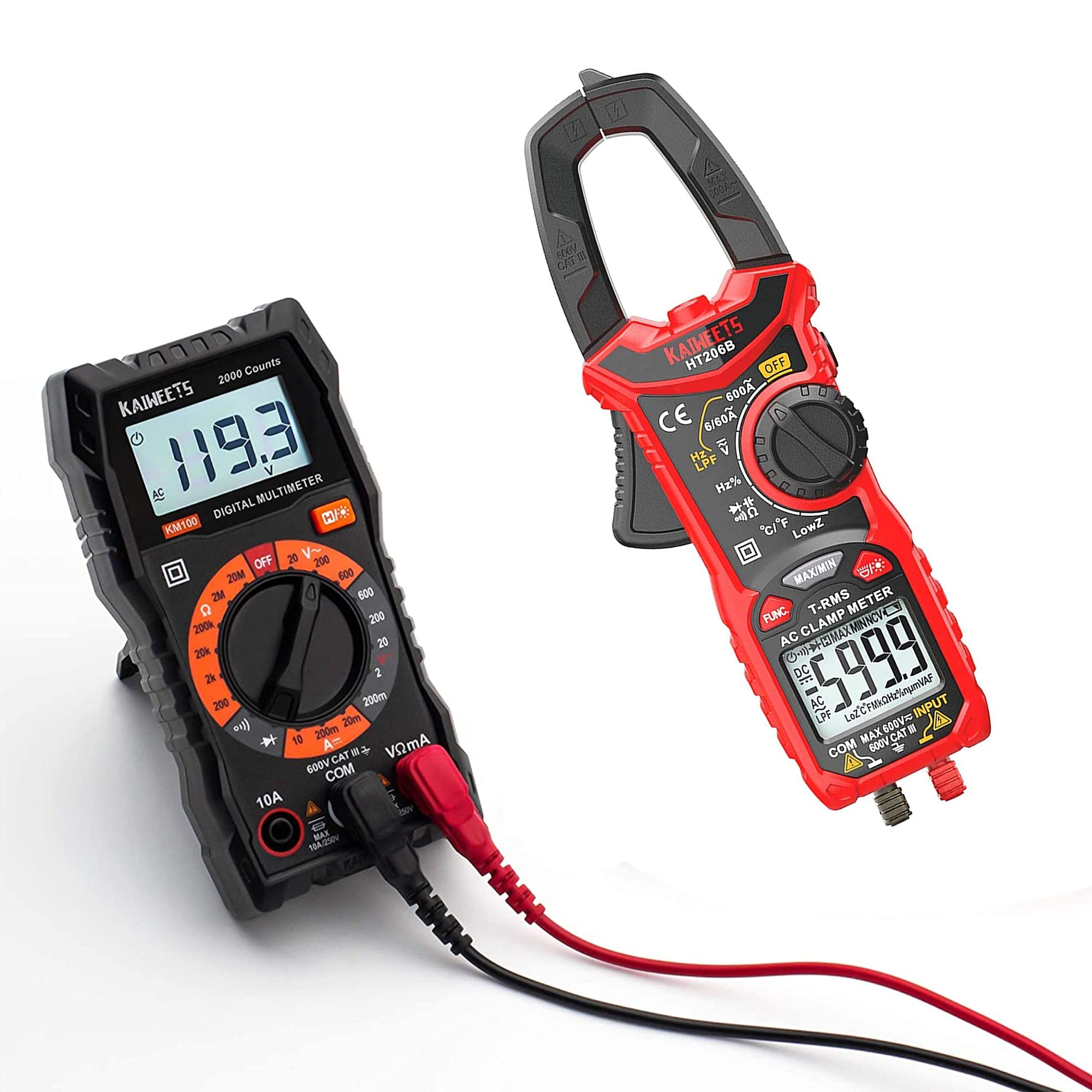

Figure 1: KAIWEETS HT206B Clamp Meter and included accessories.

The KAIWEETS HT206B is a True-RMS clamp meter designed for accurate measurements on non-linear loads. It is suitable for various applications in labs, factories, and households.

Karakteristik kle:

• Kapasite Mezi: AC Current, AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity, and Temperature.
• Two-color Backlit LCD Display: The screen turns red to warn of high voltage (>80V) or high current (>3A).
• Flach ki ap dirije: For illumination in dimly lit areas.
• Ki pa Peye-Kontakte VoltagDeteksyon e (NCV): For detecting live wires without direct contact.
• Otomatik fèmen: Li etenn apre 15 minit inaktivite pou konsève batri.
• Endikasyon batri ki ba: Avètisman lè pil yo bezwen ranplase.

Figure 2: HT206B Clamp Meter feature highlights.

Figure 3: NCV and Hold functions on the HT206B.

3.2 KAIWEETS KM100 Digital Multimeter

Figure 4: KAIWEETS KM100 Digital Multimeter and included accessories.

The KAIWEETS KM100 is a multi-function digital multimeter designed for safety and accuracy in various electrical tests, including household, automotive, and industrial applications.

Karakteristik kle:

• Kapasite Mezi: AC / DC Voltage, DC Current, Resistance, Continuity, and Diode Measurement. Note: This model cannot test AC current.
• Fonksyon ekleraj: Improves visibility in dark conditions.
• Fonksyon kenbe: Locks the displayed measurement value for easy recording.
• Support Stand: Flexible and stable, adjustable up to 90°.
• Sekirite: CAT III 600V, CE and RoHS certified, with anti-burn double fuses and overload protection.

4. Enstalasyon

4.1 Enstalasyon batri

Both the HT206B and KM100 require AAA batteries for operation.

1. Jwenn kouvèti konpatiman batri a sou dèyè aparèy la.
2. Use a screwdriver (if necessary) to open the cover.
3. Insert 2 AAA batteries, observing the correct polarity (+/-) as indicated inside the compartment. (For KM100, batteries are typically pre-installed).
4. Ranplase kouvèti lòj batri a epi an sekirite li.

4.2 Connecting Test Leads and Thermocouple

For most measurements, test leads are required. For temperature measurements with the HT206B, the K-Type thermocouple is used.

• Insert the red test lead into the "VΩmA" or "+" input jack.
• Insert the black test lead into the "COM" or "-" input jack.
• For HT206B temperature measurement, connect the K-Type thermocouple to the designated temperature input ports, observing polarity.

5. Operasyon Enstriksyon

5.1 Operasyon Jeneral

1. Vire switch rotary a sou fonksyon mezi ou vle a.
2. Konekte fil tès yo oubyen cl laamp the conductor as appropriate for the measurement.
3. Li valè mezi a sou ekran LCD a.
4. To turn off the device, rotate the switch to the "OFF" position. The HT206B also features automatic shutdown after 15 minutes of inactivity.

5.2 KAIWEETS HT206B Specific Operations

• Mezi aktyèl AC: Rotate the switch to the AC Current range (e.g., 6/60A or 600A). Open the clamp jaw and enclose only the live wire of the circuit. Ensure the jaw is fully closed.
• FUNC. Button: Press the "FUNC." button to switch between secondary functions within a range, such as AC and DC voltage, or different frequency/duty cycle modes.
• NCV (Vol ki pa gen kontaktage) Detection: Rotate the switch to the NCV position. Bring the top of the clamp meter near the conductor. The meter will beep and the NCV indicator will light up if AC voltage detekte.
• Fonksyon HOLD: Press the "MAX/MIN" button briefly to activate the data hold function, freezing the current reading on the display. Press again to release.
• Mezi Tanperati: Connect the K-Type thermocouple. Rotate the switch to the temperature function (°C/°F). Insert the thermocouple probe into the substance or area to be measured.

Figure 5: HT206B temperature measurement applications.

5.3 KAIWEETS KM100 Specific Operations

• VoltagMezi (AC/DC): Rotate the switch to the desired AC V or DC V range. Connect test leads in parallel to the circuit.
• Mezi aktyèl DC: Rotate the switch to the DC A range. Connect test leads in series with the circuit. Caution: Do not attempt to measure AC current with the KM100.
• Mezi rezistans: Rotate the switch to the Ω range. Connect test leads across the component to be measured. Ensure the circuit is de-energized.
• Tès kontinwite: Rotate the switch to the continuity/diode position. Connect test leads across the circuit or component. A continuous beep indicates continuity.

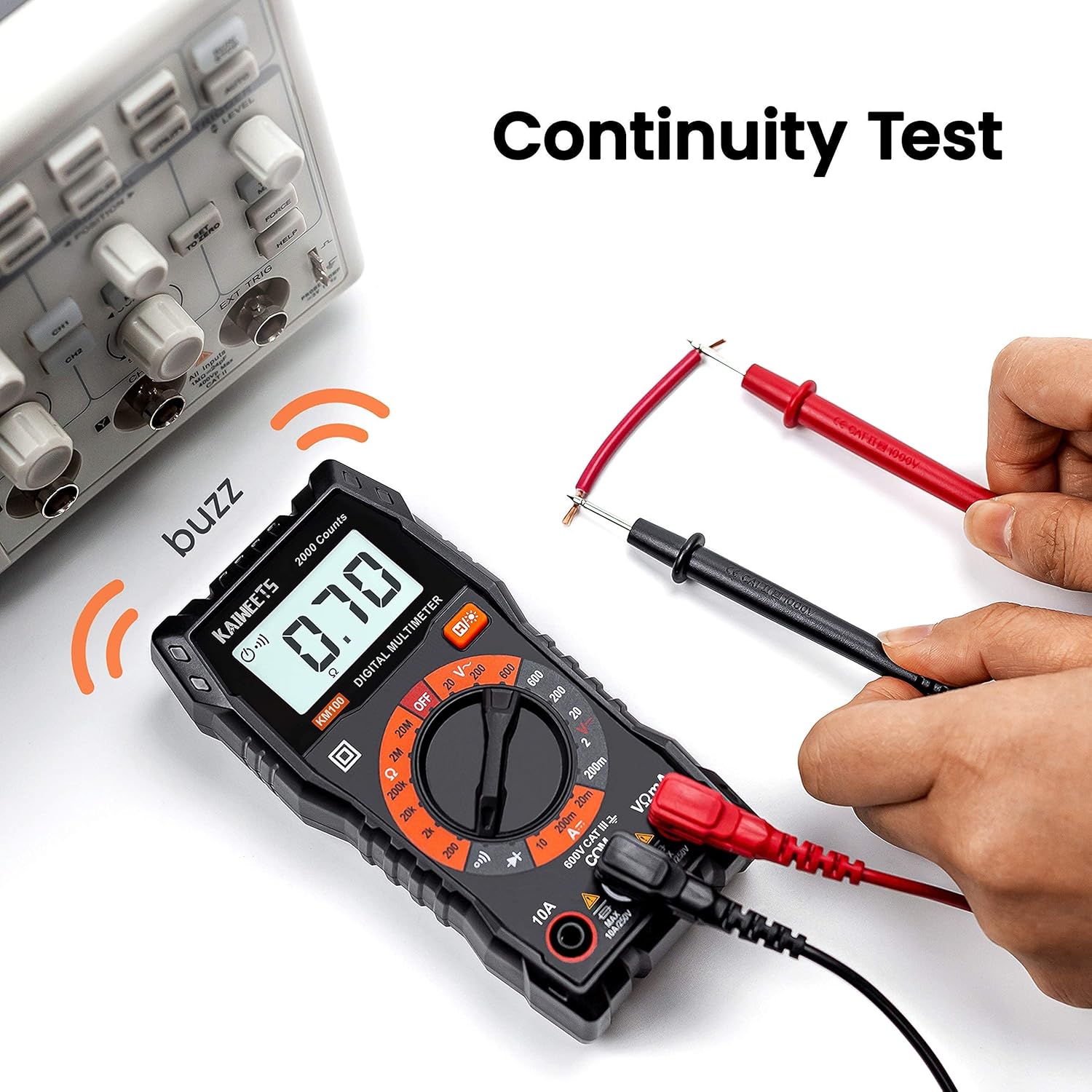

Figure 6: KM100 Continuity Test.

Figure 7: KM100 DC Voltage Mezi.

6. Antretyen

6.1 Netwayaj

Siye mèt la casing ak piblisiteamp twal ak yon savon dou. Pa sèvi ak pwodui abrazif oswa solvang. Asire w ke mèt la sèk anvan w itilize li.

6.2 Ranplasman batri

When the low battery indicator appears on the display, replace the batteries promptly to ensure accurate readings. Refer to Section 4.1 for battery installation instructions.

6.3 Depo

When not in use for extended periods, remove the batteries to prevent leakage. Store the meters and accessories in their carrying cases in a cool, dry place, away from direct sunlight and extreme temperatures.

Figure 8: KM100 stored in its carrying case.

NAN. Depanaj

• Pa gen ekspozisyon/Ekspozisyon fèb: Tcheke nivo pil yo epi ranplase yo si sa nesesè. Asire w ke pil yo mete ak polarite ki kòrèk la.
• Lekti ki pa kòrèk:
  • Ensure the rotary switch is set to the correct measurement function and range.
  • Verify test leads are properly connected and not damaged.
  • Pou clamp meter, ensure the jaw is fully closed around a single conductor for current measurement.
  • For resistance or continuity, ensure the circuit is de-energized.
• Meter Does Not Respond: Turn the meter off and then on again. If the issue persists, replace batteries.

8. Espesifikasyon

8.1 KAIWEETS HT206B Clamp Mèt

8.2 KAIWEETS KM100 Digital Multimeter

9. Garanti ak sipò

KAIWEETS products are designed and manufactured to high-quality standards. Both the HT206B and KM100 are CE and RoHS certified, indicating compliance with European safety, health, and environmental protection requirements.

For specific warranty information or technical support, please refer to the warranty card included with your product or contact KAIWEETS customer service directly through their official channels.
