1. Pwodwi souview
The Cangaroo Indiana Playpen is a versatile two-level travel cot designed for convenience and comfort. It features a removable second level, a soft mattress, a practical changing bag, and a musical play arch with toys. Its compact folding design and included carry bag make it ideal for travel or home use. Mesh windows ensure optimal ventilation and visibility of your child.
Karakteristik kle:
- Two levels: Removable second level for newborns (up to 6 months) and a lower level for older infants (6-36 months).
- Soft mattress (3 cm height) for comfort.
- Integrated changing bag for accessories like diapers and clothes.
- Musical play arch with four plush toys to entertain your child.
- Large mesh windows on both sides for visibility and ventilation.
- Side zipper opening for easy access for the child.
- Compactly foldable for easy storage and transport.
- Two wheels with brakes for mobility and stability.

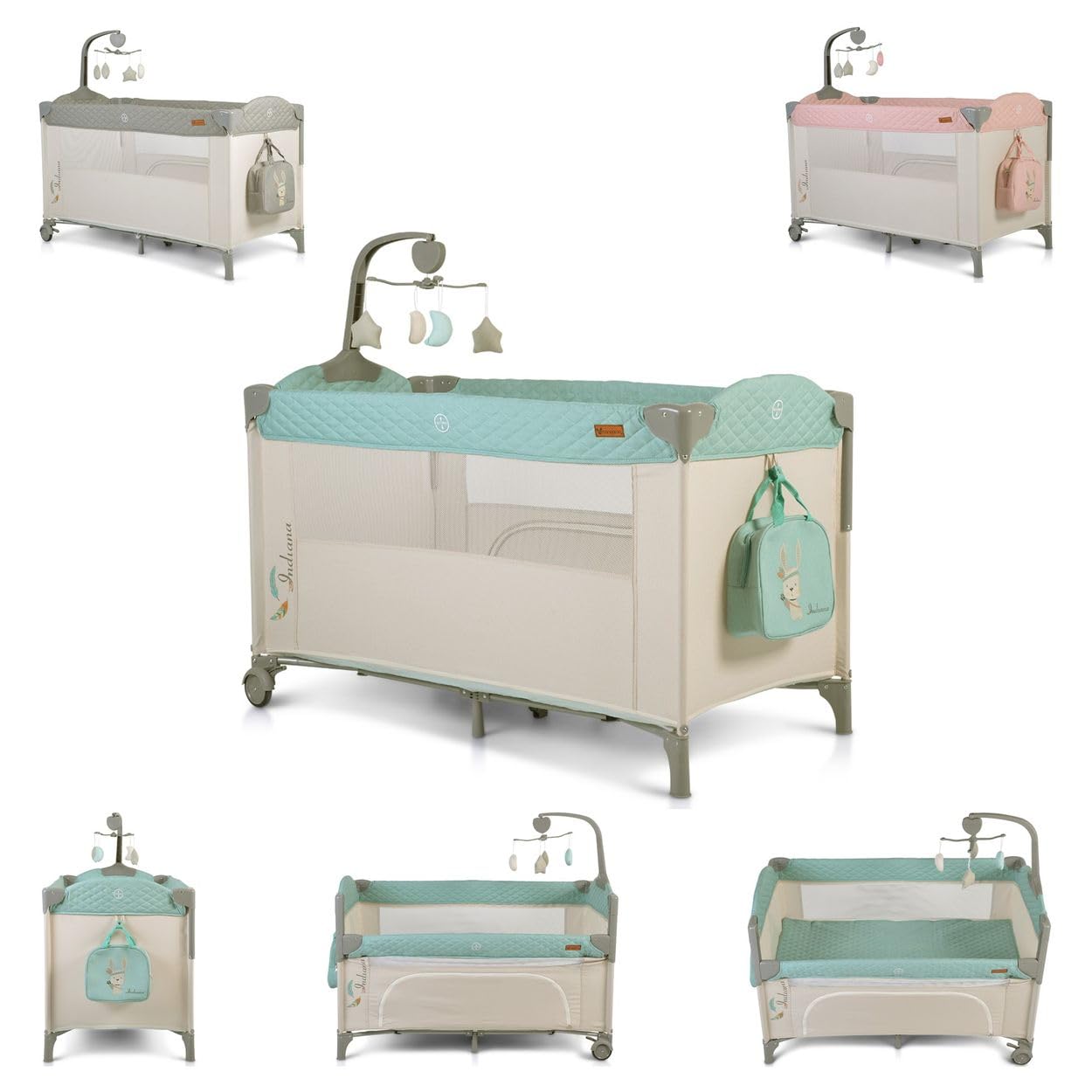

Image 1.1: Fully assembled Cangaroo Indiana Playpen with all accessories.
2. Enfòmasyon sou Sekirite
Please read all instructions carefully before assembly and use. Keep this manual for future reference. Failure to follow these warnings and instructions could result in serious injury or death.
- AVÈTISMAN: Pa janm kite pitit ou a poukont li.
- AVÈTISMAN: Always ensure the playpen is fully assembled and all locking mechanisms are engaged before placing a child inside.
- AVÈTISMAN: The second level (bassinet) is for infants who cannot push up on their hands and knees, are under 6 months of age, and weigh less than 14 kg. Discontinue use of the second level when the child reaches these milestones.
- AVÈTISMAN: The lower level is suitable for children from 6 to 36 months, up to a maximum weight of 14 kg and height of 86.4 cm.
- AVÈTISMAN: Do not use this product if any parts are broken, torn, or missing. Contact the manufacturer for replacement parts.
- AVÈTISMAN: Pa sèvi ak Pwodwi pou Telefòn oswa pati ranplasman lòt pase sa yo apwouve pa manifakti a.
- AVÈTISMAN: Ensure the wheels are locked when the playpen is stationary.
- AVÈTISMAN: Keep small parts, plastic bags, and packaging materials away from children to prevent choking hazards.
- AVÈTISMAN: Do not place the playpen near open flames, heaters, or other sources of strong heat.
3. Enstriksyon Enstalasyon
The Cangaroo Indiana Playpen is designed for easy assembly and disassembly. Follow these steps to set up your travel cot.
3.1 Unfolding the Playpen:
- Remove the playpen from its carry bag.
- Stand the playpen upright with the wheels on the floor.
- Pull the two short sides upwards until they lock into place. You should hear a click.
- Pull the two long sides upwards until they lock into place. Ensure all four sides are rigid and locked.
- Push down the center of the base until it lies flat and secure.

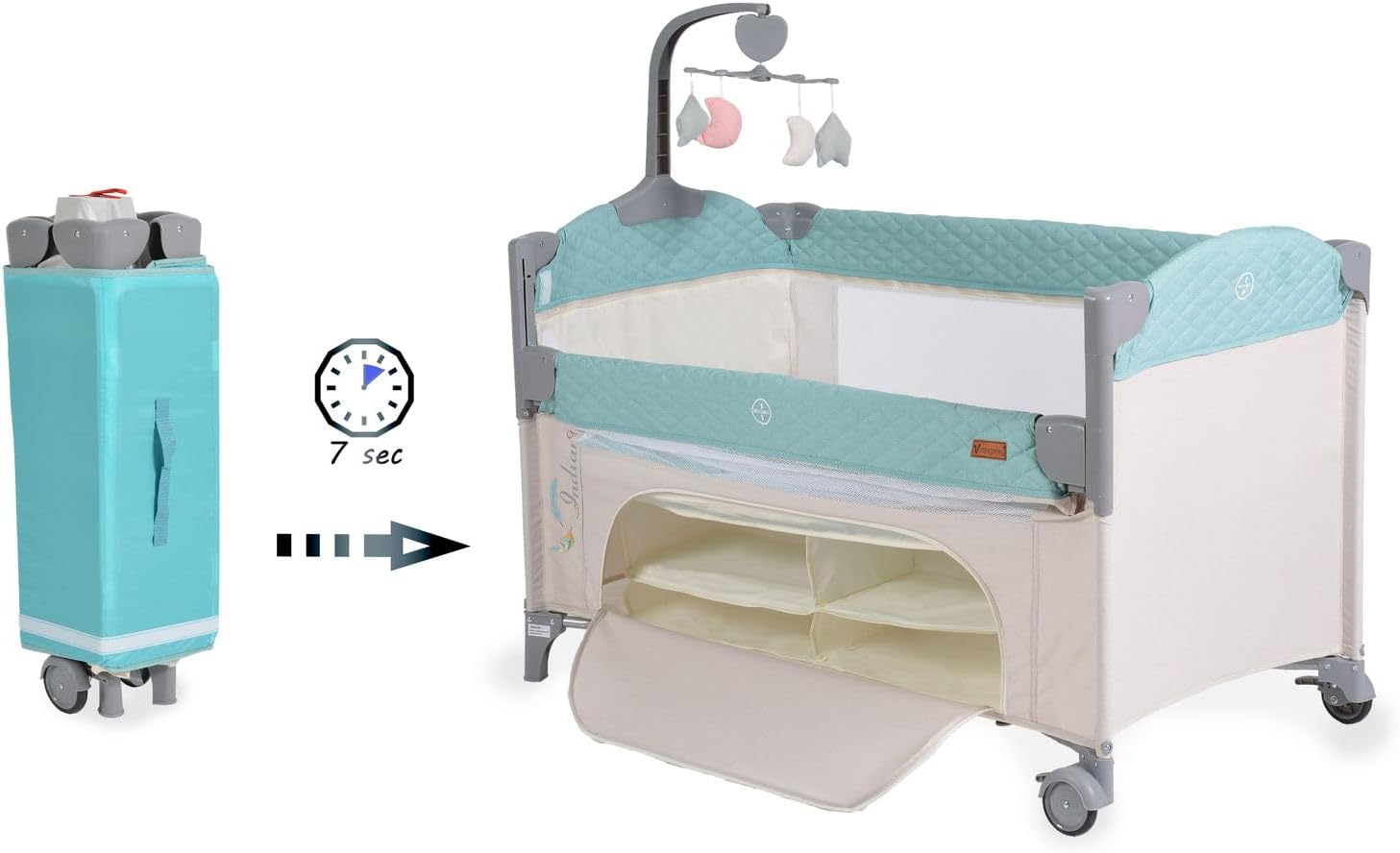

Image 3.1: Visual representation of the playpen unfolding from its compact state.
3.2 Installing the Second Level (Bassinet):
For newborns and infants up to 6 months (max 14 kg), the second level provides a higher sleeping surface.
- Ensure the playpen is fully unfolded and locked.
- Unzip the second level fabric from its storage.
- Attach the second level fabric to the designated clips or hooks around the top perimeter of the playpen. Ensure it is securely fastened on all sides.
- Place the soft mattress onto the second level.
3.3 Attaching Accessories:
- Changing Bag: Hook the changing bag onto the side of the playpen using its straps.
- Musical Play Arch: Insert the musical play arch into the designated slots on the top rails of the playpen. Ensure it is stable and secure.
Image 3.2: Playpen with changing bag and musical arch in place, illustrating the lower storage compartment.
4. Operasyon Enstriksyon
4.1 Using the Two Levels:
- Upper Level (Bassinet): For infants from birth up to 6 months or until they can push up on their hands and knees. This level provides easy access to your baby.
- Lower Level (Playard): For children from 6 to 36 months. Once your child can sit up or pull themselves up, remove the second level to prevent falls. The lower level offers a secure space for play and sleep.
4.2 Side Zipper Opening:
The side zipper opening allows older children to enter and exit the playpen independently. Ensure the zipper is fully closed when the child is inside and unattended.
Image 4.1: Playpen with the side zipper opening visible, allowing child access.
4.3 Using the Wheels and Brakes:
- To move the playpen, unlock the brakes on the two wheels.
- To secure the playpen in a stationary position, engage the brakes on both wheels. Always ensure brakes are locked when the playpen is in use.
4.4 Disassembly and Storage:
To fold the playpen for storage or transport:
- Remove the mattress, second level, changing bag, and musical arch.
- Pull the center of the base upwards.
- Locate the release buttons on the middle of the long sides and press them while gently pushing the sides downwards. Repeat for the short sides.
- Gather the sides together to fold the playpen compactly.
- Place the folded playpen and accessories into the carry bag.

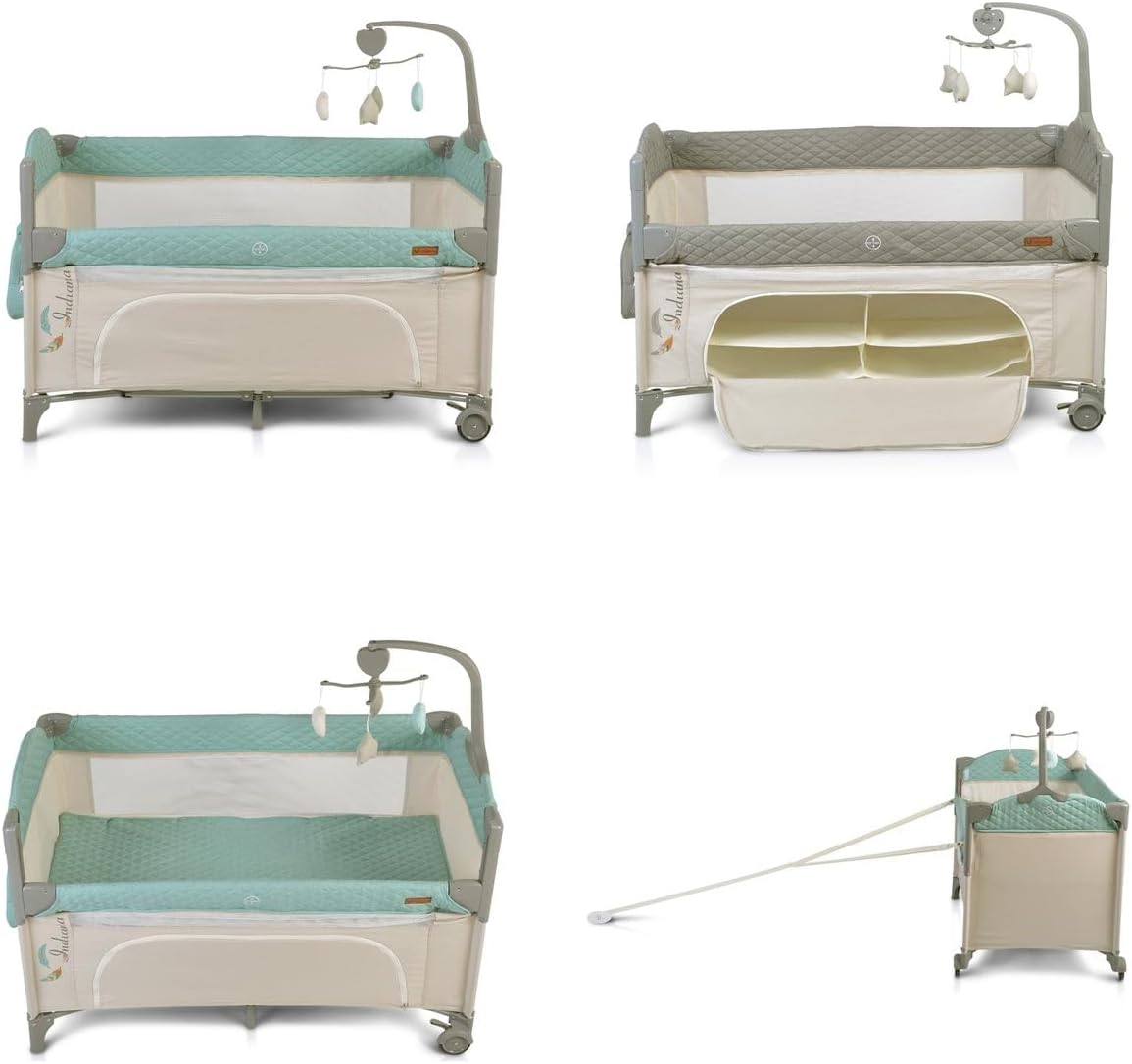

Image 4.2: Various configurations of the playpen, including the upper and lower levels, storage, and folded state.
5. Antretyen
5.1 Netwayaj:
- The fabric components (Polyester) can be spot cleaned with a damp twal ak savon modere.
- Do not use harsh abrasives or bleach.
- Allow all parts to air dry completely before folding or storing.
- The frame can be wiped clean with a damp twal.
5.2 Depo:
When not in use, store the playpen in its carry bag in a dry, cool place, away from direct sunlight and extreme temperatures.
NAN. Depanaj
- Pwoblèm: Playpen sides do not lock into place during setup.
Solisyon: Ensure the center of the base is not pushed down before locking the sides. Pull the sides firmly upwards until they click. If still not locking, lift the center base slightly and try again. - Pwoblèm: Difficulty folding the playpen.
Solisyon: Ensure the mattress and all accessories are removed. Pull the center of the base upwards first. Then, locate and press the release buttons on the side rails while gently pushing them downwards. Do not force the mechanism. - Pwoblèm: Wheels are not locking.
Solisyon: Check for any obstructions around the wheel brake mechanism. Ensure the brake lever is fully engaged.
7. Espesifikasyon
- Nimewo Modèl: 108458
- Materyèl: Polyester
- Dimansyon yon fwa yo fin rasanble (L x W x H): 125 x 63 x 73 cm (49.2 x 24.8 x 28.7 pous)
- Pwa pwodwi: 10.1 kg (22.2 liv)
- Age Recommendation (Second Level): From birth to 6 months (max 14 kg)
- Age Recommendation (First Level): 6 to 36 months (max 14 kg, up to 86.4 cm height)
- Asanble obligatwa: Wi
8. Garanti ak sipò
Specific warranty information for the Cangaroo Indiana Playpen is not available in the provided product data. For warranty details, replacement parts, or further support, please contact Cangaroo customer service directly or refer to the product packaging for contact information.
