Manyèl Itilizatè Pousèt Lionelo Dani

1. Entwodiksyon

Thank you for choosing the Lionelo Dani Stroller. This manual provides essential information for the safe assembly, operation, and maintenance of your stroller. Please read these instructions carefully before use and retain them for future reference.

Enfòmasyon enpòtan sou sekirite

• Always read and follow all instructions before using the stroller.
• Pa janm kite pitit ou a poukont li nan pousèt la.
• Asire ke tout aparèy bloke yo angaje anvan ou itilize yo.
• Pou evite blese, asire w ke pitit ou a rete lwen lè w ap dewoule ak pliye pwodui sa a.
• Pa kite pitit ou a jwe ak pwodui sa a.
• Toujou itilize sistèm kontrent la.
• Tcheke ke kò pou timoun nan oswa inite chèz la oswa aparèy atachman chèz machin yo byen angaje anvan ou itilize.
• Pwodui sa a pa apwopriye pou kouri oswa monte paten.
• The maximum weight capacity for this stroller is 15 kg.
• The stroller is designed for children from birth (0+) up to 15 kg.
• This stroller complies with the European safety standard EN 1888.

2. Pake kontni

Verifye ke tout konpozan yo prezan nan pake a:

• Ankadreman pousèt
• Inite Syèj
• Canopy
• wou devan (2)
• wou dèyè (2)
• Detantè tas
• Kouvèti pye

3. Enstriksyon Asanble

3.1. Depliye ankadreman pousèt la

1. Mete pousèt ki pliye a sou yon sifas plat.
2. Release the folding lock mechanism, usually located on the side of the frame.
3. Lift the handle upwards until the frame fully extends and locks into place. Listen for a click sound to confirm it is securely locked.

3.2. Mete wou yo an plas

1. Wou dèyè: Slide the rear wheels onto the axles until they click into position. Pull gently to ensure they are securely attached.
2. Wou devan: Insert the front wheel assemblies into the designated slots on the front of the frame until they click. Ensure they can swivel freely.

Image: The Lionelo Dani Stroller viewsoti nan bò devan an, montreasing the attached wheels and seat unit.

3.3. Attaching the Seat Unit

1. Align the connectors on the seat unit with the corresponding slots on the stroller frame.
2. Push the seat unit down firmly until it clicks into place.
3. Verify that the seat unit is securely attached by gently pulling upwards.

Imaj: Yon konplè view of the Lionelo Dani Stroller, fully assembled with the seat unit, canopy, and wheels in place.

3.4. Tache Canopy la

1. Slide the canopy attachments onto the designated points on the seat unit frame.
2. Secure any additional fasteners, such as snaps or zippers, to fully attach the canopy.

Imaj: Yon gwo plan view of the stroller's canopy, highlighting the mesh ventilation window for airflow and visibility.

4. Itilizasyon pousèt la

4.1. Seat Reversal

The seat unit can be mounted in either a forward-facing or rear-facing position.

1. To reverse the seat, first ensure the child is removed from the stroller.
2. Locate the release levers or buttons on both sides of the seat unit, near the frame attachment points.
3. Press the levers/buttons and lift the seat unit off the frame.
4. Rotate the seat unit 180 degrees and re-align the connectors with the frame slots.
5. Push down firmly until it clicks into place, ensuring it is securely attached in the new direction.

4.2. Ajisteman Dosye

The backrest can be adjusted to three positions, from upright sitting to a full recline.

1. Locate the adjustment lever or strap mechanism on the back of the seat unit.
2. To recline, press the lever or loosen the strap and gently push the backrest down to the desired position.
3. To raise, lift the backrest upwards until it locks into the desired position.

Image: The Lionelo Dani Stroller shown with its seat unit fully reclined, demonstrating the sleeping position.

4.3. Ajisteman Repoze Pye a

The footrest can be adjusted to three comfortable positions.

1. Locate the buttons or levers on either side of the footrest.
2. Press the buttons/levers and move the footrest to the desired angle.
3. Release the buttons/levers to lock the footrest in place.

4.4. Operasyon Kanopi

The XXL canopy provides protection from sun, wind, and rain, featuring UPF 50+ sun protection and hydrophobic material.

• To extend the canopy, pull it forward.
• To retract, push it backward.
• Some canopies include a mesh window for ventilation and viewing your child.

4.5. Pliye ak Dewoulman

The Dani stroller features an easy compact folding system.

1. Pliye: Ensure the seat is in an upright position and the canopy is retracted. Locate the folding mechanism (often a button and lever on the handle or frame). Engage the mechanism and push the handle forward/downward until the stroller folds compactly. Secure with the automatic folding lock if present.
2. Dewoulman: Release the folding lock and lift the handle until the frame clicks into its open position.

Image: The Lionelo Dani Stroller shown in its compact folded state, ideal for storage or transport.

4.6. Ajisteman manch lan

The handle can be adjusted to three different heights for comfortable pushing.

1. Jwenn bouton ajisteman yo sou chak bò manch lan.
2. Press the buttons simultaneously and move the handle to the desired height.
3. Lage bouton yo pou bloke manch lan an plas.

Imaj: Yon bò view of the Lionelo Dani Stroller, illustrating the handle extended to a higher position.

4.7. Sistèm ekipay

The 5-point harness system ensures your child's safety.

1. Mete pitit ou a nan chèz la.
2. Mete senti zepòl yo sou zepòl pitit ou a epi senti ren yo sou ranch li.
3. Insert the buckle tongues into the central buckle until they click.
4. Adjust the straps to ensure a snug, secure fit without being too tight.
5. Pou lage l, peze bouton ki sou bouk santral la.

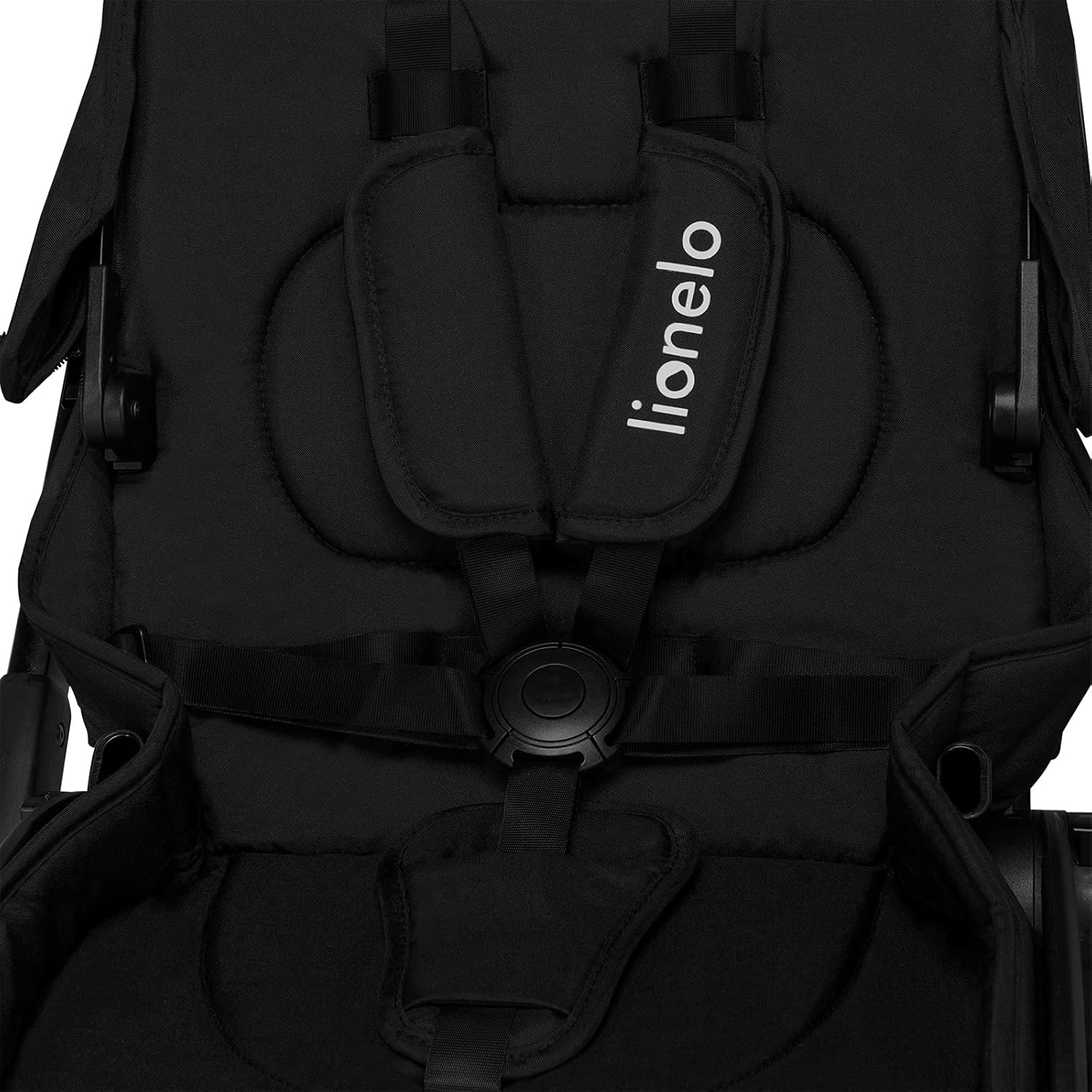

Imaj: Yon imaj detaye view of the stroller's seat, focusing on the 5-point safety harness and its central buckle.

4.8. Wheel and Brake System

The stroller features EVA wheels with double shock absorption and a single-leg brake.

• Fren: To engage the brake, press down on the brake pedal located near the rear wheels. To release, lift the pedal upwards. Always engage the brake when the stroller is stationary.
• Blokaj wou devan: The front wheels can swivel for maneuverability or be locked for stability on uneven terrain. Locate the locking mechanism above each front wheel. Push down to lock, pull up to unlock.

Imaj: Yon gwo plan view of the stroller's wheels and the foot-operated brake pedal located between the rear wheels.

4.9. Pwodwi pou Telefòn

• Detantè tas: Attach the cup holder to the designated slot on the handle or frame.
• Foot Cover: Attach the foot cover to the seat unit to provide warmth for your child in colder weather.

5. Antretyen ak Swen

5.1. Netwayaj

• Pati twal: Netwaye ak anonsamp cloth and mild soap. Do not use harsh detergents or bleach. Allow to air dry completely. The fabric is 100% polyester.
• Ankadreman: Siye ankadreman aliminyòm lan ak piblisiteamp cloth. Dry thoroughly to prevent corrosion.
• Wou: Regularly clean the EVA wheels to remove dirt and debris. Check for any foreign objects that might impede movement.

5.2. Depo

• Sere pousèt la nan yon kote ki pwòp epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.
• Asire w pousèt la byen sèk anvan ou sere l pou anpeche mwazi oswa kanni.
• When storing for extended periods, it is recommended to cover the stroller to protect it from dust.

NAN. Depanaj

If you encounter any issues with your Lionelo Dani Stroller, please refer to the following common problems and solutions:

• Problem: Wheels are difficult to attach or detach, or fall off during use.
  Solisyon: Ensure the wheels are correctly aligned with the axles/slots and pushed firmly until a distinct click is heard, indicating they are securely locked. Check for any debris in the wheel mechanism.
• Problem: Stroller does not fold or unfold smoothly.
  Solisyon: Ensure the seat is in an upright position and the canopy is fully retracted. Check for any obstructions (e.g., fabric, accessories) in the folding mechanism. Apply gentle, even pressure when folding/unfolding.
• Problem: Seat backrest or footrest does not adjust.
  Solisyon: Check that the adjustment levers or buttons are fully engaged. Ensure no fabric or other items are obstructing the mechanism.
• Problem: Brake is not engaging or releasing byen.
  Solisyon: Check for any debris around the brake pedal or wheel mechanism. Ensure the brake pedal is fully pressed down or lifted up.

7. Espesifikasyon teknik

8. Garanti ak sipò

The Lionelo Dani Stroller has undergone multi-stage verification and testing in an independent certification laboratory, Intertek, ensuring full compliance with the European safety standard EN 1888.

For warranty information, specific product support, or to report any issues not covered in this manual, please contact Lionelo customer service or your retailer. Please have your model number (PO2020/793) and purchase details available when contacting support.
