Gateman Digital Door Lock Instruction Manual

1. Entwodiksyon

Thank you for choosing the Gateman Digital Door Lock. This manual provides essential information for the safe and efficient operation of your WNR-IS110 or WNR-IS120 digital door lock. Please read this manual thoroughly before installation and use, and keep it for future reference.

The Gateman WNR-IS110 and WNR-IS120 models offer advanced security features and convenient access methods. The WNR-IS110 primarily uses password authentication, while the WNR-IS120 supports both password and card key authentication.

2. Enfòmasyon sou Sekirite

Pou asire yon operasyon an sekirite epi pou anpeche domaj, tanpri obsève prekosyon sekirite sa yo:

• Do not disassemble, repair, or modify the lock yourself. This may void the warranty and cause malfunction.
• Keep the lock away from water and excessive moisture.
• Avoid exposing the lock to direct sunlight or extreme temperatures for prolonged periods.
• Sèvi ak sèlman kalite pil ki espesifye a epi asire polarite ki kòrèk la pandan enstalasyon an.
• Do not use abrasive cleaners or solvents on the lock's surface.
• Ensure all components are securely fastened during installation to prevent accidental detachment.

3. Pake kontni

Tanpri verifye ke tout konpozan yo prezan nan pake a:

• Gateman Digital Door Lock Unit (Exterior and Interior)
• Sou entènèt jwèt Mortise Lock Kò
• Plak grèv
• Materyèl pou monte (vis, aks, elatriye)
• Manyèl itilizatè
• Card Keys (for WNR-IS120 model only)
• Emergency Keys (if applicable)

If any items are missing or damaged, please contact your retailer or Gateman customer support.

4. Enstalasyon ak Enstalasyon

Professional installation is recommended for optimal performance and security. Ensure the door is prepared according to the provided template (not included in this manual, refer to physical template). This section provides a general overview.

4.1 Preparasyon Pòt

1. Measure door thickness to ensure compatibility (typically 35-50mm).
2. Drill necessary holes for the mortise lock, spindle, and mounting posts according to the installation template.

4.2 Enstalasyon Kadna Mortise

1. Insert the mortise lock body into the prepared mortise pocket on the door edge.
2. Secure the mortise lock with screws.

4.3 Exterior Unit Installation

1. Pass the data cable and spindle through the door from the exterior side.
2. Align the exterior unit with the drilled holes and secure it temporarily.

4.4 Interior Unit Installation

1. Connect the data cable from the exterior unit to the interior unit.
2. Attach the interior mounting plate to the door, ensuring the spindle engages with the mortise lock.
3. Mount the interior unit onto the mounting plate and secure it with screws.

4.5 Enstalasyon batri

1. Louvri kouvèti batri a sou inite enteryè a.
2. Insert the required number of AA alkaline batteries, observing polarity.
3. Close the battery cover. The lock should emit a sound indicating power-on.

4.6 Strike Plate Installation

1. Align the strike plate with the mortise lock bolt on the door frame.
2. Secure the strike plate with screws.

5. Operasyon Enstriksyon

This section details the various methods for operating your Gateman Digital Door Lock.

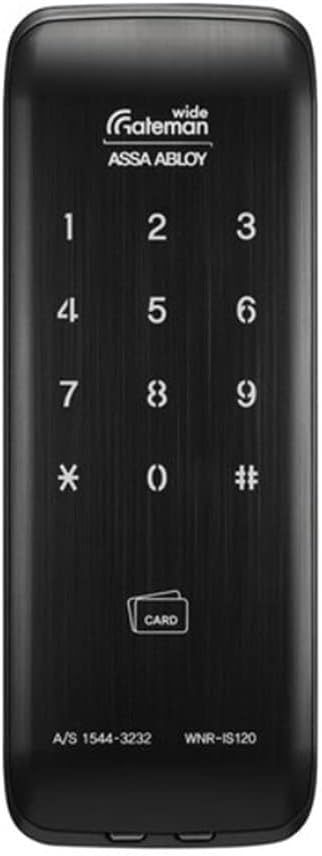

Figi 5.1: Devan view of the Gateman WNR-IS120 Digital Door Lock, showing the numeric keypad (1-9, *, 0, #) and the 'CARD' icon for card key authentication. The model number WNR-IS120 is visible at the bottom right.

5.1 Initial Setup and Master Password Registration

Upon first power-up, you will need to register a master password. This password is used for managing other settings and user access.

1. Louvri kouvèti batri a sou inite enteryè a.
2. Peze a [Enskripsyon] button (usually located near the battery compartment).
3. On the exterior keypad, enter your desired 4 to 10 digit master password.
4. Peze a [#] bouton pou konfime.
5. The lock will emit a confirmation sound.

Note: Keep your master password confidential.

5.2 Opening the Door (Password)

To unlock the door using a password:

1. Touche klavye a pou aktive li.
2. Enter your registered password (4 to 10 digits).
3. Peze a [#] bouton.
4. The lock will unlock. Turn the handle to open the door.

Tip: Use the "Relief Imaginary Function" by entering random numbers before or after your actual password to prevent exposure. For example, if your password is 1234, you can enter 567123489#.

5.3 Opening the Door (Card Key - WNR-IS120 only)

To unlock the door using a registered card key:

1. Place your registered card key on the card reader area (indicated by the 'CARD' icon).
2. The lock will unlock. Turn the handle to open the door.

5.3.1 Registering Card Keys

1. Louvri kouvèti batri a sou inite enteryè a.
2. Peze a [Enskripsyon] bouton.
3. Place each card key you wish to register on the card reader area. The lock will beep for each successful registration.
4. Peze a [Enskripsyon] button again to exit registration mode.

5.3.2 Deleting Lost Card Keys

If a card key is lost, you can delete it by re-registering all remaining valid card keys. The lost key will automatically be removed from the system.

1. Louvri kouvèti batri a sou inite enteryè a.
2. Peze a [Enskripsyon] bouton.
3. Kote TOUT remaining valid card keys on the card reader area, one by one.
4. Peze a [Enskripsyon] button again to exit registration mode.

5.4 Fèmen pòt la

5.4.1 Fèmen Otomatik

The lock is set to automatically lock after the door is closed. Ensure this feature is enabled in settings (refer to advanced settings in the full manual if available).

5.4.2 Manual Locking (Exterior)

To manually lock from the exterior, simply touch the keypad or press the [#] button after closing the door.

5.4.3 Manual Locking (Interior)

To manually lock from the interior, press the [Fèmen] button or turn the thumb-turn (if applicable).

5.5 Forced Locking Function

5.5.1 Internal Forced Locking (Privacy Mode)

When activated, this function prevents the lock from being opened from the exterior using passwords or card keys. Ideal for when all family members are home.

• From the interior, press and hold the [Internal Forced Lock] button (or equivalent) for 3 seconds.
• The lock will confirm activation.
• To deactivate, simply open the door from the inside or deactivate via the interior unit.

5.5.2 External Forced Locking (Security Mode)

When activated, this function triggers an intrusion warning sound if the door is opened from the inside. Useful when leaving for extended periods (holidays, vacation).

• From the exterior, after closing the door, press and hold the [External Forced Lock] button (or equivalent) for 3 seconds.
• The lock will confirm activation.
• To deactivate, unlock the door normally from the exterior using a valid password or card key.

6. Antretyen

6.1 Netwayaj

• Siye sifas kadna a ak yon twal mou epi sèk.
• Do not use water, alcohol, or chemical cleaners, as they may damage the surface or internal components.
• The "Secure Palm Touch" feature helps minimize fingerprint residue on the keypad.

6.2 Ranplasman batri

The lock will provide a low battery warning (audible alarm or indicator light) when batteries need replacement. Replace all batteries simultaneously with new ones of the same type.

• Louvri kouvèti batri a sou inite enteryè a.
• Retire tout vye pil.
• Mete nouvo pil alkalin AA yo, asire polarite ki kòrèk la (+/-).
• Fèmen kouvèti batri a.

Note: If batteries are completely depleted, you may use a 9V battery for emergency power on the exterior unit (contact points usually located at the bottom of the exterior unit) to enter your password and open the door.

NAN. Depanaj

Si pwoblèm nan pèsiste apre ou fin eseye solisyon sa yo, tanpri kontakte sèvis kliyan.

8. Espesifikasyon

9. Garanti ak sipò

Gateman products are designed for durability and reliability. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Gateman websit.

Sipò pou Kliyan

If you encounter any issues or have questions regarding your Gateman Digital Door Lock, please contact customer support. When contacting support, please have your model number (WNR-IS110 or WNR-IS120) and purchase information ready.

Enfòmasyon pou kontakte (Egzanpample - please refer to product packaging for official contact details):

• Telefòn: A/S 1544-3232
• Websit: www.gateman.co.kr
• Imèl: Refere bay ofisyèl la websit pou fòm kontak oswa adrès imel.

For protection plans, consider options available at the time of purchase, such as 3-Year or 4-Year Protection Plans.
