Aries Fuel Filter Bowl Assembly (Part No. 32/925708) User Manual

1. Entwodiksyon

This manual provides essential information for the proper installation, operation, and maintenance of the Aries Fuel Filter Bowl Assembly, Part No. 32/925708. This component is designed for use in various JCB backhoe models. It is crucial to verify compatibility with your specific machine's parts manual before installation.

For any uncertainties regarding compatibility, please consult your machine's serial number (VIN) with a qualified technician or supplier.

2. Pwodwi souview

The Fuel Filter Bowl Assembly is a critical component in the fuel system, designed to house the fuel filter element and separate water or contaminants from the fuel before it reaches the engine. This ensures clean fuel delivery, protecting engine components and maintaining optimal performance.

Figi 2.1: Devan view of the Aries Fuel Filter Bowl Assembly. This image shows the transparent yellow bowl, black threaded cap, and the outlet pipe.

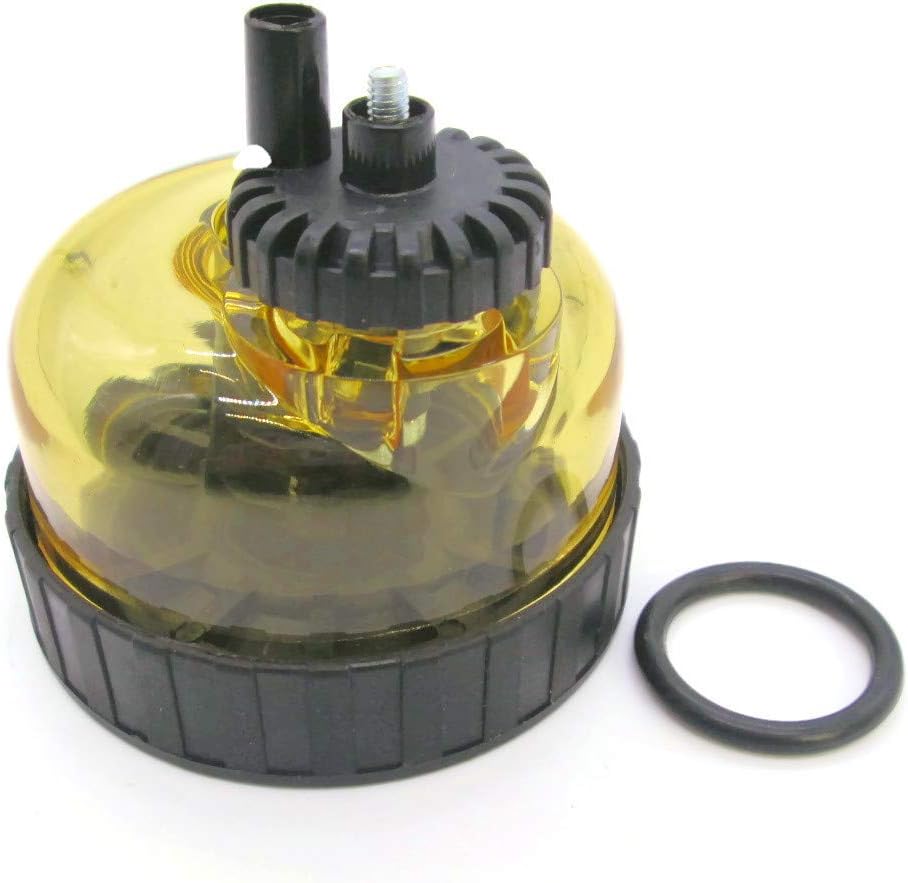

Figure 2.2: The Fuel Filter Bowl Assembly displayed with its accompanying O-ring, essential for a proper seal during installation.

Karakteristik kle:

• Designed for JCB backhoe applications.
• Ensures filtration of fuel to protect engine.
• Constructed to meet OEM standards.

3. Enstalasyon ak Enstalasyon

Proper installation is crucial for the effective operation of the fuel filter bowl assembly. Always refer to your specific JCB machine's service manual for detailed, model-specific installation procedures. The following steps are general guidelines:

1. Sekirite Premye: Ensure the machine is turned off, cooled down, and depressurized. Disconnect the battery to prevent accidental starting.
2. Vide gaz la: If replacing an existing bowl, drain any fuel from the old filter housing into an approved container.
3. Retire ansyen asanble a: Carefully detach the old fuel filter bowl assembly, noting the orientation of all components and connections.
4. Enspekte eleman yo: Before installing the new assembly, inspect all mating surfaces for cleanliness and damage. Ensure the new O-ring (if supplied) is correctly seated.
5. Enstale Nouvo Asanble a: Position the new Aries Fuel Filter Bowl Assembly (Part No. 32/925708) according to your machine's manual. Hand-tighten first, then use appropriate tools to secure it to the specified torque. Pa twò sere.
6. Rekonekte liy gaz yo: Reattach all fuel lines securely.
7. Senyen lè a: Follow your machine's manual to bleed air from the fuel system after installation. This is critical for proper engine starting and operation.
8. Tcheke pou fwit: After bleeding and before operating the machine under load, start the engine and carefully check for any fuel leaks around the new assembly.

Figi 3.1: Anba view of the fuel filter bowl assembly, showing the threaded connection point for mounting.

4. Operasyon

The fuel filter bowl assembly operates passively as part of the fuel system. Its primary function is to separate water and sediment from the fuel. Regular monitoring of the fuel system, including the filter bowl, is part of standard machine operation.

Konsiderasyon enpòtan:

• Enspeksyon vizyèl: Periodically inspect the transparent bowl for accumulated water or contaminants.
• Dlo drenaj: If water is visible, follow your machine's manual for the procedure to drain water from the fuel filter bowl. This typically involves opening a drain valve at the bottom of the bowl.
• Kalite gaz: Always use clean, high-quality fuel to minimize contamination and extend the life of the filter and bowl.

5. Antretyen

Regular maintenance of the fuel filter bowl assembly is essential for the longevity and performance of your JCB machine. Refer to your machine's maintenance schedule for specific intervals.

1. Ranplasman Eleman Filtè: The fuel filter element housed within this bowl should be replaced at recommended intervals. Consult your machine's service manual for the correct filter type and replacement procedure.
2. Netwayaj bòl: When replacing the filter element, it is good practice to thoroughly clean the fuel filter bowl. Remove any sediment or debris.
3. Enspeksyon sele: Always inspect the O-rings and seals for cracks, wear, or damage during maintenance. Replace them if necessary to prevent leaks.
4. Sere: Ensure all connections are properly tightened after maintenance, but avoid overtightening which can damage components.

Figi 5.1: Top view of the fuel filter bowl assembly, showing the inlet/outlet ports and the central bolt for securing the filter element.

NAN. Depanaj

This section addresses common issues related to the fuel filter bowl assembly. For complex problems, consult a qualified technician.

• Fwit gaz:
  • Kòz: Improperly tightened connections, damaged O-ring, cracked bowl.
  • Solisyon: Check tightness of connections. Inspect and replace O-rings if worn or damaged. If the bowl is cracked, it must be replaced.
• Engine Performance Issues (e.g., loss of power, rough running):
  • Kòz: Clogged fuel filter element, water in fuel.
  • Solisyon: Replace the fuel filter element. Drain water from the fuel filter bowl. Ensure fuel quality.
• Difikilte pou kòmanse:
  • Kòz: Air in the fuel system after filter replacement, severely clogged filter.
  • Solisyon: Bleed the fuel system according to your machine's manual. Replace the fuel filter element if severely clogged.

7. Espesifikasyon

8. Enfòmasyon sou Garanti

Specific warranty details for the Aries Fuel Filter Bowl Assembly (Part No. 32/925708) are provided by the manufacturer, Kabal Parts, or your point of purchase. Please retain your proof of purchase for any warranty claims.

For detailed warranty terms and conditions, please contact the seller or manufacturer directly.

9. Sipò pou Kliyan

For technical assistance, installation guidance, or troubleshooting beyond the scope of this manual, please contact your authorized Aries dealer or the supplier from whom the product was purchased.

Lè w ap kontakte sipò a, tanpri gen enfòmasyon sa yo pare:

• Product Part Number: 32/925708
• Your JCB Machine Serial Number (VIN)
• Dat Achte
• Deskripsyon detaye sou pwoblèm nan
