PINEWORLD S2-T Bluetooth Smart Door Lock

1. Entwodiksyon

This manual provides detailed instructions for the installation, operation, and maintenance of your PINEWORLD S2-T Bluetooth Smart Door Lock. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

2. Enfòmasyon sou Sekirite

• Pa eseye demonte oswa repare kadna a tèt ou. Kontakte pèsonèl kalifye pou sèvis.
• Use only specified batteries (4x AAA, not included). Do not mix old and new batteries or different types of batteries.
• Ensure the lock is installed correctly according to the instructions to prevent malfunction.
• Kenbe kle mekanik yo nan yon kote ki an sekirite deyò pwopriyete a.
• Protect your passwords and fingerprints from unauthorized access.

3. Pwodwi souview

The PINEWORLD S2-T Smart Door Lock integrates multiple unlocking methods and smart features for enhanced security and convenience.

Figure 3.1: Lock Components
This diagram illustrates the main components of the PINEWORLD S2-T Smart Door Lock. Key features include the USB emergency charging port, traditional keyhole, fingerprint collector for biometric access, an LCD keypad for password entry, and the battery cover requiring 4x AAA batteries (not included).

4. Karakteristik

• Plizyè metòd debloke: Fingerprint, TUYA Bluetooth App, Password, and Mechanical Keys.
• Rekonesans rapid anprent dwèt: 360-degree fingerprint reading for unlocking within 0.3 seconds.
• Sekirite segondè: Semiconductor fingerprint recognition, virtual password function, and high-strength aluminum alloy construction.
• Pouvwa ijans: USB charging port for emergency power supply.
• TUYA Bluetooth App Control: User management, password management, message management, security alarm, and built-in doorbell.
• Enstalasyon fasil: Designed for easy replacement of existing knobs without wiring or drilling.
• Kapasite itilizatè: Supports administrator and up to 100 user settings.

5. Espesifikasyon

6. Enstalasyon ak Enstalasyon

The PINEWORLD S2-T lock is designed for straightforward installation, replacing most standard single-cylinder American door latch locks without requiring complex wiring or drilling.

6.1 Preparasyon Pòt

Asire w pòt ou a satisfè espesifikasyon sa yo:

• Epesè Pòt: Between 1-3/8'' to 2-1/8'' (35mm - 55mm).
• Adjustable Latch: Compatible with backsets of 2-3/8'' (60mm) or 2-1/8'' (70mm).
• Applicable for both left and right-handed doors.

Figi 6.1: Gid Mezi Pòt
This image provides a visual guide for measuring your door's thickness and the latch backset to ensure compatibility with the PINEWORLD S2-T lock. The door thickness should be between 35mm and 55mm, and the latch can be adjusted for 60mm or 70mm backsets.

6.2 Enstalasyon batri

The lock requires 4x AAA batteries (not included). Open the battery cover as shown in the product overview and insert the batteries, ensuring correct polarity. Close the cover securely.

6.3 Inisyal Enstalasyon

Follow the instructions provided with the lock's packaging for physical installation. Once installed, refer to the operating instructions for initial programming of fingerprints and passwords.

7. Operasyon Enstriksyon

The PINEWORLD S2-T offers multiple convenient ways to unlock your door.

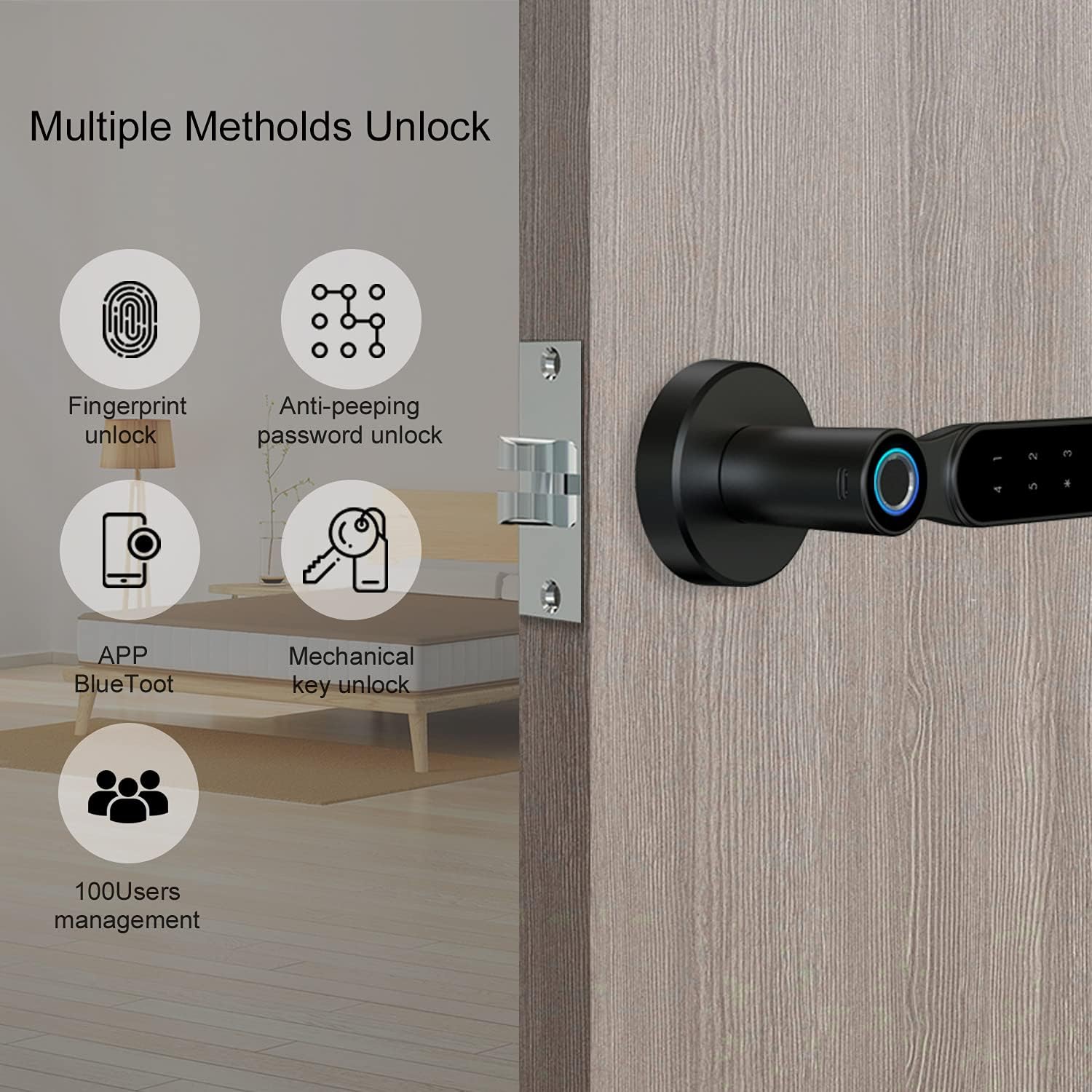

Figi 7.1: Plizyè Metòd Deblokaj
This image highlights the four primary methods for unlocking the PINEWORLD S2-T Smart Door Lock: fingerprint recognition, anti-peeping password entry, control via the TUYA Bluetooth app, and traditional mechanical keys. The system also supports management for up to 100 users.

7.1 Deblokaj anprent dwèt

1. Enroll Fingerprint: Access the lock's programming menu (refer to the quick start guide for specific steps). Follow the prompts to register your fingerprint by placing your finger on the fingerprint collector multiple times from different angles.
2. Debloke: Place your registered finger on the fingerprint collector. The lock will unlock within 0.3 seconds if the fingerprint is recognized.

7.2 Deblokaj Modpas

1. Mete modpas: In the programming menu, set your desired password.
2. Virtual Password Function: To enhance security, you can enter random digits before and after your actual password. For example, si modpas ou se 123456, ou ka antre 012345678. The lock will recognize the embedded correct sequence.

Figure 7.2: Virtual Password Feature
This image illustrates the virtual password function, a security feature that allows users to input random digits before and after their actual password. This method helps prevent others from guessing your password by observing your finger movements on the keypad.

7.3 TUYA Bluetooth App Control

1. Telechaje App: Download the TUYA Smart app from your smartphone's app store.
2. Pair Lock: Follow the in-app instructions to pair your PINEWORLD S2-T lock via Bluetooth.
3. Fonksyon aplikasyon: Use the app for user management (add/delete users), password management (generate temporary passwords), view message logs, activate security alarms, and utilize the built-in doorbell function.

7.4 Deblokaj kle mekanik

In case of electronic failure or depleted batteries, the lock can be opened using the provided mechanical keys. Insert the key into the keyhole and turn to unlock.

7.5 Emergency USB Charging

If the batteries are completely drained, connect a power bank to the emergency USB charging port on the lock's exterior to temporarily power the lock and gain entry using a fingerprint or password.

8. Antretyen

• Ranplasman batri: Replace all four AAA batteries when the low battery indicator appears or if the lock becomes unresponsive. Always use new, high-quality batteries.
• Netwayaj: Siye sifas kadna a avèk yon twal mou epi sèk. Evite itilize pwodui netwayaj abrazif oswa solvan ki ka domaje fini an oswa konpozan elektwonik yo.
• Capteur anprent: Kenbe detèktè anprent lan pwòp epi sèk pou yon pèfòmans optimal.

NAN. Depanaj

• Kadna a pa reponn: Check battery levels. Replace batteries if necessary. Use the emergency USB charging port or mechanical key for immediate access.
• Anprent dwèt pa rekonèt: Asire w dwèt ou pwòp epi sèk. Anrejistre anprent ou ankò si pwoblèm yo pèsiste.
• Modpas la pa fonksyone: Double-check the entered password. Ensure you are pressing '#' after the sequence. Try the virtual password method if applicable.
• Pwoblèm koneksyon aplikasyon an: Ensure Bluetooth is enabled on your smartphone and the lock is within range. Restart the app or re-pair the lock if needed.
• Lock is stuck: Do not force the handle. Use the mechanical key to unlock. If the issue persists, contact customer support.

10. Garanti ak sipò

PINEWORLD ofri yon 30-day free return and exchange policy ak yon one-year warranty service for the S2-T Smart Door Lock. For technical support, warranty claims, or any inquiries, please contact PINEWORLD customer service through the retailer where the product was purchased or visit the official PINEWORLD websit pou enfòmasyon kontak.

11. Applicable Locations

The PINEWORLD S2-T Smart Door Lock is suitable for various indoor environments, providing secure and convenient access.

Figure 11.1: Versatile Application
This image demonstrates the PINEWORLD S2-T Smart Door Lock's suitability for various indoor settings, including residential homes (kitchens, bedrooms) and office environments, highlighting its adaptability for different personal and commercial spaces.
