Orion Motor Tech NEMA 14-50 Level 2 EV Charger User Manual

1. Entwodiksyon

Thank you for choosing the Orion Motor Tech NEMA 14-50 Level 2 EV Charger. This portable electric vehicle charger is designed to provide efficient and reliable charging for your SAE J1772 compatible electric vehicle. It features adjustable current settings (10A, 16A, 20A, 24A, 32A) and a 25-foot cord for convenience. Please read this manual thoroughly before use to ensure proper operation and safety.

2. Enfòmasyon sou Sekirite

Enstriksyon enpòtan pou sekirite:

• Always connect the charger to a properly grounded NEMA 14-50 receptacle.
• Do not use extension cords or adapters with this charger unless explicitly approved by the manufacturer.
• Ensure the charging cable is not damaged, kinked, or run over by vehicles.
• Keep the charging unit and cable away from water, flammable liquids, and extreme temperatures.
• Do not attempt to open, disassemble, or modify the charger. Refer all servicing to qualified personnel.
• Supervise children and pets when the charger is in use.
• Disconnect the charger from the power source and the vehicle before cleaning or maintenance.
• If the charger displays an error or appears damaged, discontinue use immediately and contact customer support.

This charger is designed with multiple protection features including overheating, short circuit, lightning, overcurrent, overloading, voltage extremes, earth leakage, and frequency extremes. However, proper installation and adherence to safety guidelines are paramount.

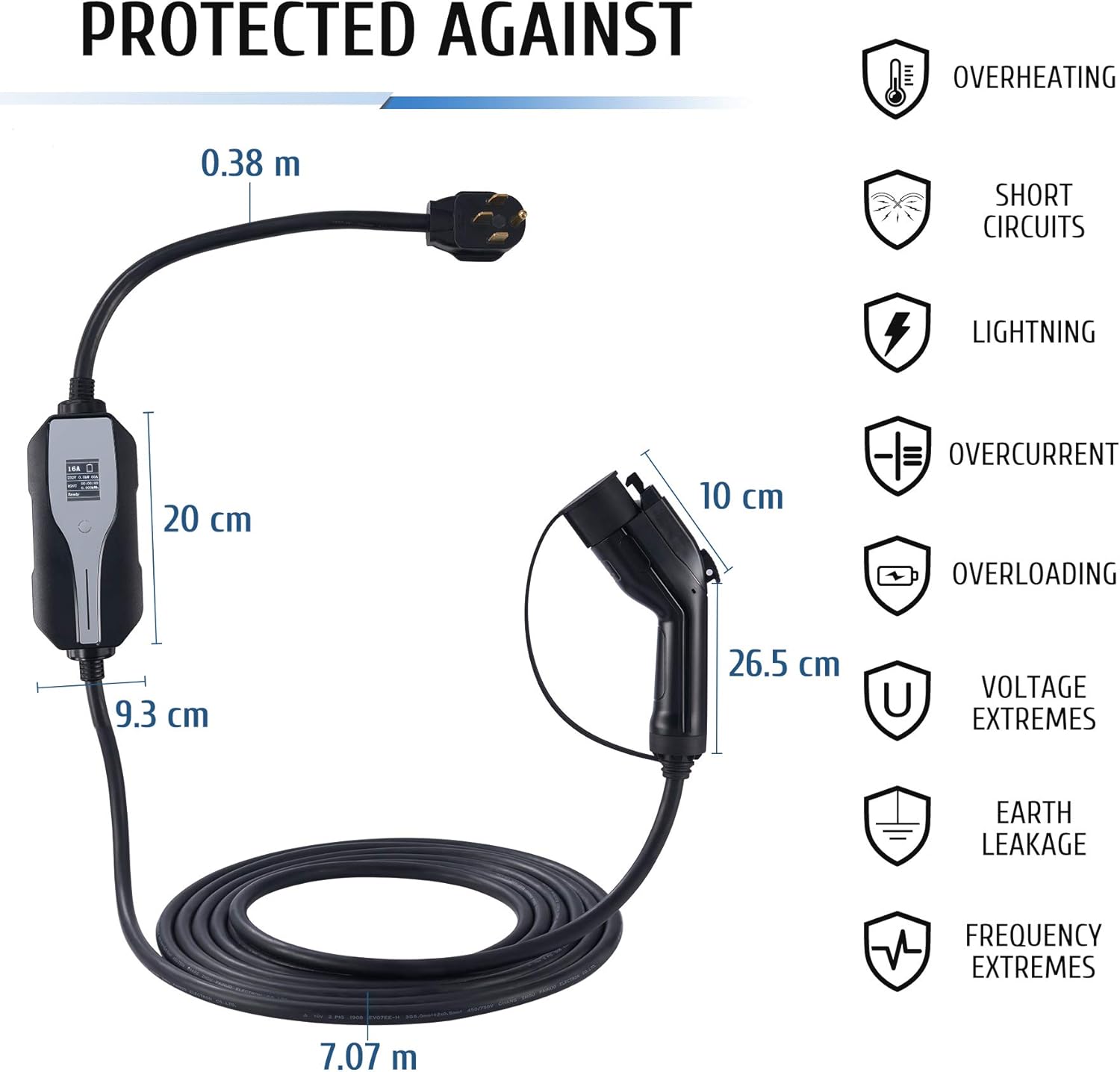

Imaj: This diagram illustrates the physical dimensions of the charger unit and cable, along with a list of its integrated safety protections, including protection against overheating, short circuits, lightning, overcurrent, overloading, voltage extremes, earth leakage, and frequency extremes.

3. Pake kontni

Verifye ke tout atik yo prezan nan pakè a:

• Orion Motor Tech NEMA 14-50 Level 2 EV Charger Unit with 25ft Cable
• SAE J1772 Connector
• NEMA 14-50 Ploge
• Pote sak
• Wall Mount Hook (with screws)
• Manyèl Itilizatè (dokiman sa a)

Imaj: This image displays the complete package contents, including the portable EV charger with its cable and connector, a black carrying bag, a wall mount hook with mounting hardware, and the user manual.

4. Pwodwi souview

The Orion Motor Tech EV Charger consists of a control box, a charging cable, a NEMA 14-50 plug, and an SAE J1772 connector.

4.1 Control Box and Display

Imaj: This image highlights the control box, detailing its LED display, the power and current adjustment button, and internal features such as the intelligent chip and durable ABS shell. Indicators for power, connection, charging, and error are also shown.

The control box features an LED display and a button for power and current adjustment. The display provides real-time information about the charging process.

• Dirije ekspozisyon: Shows current, voltage, power, temperature, charging capacity, and charging time.
• Power & Current Adjustment Button: Used to cycle through available ampanviwònman epòk.
• Limyè endikatè: Separate indicators for power, connection, charging status, and errors.

Imaj: This image emphasizes the smart display and IP67 waterproof rating of the control box, showing it in a wet environment to illustrate its durability against water exposure. The display shows real-time charging status information.

4.2 SAE J1772 Connector

Imaj: Yon detaye view of the SAE J1772 connector, emphasizing its chalcosilver (copper alloy plated with silver) pins, designed for superior electrical conductivity and efficient power transfer to the vehicle.

The SAE J1772 connector is the standard charging port for most electric vehicles in North America. Its pins are constructed from copper alloy and plated with silver for superior conductivity and durability.

4.3 NEMA 14-50 Plug and Cable

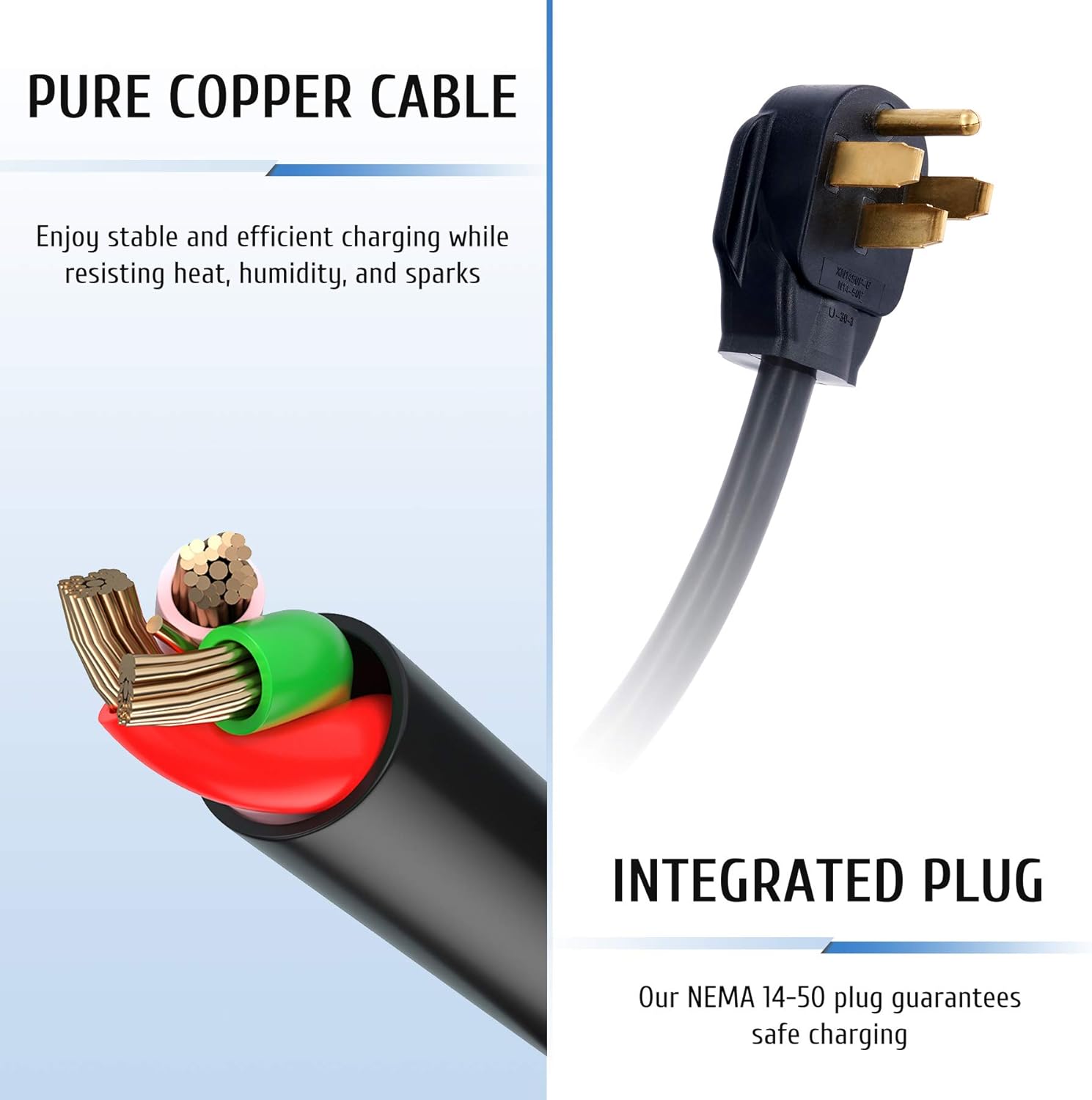

Imaj: This image displays the integrated NEMA 14-50 plug, ensuring a secure connection to the power source. A cross-section of the pure copper cable is also shown, illustrating its robust construction for stable and efficient charging while resisting heat, humidity, and sparks.

The charger is equipped with a NEMA 14-50 plug for connection to a compatible 240V outlet. The cable is made of pure copper, designed for stable and efficient power delivery while resisting heat, humidity, and sparks.

5. Enstalasyon

Before first use, ensure you have a dedicated NEMA 14-50 240V outlet installed by a qualified electrician.

5.1 Enstalasyon sou miray la (opsyonèl)

If desired, use the provided wall mount hook to secure the control box. Choose a location near your NEMA 14-50 outlet that is protected from direct weather exposure and allows the cable to reach your vehicle without tension.

1. Mark the desired position for the wall mount hook.
2. Drill pilot holes appropriate for the provided screws.
3. Secure the wall mount hook to the wall using the screws.
4. Hang the control box on the hook when not in use.

5.2 Konekte sou pouvwa

Plug the NEMA 14-50 plug firmly into a dedicated NEMA 14-50 240V outlet. The control box display should illuminate, indicating power is received.

6. Operasyon Enstriksyon

6.1 Ajiste Kouran Chaje a

Before connecting to your vehicle, you can adjust the charging current. Press the 'Power & Current Adjustment' button on the control box to cycle through the available amperage settings: 10A, 16A, 20A, 24A, and 32A. Select the appropriate current based on your vehicle's requirements and your electrical circuit's capacity. It is recommended to set the current to 80% of your circuit's continuous rating.

6.2 Konekte ak machin ou an

1. Ensure the charger is plugged into the NEMA 14-50 outlet and the desired current is selected.
2. Louvri kouvèti pò chaje machin ou an.
3. Firmly insert the SAE J1772 connector into your vehicle's charging port. You should hear a click, indicating a secure connection.
4. The control box display will show charging status, and the charging indicator light will illuminate.

Imaj: This image demonstrates the process of connecting the SAE J1772 connector to an electric vehicle's charging port, showing a hand holding the connector as it is inserted into the car.

6.3 Siveyans Eta Chaje a

The LED display on the control box provides real-time charging data:

• Kouran (A): Displays the actual charging ampepòk.
• Voltage (V): Montre volim antre atage.
• Pouvwa (kW): Indicates the current charging power.
• Tanperati (°C): Shows the internal temperature of the control box.
• Charging Capacity (kWh): Accumulates the total energy delivered during the current session.
• Tan pou chaje: Displays the duration of the current charging session.

6.4 Disconnecting the Charger

1. Once charging is complete or you wish to stop, first disconnect the SAE J1772 connector from your vehicle's charging port.
2. Then, unplug the NEMA 14-50 plug from the wall outlet.
3. Store the cable neatly in the provided carrying bag or on the wall mount hook.

7. Antretyen

• Netwayaj: Wipe the control box and cable with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the charger is unplugged before cleaning.
• Depo: When not in use, store the charger in a dry, cool place, preferably in its carrying bag, to protect it from dust and damage. Avoid leaving the cable coiled tightly or under heavy objects.
• Enspeksyon: Regularly inspect the cable, plug, and connector for any signs of wear, damage, or corrosion. If any damage is found, discontinue use and contact customer support.

NAN. Depanaj

Si ou rankontre pwoblèm ak plato ou a, gade pwoblèm ak solisyon komen sa yo:

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Orion Motor Tech customer support.

9. Espesifikasyon

Detailed technical specifications for the Orion Motor Tech NEMA 14-50 Level 2 EV Charger:

10. Garanti ak sipò

Orion Motor Tech products are designed for quality and reliability. For warranty information, technical support, or any questions regarding your EV charger, please contact Orion Motor Tech customer service. Keep your purchase receipt for warranty claims.

Vizite la Orion Motor Tech Store pou plis enfòmasyon ak pwodwi yo.
