Green Valley Easy One EVO 03 Pre-assembled Steel Roof Bar Instruction Manual

1. Pwodwi souview

The Green Valley Easy One EVO 03 is a complete steel roof bar system designed for vehicle transport needs. It features pre-assembled feet for straightforward installation, providing a robust and secure platform for carrying various loads on your vehicle's roof.

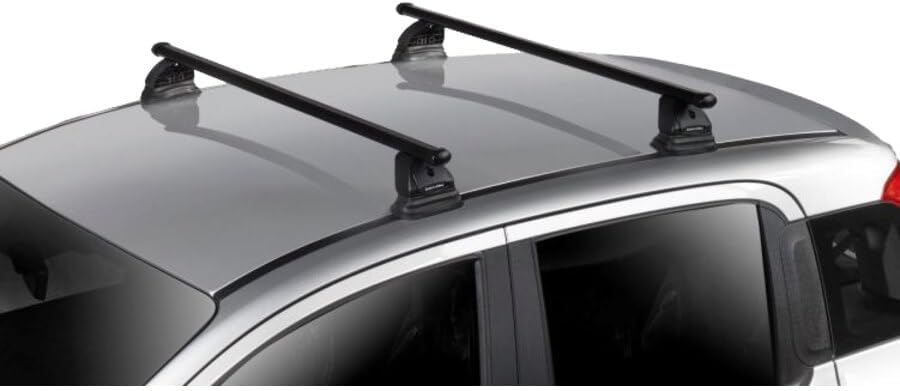

Figure 1: Green Valley Easy One EVO 03 Pre-assembled Steel Roof Bars.

2. Enstriksyon Sekirite

Read all instructions carefully before installation and use. Failure to follow these instructions may result in property damage or personal injury.

• Limit pwa: Do not exceed the maximum load capacity specified by your vehicle manufacturer or the roof bar system, whichever is lower.
• Fixation an sekirite: Ensure all components are securely fastened before driving. Check tightness regularly, especially after the first few kilometers and after driving on rough roads.
• Distribisyon chaj: Distribute the load evenly on the roof bars. Secure items properly to prevent shifting during transit.
• Vitès kondwi: Adjust your driving speed to suit the load and road conditions. Avoid sudden braking or sharp turns.
• Otè clearance: Be aware of the increased vehicle height when entering garages, car washes, or low-clearance areas.
• Antretyen: Regularly inspect the roof bars for wear, damage, or corrosion. Replace any damaged parts immediately.

3. Pake kontni

Verifye ke tout konpozan yo prezan epi yo pa domaje anvan ou kòmanse enstalasyon an.

• 2 x Steel Roof Bars
• 4 x Pre-assembled Feet (with mounting hardware)
• 1 x Manyèl Enstriksyon (dokiman sa a)

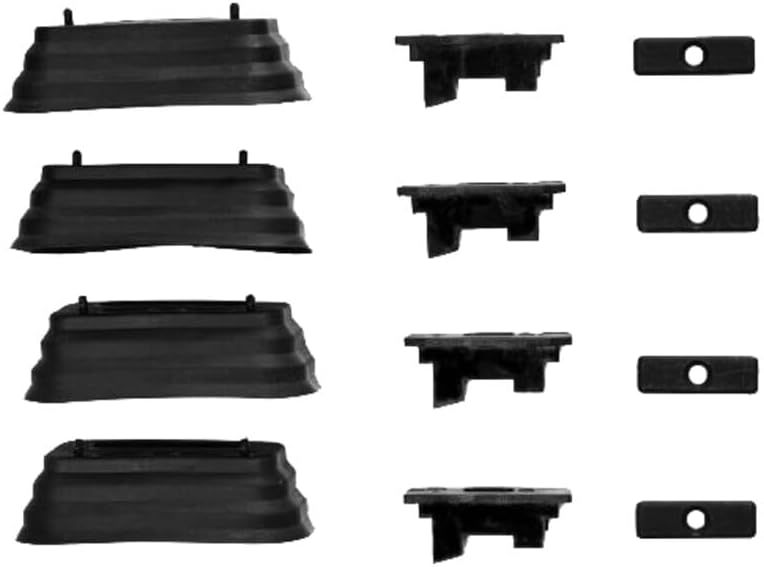

Figure 2: Individual components including feet and mounting hardware.

4. Gid Enstalasyon

The Green Valley Easy One EVO 03 roof bars come with pre-assembled feet for simplified installation. Follow these steps carefully.

1. Prepare machin ou an: Ensure your vehicle's roof is clean and free of debris where the roof bars will be mounted. Identify the designated mounting points on your vehicle's roof (refer to your vehicle's owner's manual if unsure).
2. Position the Feet: Place the pre-assembled feet onto the designated mounting points on your vehicle's roof. Ensure they are correctly oriented and aligned.
3. Mete ba twati yo: Carefully place the steel roof bars onto the feet. The bars should slot securely into the designated channels or mounts on the feet.
4. Fastener sekirite: Using the provided tools (if any) or appropriate wrenches, tighten all fasteners on the feet to secure the roof bars to your vehicle. Tighten evenly on both sides to ensure a balanced and secure fit. Do not overtighten.
5. Tcheke final la: After tightening, gently push and pull on the roof bars to ensure they are firmly attached and do not wobble. Double-check all fasteners for tightness.

Figi 3: Egzample of Green Valley Easy One EVO 03 roof bars correctly installed on a vehicle.

Figi 4: Close-up view of a pre-assembled foot, showing the secure attachment point.

5. Itilizasyon Enstriksyon

Once installed, your Green Valley Easy One EVO 03 roof bars are ready for use. Always adhere to the safety guidelines.

• Chaje: Place items on the roof bars, ensuring even weight distribution. Use appropriate tie-down straps or cargo nets to secure your load.
• Aerodinamik: For optimal fuel efficiency and reduced wind noise, remove the roof bars when not in use, especially for long journeys.
• Tèks regilye: Periodically check the tightness of the roof bar fasteners and the security of your load during long trips.

6. Antretyen ak Swen

Proper maintenance ensures the longevity and safe operation of your roof bars.

• Netwayaj: Clean the roof bars regularly with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish.
• Enspeksyon: Before each use, inspect the bars and feet for any signs of damage, cracks, rust, or loose components.
• Depo: When not in use, store the roof bars in a dry, protected area to prevent corrosion and damage.

NAN. Depanaj

Gade seksyon sa a pou pwoblèm komen ak solisyon yo.

8. Spécifications pwodwi

9. Garanti ak sipò

For warranty information or technical support, please refer to the Green Valley official websit la oubyen kontakte revandè w la. Kenbe prèv acha w la pou reklamasyon garanti a.

Règleman retounen: This product typically comes with a 30-day return policy from the date of purchase, subject to retailer terms and conditions.
