Krups Nescafé Dolce Gusto Piccolo XS Capsule Coffee Machine

1. Entwodiksyon ak souview

The Krups Nescafé Dolce Gusto Piccolo XS is a compact and versatile capsule coffee machine designed for preparing a wide range of hot and cold beverages. Featuring a 15-bar high-pressure pump, it ensures optimal extraction for rich flavors. Its intuitive design and automatic shut-off after one minute of inactivity contribute to ease of use and energy efficiency.

Figi 1: An jeneral view of the Krups Nescafé Dolce Gusto Piccolo XS coffee machine.

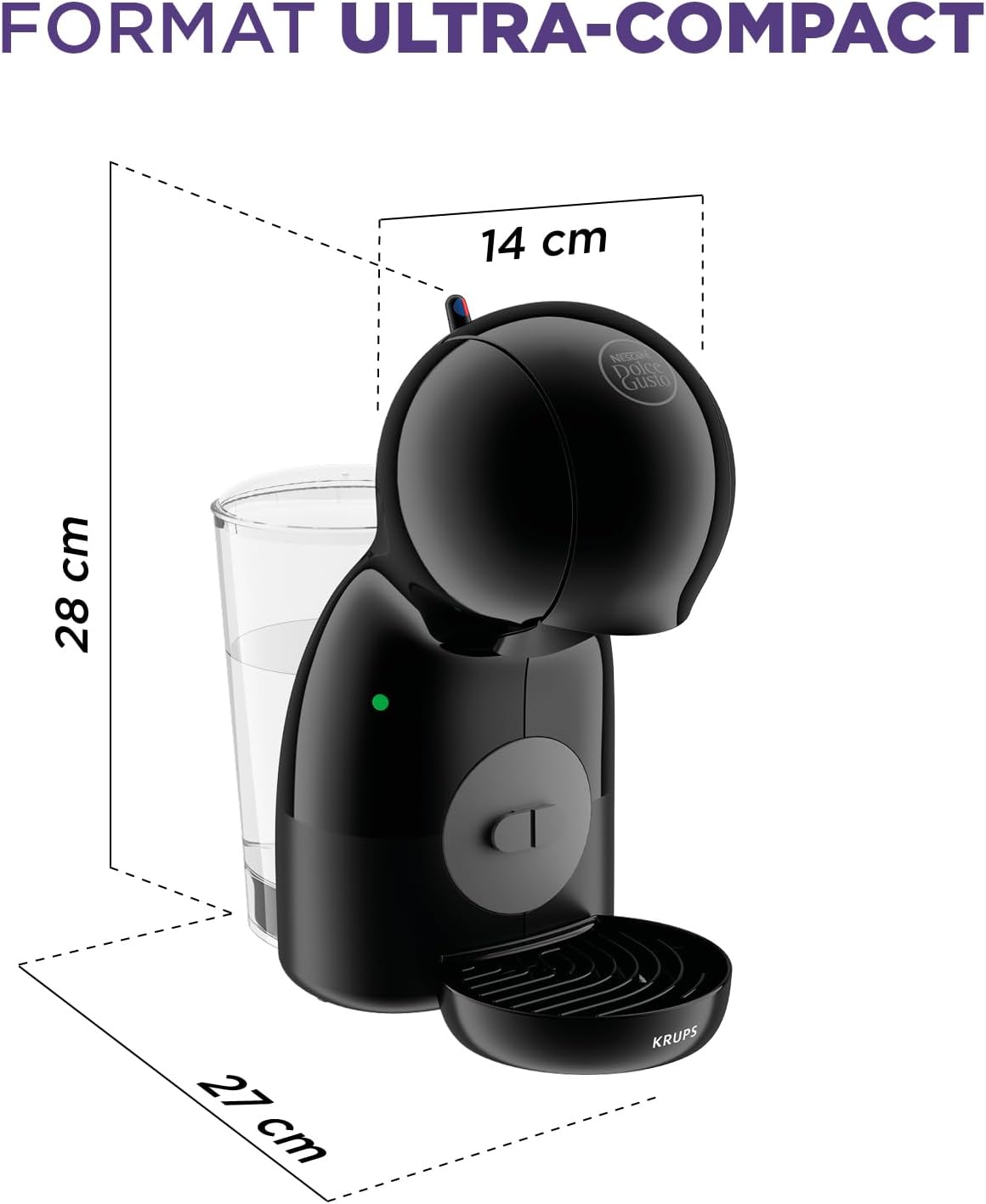

Figure 2: Compact dimensions of the Piccolo XS machine.

Figure 3: The machine supports a wide variety of Nescafé Dolce Gusto beverages.

2. Enstalasyon

1. Debake: Carefully remove all packaging materials from the machine and its components.
2. Rense: Before first use, fill the water tank with fresh, clean water. Run two cycles with water only (no capsule) to clean the internal system.
3. Tank dlo: The removable 0.8-liter water tank is located at the back of the machine. Fill it with fresh, clean water.
4. Koneksyon pouvwa: Ploge machin nan nan yon priz kouran apwopriye.

3. Operasyon Enstriksyon

1. Pouvwa sou: Press the power button. The indicator light will turn green when the machine is ready for use.
2. Mete kapsil la: Lift the locking handle, pull out the capsule holder, insert a Nescafé Dolce Gusto capsule, and push the holder back into place. Lower the locking handle until it clicks.


Figure 4: Inserting a Nescafé Dolce Gusto capsule.

3. Select Beverage Temperature: Use the manual lever to select either hot (red position) or cold (blue position) water, depending on your desired beverage.

Figure 5: Operating the manual lever for hot or cold beverages.
4. EnplikasyonJwi: Move the lever to the desired position (hot or cold). The machine will begin dispensing water through the capsule.
5. Sispann brase: Manually return the lever to the central position to stop the water flow when your cup is filled to the desired level.
6. Ajiste plato degoute a: The drip tray can be adjusted to different heights to accommodate various cup sizes.

4. Antretyen

• Netwayaj eksteryè: Regilyèman siye eksteryè a nan machin nan ak anonsamp, twal mou. Pa sèvi ak pwodui netwayaj abrazif.
• Netwayaj tank dlo: Remove the water tank, wash it with mild detergent, and rinse thoroughly.
• Capsule Holder Cleaning: After each use, remove and rinse the capsule holder under running water.
• Detartraj: Descale the machine every 3-4 months, or as indicated by the machine's behavior (e.g., slower flow, reduced temperature). Use a Nescafé Dolce Gusto descaling kit or a suitable descaling solution. Follow the descaling product instructions carefully.

NAN. Depanaj

• Pa gen koule dlo:
  • Ensure the water tank is filled correctly and properly seated.
  • Verify the capsule is inserted correctly and the locking handle is fully lowered.
  • Check for blockages in the needle (refer to descaling instructions for cleaning).
• Machin pa Limen:
  • Confirm the power cord is securely plugged into both the machine and a working wall outlet.
  • Tcheke switch pouvwa a.
• Kafe a pa cho ase:
  • Pre-heat your cup with hot water before brewing.
  • Ensure the machine has fully heated up (the indicator light should be green).
• Fuite:
  • Check if the water tank is correctly positioned and sealed.
  • Ensure the capsule holder is properly closed and the capsule is not damaged.

6. Espesifikasyon

7. Garanti ak sipò

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in the packaging for specific terms and conditions regarding coverage and duration.

For technical support, spare parts, or further assistance, please contact KRUPS customer service or visit their official website. Contact details can typically be found in the product packaging or on the KRUPS websit.

8. Videyo pwodwi yo

No official product videos were available in the provided product data to embed in this manual.
