Manyèl Itilizatè Repeatè WiFi Aigital N300 la

Pwodwi souview

The Aigital N300 WiFi Repeater is a versatile networking device designed to extend your existing Wi-Fi coverage and enhance signal strength. It supports multiple operating modes including Repeater, Access Point, and Router, making it suitable for various network setups. Equipped with two high-gain external antennas, it aims to eliminate Wi-Fi dead zones and provide stable internet access throughout your home or office.

Figure 1: Aigital N300 WiFi Repeater, showing its compact design and indicator lights.

This device offers a Wi-Fi transmission speed of up to 300Mbps on the 2.4GHz frequency band, ensuring smooth web browsing and streaming. Its universal compatibility allows it to work with all internet boxes and Wi-Fi routers. Additionally, it features LAN/WAN ports for connecting wired devices, providing a more stable network environment for devices like smart TVs, game consoles, and PCs.

Figure 2: The repeater supports 2.4GHz and up to 300Mbps data transfer speeds.

Karakteristik kle

• High-Speed Signal: Achieves Wi-Fi transmission speeds of up to 300Mbps on the 2.4GHz band, ideal for seamless internet use.
• 360° WiFi Coverage: Features 2 high-gain external antennas to effectively penetrate walls and obstacles, minimizing data loss and eliminating Wi-Fi dead zones.


Figure 3: Two high-gain antennas improve signal coverage and stability.

• Enstalasyon fasil: Supports one-button setup via the WPS button or a quick 1-minute configuration through a web browser interface, compatible with iOS and Android mobile platforms.
• Inivèsèl konpatibilite: Works with all standard internet boxes and Wi-Fi routers. Includes LAN/WAN ports for connecting wired devices.
• Mòd operasyon miltip: Configurable as a Repeater, Access Point, or Router to suit different networking needs.

Gid Enstalasyon

1. Pake kontni

Anvan ou kòmanse, asire w ke tout konpozan yo prezan:

• Aigital N300 WiFi Repeater
• Ethernet kab
• Gid Enstalasyon Rapid

2. Limen

Plug the Aigital N300 WiFi Repeater into a standard electrical outlet. Wait for the Power LED indicator to light up, indicating the device is powered on.

Figure 4: The repeater plugged into a power outlet.

3. WPS (Wi-Fi Protected Setup) Configuration

WPS offers a quick and easy way to extend your Wi-Fi network without manual configuration.

1. Plug the Aigital N300 WiFi Repeater into an electrical outlet near your existing router.
2. Press the WPS button on the Aigital Repeater (refer to Figure 6 for location). The WPS LED will start blinking.
3. Within 2 minutes, press the WPS button on your main Wi-Fi router.
4. Wait for the WPS LED on the repeater to become solid, indicating a successful connection. You can now unplug the repeater and move it to a desired location within your router's Wi-Fi range.

Figure 5: Easy setup using the WPS button on both the repeater and your main router.

Figure 6: Location of the WPS button on the Aigital N300 WiFi Repeater.

4. Web Navigasyon konte genyen

If your router does not support WPS, or for more advanced settings, use the web metòd navigatè a.

1. Plug the Aigital N300 WiFi Repeater into an electrical outlet.
2. Connect your computer or mobile device to the repeater's default Wi-Fi network (e.g., "Aigital_XXXX"). No password is required initially.
3. Louvri a web browser (Chrome, Firefox, Safari, etc.) and enter the default IP address or domain name (usually found in the Quick Installation Guide, e.g., http://192.168.10.1 or http://aigitalwifi.com).
4. Follow the on-screen instructions to select your desired operating mode (Repeater, Access Point, or Router) and configure network settings, including Wi-Fi name (SSID) and password.
5. Once configured, the repeater will restart. You can then connect your devices to the new extended Wi-Fi network.

Mòd fonksyònman

The Aigital N300 WiFi Repeater supports three primary operating modes:

1. Mòd Repeater

In Repeater Mode, the device extends the coverage of your existing Wi-Fi network. It receives the wireless signal from your main router and re-transmits it, effectively expanding the range to areas with weak or no signal.

Figure 7: Three-in-one feature diagram, showing Repeater Mode (2).

Figure 8: Visual representation of Repeater Mode in action.

To optimize performance in Repeater Mode, place the device halfway between your router and the area where you need improved Wi-Fi coverage. Ensure the signal strength indicator on the repeater shows a strong or medium signal from your main router.

Figure 9: Signal strength indicators (WLAN LED) on the repeater.

2. Mòd Pwen Aksè (AP)

In AP Mode, the device transforms a wired network connection into a wireless one. Connect the repeater to your router or modem using an Ethernet cable, and it will broadcast a new Wi-Fi network.

Figure 10: Wired LAN cable connection for Access Point mode.

This mode is useful for adding Wi-Fi capability to a wired-only network or for creating a separate Wi-Fi network in a specific area.

3. Mòd Routeur

In Router Mode, the device acts as a primary router, creating a new private wireless network from a modem connection. This is suitable for small homes or offices that need a basic router function.

Connect the modem's Ethernet cable to the WAN/LAN port of the Aigital N300, and it will establish a new Wi-Fi network for your devices.

Konekte aparèy filaire

The Aigital N300 WiFi Repeater is equipped with two Ethernet ports (LAN/WAN) that allow you to connect wired devices directly to your network. This provides a stable and high-speed connection for devices that benefit from a wired link, such as desktop computers, gaming consoles, smart TVs, and network printers.

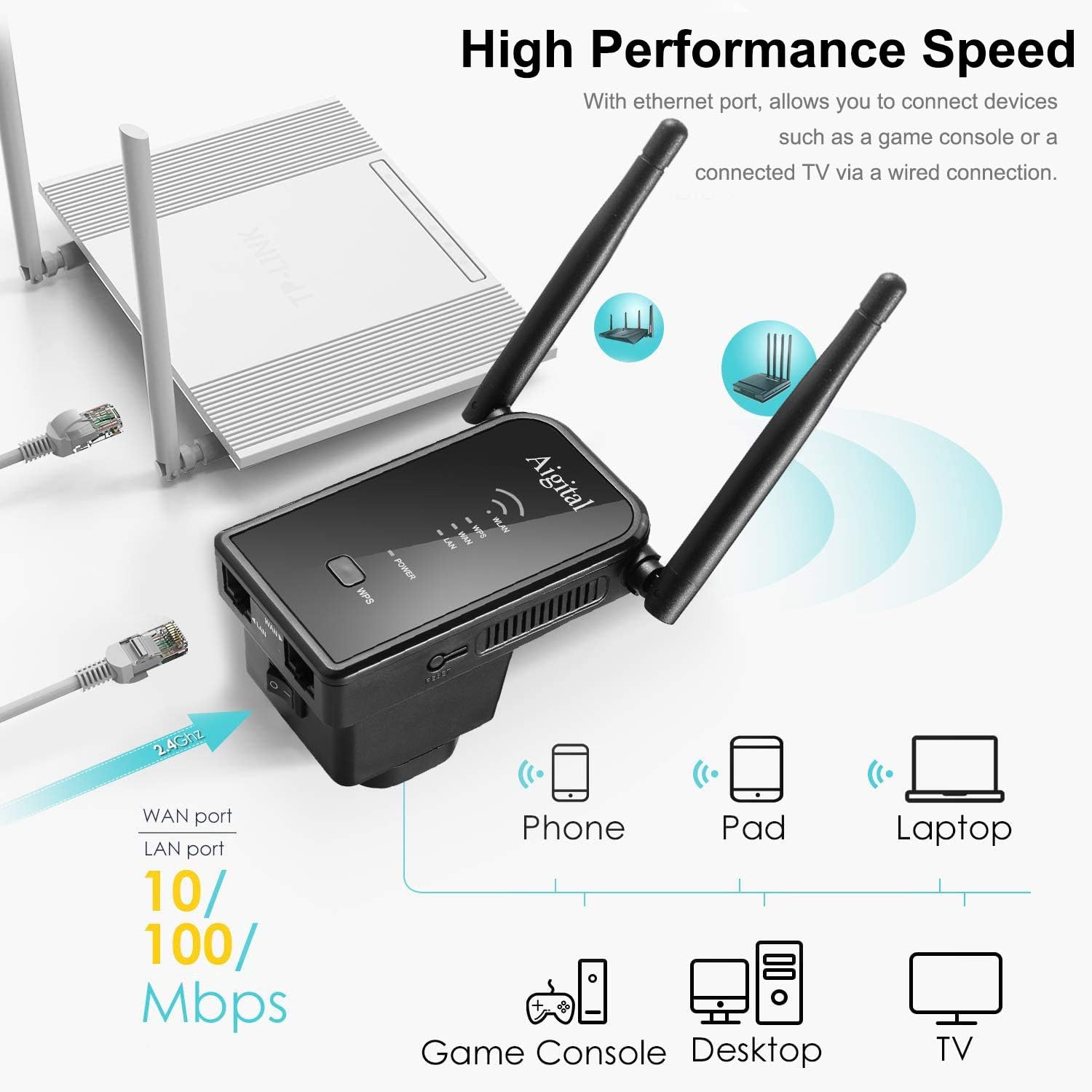

Figure 11: Connecting various devices via Ethernet ports.

Figi 12: Detaye view of LAN/WAN ports and compatible devices.

Antretyen

To ensure optimal performance and longevity of your Aigital N300 WiFi Repeater, follow these maintenance guidelines:

• Plasman: Place the repeater in an open area, away from large metal objects, concrete walls, and other electronic devices that may cause interference.
• Netwayaj: Siye aparèy la dousman avèk yon twal mou epi sèk. Pa sèvi ak pwodui netwayaj likid oswa ayewosòl.
• Vantilasyon: Asire w ke ouvèti vantilasyon yo pa bouche pou anpeche yo chofe twòp.
• Mizajou mikrolojisyèl: Tcheke manifakti a regilyèman websit la pou mizajou firmwèr pou asire pi bon pèfòmans ak sekirite.

Depanaj

If you encounter issues with your Aigital N300 WiFi Repeater, refer to the following common problems and solutions:

If these solutions do not resolve your issue, please contact customer support.

Espesifikasyon

Garanti ak sipò

Aigital provides technical support for its products. According to product features, 24/7 technical support is available.

For warranty information, please refer to the documentation included with your purchase or visit the official Aigital website. Information regarding spare parts availability and software updates is not explicitly provided in the product details.

For further assistance, please contact Aigital customer support through their official channels.
