SALTER Ronda PT-1970 Exercise Bike User Manual

1. Entwodiksyon

Thank you for choosing the SALTER Ronda PT-1970 Exercise Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before use and keep it for future reference.

The SALTER Ronda PT-1970 is designed for home use, offering easy access, making it suitable for seniors or users with reduced mobility. It features a magnetic resistance system for smooth and quiet operation, an adjustable seat and handlebar, and an LCD monitor to track your workout progress.

2. Enfòmasyon sou Sekirite

• Konsilte doktè ou anvan ou kòmanse nenpòt pwogram egzèsis.
• Toujou mete bisiklèt egzèsis la sou yon sifas ki plat epi ki stab.
• Kenbe timoun ak bèt kay lwen ekipman an pandan w ap itilize.
• Asire w ke tout boulon ak nwa yo byen sere anvan chak itilizasyon.
• Mete rad ak soulye egzèsis ki apwopriye.
• Sispann fè egzèsis imedyatman si ou santi ou ap fèb, ou gen vètij, oswa ou gen doulè.
• The maximum user weight for this bike is 130 kg.
• Pa eseye modifye ekipman an.

3. Pake kontni

Carefully unpack the box and ensure all components are present. If any parts are missing or damaged, contact customer support.

• Complete SALTER Ronda PT-1970 Exercise Bike (main frame, handlebars, seat, pedals, bases)
• LCD ki monitè kè bebe
• Monitor Batteries (4 x AAA)
• Assembly Tools (wrenches, Allen keys)
• Manyèl Itilizatè (dokiman sa a)

4. Enstriksyon Asanble

Follow these steps to assemble your SALTER Ronda PT-1970 Exercise Bike. It is recommended to have two people for assembly.

1. Mete baz estabilizatè yo: Secure the front and rear stabilizer bases to the main frame using the provided bolts and washers. Ensure the leveling feet are facing downwards.
2. Enstale pedal: Identify the left (L) and right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Tighten them firmly.
3. Monte tij Syèj la ak Syèj la: Insert the seat post into the main frame and secure it at the desired height using the adjustment knob. Attach the seat to the seat post.
4. Atache poto gidon an ak gidon an: Connect the handlebar post to the main frame. Route any necessary cables through the post. Attach the handlebars to the handlebar post.
5. Enstale monitè LCD a: Connect the sensor cables from the handlebar post to the back of the LCD monitor. Insert the 4 AAA batteries into the monitor. Mount the monitor onto the handlebar post.

Imaj: Konplè view of the SALTER Ronda PT-1970 exercise bike with dimensions indicated (148cm H x 110cm L x 52cm W).

Imaj: Bò gòch view of the assembled SALTER Ronda PT-1970 exercise bike, showing the main components.

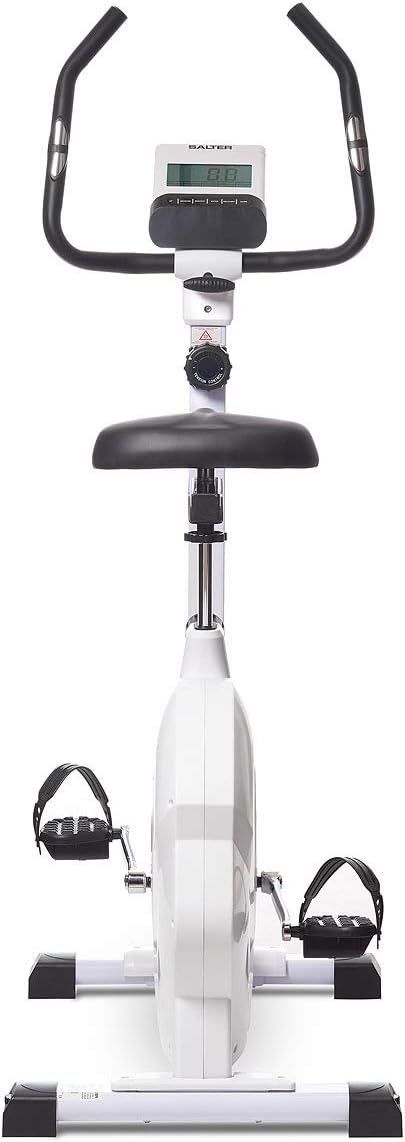

Imaj: Devan view of the SALTER Ronda PT-1970 exercise bike, highlighting the handlebars and LCD monitor.

5. Ajisteman

5.1 Ajisteman chèz

The seat can be adjusted both vertically and horizontally to achieve an optimal and comfortable riding position.

• Ajisteman vètikal: Loosen the vertical adjustment knob located on the seat post. Raise or lower the seat to the desired height. Ensure the seat post is inserted past the minimum insertion mark. Tighten the knob firmly.
• Ajisteman orizontal: Loosen the horizontal adjustment knob located under the seat. Slide the seat forward or backward to your preferred position. Tighten the knob firmly.

Image: Close-up of the seat post and horizontal adjustment mechanism, showing the knob for sliding the seat.

Image: Close-up of the seat height adjustment knob, used to secure the seat at the desired vertical position.

5.2 Ajisteman gidon

The handlebar angle can be adjusted to provide a comfortable grip and varied workout positions.

• Loosen the handlebar adjustment knob located at the base of the handlebars. Adjust the angle of the handlebars to your preference. Tighten the knob firmly to secure the position.

Image: Close-up of the handlebar base, showing the adjustment knob and the tension control dial.

6. Operasyon Enstriksyon

6.1 Kontwòl Rezistans

The SALTER Ronda PT-1970 features 8 levels of magnetic resistance, allowing you to customize your workout intensity.

• Turn the tension control knob, located below the handlebars, clockwise to increase resistance (higher numbers).
• Turn the knob counter-clockwise to decrease resistance (lower numbers).

Image: The tension control knob with resistance levels 1-8 clearly visible.

6.2 Fonksyon Monitè LCD

The easy-to-use LCD monitor provides real-time feedback on your workout:

• TAN: Montre dire antrennman ou an.
• VITESSE: Montre vitès ou kounye a sou bisiklèt la.
• DISTANS: Tracks the total distance covered during your session.
• KALORI: Estime kalori ou boule pandan w ap fè egzèsis.
• PULS: Shows your heart rate when holding the pulse sensors.

6.3 Pulse Measurement

To measure your heart rate, firmly grip the contact sensors located on the handlebars. Your pulse will be displayed on the LCD monitor after a few seconds.

7. Antretyen

Antretyen regilye asire lonjevite ak pèfòmans optimal bisiklèt egzèsis ou a.

• Netwayaj: Siye bisiklèt la ak anonsamp Siye twal la apre chak itilizasyon pou retire swe ak pousyè. Pa sèvi ak pwodui netwayaj abrazif.
• Enspeksyon: Tcheke tout boulon, nwa, ak pati k ap deplase yo detanzantan pou wè si yo byen sere epi si yo mete. Sere nenpòt eleman ki lach.
• Lubrifikasyon: The magnetic resistance system requires no lubrication.
• Depo: Store the bike in a dry, cool place away from direct sunlight and extreme temperatures. The integrated wheels allow for easy relocation.

Image: Close-up of a leveling foot, which can be adjusted to stabilize the bike on uneven surfaces.

NAN. Depanaj

Si ou rankontre nenpòt pwoblèm, gade pwoblèm ak solisyon komen sa yo:

• Monitè a pa montre:
  • Check if the batteries are correctly installed and not depleted. Replace if necessary (4 x AAA).
  • Ensure all cables connecting the monitor to the bike are securely plugged in.
• Lekti batman kè ki pa egzak:
  • Ensure your hands are firmly gripping both pulse sensors.
  • Make sure your hands are clean and free of lotions or excessive moisture.
• Bwi ki pa nòmal pandan operasyon an:
  • Check all visible bolts and nuts for tightness. Tighten any loose fasteners.
  • Ensure the bike is on a level surface and the leveling feet are properly adjusted.
• Rezistans ki pa chanje:
  • Verifye ke bouton kontwòl tansyon an ap vire lib epi li angaje mekanis rezistans lan.

9. Espesifikasyon

10. Garanti ak sipò

For warranty information or technical support, please refer to the warranty card included with your product or contact SALTER customer service directly. Keep your proof of purchase for any warranty claims.

You can visit the SALTER brand store for more information: SALTER Brand Store
