Night Cat Bug Zapper Racket Instruction Manual

1. Entwodiksyon ak souview

The Night Cat Bug Zapper Racket is an electric fly swatter designed for effective control of various flying insects such as mosquitoes, fruit flies, wasps, and spiders. It features a 3,000V output voltage for quick elimination and is suitable for both indoor and outdoor use, including gardening, beaching, camping, and barbecues.

This device is equipped with an LED lighting system to help locate and attract insects in low-light conditions, and indicator LEDs to show operational status and charging completion. It is USB rechargeable for convenience and designed with safety in mind, featuring protective grids to prevent accidental shocks.

Figure 1.1: Night Cat Bug Zapper Racket (Blue Model)

2. Pwodwi konpozan

The Night Cat Bug Zapper Racket consists of two main parts: the racket head and the power handle. It also includes a USB charging cable.

• Racket Head: Contains the electric mesh and protective grids.
• Manch pouvwa: Houses the rechargeable battery and control buttons.
• USB Chaje Kab: For recharging the power handle.

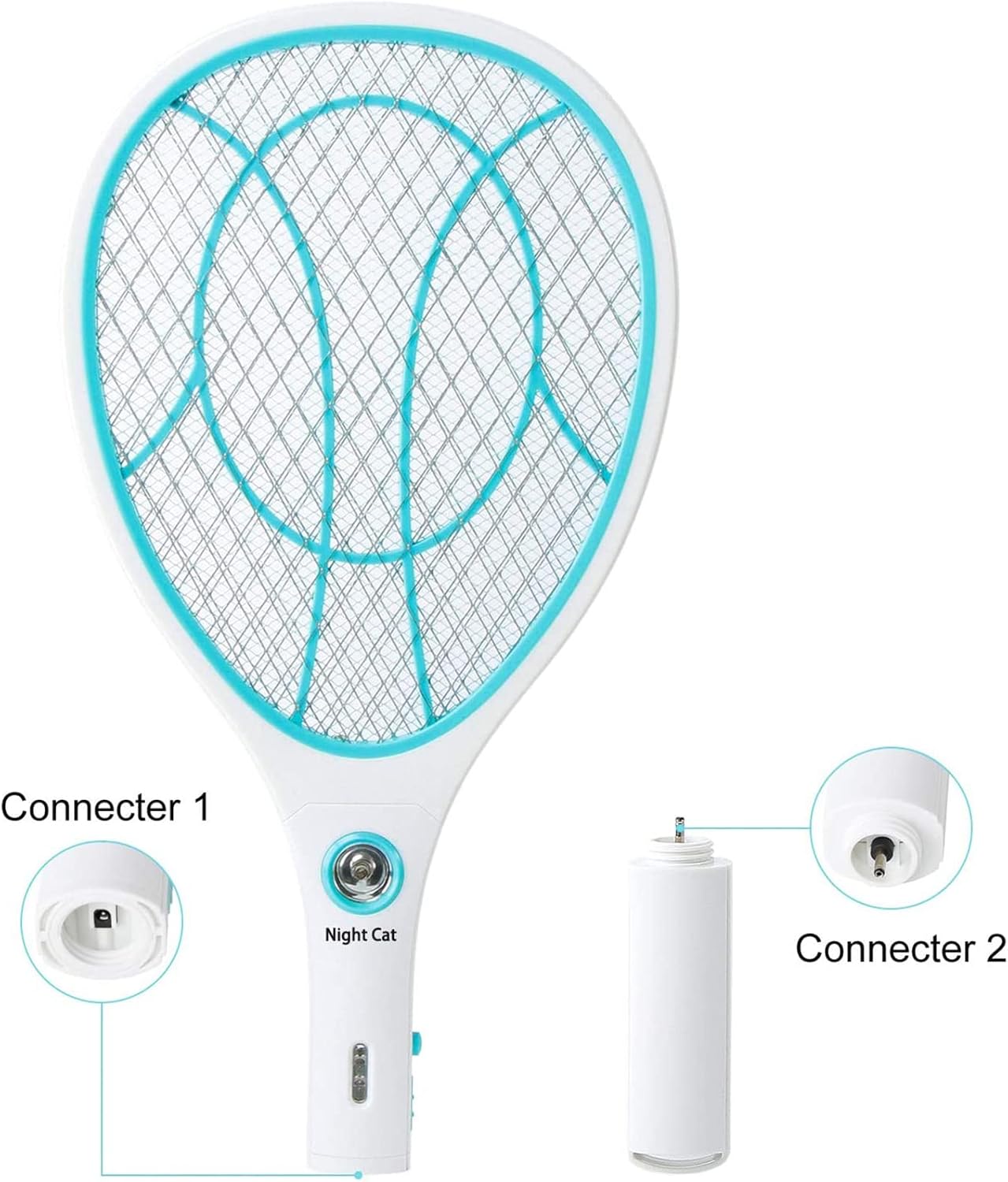

Figure 2.1: Racket Head (Connecter 1) and Power Handle (Connecter 2)

3. Enstalasyon

Before first use, assemble the electric fly swatter by connecting the power handle to the racket head.

1. Align Connecter 2 (on the power handle) with Connecter 1 (on the racket head).
2. Gently insert Connecter 2 into Connecter 1.
3. Screw the power handle tightly into the racket head until secure.

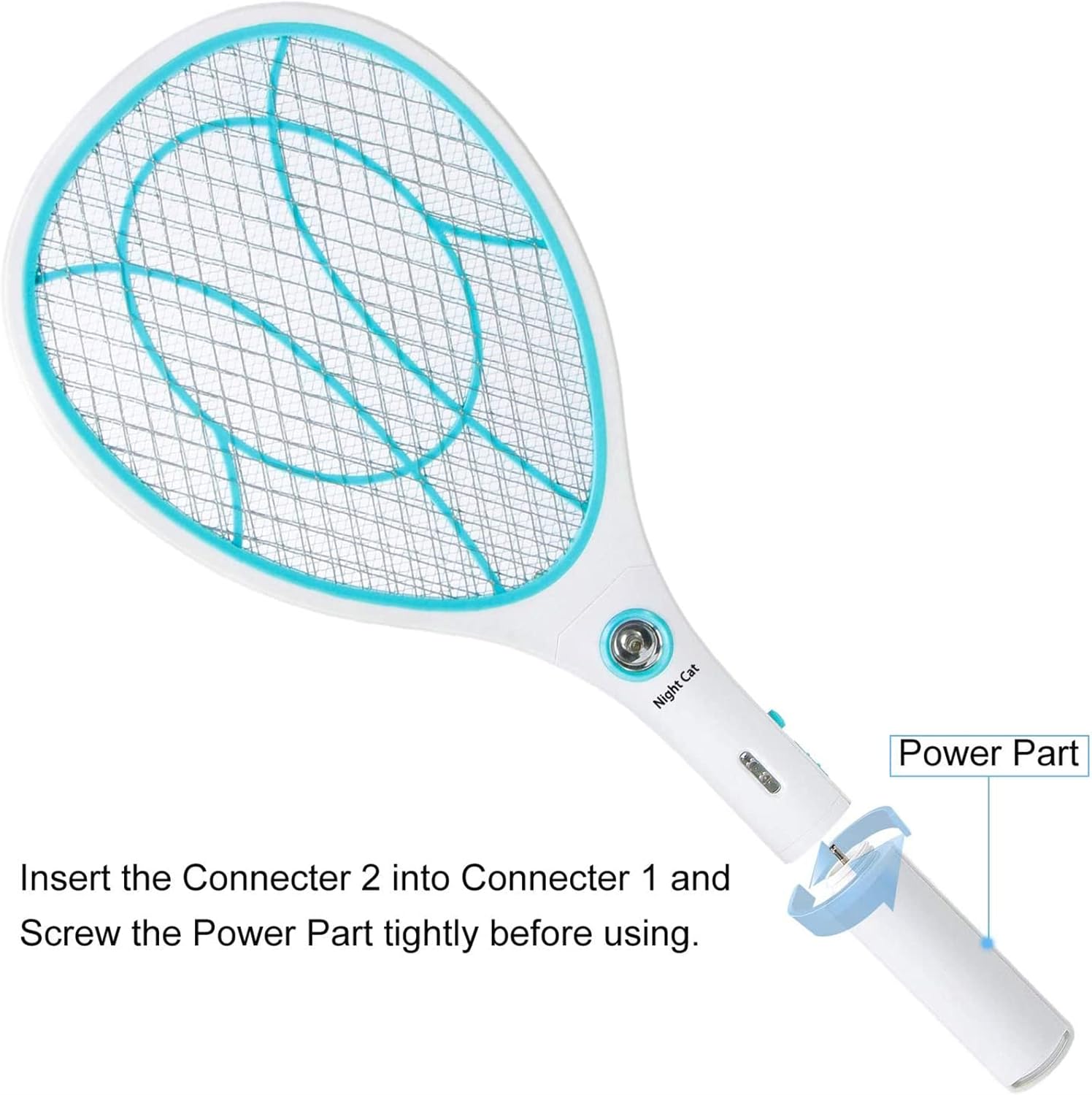

Figure 3.1: Assembly of the Racket and Power Handle

4. Operasyon Enstriksyon

The Night Cat Bug Zapper Racket features multiple modes for effective insect control.

• Limen/Etenyen: Locate the slide switch on the handle. Slide it to the 'ON' position to activate the racket.
• Zapping Function: Once powered on, press and hold the activation button (often indicated by a red light) to energize the mesh. A red indicator light will illuminate, signifying that the racket is ready to zap.
• Dirije ekleraj: The racket includes a built-in LED bulb. This light can be used to attract mosquitoes or illuminate dark areas to spot insects.

Figure 4.1: Control Buttons and Indicator Lights

Videyo Demonstrasyon

5. Chaje

The Night Cat Bug Zapper Racket is conveniently rechargeable via USB.

• Connect the provided USB charging cable to the charging port on the power handle.
• Plug the other end of the USB cable into a compatible USB power source (e.g., phone adapter, power bank, computer USB port).
• Limyè endikatè a ap montre eta chaj la (pa egzanp, wouj pou chaj, vèt pou chaj konplè).
• A full charge typically supports long periods of continuous use.

Figure 5.1: Rechargeable and replaceable battery within the handle.

Figure 5.2: Various USB charging options for convenience.

6. Enfòmasyon sou Sekirite

Sekirite ou pi enpòtan. Tanpri obsève prekosyon sa yo:

• Do Not Touch the Electric Mesh: The racket is built with a 3,000V output. Avoid touching the inner electric mesh when the device is active.
• Protective Grids: The outer protective grids on both sides are designed to prevent accidental contact with the electrified inner mesh.
• Kenbe lwen timoun yo: Sere aparèy la deyò pou timoun yo.
• Evite dlo: Do not expose the racket to water or use it in wet conditions.

Figure 6.1: The protective grids on both sides ensure user safety.

7. Antretyen

To ensure the longevity and optimal performance of your Night Cat Bug Zapper Racket, follow these maintenance guidelines:

• Netwayaj: After use, gently brush off any insect debris from the mesh. Do not use water or wet cloths directly on the electric mesh.
• Depo: Store the racket in a dry place, away from direct sunlight and extreme temperatures.
• Swen batri: Rechaje batri a regilyèman, menm si w pa itilize l souvan, pou kenbe batri a an bon eta.

NAN. Depanaj

If you encounter issues with your Night Cat Bug Zapper Racket, consider the following common solutions:

• Racket Not Zapping: Ensure the power slide switch is in the 'ON' position and the activation button is pressed and held. Verify that the red indicator light is on.
• Pa chaje: Check if the USB cable is securely connected to both the racket and the power source. Ensure the power source is active. The charging indicator light should illuminate.
• Zapping fèb: The battery might be low. Recharge the racket fully.

If problems persist after attempting these solutions, please refer to the warranty and support section.

9. Espesifikasyon

10. Garanti ak sipò

Night Cat offers a quality guarantee for your Bug Zapper Racket.

• Peryòd garanti: Any quality issue happening within 180 days of purchase.
• Kontakte sipò: For a satisfied solution (replacement or refund) regarding any quality issues, please contact us through Amazon Message.
