ARB 814411 Retractable Aluminium Awning with LED Light Strip (2500x2500mm) Instruction Manual

1. Entwodiksyon

This manual provides comprehensive instructions for the safe and effective use of your ARB 814411 Retractable Aluminium Awning. This self-standing awning is designed for attachment to most vehicles, offering fast shade and protection from the elements. It features an integrated LED light strip for enhanced visibility.

The awning measures 2500 x 2500 mm (8.2 x 8.2 feet) and is constructed from tough PU coated 300 gsm poly/cotton ripstop canvas, ensuring it is fully waterproof and offers a UVP 50+ rating. The integrated LED light strip provides 1200 lumens with a waterproof digital dimmer switch, allowing you to choose between cool white or amber color modes.

2. Avètisman Sekirite Enpòtan

WARNING: This awning is not designed for use in high wind conditions. Always ensure the awning is properly anchored and secured before use. Be cautious of moving parts when setting up and taking down the awning to avoid injury. Store the awning in a dry, protected area when not in use to prevent damage from weather conditions.

Avètisman Pwopozisyon 65: Pwodui sa a ka genyen pwodui chimik ke Eta Kalifòni konnen ki lakòz kansè ak domaj nesans oswa lòt pwoblèm repwodiksyon.

3. Eleman yo

Kontni pake

• ARB 814411 Retractable Aluminium Awning Unit
• Integrated LED Light Strip with Digital Dimmer Switch
• Anodized Height Adjustable Telescopic Legs
• Velcro Ties for securing roof
• Thick Reinforced Aluminum Extrusions
• Heavy-Duty Nylon Storage Bag

4. Enstalasyon ak Enstalasyon

4.1. Mounting the Awning to Your Vehicle

The awning is designed to attach neatly to most vehicle roof racks and roof bars. Ensure your roof rack system is compatible and securely installed before mounting the awning. Additional mounting hardware may be required depending on your specific vehicle and roof rack setup. It is recommended to use three mounting brackets for the 2500mm awning for optimal security.

For detailed visual guidance on installation, please refer to the video below:

4.2. Awning Deployment

1. Unzip the heavy-duty nylon storage bag along the length of the awning.
2. Release the Velcro ties securing the rolled-up awning fabric.
3. Swing out the integrated telescopic legs from the awning housing.
4. Roll out the awning fabric completely.
5. Extend the telescopic legs to the desired height and lock them in place.
6. Secure the awning using guy ropes and ground stakes, especially in windy conditions, to prevent movement or damage.

The self-standing awning takes approximately 30 seconds to deploy, providing fast shade and protection.

Image: The ARB Retractable Aluminium Awning fully deployed, providing shade with its two adjustable support poles.

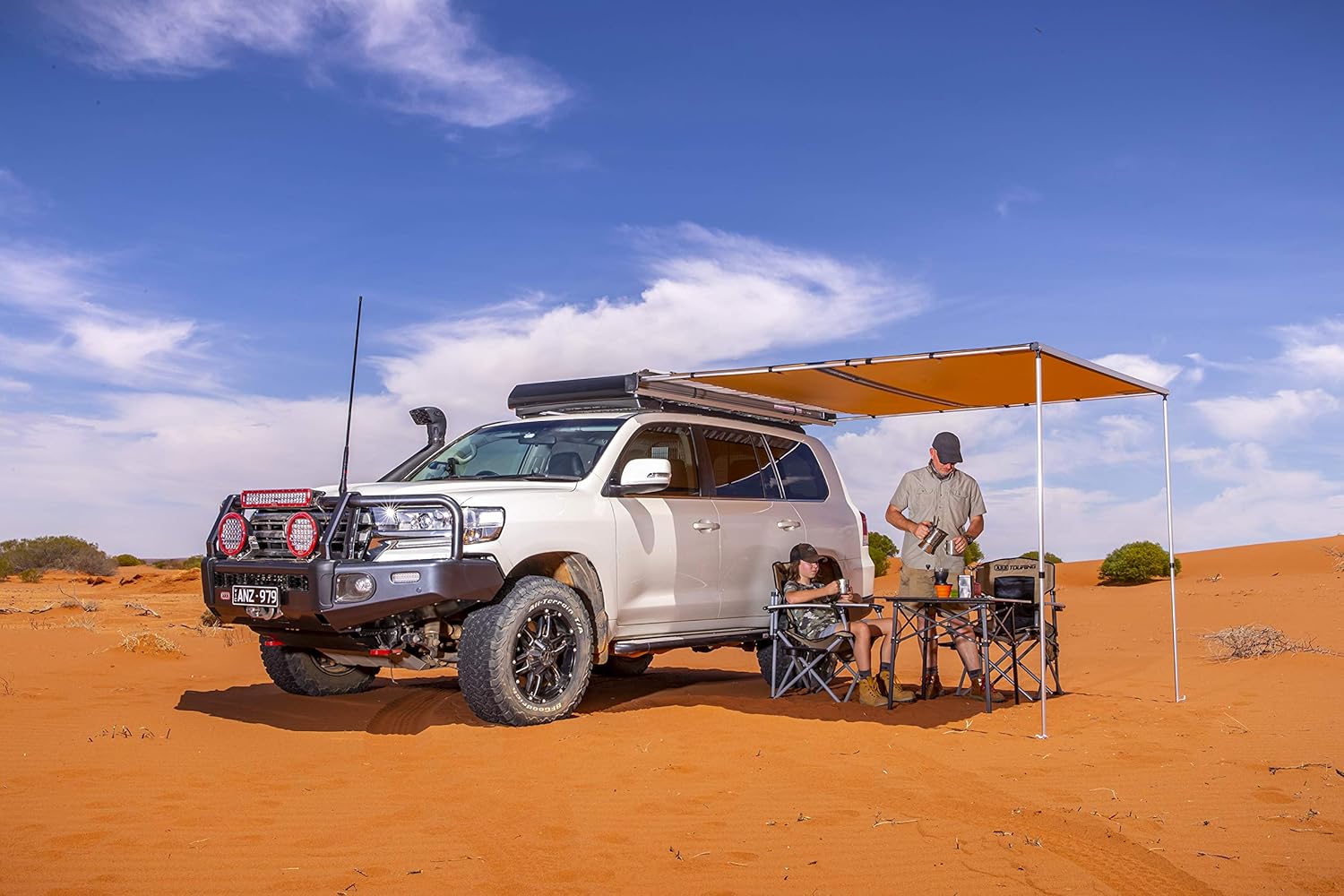

Image: The awning extended from a 4x4 vehicle, offering shade in a sunny, arid environment.

5. Operasyon Enstriksyon

5.1. Adjusting Awning Height and Angle

The telescopic legs allow for adjustable height, providing flexibility in shade coverage and water runoff. Adjust the legs to create a slight slope to allow rain to drain off, preventing water pooling on the awning fabric.

5.2. LED Light Strip Operation

The integrated LED light strip provides 1200 lumens of light. Use the waterproof digital dimmer switch to:

• Limen/Etenn limyè a.
• Ajiste nivo klète a.
• Switch between cool white and amber color modes.

The amber light mode is often preferred for reducing insect attraction during nighttime use.

Imaj: Yon imaj detaye view of the 1200-lumen LED light strip, seamlessly integrated into the awning's fabric for nighttime use.

6. Antretyen ak Swen

6.1. Netwayaj

Clean the awning fabric with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material or its waterproof coating. Ensure the awning is completely dry before rolling it up for storage to prevent mold or mildew.

6.2. Depo

When not in use, roll up the awning neatly and secure it within its heavy-duty nylon storage bag. Store the awning in a dry, protected area to shield it from extreme weather conditions and prolong its lifespan.

Image: A person rolling up the awning and securing it within its protective nylon bag on the vehicle's roof.

NAN. Depanaj

7.1. Awning Instability in Wind

If the awning feels unstable, ensure all telescopic legs are fully extended and locked. Use additional guy ropes and ground stakes to anchor the awning securely. Avoid using the awning in strong winds to prevent damage.

7.2. Difficulty Rolling Up Awning

Ensure the awning fabric is free of debris and completely dry before attempting to roll it up. Carefully guide the fabric into the housing, ensuring it rolls evenly to avoid kinks or bulges that could prevent proper closure of the storage bag.

7.3. Missing Mounting Hardware

Some users have reported that additional mounting hardware may be required for specific vehicle setups. Please verify all necessary components are present upon receipt. If any parts are missing, contact ARB customer support.

8. Espesifikasyon

9. Garanti ak sipò

For warranty information, technical support, or to inquire about replacement parts, please contact ARB customer service directly. Keep your proof of purchase for any warranty claims.
