1. Entwodiksyon
This manual provides essential information for the safe and effective installation, operation, and maintenance of your BSEED 1 Gang 3-Way Mechanical Cross Light Switch. Please read this manual thoroughly before installation and retain it for future reference. This product is designed for controlling lighting circuits from multiple locations.
2. Enfòmasyon sou Sekirite
- Danje elektrik: Enstalasyon an dwe fèt pa yon elektrisyen kalifye, dapre tout kòd elektrik lokal ak nasyonal yo.
- Dekoneksyon pouvwa: Always disconnect power at the circuit breaker or fuse box before installing or servicing the switch.
- Voltage konpatibilite: Asire w ke vòl switch latage rating (250 Volts) is compatible with your electrical system.
- Pwoteksyon Timoun: This wall switch features a child protection design. However, always exercise caution around electrical installations.
- Itilize andedan kay la sèlman: This product is intended for indoor use in dry locations.
3. Espesifikasyon
| Manifakti | GRENN BSEED |
| Dimansyon pwodwi | 5 x 5 x 2.5 cm |
| Gwosè | 1 Gang 3-Way Functional Key |
| Koulè | Blan |
| Fòm | Kare |
| Voltage | 250 Volts |
| Ampepòk | 10000 Miliampere |
| Kantite pwodwi yo | 1 |
| Ranje Tanperati | 0 ~ 70 degre Sèlsiyis |
| Kalite Awondisman | 3-Way (Cross Switch) |
| Batri enkli | Non |
| Batri obligatwa | Non |
| Pwa atik | 90 g |
| Operasyon Mode | ON-OFF |
| Kalite kontak | Nòmalman Louvri |
| Kalite Connector | Clamp |
| Tèminal | Vis |
| Kalite actuator | Manyen |
| Kontakte Materyèl | Metal |
| Kantite Pozisyon | 1 |
4. Enstalasyon ak Enstalasyon
Enpòtan: All electrical work should be carried out by a qualified electrician. Ensure power is OFF at the main circuit breaker before proceeding.
- Prepare fil elektrik yo: Identify the live (L), neutral (N), and load (L1, L2, etc.) wires in your wall box. For a 3-way (cross) switch, you will typically have two traveler wires connecting to other switches in the circuit, in addition to the live and load wires.
- Konekte fil yo: Refer to the wiring diagram provided with your product packaging. Connect the wires to the appropriate terminals on the back of the switch module. The terminals are usually labeled. Ensure all connections are secure using the screw terminals.

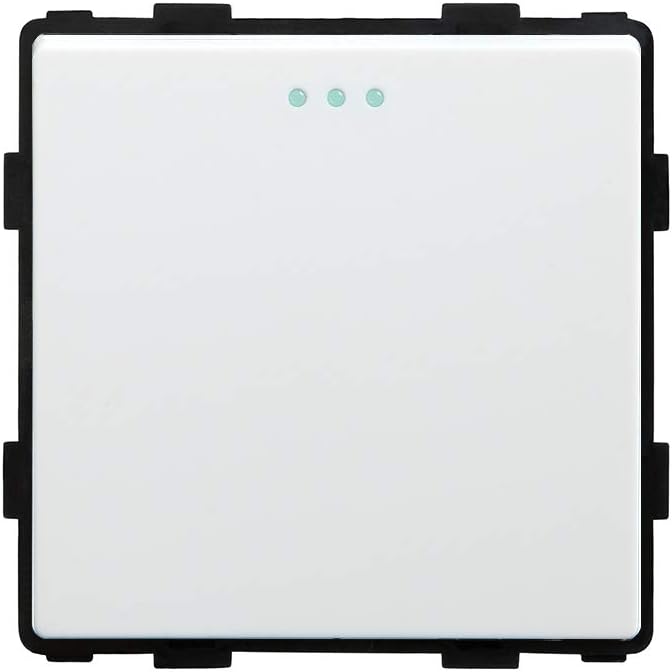

Figi 1: Devan view of the BSEED 1 Gang 3-Way Mechanical Cross Light Switch module. This image shows the white faceplate with three small indicator lights at the top, indicating its functional status.
Figi 2: Retounen view of the BSEED 1 Gang 3-Way Mechanical Cross Light Switch module, showing the integrated mounting frame and the terminal connections. This view is crucial for understanding the wiring points during installation.
- Monte switch la: Carefully place the switch module into the wall box. Secure it using the provided screws.
- Enstale Faceplate: Attach the decorative faceplate (if separate) over the switch module.
- Retabli pouvwa: Yon fwa enstalasyon an fini epi tout koneksyon yo byen fèm, retabli kouran an nan disjonktè a.
5. Operasyon Enstriksyon
The BSEED 1 Gang 3-Way Mechanical Cross Light Switch operates as a standard ON/OFF switch within a multi-location control setup. Simply press the switch surface to toggle the connected light fixture(s) between ON and OFF states. The three small indicator lights at the top of the switch provide visual feedback on its status.
6. Antretyen
- Netwayaj: To clean the switch surface, gently wipe with a soft, dry cloth. Do not use abrasive cleaners, solvents, or excessive moisture, as these can damage the finish or internal components.
- Tèks Peryodik: Periodically inspect the switch for any signs of damage, loose connections, or unusual operation. If any issues are observed, disconnect power and consult a qualified electrician.
- Pa gen okenn pati itilizatè yo ka fè sèvis: There are no user-serviceable parts inside the switch. Do not attempt to open or repair the unit yourself.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Limyè a pa limen/etenn. | No power to the switch, incorrect wiring, faulty bulb, or internal switch issue. | Check circuit breaker. Verify wiring connections against the diagram. Test the bulb. If issues persist, consult a qualified electrician. |
| Switch feels loose in the wall. | Mounting screws are not tightened sufficiently. | Disconnect power, then carefully tighten the mounting screws. |
| Indicator lights are not working. | No power to the switch or internal component failure. | Check power supply. If power is present and lights remain off, the unit may be faulty. |
| Difficulty with multi-point control (e.g., 3-way functionality). | Incorrect wiring for a 3-way or cross-switch configuration. | Ak anpil atansyon review the wiring diagram for 3-way/cross-switch setups. Ensure traveler wires are correctly connected between all switches in the circuit. This often requires precise connection as per the provided schematic. If uncertain, consult a qualified electrician. |
8. Garanti ak sipò
For warranty information or technical support, please contact BSEED customer service through the retailer where the product was purchased or visit the official BSEED website. Please have your product model number (1 Gang 3-Way Functional Key) and purchase details available when contacting support.
