EPOMAKER SKYLOONG SK61 61-Key Mechanical Gaming Keyboard User Manual

1. Entwodiksyon

The EPOMAKER SKYLOONG SK61 is a compact 60% mechanical gaming keyboard designed for both Windows and Mac users. It features hot-swappable Gateron optical switches, customizable RGB backlighting, and a water-resistant mainboard, offering a durable and personalized typing experience.

Image: The EPOMAKER SKYLOONG SK61 keyboard showcasing its compact 60% layout.

2. Ki sa ki nan bwat la

Upon unboxing your EPOMAKER SKYLOONG SK61 keyboard, you should find the following items:

• SK61 Keyboard
• Mac keycaps (for macOS compatibility)
• Keycap tire zouti
• Switch puller tool
• USB-C kab

Image: All items included in the EPOMAKER SKYLOONG SK61 keyboard package.

3. Gid Enstalasyon

3.1. Konekte klavye a

1. Locate the USB-C port on the top-left side of the keyboard.
2. Konekte kab USB-C ki founi an nan klavye a.
3. Plug the other end of the USB-C cable into an available USB port on your computer (Windows or Mac).
4. The keyboard will automatically power on and the RGB backlighting will illuminate.

3.2. Inisyal Konfigirasyon

The SK61 supports both Windows and Mac layouts. If you are a Mac user, you can swap the Control, Option, and Command keycaps using the provided keycap puller and the additional Mac keycaps included in the box.

Image: PBT dye-sublimation keycaps, known for their durability and oil-resistance.

4. Karakteristik kle

4.1. Gateron Optical Switches & Hot-Swappable Design

The SK61 utilizes renowned Gateron optical switches, which are hot-swappable. This feature allows users to easily change switches without soldering, providing flexibility for customization and repair. Optical switches offer faster response times compared to traditional mechanical switches.

Image: Gateron optical switches, highlighting the hot-swappable design for easy customization.

4.2. Three Layers Programmable & N-Key Rollover (NKRO)

The keyboard supports three programmable layers (FN1/FN2/FN3), allowing extensive customization of key functions and macros through the dedicated driver software. The onboard flash memory saves configurations for offline use. N-Key Rollover ensures that all key presses are registered accurately, even when multiple keys are pressed simultaneously, which is crucial for gaming.

4.3. Water-Resistant Mainboard & PBT Thermal Sublimation Keycaps

The SK61 features a water-resistant and dustproof mainboard design, enhancing its durability. The keycaps are made from high-quality PBT material with thermal sublimation printing, ensuring legends do not fade and the keycaps remain sturdy and oil-proof even after prolonged use.

4.4. 16.8 Million RGB Backlight

Equipped with RGB SMD lighting, the SK61 offers over 16.8 million colors and hundreds of lighting effects. These effects can be customized via the driver software or through onboard controls, providing a vibrant visual experience.

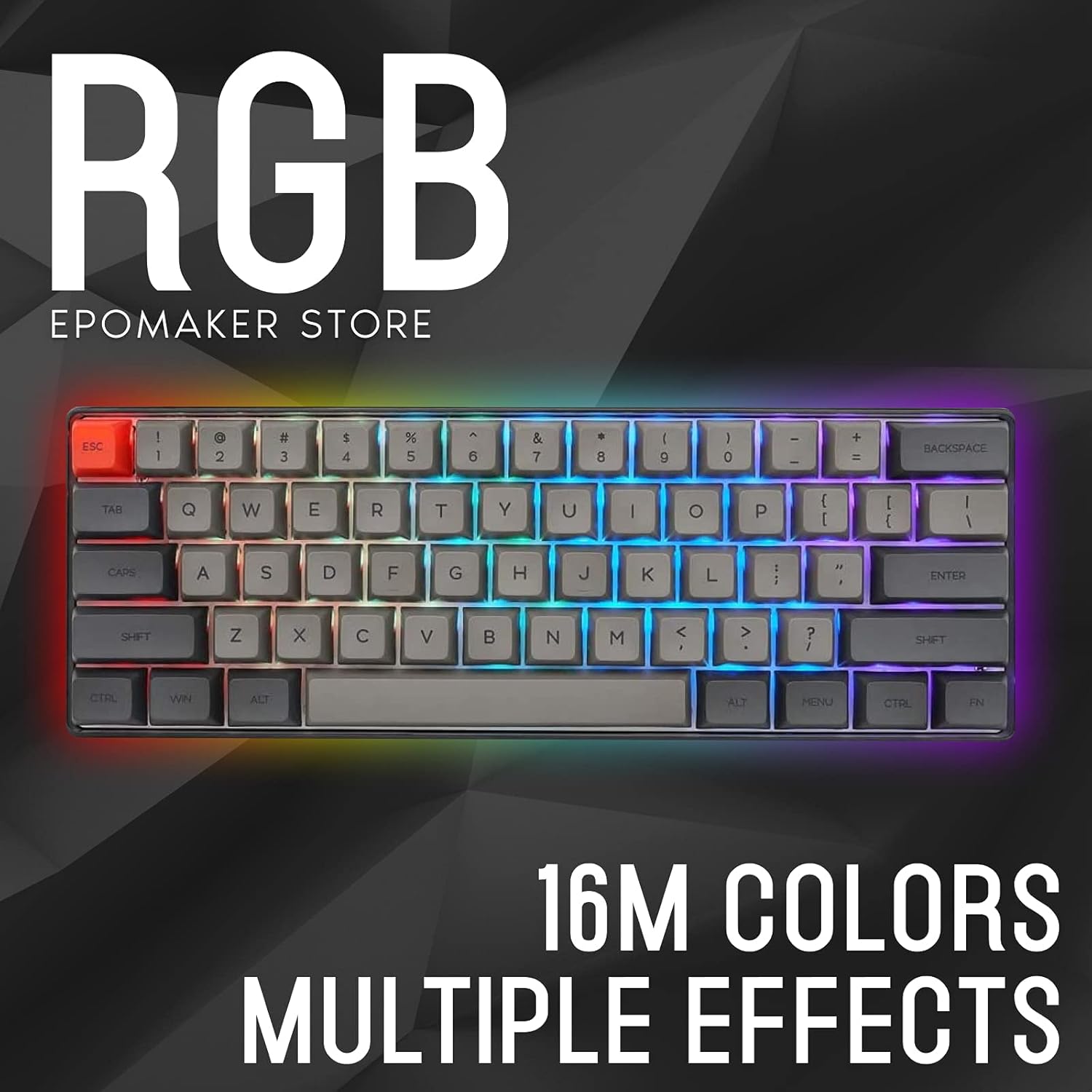

Image: The SK61 keyboard illuminated with 16.8 million color RGB backlighting.

4.5. Mac and Windows Compatibility

This keyboard is fully compatible with both Windows and Mac operating systems, offering versatile use across different computing environments. The Type-C cable ensures a stable and fast connection.

5. Operasyon Enstriksyon

5.1. Konbinezon kle fonksyon (FN)

The SK61 utilizes FN key combinations to access various functions due to its compact 60% layout. Refer to the diagram below for common FN key functions:

Image: FN function description diagram for the SK61 keyboard.

5.2. Kontwòl ekleraj

• FN + \|: Aktive/Etein limyè dèyè a.
• FN + ]: Ogmante klète limyè dèyè a.
• FN + [: Diminye klète limyè dèyè a.
• FN + ;: Change backlight mode.
• FN + ': Chanje koulè ekleraj.
• FN + ,: Decrease backlight effect speed.
• FN +.: Increase backlight effect speed.

5.3. Programmable Layers

The keyboard supports three programmable layers (FN1, FN2, FN3). These layers allow you to remap keys and assign macros. The configuration can be saved to the keyboard's onboard memory. For detailed programming, use the dedicated driver software.

Image: Software interface for customizing RGB lighting and key layouts.

6. Antretyen

6.1. Netwaye klavye a

To clean your keyboard, first disconnect it from your computer. Use a soft, lint-free cloth to wipe down the keycaps and chassis. For deeper cleaning, you can remove the keycaps using the provided keycap puller and clean underneath with compressed air or a small brush. Ensure the keyboard is completely dry before reconnecting.

6.2. Ranplase Keycaps ak Switch yo

The SK61's hot-swappable design allows for easy replacement of keycaps and switches. Use the provided keycap puller to gently remove keycaps. To remove switches, use the switch puller tool, carefully gripping the switch and pulling upwards. When inserting new switches, align the pins correctly with the sockets to avoid bending them.

6.3. Rezistans dlo

The keyboard features a water-resistant mainboard (IPX6 rated). While it can withstand splashes and spills, it is not fully waterproof and should not be submerged. In case of a spill, disconnect the keyboard immediately, dry it thoroughly, and allow it to air dry completely before reconnecting.

NAN. Depanaj

• Klavye a pa reponn: Asire w kab USB-C a byen konekte ak klavye a ak òdinatè a. Eseye yon lòt pò USB oswa kab.
• Pwoblèm limyè dèyè: Use FN key combinations (FN + \|, FN + [, FN + ], FN + ;, FN + ') to adjust or cycle through backlight modes and brightness. If issues persist, check the driver software.
• Kle yo pa anrejistre: Verify that the switches are properly seated. If a specific key is not working, try replacing its switch with a spare one (if available) or a switch from a less-used key.
• Lojisyèl la pa detekte klavye a: Ensure the keyboard is connected via USB-C. Reinstall the driver software from the EPOMAKER websit.

8. Espesifikasyon

9. Garanti ak sipò

For warranty information and technical support, please refer to the documentation included with your product or visit the official EPOMAKER website. Contacting customer support directly is recommended for specific issues.

10. Videyo pwodwi ofisyèl la
