D-Link DGS-1100-24PV2 24-Port Gigabit Smart Managed PoE+ Switch Instruction Manual

1. Entwodiksyon

The D-Link DGS-1100-24PV2 is a 24-Port Gigabit Smart Managed PoE+ Switch designed to meet the demands of small to medium-sized businesses (SMBs). It offers a comprehensive suite of features for high performance, reliable connectivity, and efficient network management. This model includes 24 Gigabit Ethernet ports, with 12 of these ports supporting Power over Ethernet Plus (PoE+) with a total power budget of 100W. This allows for powering devices such as IP cameras, VoIP phones, and wireless access points directly through the Ethernet cable, simplifying network setup and reducing cabling complexity.

2. Karakteristik kle

• 24 Gigabit Ports for High-Speed Networking: Delivers high-speed connectivity to devices across your network. Supports desktop or rackmount placement for flexible installation.
• 12x PoE+ Ports: Power up to 12 devices directly over Ethernet, supporting up to 30W per port with a total power budget of 100W. Ideal for access points, IP cameras, VoIP phones, access controls, smart lighting solutions, and other PoE-enabled devices.
• Jesyon Trafik Avanse: Offers bandwidth control, Quality of Service (QoS), VLAN support, and IGMP Snooping to optimize network performance and minimize congestion. Ensures smooth operation of critical voice and video applications.
• Deteksyon Boukbak ak Dyagnostik Kab: Quickly identify and resolve network issues to help maintain a reliable connection.
• PD Alive for Enhanced Reliability: Equipped with PD Alive to automatically reboot unresponsive PoE devices, minimizing downtime and ensuring continuous network availability without manual intervention.
• Energy-Efficient and Silent Operation: Fanless design for silent running, energy savings, and a longer lifespan. Complies with IEEE 802.3az for reduced power consumption.
• Entwisyon Web-Jesyon ki baze sou: Easy setup and management via a user-friendly web interface. Provides comprehensive tools for efficient remote or local switch management, streamlining network administration tasks.
• Konfòm ak NDAA: Meets strict regulatory standards, suitable for government and enterprise projects.
• 35+ Years of Reliability: Trust the brand that’s been building reliable networks for over 35 years. D-Link's Lifetime Warranty provides long-term confidence.

3. Pake kontni

Verify the following items are included in your DGS-1100-24PV2 package:

• D-Link DGS-1100-24PV2 Switch
• Gid Enstalasyon rapid (QIG)
• Twous Rackmount
• US fil elektrik
• Retann kòd pouvwa
• 4 Pye kawotchou

4. Fizik Plis paseview

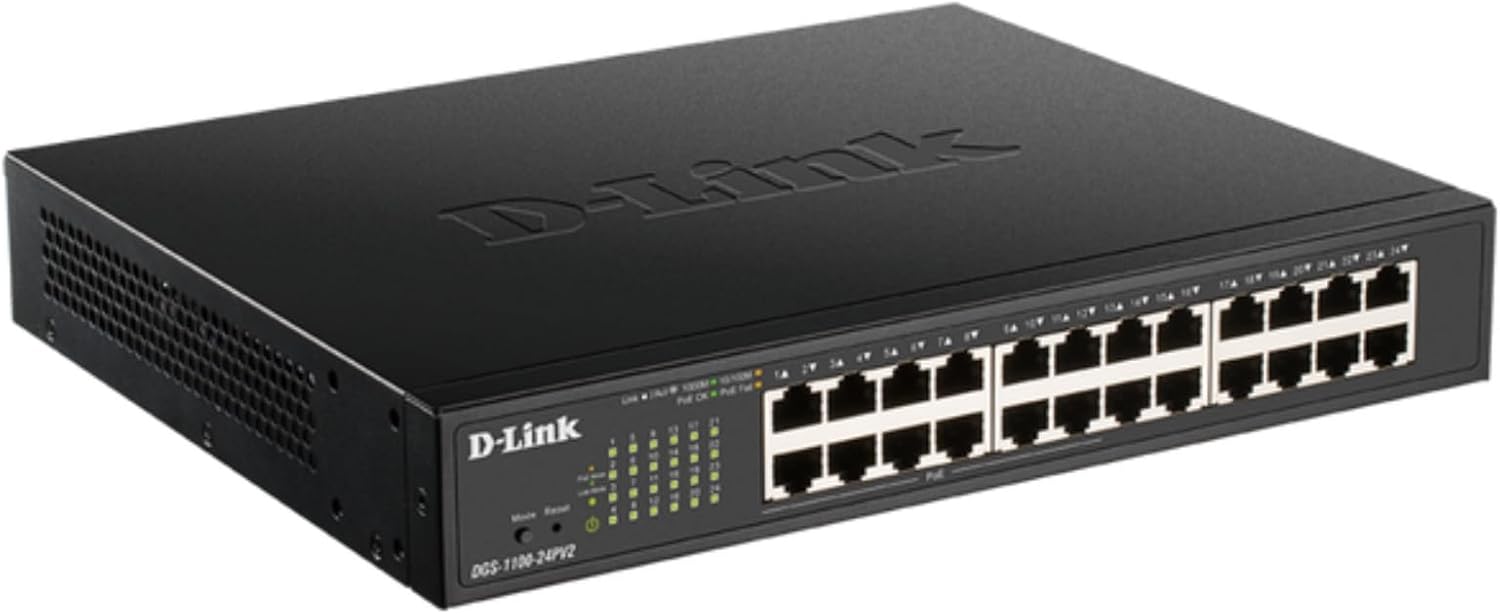

4.1 Panèl devan

The front panel features 24 Gigabit Ethernet ports (RJ45). Ports 1-12 are PoE+ enabled, providing power to connected devices. LED indicators for each port display link/activity status (Link/Act) and speed (1000Mbps, 100Mbps, 10Mbps). Additional LEDs indicate PoE status (PoE, PoE Fail) and overall power status of the switch.

4.2 Panèl dèyè

The rear panel includes the AC power input (100-240VAC, 50/60Hz, 1.4A Max) with a power cord retainer, and a switch ground connection for safety.

5. Enstriksyon Enstalasyon

5.1 Plasman

The DGS-1100-24PV2 switch can be deployed in various environments, supporting both desktop and rackmount installations. For desktop use, attach the provided rubber feet to the bottom of the switch. For rackmount installation, use the included rackmount kit to secure the switch in a standard 19-inch equipment rack.

5.2 Koneksyon pouvwa

Connect the provided AC power cord to the power input on the rear panel of the switch and then to a suitable power outlet. Use the power cord retainer to secure the connection.

5.3 Rezo Koneksyon

Connect your network devices (e.g., computers, servers, network-attached storage) to any of the 24 Gigabit Ethernet ports using standard Ethernet cables. For Power over Ethernet (PoE) enabled devices, connect them to ports 1-12 to supply both data and power over a single cable.

6. Itilizasyon switch la

6.1 Web-Baze Jesyon

The DGS-1100-24PV2 is a Smart Managed switch, offering an intuitive web-based user interface for configuration and monitoring. Connect a computer to any port on the switch and access the management interface via a web browser. Refer to the Quick Installation Guide for initial access details, including the default IP address and login credentials.

6.2 Advanced Traffic Management

Sèvi ak web interface to configure advanced features such as:

• Kontwòl Pleasant: Manage network traffic flow to prevent congestion.
• Kalite Sèvis (QoS): Prioritize critical network traffic (e.g., VoIP, video streaming) for optimal performance.
• Sipò VLAN: Segment your network into virtual local area networks for enhanced security and efficiency.
• IGMP Snooping: Optimize multicast traffic delivery, particularly useful for IP-based video applications.

7. Maintenance and Reliability

7.1 PD Alive

The PD Alive feature actively monitors PoE-powered devices. If a connected PoE device becomes unresponsive, the switch can automatically detect this and reboot the specific port, restoring functionality without manual intervention. This minimizes downtime and ensures continuous operation of critical devices like surveillance cameras.

7.2 Dyagnostik

The switch includes built-in Loopback Detection and Cable Diagnostics tools. These features help administrators quickly identify and resolve common network issues, such as cable faults or network loops, ensuring stable and reliable connectivity.

7.3 Efikasite Enèji

The DGS-1100-24PV2 features a fanless design, contributing to silent operation and reduced power consumption. It complies with IEEE 802.3az Energy Efficient Ethernet standards, further minimizing operational costs and extending the product's lifespan.

NAN. Depanaj

If you encounter issues with your DGS-1100-24PV2 switch, consider the following basic troubleshooting steps:

• Tcheke pouvwa: Ensure the power cord is securely connected and the power LED on the front panel is illuminated.
• Verifye koneksyon kab: Confirm that all Ethernet cables are properly seated in their respective ports and that the Link/Act LEDs are active.
• Inspect PoE Status: If a PoE device is not powering on, check the PoE status LEDs for the corresponding port. Utilize the PD Alive feature or manually power cycle the port via the web koòdone.
• Consult LED Indicators: The front panel LEDs provide visual cues for network status. Refer to the Quick Installation Guide for a detailed explanation of each LED's meaning.
• Aksè Web Entèfas: If network connectivity is an issue, try accessing the switch's web-based management interface to check port status, run diagnostics, or review mòso bwa sistèm.
• Reyajiste nan default faktori: As a last resort, if configuration issues persist, you may reset the switch to factory default settings. Refer to the user manual for the procedure.

9. Espesifikasyon teknik

10. Garanti ak sipò

The D-Link DGS-1100-24PV2 switch comes with a Lifetime Warranty, reflecting D-Link's commitment to reliability and product quality. For technical assistance, troubleshooting, or warranty claims, please refer to the official D-Link support channels. D-Link Systems, Inc. has over 35 years of experience in building reliable networks.
