Entwodiksyon
The KLEIN TOOLS IR1 is an infrared thermometer with a targeting laser. It has a wide measurement range of -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius) and a 10:1 distance-to-spot ratio. The backlit display provides clear readings. This manual provides essential information for the safe and effective use of your IR1 thermometer.
Image: The KLEIN TOOLS IR1 Infrared Thermometer, a non-contact temperature measurement device.
Enfòmasyon sou Sekirite
AVÈTISMAN:
- Aparèy sa a se PA a medical device. Do not use on people or animals.
- Do not point the laser directly into eyes or at reflective surfaces.
- Always follow local safety regulations when using testing equipment.
Karakteristik pwodwi
Image: Diagram of the KLEIN TOOLS IR1 Infrared Thermometer highlighting its key components: Targeting Laser, IR Temperature Sensor, Trigger, Battery Compartment, and LCD Display.
- Targeting Laser: For precise aiming at the measurement target.
- IR Temperature Sensor: Detects infrared energy to measure surface temperature.
- Deklanche: Aktive mezi a ak lazè a.
- Ekspozisyon LCD: Backlit display for clear temperature readings.
- Lòj batri: Located in the handle for easy battery access.

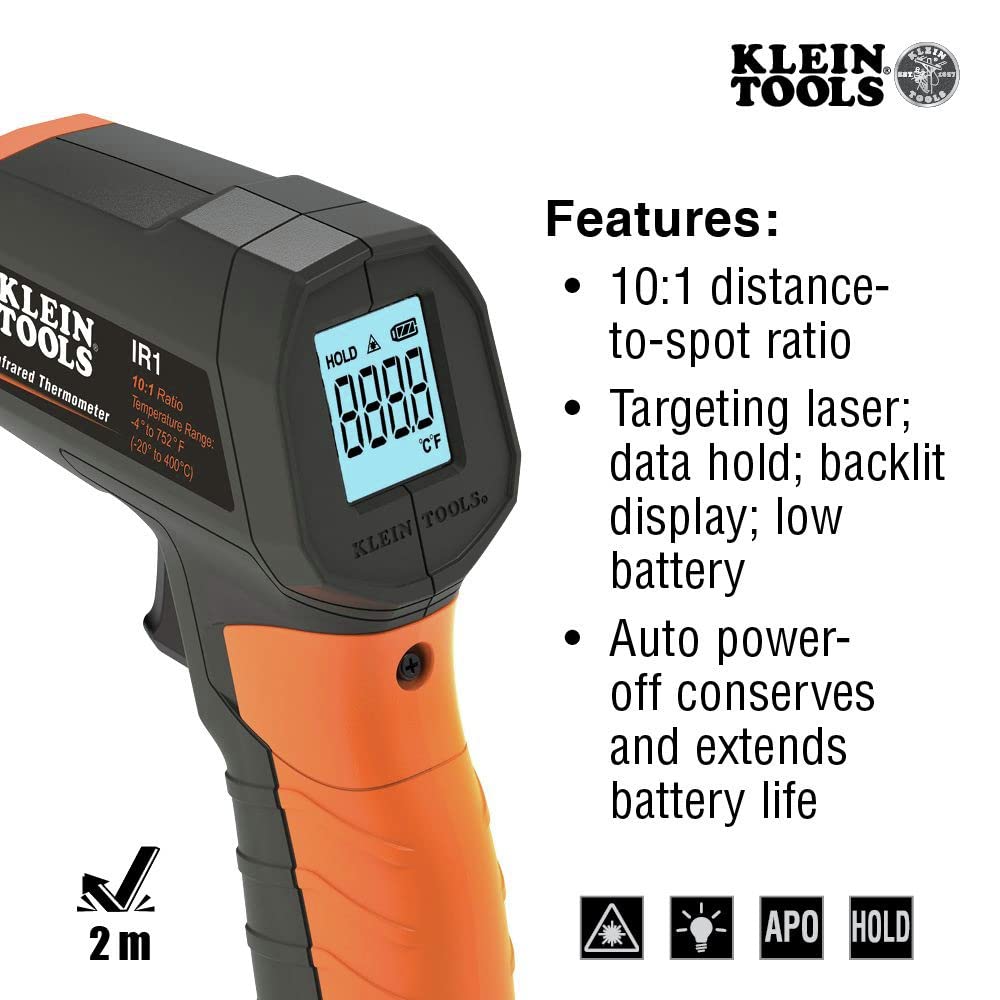

Image: A visual summary of the IR1's features, including 10:1 distance-to-spot ratio, targeting laser, data hold, backlit display, low battery indicator, and auto power-off.
- Rezolisyon optik: 10:1 distance-to-spot ratio for accurate readings from a distance.
- Ranje Tanperati: Measures from -4°F to 752°F (-20°C to 400°C).
- Fixed Emissivity: A fixed emissivity value of 0.95 provides consistent readings across various surfaces.
- Auto Power Off: Konsève lavi batri a lè li fèmen otomatikman apre yon peryòd inaktivite.
- Dirab: 6.6 ft. (2 m) drop protection.
Enstalasyon
Enstalasyon batri
- Locate the Phillips head screw on the handle of the thermometer.
- Devise epi retire kouvèti lòj batri a.
- Insert the included 9V battery, ensuring correct polarity.
- Ranplase kouvèti lòj batri a epi an sekirite li ak vis la.
Enstriksyon Operasyon
Pran yon Mezi
- Point the IR1 thermometer at the target surface.
- Press and hold the trigger to activate the laser and begin measurement. The laser dot indicates the center of the measurement area.
- The temperature reading will appear on the backlit LCD display.
- Release the trigger to hold the last measured temperature on the display. The device will automatically power off after a short period of inactivity to conserve battery.
Understanding Distance-to-Spot Ratio (D:S)
The IR1 has a 10:1 distance-to-spot ratio. This means that at a distance of 10 inches, the measurement spot size will be 1 inch. To ensure accurate readings, position the thermometer at an appropriate distance from the target, considering the size of the area you wish to measure.
Seleksyon Inite Tanperati
The IR1 can display temperatures in Fahrenheit (°F) or Celsius (°C). Refer to the small switch or button located near the battery compartment (or as indicated in the detailed manual) to toggle between these units.
Image: The IR1 thermometer in use, measuring the temperature of components within an electrical panel, with the laser targeting a specific point.
Image: The IR1 thermometer being used to measure the temperature of an HVAC vent, demonstrating its application in environmental diagnostics.
Antretyen
Netwayaj
To clean the thermometer, wipe it with a clean, dry cloth. Do not use abrasive cleaners or solvents. Ensure the lens of the IR sensor is kept clean for accurate readings.
Ranplasman batri
When the low battery indicator appears on the display, replace the 9V battery as described in the "Battery Installation" section.
Depanaj
If the device does not power on or provides inconsistent readings, ensure the battery is correctly installed and has sufficient charge. For further issues, consult the official KLEIN TOOLS support resources.
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Nimewo Modèl | IR1 |
| Ranje Tanperati | -4 ° F a 752 ° F (-20 ° C a 400 ° C) |
| Optical Resolution (D:S) | 10:1 |
| Emisyon | Fiks (0.95) |
| Kalite ekspozisyon | Dijital retroeklere |
| Sous pouvwa | 1 x Pil 9V (enkli) |
| Pwoteksyon gout | 6.6 ft (2 m) |
| Dimansyon | 6.01 x 4.14 x 1.73 pous |
| Pwa | 7.83 ons |
| Materyèl Eksteryè | Plastik |
| Koneksyon Teknoloji | Enfrawouj |
Garanti ak sipò
KLEIN TOOLS products are known for their quality and durability. For specific warranty information and customer support, please refer to the official KLEIN TOOLS websit la oubyen kontakte sèvis kliyan yo dirèkteman. Kenbe resi acha w la pou reklamasyon garanti.
