Redragon Sidewipe GC-601 PC Case User Manual

1. Entwodiksyon

This manual provides detailed instructions for the installation, operation, and maintenance of your Redragon Sidewipe GC-601 Mid Tower PC Case. Please read this manual thoroughly before beginning assembly to ensure proper setup and to maximize the lifespan of your components.

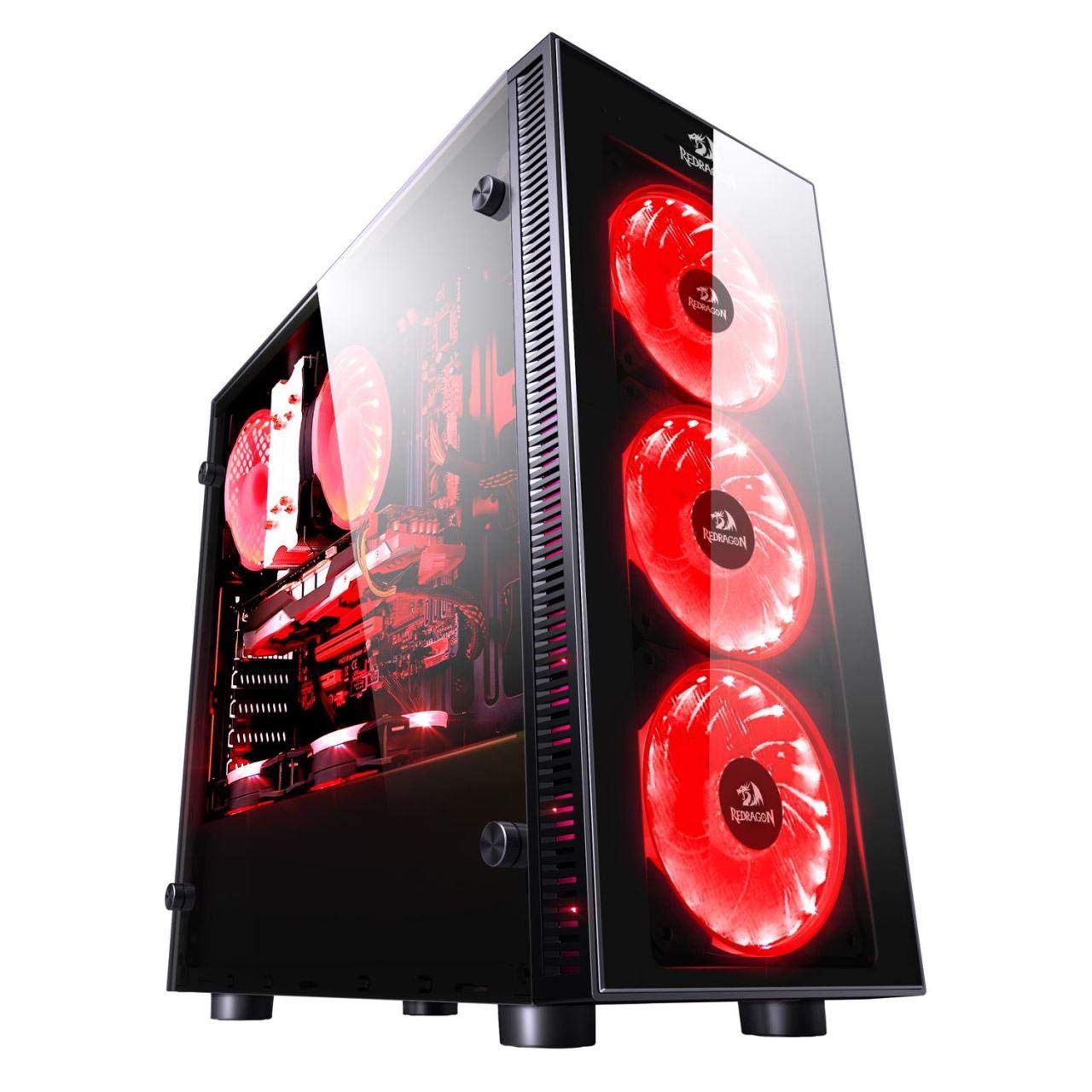

Figure 1: Redragon Sidewipe GC-601 Mid Tower PC Case. This image shows the front and side panel of the black PC case, highlighting its design and form factor.

2. Enstalasyon ak Enstalasyon

2.1 Debake

Carefully remove the PC case from its packaging. Inspect the case for any signs of damage during transit. Retain the packaging materials for future transport or storage.

2.2 Idantifikasyon konpozan

Familiarize yourself with the various parts of the PC case:

• Main Chassis: The primary structure of the case.
• Panno Side: Removable panels for accessing internal components.
• Panèl I/O devan: Includes power button, reset button, audio jacks, and USB ports (2x USB 2.0).
• Bwat akseswar: Contains screws, cable ties, and other small parts for installation.

2.3 Enstalasyon mèr

1. Open the side panel(s) of the case.
2. Enstale pwoteksyon E/S ki vini ak kat manman w lan nan ouvèti dèyè bwat la.
3. Align your Micro ATX motherboard with the standoffs inside the case.
4. Secure the motherboard using the appropriate screws from the accessory box. Do not overtighten.

2.4 Enstalasyon ekipman pou pouvwa a

The Redragon Sidewipe GC-601 supports a rear-mounted power supply unit (PSU).

1. Position your PSU at the rear bottom of the case, ensuring the fan faces the correct direction for optimal airflow (usually downwards or inwards, depending on case design).
2. Fikse PSU a nan bwat la avèk vis ki vini ak ekipman pouvwa a.

2.5 Enstalasyon Fan

The case supports 120mm fans for cooling.

1. Identify the fan mounting locations (e.g., front, rear, top).
2. Mount the 120mm fans using the screws provided with the fans or from the case accessory box. Ensure correct airflow direction (intake or exhaust).
3. Connect the fan power cables to your motherboard or a fan controller.

2.6 Connecting Front I/O Cables

Connect the front panel cables to your motherboard:

• USB 2.0: Connect the USB 2.0 header cable(s) to the corresponding USB 2.0 headers on your motherboard. This case features two USB 2.0 ports.
• Odyo: Connect the HD Audio cable to the audio header on your motherboard.
• Pouvwa/Reyajiste/LED: Connect the small individual cables (Power SW, Reset SW, HDD LED, Power LED) to the front panel header pins on your motherboard according to your motherboard manual.

3. Operasyon Enstriksyon

3.1 Limen

After all components are installed and cables are connected, close the side panels. Connect your monitor, keyboard, mouse, and power cable to the PSU. Press the power button on the front I/O panel to start your computer.

3.2 Jesyon koule lè a

Proper airflow is crucial for component longevity. Ensure that intake fans draw cool air into the case and exhaust fans expel hot air. The Redragon Sidewipe GC-601 is designed for air cooling, so maintaining clear pathways for air movement is important.

4. Antretyen

4.1 Netwaye bwat la

Netwayaj regilye ede kenbe pèfòmans ak aparans optimal.

• Eksteryè: Sèvi ak yon mou, damp cloth to wipe down the exterior surfaces. Avoid abrasive cleaners.
• Enteryè: Periodically open the side panels and use compressed air to remove dust from components and fan blades.
• Filtè Pousyè: If your case includes dust filters, remove and clean them regularly (e.g., rinse with water and let dry completely, or vacuum).

4.2 Airflow Optimization

Ensure that cables are neatly managed to prevent obstruction of airflow. Regularly check that all fans are spinning freely and quietly.

NAN. Depanaj

Seksyon sa a adrese pwoblèm komen ou ka rankontre.

6. Espesifikasyon

Below are the technical specifications for the Redragon Sidewipe GC-601 PC Case:

7. Garanti ak sipò

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Redragon websit. Tèm garanti espesifik yo ka varye selon rejyon an ak détayan an.
