1. Enfòmasyon enpòtan sou sekirite
Tanpri li tout enstriksyon yo ak anpil atansyon anvan ou monte epi itilize li. Kenbe manyèl sa a pou referans pita.
- Sekirite elektrik: Always disconnect the power supply before cleaning or performing any maintenance. Do not operate the lamp ak yon kòd oswa ploge ki domaje.
- Dirije entegre: The LED lights in this lamp are integrated and are not replaceable. They are designed for a long lifespan of approximately 50,000 hours.
- Atansyon Asanble: During assembly, carefully inspect the wiring at the base connection point. Some units may have a thin wire that can become exposed or cut during manufacturing or shipping. If you observe any exposed or damaged wires, DO NOT PROCEED WITH ASSEMBLY OR USE. Contact customer support immediately.
- Itilize andedan kay la sèlman: Sa a lamp is designed for indoor use in dry locations. Do not expose to water or excessive humidity.
- Plasman ki estab: Asire lamp mete l sou yon sifas ki estab e plat pou anpeche l chavire.
2. Pake kontni
Verifye ke tout konpozan yo prezan epi yo pa domaje anvan ou kontinye ak asanblaj la.
- Marla LED Wall Washer Floor Lamp (Main Pole with integrated LED)

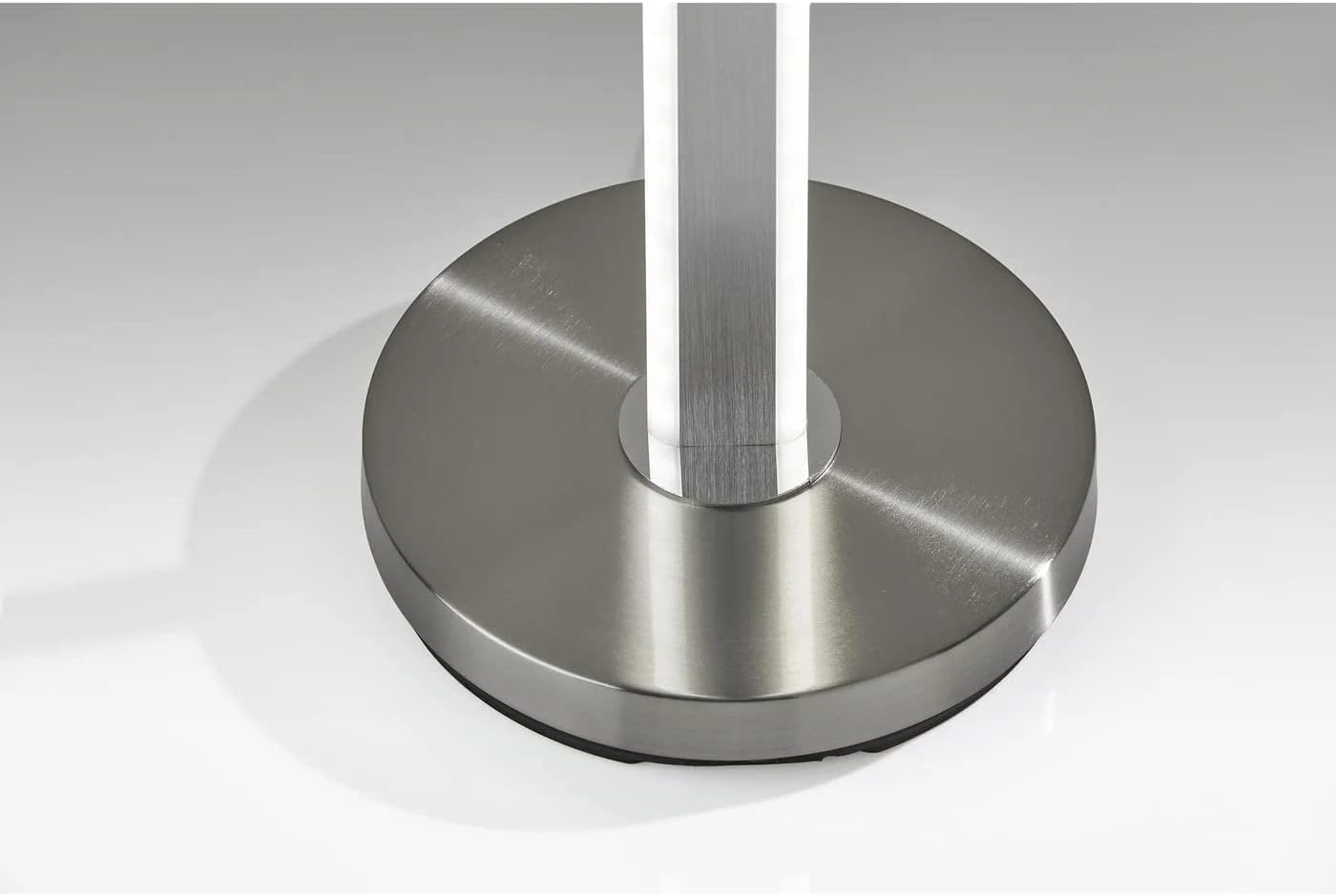

- Lamp Baz
- Assembly Hardware (if applicable, typically pre-attached or minimal)
3. Enstalasyon ak Asanble
Follow these steps to assemble your Adesso Marla LED Wall Washer Floor Lamp:
- Depake konpozan: Retire tout pyès yo nan anbalaj la avèk prekosyon. Mete yo sou yon sifas mou epi pwòp pou evite reyur.
- Enspekte fil elektrik: Before attaching the base, carefully examine the electrical wire where it exits the bottom of the main lamp pole and where it connects to the base. Ensure there are no cuts, fraying, or exposed metal strands. If any damage is found, do not proceed and contact customer support.
- Tache baz: Align the main lamp pole with the lamp base. Gently thread the pole into the base, turning clockwise until securely tightened. Ensure the power cord is not twisted or pinched during this step.
- Pozisyon Lamp: Mete l rasanbleman anamp in your desired indoor location, ensuring it is on a stable, level surface.
- Konekte pouvwa: Ploge kòd elektrik la nan yon priz estanda 120V AC.
4. Operasyon Enstriksyon
The Adesso Marla LED Wall Washer Floor Lamp features intuitive touch controls located on the main pole for power, brightness, and color temperature adjustments.
4.1 Power On/Off
- Manyen an Bouton pouvwa (sèk ak liy vètikal) once to turn the lamp SOU.
- Manyen an Bouton pouvwa ankò pou vire l laamp OFF.
4.2 Adjusting Brightness Levels
L laamp ofri 6 nivo klète diferan.
- Avèk lamp ON, touche Bouton klète (snowflake-like icons) to cycle through the 6 available brightness settings.
- Each touch will increase or decrease the brightness, depending on the direction of the icons.
4.3 Ajiste Tanperati Koulè a
L laamp provides 5 different color temperature modes to suit various environments and preferences.
- Avèk lamp ON, touche bouton mòd (letter 'M') to cycle through the following color temperature settings:
- 6500K (Cool Daylight)
- 5700K (Blan fre)
- 4500K (net blan)
- 3968K (blan cho)
- 3500K (mou blan)
- 3000K (Warm Glow)
5. Antretyen
Proper care will ensure the longevity and optimal performance of your lamp.
- Netwayaj: Dekonekte lamp Dekonekte l nan sous kouran an anvan ou netwaye li. Sèvi ak yon twal mou epi sèk pou siye lamp's surface. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
- Dirije lavi: The integrated LED lights are designed to last approximately 50,000 hours and do not require replacement.
- Depo: Si sere lamp, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight and extreme temperatures.
NAN. Depanaj
Si ou rankontre pwoblèm ak l ou aamp, al gade nan gid depanaj sa a:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Lamp pa limen. | 1. Kòd kouran pa byen ploge nan. 2. No power from outlet. 3. Damaged internal wiring (refer to Safety Information). | 1. Ensure the power cord is fully inserted into the outlet. 2. Test the outlet with another device. Check circuit breaker. 3. If damaged wiring is suspected, discontinue use and contact customer support. |
| Light output is inconsistent or flickers. | 1. Koneksyon ki lach. 2. Entèferans elektrik. | 1. Ensure all connections are secure. Unplug and replug the lamp. 2. Deplase lamp lwen lòt aparèy elektwonik. |
| Kontwòl manyen yo pa reponn. | 1. pouvwa entèripsyon. 2. Obstriksyon nan detèktè a. | 1. Deploge lamp for 30 seconds, then plug it back in. 2. Ensure the touch control area is clean and free from obstructions. |
If the problem persists after attempting these solutions, please contact Adesso customer support.
7. Espesifikasyon
| Mak | Adesso |
| Non modèl | Marla LED Wall Washer |
| Nimewo Modèl | 2101-22 |
| Dimansyon | 9.5" lajè x 48.5" wotè |
| Materyèl | Metal (Brushed Steel) |
| Sous limyè | Entegre dirije |
| Wattage | 32 Watts |
| Klète | 2200 Lumèn (Maksimòm) |
| Anviwònman Tanperati Koulè | 6500K, 5700K, 4500K, 3968K, 3500K, 3000K |
| Metòd kontwòl | Kontwòl manyen |
| Voltage | 120 Volts |
| Mwayèn lavi | 50,000 èdtan |
| Pwa atik | 11.43 liv |
8. Garanti ak sipò
For warranty information, please refer to the documentation included with your purchase or visit the official Adesso website. If you require technical assistance or have questions not covered in this manual, please contact Adesso customer support.
Adesso Customer Support:
Please refer to the contact information provided on the product packaging or the official Adesso websit la pou jwenn detay sipò ki pi resan yo.
