1. Entwodiksyon
The Albrecht DR53 Digital Radio Tuner is designed to enhance your existing stereo system or external speakers with modern digital radio capabilities. It features a 4-inch color display for clear information display, including DAB slideshows, station logos, and album art. The tuner supports DAB/DAB+ and FM radio reception, along with Bluetooth music streaming.
This manual provides detailed instructions for setting up, operating, and maintaining your DR53 tuner. Please read it carefully before use to ensure optimal performance and longevity of your device.
2. Pake kontni
Tanpri verifye ke tout atik ki nan lis anba a yo enkli nan pakè ou a:
- Albrecht DR53 Digital Radio Tuner
- Kontwòl Remote
- 2 pil AAA (pou kontwòl remote)
- Antèn fil
- Adaptè pouvwa
- RCA Cable
- 3.5 mm RCA Adapter
3. Enstalasyon
3.1 Konekte antèn la
Connect the supplied wire antenna to the DAB/FM ANT. port on the rear of the DR53 tuner. For improved reception, an external home antenna can be connected to this port.
3.2 Konekte ak yon Sistèm Odyo
Use the supplied RCA cable to connect the ODYO SOTI ports (red for right, white for left) on the DR53 to the corresponding audio input ports on your stereo system or external speakers. If your audio system uses a 3.5mm jack input, use the provided 3.5mm RCA adapter.
3.3 Koneksyon pouvwa
Konekte adaptè pouvwa a nan DC IN port on the rear of the DR53, then plug the adapter into a power outlet.
Imaj 3.3.1: Rear panel of the Albrecht DR53 Digital Radio Tuner, illustrating the connection points for the DAB/FM antenna, RCA audio output, and DC power input.
3.4 Premye pouvwa sou
Peze a Pouvwa/Mòd button on the top of the unit or on the remote control to turn on the device. The 4-inch color display will illuminate.
Imaj 3.4.1: Top view of the Albrecht DR53 Digital Radio Tuner, highlighting the Power/Mode button for device control.
4. Operasyon Enstriksyon
4.1 Navigation and Home Screen
Upon powering on, the device will display the home screen, offering various modes and settings. Use the navigation buttons on the remote control or the unit to select options.
Imaj 4.1.1: The 4-inch color display of the Albrecht DR53, showing the main menu with icons for Digital Radio, Preset List, FM Radio, Bluetooth, Settings, and Alarm.
4.2 DAB/DAB + Radyo
Chwazi Digital Radyo from the home screen. The tuner will perform an automatic scan for available DAB/DAB+ stations.
- Seleksyon Estasyon: Use the navigation buttons to browse the list of available stations.
- Ekspozisyon enfòmasyon: The 4-inch color display will show station information, including DLS (Dynamic Label Segment), station logos, album art (slideshow), and current messages.
- Ekonomize Prereglaj: The DR53 supports up to 60 mixed memory slots for DAB+ and FM radio stations. Refer to the on-screen menu for instructions on saving and recalling your favorite stations.
Imaj 4.2.1: The Albrecht DR53 tuner displaying a DAB radio station, showing the station name, current time, signal strength, and a slideshow with album art and song details.
4.3 FM Radyo
Chwazi Radyo FM from the home screen. The tuner supports both automatic and manual station scanning.
- RDS Support: The display will show RDS (Radio Data System) information where available.
- Ekonomize Prereglaj: FM stations can also be saved to the 60 available memory slots.
4.4 Difizyon Mizik Bluetooth
The DR53 allows you to stream music wirelessly from your smartphone or tablet via Bluetooth.
- Chwazi Bluetooth from the home screen. The tuner will enter pairing mode.
- Sou smartphone ou oswa tablèt, aktive Bluetooth epi chèche aparèy ki disponib.
- Select "Albrecht DR53" from the list of devices to pair.
- Once connected, you can play music from your device, and the DR53 will display ID3 tag information (e.g., song title, artist) on its screen.
Imaj 4.4.1: The Albrecht DR53 tuner integrated into a home environment, illustrating its capability for both DAB+ reception and music streaming from a smartphone.
4.5 Fonksyon alam
The DR53 includes two programmable alarm times.
- Chwazi Alam from the home screen to configure alarm settings.
- You can set the alarm source to DAB+, FM, or a standard buzzer signal.
- A snooze function is also available.
4.6 Anviwònman ekspozisyon
The 4-inch color display offers customization options for optimal viewing.
- Klate: Choose from 3 different brightness levels.
- Viewing Ang: The display's viewing angle is height-adjustable.
- Lè ak Dat: The current time and date are displayed on the screen.

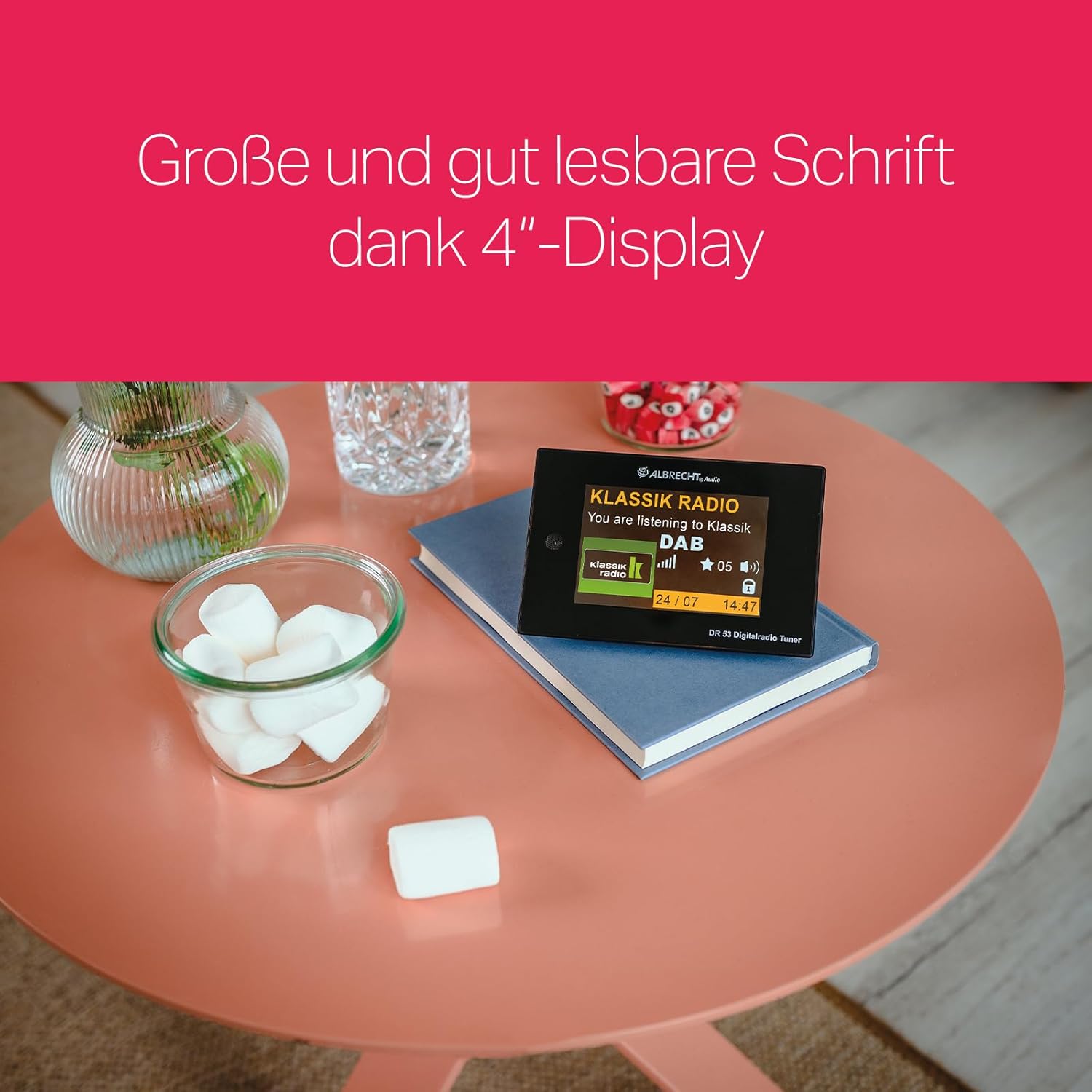

Imaj 4.6.1: The Albrecht DR53 Digital Radio Tuner positioned on a table, showcasing its 4-inch color display with large, easily readable text for station information and time.
4.7 Kontwòl Remote
The included remote control provides convenient access to all functions of the DR53 tuner. Insert the 2 AAA batteries into the remote control before first use.
Imaj 4.7.1: The Albrecht DR53 Digital Radio Tuner alongside its remote control, demonstrating the simplified operation for users.
5. Antretyen
To maintain the performance and appearance of your Albrecht DR53 tuner:
- Siye aparèy la avèk yon twal mou epi sèk.
- Pa sèvi ak pwodui netwayaj abrazif oswa solvang.
- Asire w ke fant vantilasyon yo pa bloke pou anpeche yo chofe twòp.
- Kenbe aparèy la lwen limyè solèy dirèk, sous chalè, ak imidite.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Pa gen pouvwa | Adaptè kouran an pa konekte oswa li gen pwoblèm. | Check power adapter connection to the unit and wall outlet. Ensure the outlet is functional. |
| Pa gen resepsyon DAB/FM | Antenna not connected or poor signal. | Ensure the antenna is securely connected. Adjust antenna position. Consider an external antenna for better signal. |
| Aparèy Bluetooth echwe | Device not in pairing mode, or too far away. | Ensure the DR53 is in Bluetooth pairing mode. Move your smartphone/tablet closer to the tuner. Try restarting both devices. |
| Pa gen pwodiksyon son | Audio cables not connected correctly, or volume too low. | Check RCA cable connections to both the DR53 and your audio system. Increase volume on both the DR53 and your audio system. |
7. Espesifikasyon
- Modèl: DR53 (27251)
- Mak: Albrecht
- Koulè: Nwa
- Teknoloji Akor: DAB +
- Gwoup Radyo Sipòte: FM, DAB +
- Koneksyon Teknoloji: Bluetooth
- Karakteristik espesyal: Integrated Clock, 4-inch Color Display, 60 Memory Slots, Remote Control, Equalizer, 2 Alarm Times, Snooze Function, Adjustable Viewing Ang
- Aparèy konpatib: Tablet, Smartphone (for Bluetooth streaming)
- Sòti odyo: RCA (for connection to stereo system)
- Koneksyon antèn: External antenna port (e.g., for home antenna)
- Sous pouvwa: Adaptè pouvwa (DC IN)
- Dimansyon (L x W x H): 13.5 cm x 4.3 cm x 9 cm (apeprè 5.3 x 1.7 x 3.5 pous)
- Pwa: 180 g (apeprè 0.4 liv)
- Batri obligatwa: 2 x AAA (for remote control)
8. Garanti ak sipò
The Albrecht DR53 Digital Radio Tuner comes with a 12-month warranty.
For further assistance, detailed operating instructions, or customer service, please refer to the official Albrecht support channels. Albrecht, with over 40 years of experience, is committed to providing qualified customer service.
