OEMTOOLS 24859 Air Hydraulic Motorcycle Lift User Manual

Pwodwi souview

The OEMTOOLS 24859 Air Hydraulic Motorcycle Lift is designed for safe and efficient lifting of motorcycles, ATVs, and lawn mowers up to 1,000 Lb. It features a dual air/hydraulic system for flexible operation, a durable diamond plate deck, and integrated safety features for secure vehicle handling during maintenance and repair tasks.

Image: The OEMTOOLS 24859 Air Hydraulic Motorcycle Lift, showcasing its robust design and green accents.

Karakteristik kle:

• Air/Hydraulic Operation: Can be operated manually via foot pump or connected to a shop's compressed air system for rapid lifting.
• 1,000 Lb. Capacity: Heavy-duty construction supports a wide range of vehicles.
• Durable Deck: Features a 12-gauge, powder-coated diamond plate deck for enhanced service life.
• Tache Clamping: Includes a padded wheel vise with a positive stop and four tie-down rings for secure vehicle positioning.
• Removable Ramp: Facilitates easy loading and unloading of vehicles.
• Rear Wheel Drop-Out Panel: Provides convenient access for rear tire maintenance.
• Mobilite ak Estabilite: Equipped with built-in casters for transport and adjustable stabilizers for secure positioning.

Enfòmasyon sou Sekirite

Rapèl: While performing motorcycle maintenance and repair, always follow safety procedures. This includes wearing safety glasses and protective gloves. Refer to this product manual and your vehicle's maintenance manual before performing any work.

• Ensure the lift is on a level, stable surface before use.
• Always secure the vehicle using the wheel vise and tie-down straps before lifting.
• Do not exceed the maximum weight capacity of 1,000 Lb.
• Kenbe men ak pye lwen pati k ap deplase yo pandan w ap opere.
• Engage the stop bar to secure the lift at the desired height before working under the vehicle.

Enstalasyon ak Asanble

The OEMTOOLS 24859 lift arrives mostly pre-assembled. Final assembly involves attaching the front wheel chock, caster wheels, maneuvering wheels, and U-bolt tie-downs. Ensure all components are securely fastened before initial use.

Premye etap konfigirasyon:

1. Unpack the lift from its packaging. Note that freight delivery requires customer responsibility for moving the pallet to its final destination and assembly.
2. Attach the front wheel chock to the designated mounting points on the lift platform.
3. Install the four caster wheels and two maneuvering wheels to the base frame.
4. Secure the four U-bolt tie-downs to the platform.
5. Ensure all bolts and fasteners are tightened according to the included hardware instructions.

Image: Detail of the 3 1/2 inch casters, providing mobility for the lift.

Image: Important information regarding LTL (Less Than Truckload) delivery, including appointment requirements and customer responsibilities for heavy items.

Enstriksyon Operasyon

Loading a Vehicle:

1. Ensure the lift is in its lowest position and the removable ramp se byen tache.
2. Carefully roll the motorcycle onto the lift platform, guiding the front wheel into the padded wheel vise.
3. Tighten the wheel vise to firmly secure the front wheel.
4. Attach tie-down straps to the vehicle frame and the four eye hooks on the lift platform, securing the vehicle to prevent movement.

Image: The removable ramp, designed for easy loading and unloading of vehicles onto the lift.

Image: Four eye hooks on the lift's diamond plate deck, used for attaching tie-down straps to stabilize the vehicle.

Leve machin nan:

1. Air Operation: Connect a standard air hose to the lift's air input for rapid hydraulic lifting.
2. Operasyon manyèl: Use the foot pump to manually raise the lift.
3. Once the desired height is reached, remove the foot pump and insert the stop bar into the appropriate safety lock position to secure the lift.

Image: The air hydraulic mechanism, allowing for both manual foot pump operation and connection to a shop air system.

Rear Wheel Access:

For tasks requiring access to the rear wheel, such as tire changes, utilize the rear wheel drop-out panel.

1. Ensure the vehicle is securely fastened and the lift is stable.
2. Remove the rear wheel drop-out panel to create an opening for easier access to the rear wheel assembly.

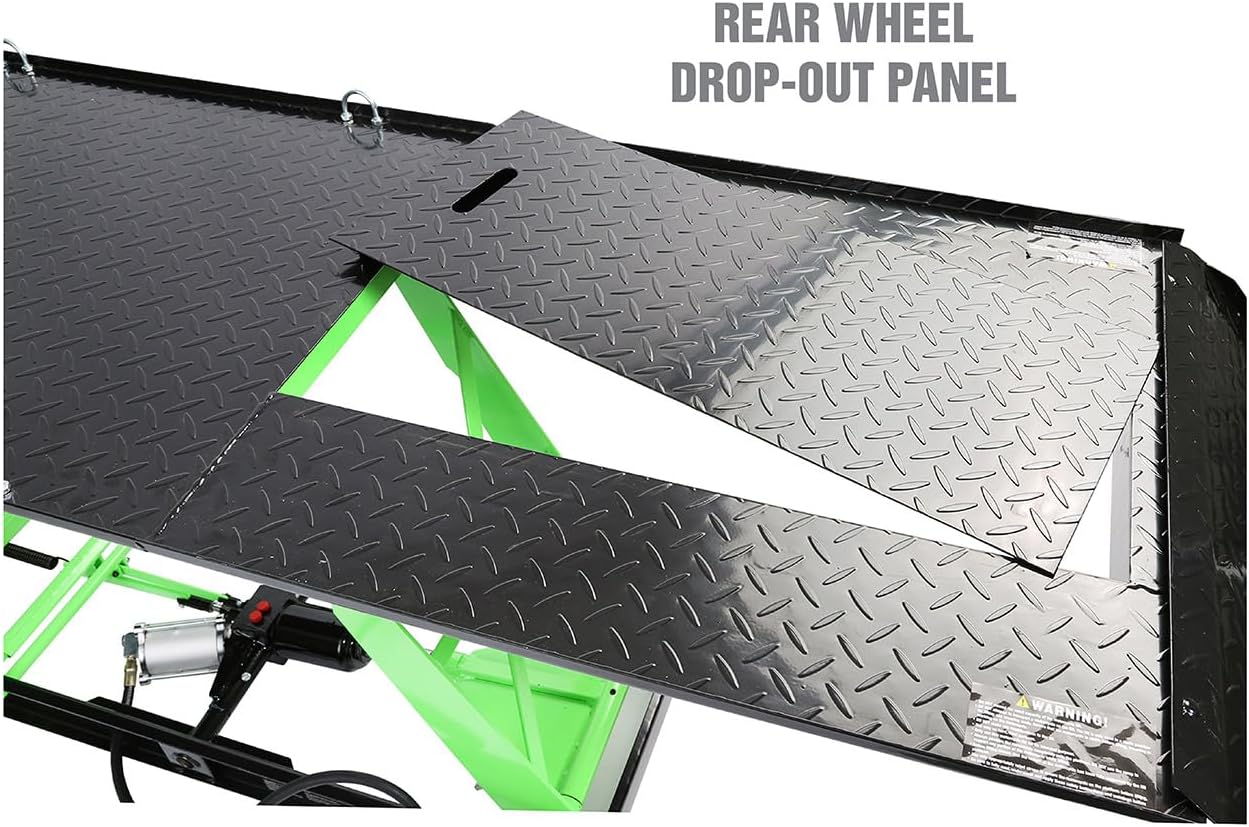

Image: The rear wheel drop-out panel, which can be removed to facilitate rear tire maintenance.

Lowering and Storing the Lift:

1. Remove the stop bar.
2. Use the foot release to slowly lower the lift to its flat position.
3. Once lowered, the lift can be easily moved using its casters for storage.

Operational Video:

Antretyen

Regular maintenance ensures the longevity and safe operation of your OEMTOOLS 24859 Air Hydraulic Motorcycle Lift.

• Netwayaj: Keep the lift platform and hydraulic components clean and free of dirt, debris, and corrosive materials. Use a mild detergent and water, then dry thoroughly.
• Lubrifikasyon: Periodically lubricate all pivot points and moving parts with appropriate grease or oil to ensure smooth operation and prevent wear.
• Enspeksyon: Regularly inspect the hydraulic system for leaks, the structural components for damage or deformation, and all fasteners for tightness. Replace any worn or damaged parts immediately.
• Likid idwolik: Check the hydraulic fluid level periodically and top up if necessary with recommended hydraulic oil. Consult the manufacturer for specific fluid requirements.

Depanaj

Seksyon sa a bay konsèy jeneral pou pwoblèm komen. Pou pwoblèm konplèks, kontakte sèvis kliyan.

• Lift not raising:
  • Tcheke nivo likid idwolik la.
  • Ensure air supply is connected and sufficient (if using air operation).
  • Verify foot pump mechanism is functioning correctly.
• Lift not lowering:
  • Ensure the stop bar is disengaged.
  • Check the foot release mechanism for obstructions or malfunction.
• Unstable lift:
  • Verify the lift is on a level surface.
  • Ensure adjustable stabilizers are properly engaged.
  • Tcheke tout fixation pou sere.

Espesifikasyon

Imaj: Dimansyonèl souview of the lift, indicating a maximum lift height of 29.5 inches and a length of 87 inches.

Imaj: Dimansyonèl souview of the lift in its lowest position, indicating a minimum height of 7 inches.

Enfòmasyon sou Garanti

The OEMTOOLS 24859 Air Hydraulic Motorcycle Lift comes with a Garanti yon ane limite from OEMTOOLS. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the official OEMTOOLS warranty documentation or contact customer support.

Sipò pou Kliyan

For any questions, technical assistance, or warranty inquiries regarding your OEMTOOLS 24859 Air Hydraulic Motorcycle Lift, please contact OEMTOOLS customer support.

• Sipò sou entènèt: Vizite la Amazon Contact Us page pou asistans.
• Manifakti Websit: Refer to the official OEMTOOLS website for additional support resources and contact information.
