Vornado 154 Whole Room Tower Air Circulator Fan Instruction Manual

1. Enstriksyon Sekirite Enpòtan

Please read all instructions before using this air circulator. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Aparèy sa a gen yon ploge polarize (yon lam pi laj pase lòt la). Pou diminye risk pou chòk elektrik, ploge sa a gen entansyon anfòm nan yon priz polarize sèlman yon fason. Si ploge a pa anfòm nèt nan priz la, ranvèse ploge a. Si li toujou pa anfòm, kontakte yon elektrisyen ki kalifye. Pa eseye defèt karakteristik sekirite sa a.
• Pa opere okenn fanatik ki gen yon kòd oswa ploge ki domaje. Jete fanatik oswa retounen nan yon sant sèvis otorize pou egzamen ak/oswa reparasyon.
• Pa kouri kòd anba tapi. Pa kouvri kòd ak tapi jete, kourè, oswa kouvèti menm jan an. Pa pase kòd anba mèb oswa aparèy. Fè aranjman pou kòd lwen zòn trafik la ak kote li pa pral tonbe sou li.
• Toujou debranche vantilatè a anvan ou deplase li, netwaye li oswa fè antretyen.
• Pa sèvi ak deyò.
• Pwodwi sa a fèt pou itilizasyon andedan kay la sèlman.

2. Pwodwi souview

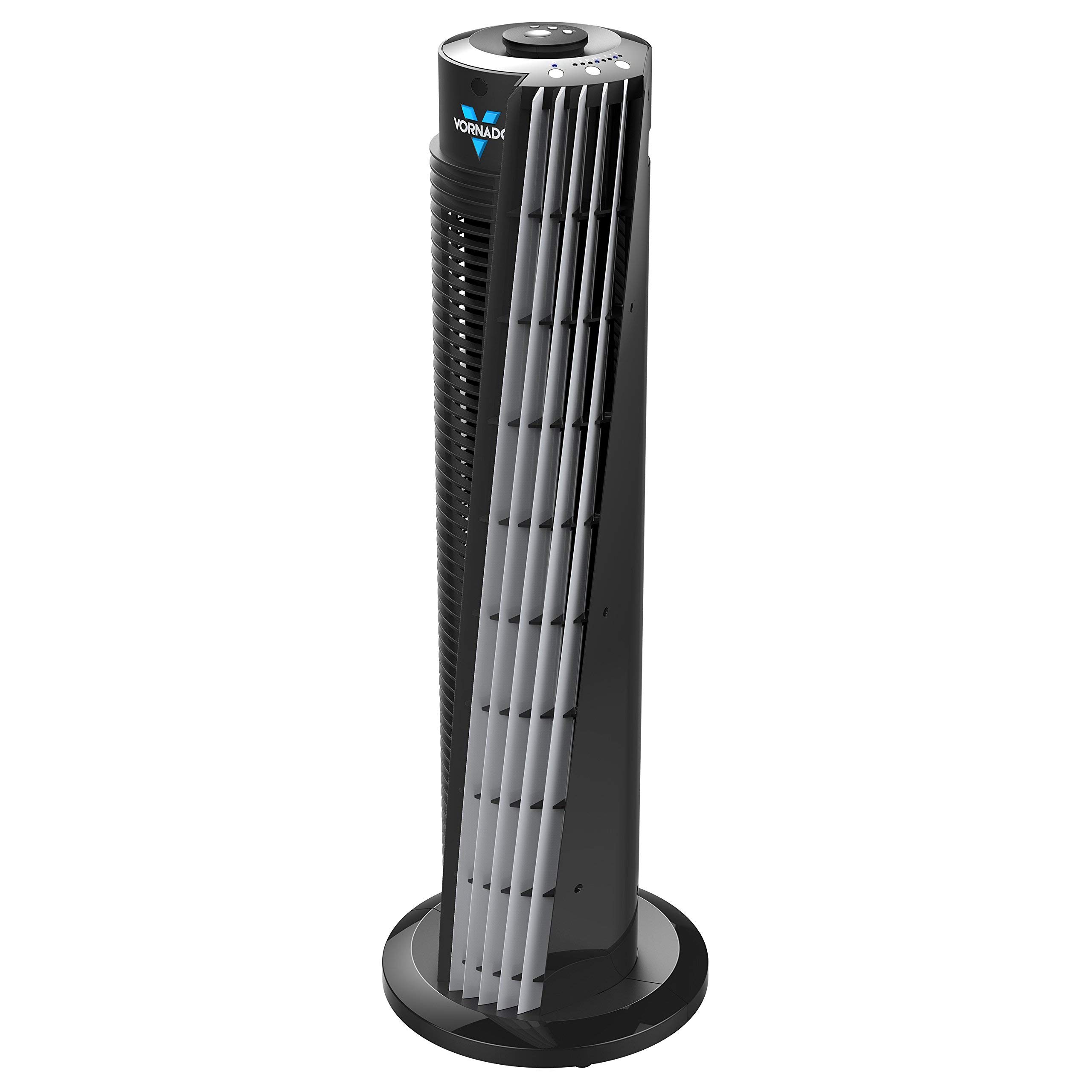

The Vornado 154 Whole Room Tower Air Circulator Fan utilizes Vornado's signature V-Flow Technology to provide complete circulation of all the air in a room. Its unique crosscut outlet creates a wide span of constant airflow, eliminating the need for a wobbly oscillating base. This model features 4 speed settings and an energy-saving LED timer.

Imaj: Anlè view of the Vornado 154 Tower Fan, showing the control panel with power, speed, and timer buttons.

Image: A diagram illustrating the difference between typical tower fan oscillation, which provides limited air movement, and Vornado's V-Flow Circulation, which creates a wide, constant airflow for whole-room circulation without oscillation.

3. Enstalasyon

3.1 Debake

• Carefully remove the air circulator from its packaging.
• Retain the packaging for off-season storage or if you need to transport the unit.
• Enspekte aparèy la pou wè si li gen nenpòt siy domaj. Si li domaje, pa itilize li epi kontakte sèvis kliyan.

3.2 Plasman

For optimal performance, place the Vornado 154 in a location where its V-Flow Technology can effectively circulate air throughout the entire room. Avoid placing it directly against walls or in corners that might obstruct airflow.

Image: The Vornado 154 Tower Fan positioned in a living room, demonstrating how its airflow circulates throughout the space.

3.3 Koneksyon pouvwa

• Ensure the unit is turned off before plugging it in.
• Plug the 2-prong power cord into a standard electrical outlet. The cord length is approximately 6 feet.

4. Operasyon Enstriksyon

The Vornado 154 features intuitive controls located on the top of the unit and can also be operated via a remote control (if included with your model).

4.1 Power On/Off

• Peze a Bouton pouvwa (circular button with a vertical line and a circle) to turn the unit ON or OFF.
• When turned ON, the unit will default to the highest speed setting.

4.2 Anviwònman vitès

• The Vornado 154 has 4 speed settings.
• Peze a Bouton vitès (often indicated by fan blades or multiple lines) repeatedly to cycle through the available speeds (e.g., High, Medium-High, Medium-Low, Low).
• The LED indicators on the control panel will illuminate to show the current speed setting.

4.3 Anviwònman revèy

• The unit features an energy-saving LED timer with options for 1, 2, 4, or 8 hours.
• Peze a Bouton revèy (often indicated by a clock symbol or numbers) repeatedly to select the desired shut-off time.
• The corresponding LED indicator will light up to confirm the selected timer duration. The unit will automatically turn off after the set time.
• To disable the timer, cycle through the options until no timer LED is illuminated, or turn the unit off and then on again.

4.4 Kontwòl Remote

A remote control is included for convenient operation of the fan's power, speed, and timer functions from a distance. Ensure the remote has working batteries and is pointed towards the fan's control panel for best reception.

5. Antretyen

Regular cleaning of your Vornado air circulator will ensure optimal performance and extend its lifespan.

5.1 Netwaye inite a

• Toujou deploge aparèy la anvan w netwaye.
• Sèvi ak yon mou, damp twal pou siye sifas ekstèn vantilatè a.
• To clean between the grilles, a vacuum cleaner with a brush attachment can be used to remove accumulated dust.
• Do not use gasoline, thinners, solvents, or other chemicals for cleaning, as these may damage the unit.
• Do not immerse the unit in water or allow water to drip into the motor housing.

5.2 Depo

When not in use for an extended period, store the air circulator in its original box or cover it to protect it from dust. Store in a cool, dry place.

NAN. Depanaj

Anvan ou kontakte sèvis kliyan, tanpri gade gid depanaj sa a:

If the problem persists after trying these solutions, please contact Vornado Customer Service.

7. Espesifikasyon

8. Garanti & Sipò

8.1 Enfòmasyon sou Garanti

This Vornado 154 Whole Room Tower Air Circulator Fan comes with a 90 jou garanti limiteTanpri konsève prèv acha ou a pou reklamasyon garanti a.

8.2 Sipò pou Kliyan

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Vornado Customer Service. Refer to the official Vornado websit la pou plis enfòmasyon kontak ak resous sipò.
