1. Entwodiksyon
This manual provides essential information for the safe and efficient operation of your Perel CH0005 3000W Convector Heater. Please read these instructions carefully before use and retain them for future reference.
The Perel CH0005 is an electric convector heater designed for indoor use, offering 3 heat levels and an integrated thermostat. Its 3000W power output and turbo fan facilitate rapid heat distribution in rooms up to 75 m³.
Image 1.1: Perel CH0005 Convector Heater in a room setting, emphasizing its features.
2. Enstriksyon Sekirite
Pou evite blesi oswa domaj, toujou obsève prekosyon sekirite sa yo:
- Asire ke aparèy chofaj la mete sou yon sifas ki estab ak nivo.
- Do not cover the heater. Covering can lead to overheating and fire.
- Keep flammable materials (curtains, furniture, bedding) at least 1 meter away from the heater.
- Pa sèvi ak aparèy chofaj la nan twalèt, zòn lesiv, oswa lòt kote ki mouye menm jan an.
- Toujou debranche aparèy chofaj la lè w pa ap itilize l oswa anvan w netwaye l.
- Pa opere aparèy chofaj la ak yon kòd oswa ploge ki domaje.
- This appliance is equipped with overheat protection, which automatically switches off the device if it becomes too hot. If this occurs, unplug the heater and allow it to cool before restarting.
- Sipèvize timoun yo ak bèt kay yo lè aparèy chofaj la ap fonksyone.
3. Pake kontni
Lè w ap debale l, tanpri verifye ke tout konpozan yo prezan epi yo pa domaje:
- Perel CH0005 Convector Heater unit
- Feet/Base attachments (if not pre-assembled)
- Manyèl Enstriksyon (dokiman sa a)
4. Pwodwi souview
Familiarize yourself with the main parts and controls of your convector heater:
Image 4.1: Labeled components of the Perel CH0005 Convector Heater.
- Manch: Pou portabilite fasil.
- Bouton Fan: Activates the turbo fan for faster heat distribution.
- Bouton Thermostat: Ajiste tanperati chanm ou vle a.
- Heat Setting Buttons: Select between 3 power levels (e.g., 1200W, 1800W, 3000W).
- Pye: Provide stable support for the unit.
Image 4.2: Detail of the thermostat and turbo fan controls.
5. Enstalasyon
- Dekonpoze: Retire aparèy chofaj la nan anbalaj li avèk prekosyon. Kenbe anbalaj la pou depo oswa transpò.
- Attach Feet (if necessary): If the feet are not pre-assembled, attach them securely to the base of the heater using the provided hardware. Ensure the heater is stable.
- Plasman: Place the heater on a firm, level surface, ensuring adequate clearance from walls, furniture, and other objects (minimum 1 meter). Do not place it directly under a power outlet.
- Koneksyon pouvwa: Plug the power cord into a suitable 230V AC electrical outlet. Ensure the outlet is properly grounded and rated for the heater's wattage (3000W).
6. Operasyon
- Pouvwa sou: Ensure the heater is plugged in.
- Chwazi Nivo Chalè: Use the heat setting buttons to choose your desired power output. The heater offers multiple levels (e.g., 1200W, 1800W, 3000W). Higher wattage provides more heat.
- Mete tèmosta a: Turn the thermostat knob to your desired room temperature. The heater will cycle on and off to maintain this temperature. For continuous heating, set the thermostat to its maximum position.
- Activate Turbo Fan (Optional): Press the fan button to engage the turbo fan. This feature helps to distribute warm air more quickly throughout the room.
- Pouvwa Off: To turn off the heater, set the heat level buttons to the 'off' position and unplug the unit from the wall outlet.
Image 6.1: Heat level options and overheat protection feature.
The integrated thermostat automatically turns off the heater once the desired room temperature is reached, contributing to energy efficiency.
7. Antretyen
Antretyen regilye asire pèfòmans optimal ak lonjevite aparèy chofaj ou a:
- Netwayaj: Anvan ou netwaye, toujou debranche aparèy chofaj la epi kite l refwadi nèt. Siye sifas ekstèn yo ak yon twal mou.amp twal. Pa sèvi ak pwodui netwayaj abrazif oswa solvang.
- Retire pousyè: Periodically use a vacuum cleaner with a brush attachment to remove dust from the air inlets and outlets.
- Depo: Lè w pa ap itilize aparèy chofaj la, sere l nan yon kote ki fre epi sèk, de preferans nan anbalaj orijinal li.
- Do not attempt to open or repair the heater yourself. Refer all servicing to qualified personnel.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Chofaj pa limen. | No power supply; Power switch off; Overheat protection activated. | Check power cord and outlet; Ensure power switch is on; Unplug and allow to cool for 30 minutes before restarting. |
| Aparèy chofaj la pa pwodui ase chalè. | Low heat setting selected; Thermostat set too low; Room size too large. | Select a higher heat setting; Adjust thermostat to a higher temperature; Ensure heater is appropriate for room size (up to 75 m³). |
| Chofaj la etenn sanzatann. | Overheat protection activated; Thermostat reached set temperature. | Unplug and allow to cool if due to overheating; This is normal operation if thermostat reached set temperature. |
9. Espesifikasyon
Key technical specifications for the Perel CH0005 Convector Heater:
- Nimewo Modèl: CH0005
- Mak: Perel
- Sorti pouvwa: 3000W
- Nivo chalè: 3 (e.g., 1200W, 1800W, 3000W)
- Voltage: 230 Volts
- Karakteristik: Turbo Fan, Electronic Thermostat, Overheat Protection
- Gwosè chanm rekòmande: Jiska 75 m³
- Dimansyon pwodwi: 15 x 80.5 x 42.5 cm (Pwofondè x Lajè x Wotè)
- Pwa: 5.11 kg
- Koulè: Blan, Nwa
- Kalite montaj: Mòn sou planche (pedestal)
- Itilizasyon anndan/deyò: Andedan kay la sèlman

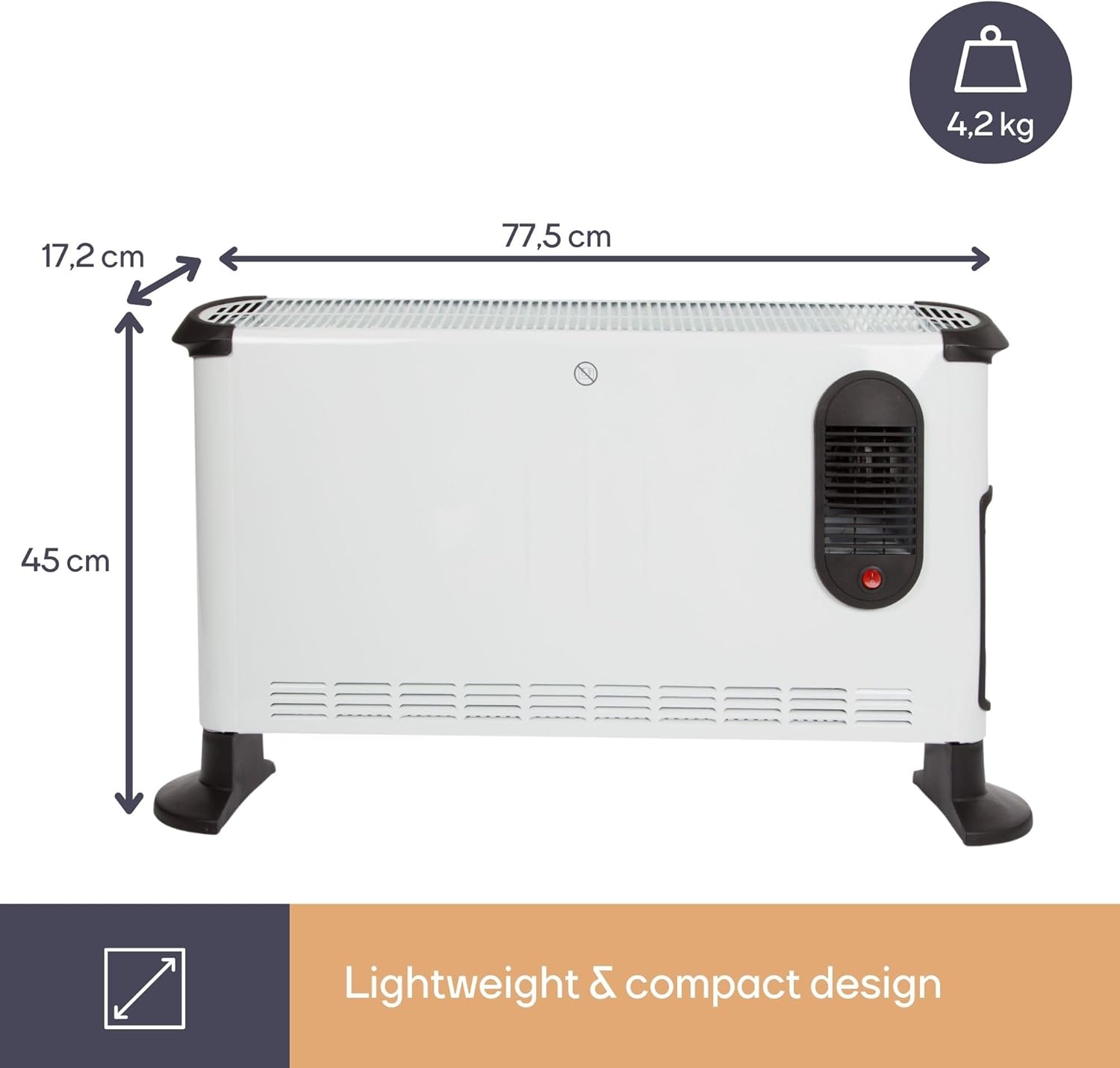

Image 9.1: Dimensions and weight of the Perel CH0005 Convector Heater.
10. Garanti ak sipò
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you encounter any issues not covered in this manual, please contact Perel customer support or your authorized service center for assistance.
