1. Entwodiksyon
The Einhell TE-AC 135/24 Silent Plus compressor is a versatile and quiet air compressor designed for various tasks in your garage or workshop. This manual provides essential information for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.
Key features include a powerful 750 W motor, a 24-liter air tank, and a remarkably low noise level of 57 dB (LpA sound pressure), making it significantly quieter than standard compressors. Its oil-free pump design ensures minimal maintenance requirements.
Image: Einhell TE-AC 135/24 Silent Plus Compressor overview.
2. Enstriksyon Sekirite
Read all safety warnings and instructions carefully before operating this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
2.1 Sekirite jeneral
- Toujou mete ekipman pwoteksyon pèsonèl (PPE) ki apwopriye tankou linèt sekirite ak pwoteksyon pou zòrèy.
- Asire w ke zòn travay la pwòp, byen eklere, epi pa gen okenn obstak.
- Keep children and bystanders away while operating the compressor.
- Pa sèvi ak konpresè a nan atmosfè eksplozif, tankou lè gen likid, gaz oswa pousyè ki ka pran dife.
- Always disconnect the power plug from the socket before making any adjustments, changing accessories, or storing the compressor.
2.2 Sekirite elektrik
- The compressor operates on 220 Volts. Ensure your power supply matches this requirement.
- Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the compressor. Keep cord away from heat, oil, sharp edges, or moving parts.
- Evite kontak kò a ak sifas ki gen tè oswa ki gen tè tankou tiyo, radyatè, ranje, ak frijidè.
- If operating the compressor in a damp kote se inevitab, sèvi ak yon aparèy kouran rezidyèl (RCD) pwoteje ekipman pou.
3. Pwodwi souview
Familiarize yourself with the components of your Einhell TE-AC 135/24 Silent Plus compressor.
Imaj: Devan view of the Einhell TE-AC 135/24 Silent Plus Compressor.
Imaj: Konplè view of the black model of the Einhell TE-AC 135/24 Silent Plus Compressor.
3.1 Konpozan kle
- Air Tank (24 L): Sere lè konprese.
- Motor (750 W): Powers the compressor.
- Redui presyon: Adjusts the output pressure.
- Manymèt presyon: One for regulated operating pressure, one for tank pressure.
- Quick Coupling: For connecting air tools.
- Drennen Valv: For draining condensation from the tank.
- Valv sekirite: Releases excess pressure for safety.
- Vibration-damping Support Feet: Ensures stability and reduces noise.
Imaj: Gwo plan view of the pressure gauges and control knobs on the compressor.
Imaj: Detaye view of the two pressure gauges, showing PSI and Bar readings.
3.2 Silent and Oil-Free Design
This compressor features an oil-free motor, eliminating the need for oil changes and reducing maintenance. Its advanced design results in a low noise output of 57 dB, making it suitable for environments where noise reduction is important.
Image: Graphic indicating 57 dB sound pressure level.
Image: Graphic indicating oil-free and no-maintenance motor.
4. Enstalasyon
Follow these steps for initial setup of your compressor.
- Debake: Carefully remove the compressor from its packaging. Inspect for any damage during transit.
- Plasman: Place the compressor on a stable, level surface. The vibration-damping feet should be in full contact with the ground. Ensure adequate ventilation around the unit.
- Koneksyon elektrik: Connect the power cable to a grounded 220 Volt power outlet. Ensure the power switch is in the "OFF" position before plugging in.
- Tcheke inisyal: Before first use, ensure all connections are secure and the drain valve is closed.
5. Operasyon Enstriksyon
This section details how to operate your compressor for various applications.
5.1 Kòmanse Compressor la
- Asire w ke kab kouran an byen konekte.
- Turn the power switch to the "ON" position. The compressor will start to fill the air tank until the maximum pressure (8 bar) is reached, then it will automatically shut off.
- Monitor the tank pressure gauge to confirm it reaches the desired level.
5.2 Ajisteman Presyon Sòti a
- Attach your air tool to the quick coupling.
- Use the pressure reducer knob to set the desired operating pressure. The regulated operating pressure gauge will show the current output pressure.
- The compressor will automatically restart when the tank pressure drops below a preset minimum, maintaining consistent air supply.
5.3 Aplikasyon
The Einhell TE-AC 135/24 Silent Plus compressor is suitable for a wide range of tasks:
Image: Diagram showing compatibility with air guns, tire inflators, spray guns, impact wrenches, and staplers/nailers.
- Gonfle: Car, motorcycle, and bicycle tires, balls, inflatable mattresses.
- Painting and Lacquering: With appropriate spray guns for various surfaces.
- Mouche: Cleaning dust and debris from surfaces or equipment.
- Stapling/Nailing: With pneumatic staplers or nailers for woodworking or upholstery.
- Air Tools: Powering impact wrenches, sandblasters, and other pneumatic tools.
Image: Man using a pneumatic stapler on furniture.
Image: Man painting a surface with a spray gun.
Image: Man inflating a car tire using the compressor.
Image: Man using an air gun to clean a surface.
6. Antretyen
Regular maintenance ensures the longevity and efficient operation of your compressor.
6.1 Drenaj Kondansasyon
Condensation accumulates in the air tank during operation. It is crucial to drain this regularly to prevent corrosion and maintain air quality.
- Ensure the compressor is turned off and unplugged.
- Place a suitable container under the drain valve located at the bottom of the tank.
- Slowly open the drain valve to release the condensed water.
- Close the drain valve securely once all water has been drained.
- Perform this procedure after each use or at least weekly, depending on usage frequency and humidity.

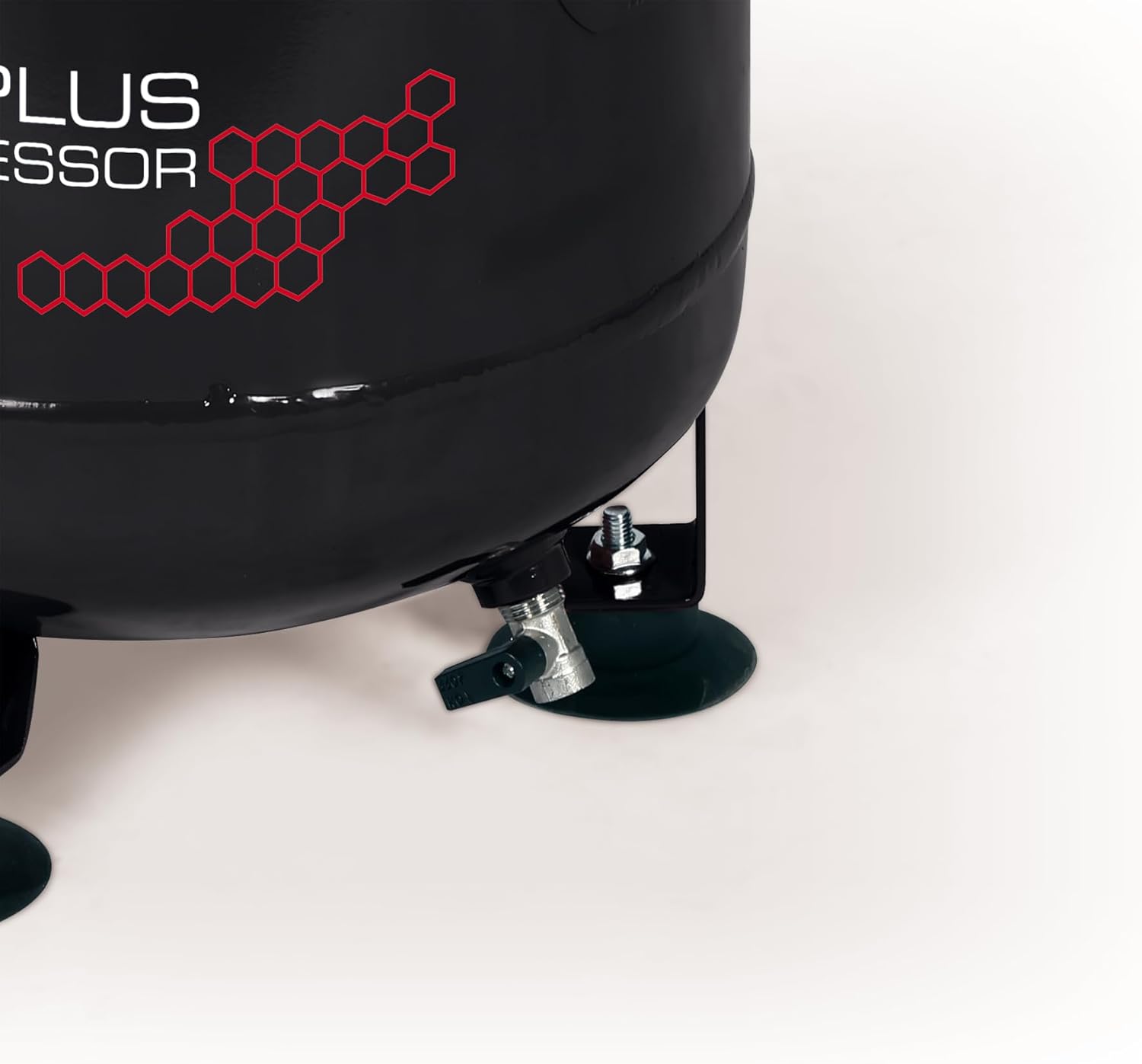

Imaj: Gwo plan view of the drain valve at the bottom of the compressor tank.
6.2 Oil-Free Motor
The TE-AC 135/24 Silent Plus features an oil-free motor, which means no oil changes or lubrication are required for the pump. This significantly reduces maintenance efforts.
6.3 Netwayaj jeneral
- Keep the compressor clean, especially the ventilation openings, to prevent overheating.
- Sèvi ak yon mou, damp twal pou netwaye. Pa sèvi ak pwodui chimik ki agresif oswa pwodui netwayaj abrazif.
NAN. Depanaj
This section addresses common issues you might encounter with your compressor.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Compressor pa kòmanse. |
|
|
| Konpresè a ap fonksyone san rete oswa souvan. |
|
|
| Low output pressure. |
|
|
| Twòp bri oswa Vibration. |
|
|
Si pwoblèm nan pèsiste apre ou fin eseye solisyon sa yo, kontakte sèvis kliyan.
8. Espesifikasyon
| Karakteristik | Valè |
|---|---|
| Nimewo Modèl | 4020610 |
| Mak | Einhell |
| Pouvwa | 750 Watts |
| Voltage | 220 Volts |
| Presyon maksimòm | 8 ba |
| Kapasite tank | 24 lit |
| Kapasite Flow Air | 135 lit pou chak minit |
| Noise Level (LpA) | 57 dB |
| Noise Level (LwA) | 78 dB |
| Dimansyon (L x W x H) | 35.8 x 36.2 x 70.6 cm |
| Pwa | 22.15 Kilogram |
| Karakteristik espesyal | Oil-free, Maintenance-free |
| Sous pouvwa | Kab elektrik |
9. Garanti ak sipò
Einhell is committed to quality and provides support for its products.
9.1 Tank Warranty
The air tank of your Einhell TE-AC 135/24 Silent Plus compressor is guaranteed for 10 years against corrosionTanpri konsève prèv acha ou a pou reklamasyon garanti a.
9.2 Sipò pou Kliyan
For technical assistance, spare parts, or warranty inquiries, please contact Einhell customer service. Refer to the official Einhell websit la oswa dokiman acha ou a pou jwenn enfòmasyon kontak espesifik nan rejyon ou an.
