ZIPRO Burn Magnetic Elliptical Bike User Manual

1. Entwodiksyon

The ZIPRO Burn Magnetic Elliptical Bike is designed for effective home fitness, suitable for both beginners and advanced users. This elliptical combines the benefits of a treadmill, stationary bike, and stepper, offering a full-body workout that helps burn calories, improve physical condition, and protect joints. Please read this manual thoroughly before assembly and operation to ensure safe and efficient use of your equipment.

Figure 1.1: The ZIPRO Burn Magnetic Elliptical Bike, a compact and efficient fitness machine.

2. Enfòmasyon sou Sekirite

Always consult with a healthcare professional before starting any new exercise program. Adhere to the following safety guidelines:

• Asire w tout pati yo byen fikse anvan chak itilizasyon.
• Mete eliptik la sou yon sifas plat epi ki stab.
• Kenbe timoun ak bèt kay lwen ekipman an pandan operasyon an.
• Pa depase pwa maksimòm itilizatè a ki se 120 kg (264 lbs).
• Mete soulye atletik ki apwopriye pandan w ap fè egzèsis.
• Sispann fè egzèsis imedyatman si ou santi vètij, ou ap endispoze, oswa ou gen doulè.
• Regularly inspect the equipment for wear and tear.

3. Enstriksyon Asanble

Assembly of the ZIPRO Burn Elliptical Bike is designed to be straightforward. All necessary tools are included. Follow these general steps:

1. Depake konpozan: Carefully remove all parts from the packaging and lay them out. Verify all components are present against the parts list in your included paper manual.
2. Mete estabilizatè yo: Secure the front and rear stabilizers to the main frame using the provided bolts and nuts. Ensure they are level and stable.
3. Install Main Post: Attach the main upright post to the base of the elliptical.
4. Connect Pedals and Arms: Assemble the pedal arms and connect them to the flywheel mechanism. Ensure the pedals are securely attached and rotate smoothly. The large non-slip foot surfaces are designed for comfort and safety.
5. Mount Console and Handlebars: Attach the console and handlebars to the main post. Connect any necessary sensor cables (e.g., heart rate sensors).
6. Tèks final yo: Double-check all bolts and connections to ensure they are tight and secure. Test the movement of the pedals and handlebars for smooth operation.

Figure 3.1: Product dimensions for placement consideration (117 cm length, 65 cm width, 150 cm height).

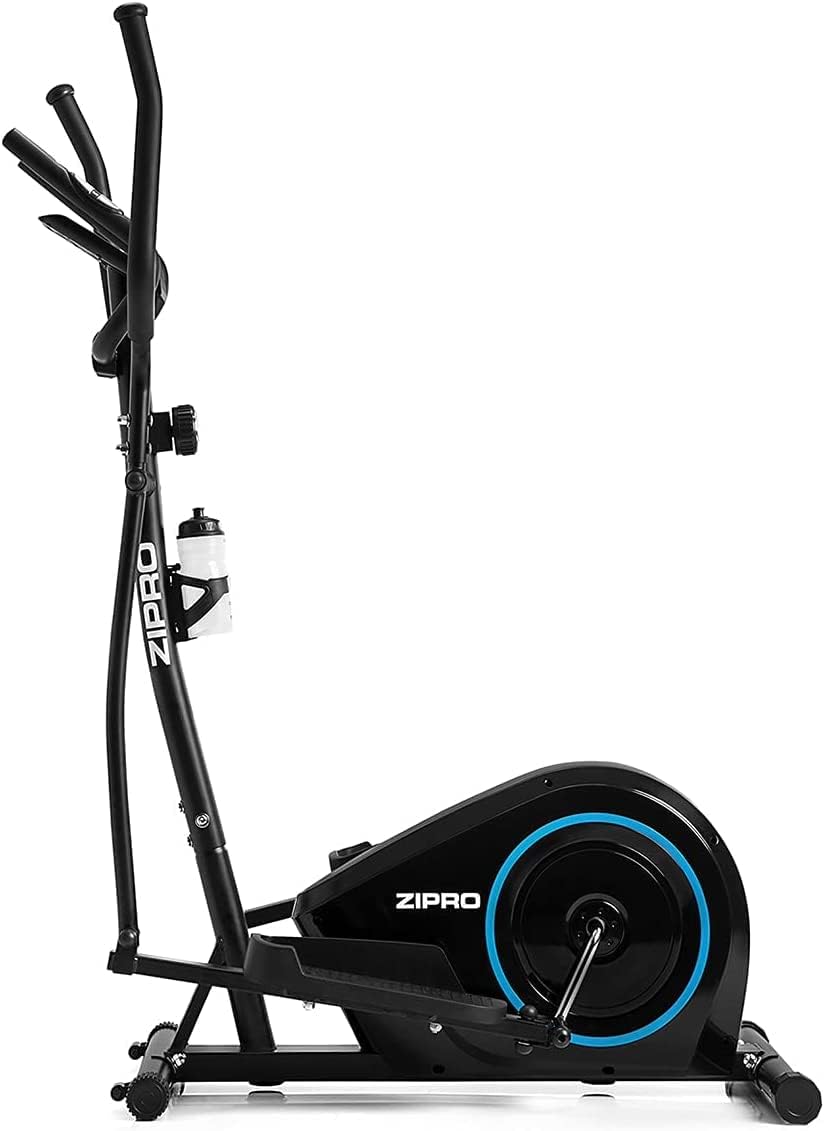

Figure 3.2: Detail of the comfortable non-slip pedals.

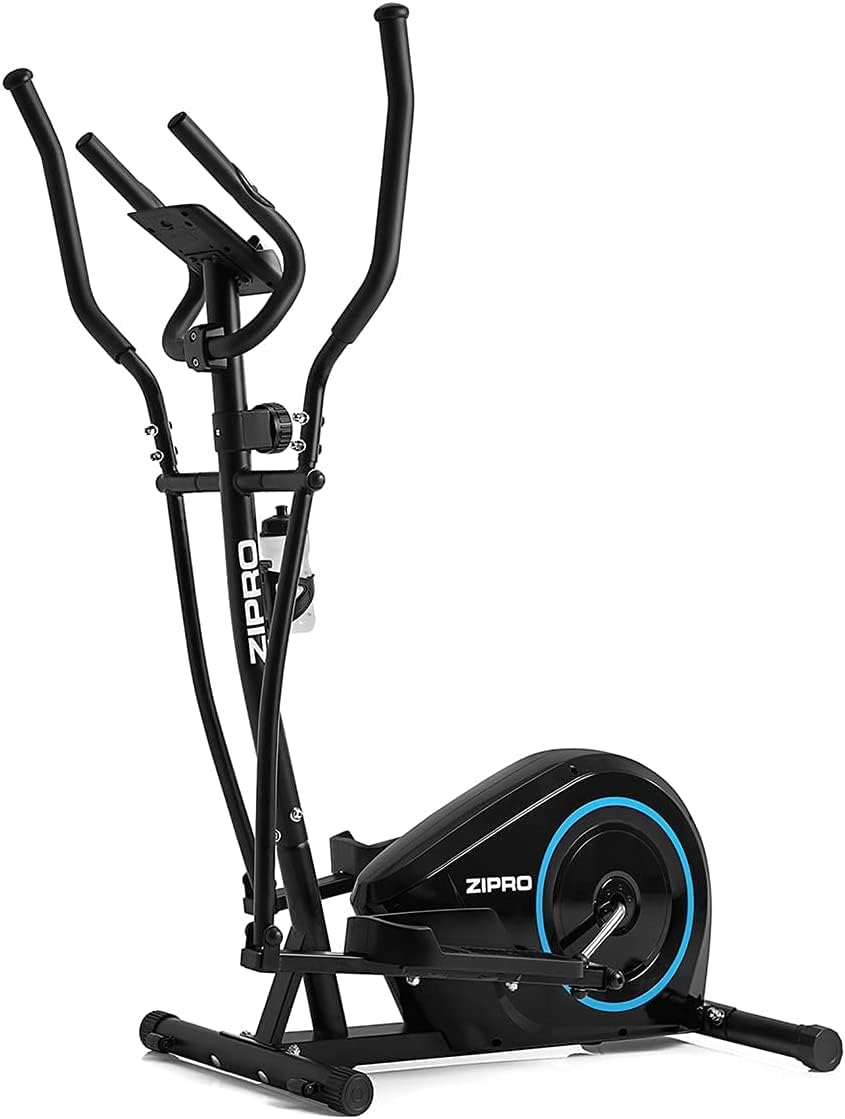

Figure 3.3: Adjustable feet for stability on uneven surfaces.

4. Operasyon Enstriksyon

4.1. Ajisteman Rezistans lan

The ZIPRO Burn features an 8-level magnetic resistance system for smooth and quiet operation. To adjust the resistance, turn the tension control knob located on the main post. Turn clockwise to increase resistance (levels 1-8) and counter-clockwise to decrease it.

• Nivo 1-3: Easy, suitable for warm-up or light cardio.
• Nivo 4-6: Medium, ideal for sustained cardio and moderate intensity workouts.
• Nivo 7-8: Hard, for intense training and muscle engagement.

Figure 4.1: The 8-step tension control knob for adjusting magnetic resistance.

4.2. Using the Console

The integrated computer console displays essential workout data to help you track your progress. It typically shows:

• TAN: Dire antrennman ou an.
• KALORI: Estimasyon kalori boule.
• VITESSE: Kouran vitès.
• PULS: Heart rate (measured via hand pulse sensors on the handlebars).
• DISTANS: Distans ki kouvri.

Use the 'MODE' button to cycle through display functions and 'RESET' to clear data. The console also features a stand for mobile devices, allowing you to enjoy media during your workout.

Figure 4.2: The digital console displaying workout metrics.

Figure 4.3: The integrated stand for smartphones or tablets.

4.3. Hydration

A water bottle holder is conveniently located on the frame to ensure you stay hydrated during your exercise session.

Figure 4.4: Water bottle holder for convenient hydration.

5. Antretyen

Regular maintenance ensures the longevity and optimal performance of your ZIPRO Burn Elliptical Bike:

• Netwayaj: Siye ekipman an avèk piblisiteamp Siye twal la apre chak itilizasyon pou retire swe ak pousyè. Evite pwodui netwayaj abrazif.
• Lubrifikasyon: Periodically check moving parts, especially joints and pivot points. Apply a small amount of silicone-based lubricant if any squeaking or stiffness is noticed.
• Sere boulon: Every few weeks, check and tighten all bolts and nuts to ensure structural integrity.
• Depo: Store the elliptical in a dry, cool place away from direct sunlight and extreme temperatures.

NAN. Depanaj

If you encounter issues with your elliptical, refer to the following common troubleshooting tips:

• Bri k'ap kriye: Check all bolted connections and moving joints. Apply lubricant to pivot points if necessary. Ensure the elliptical is on a level surface.
• Unstable Movement: Verify that the elliptical is placed on a flat surface and adjust the leveling feet on the stabilizers to eliminate wobbling. Ensure all assembly bolts are tightened.
• Konsòl la pa parèt: Check battery installation and ensure batteries are fresh. Verify all console cables are securely connected.
• Rezistans ki pa chanje: Ensure the tension control cable is properly connected and not kinked. Check the resistance knob for proper function.
• Pedal Issues: Ensure pedals are correctly installed and tightened. If a pedal feels loose or wobbly, re-tighten its connection to the crank arm.

For persistent issues not resolved by these steps, please contact ZIPRO customer support.

7. Espesifikasyon

8. Garanti ak sipò

For warranty information and customer support, please refer to the documentation included with your product or visit the official ZIPRO website. Typically, fitness equipment comes with a limited warranty covering manufacturing defects. Keep your proof of purchase for warranty claims.

If you require assistance with assembly, operation, or troubleshooting, please contact ZIPRO customer service directly. Contact details can usually be found on the product packaging or the manufacturer's websit.
