FEELWORLD F6 Plus V2 6-Inch Field Monitor Instruction Manual

1. Pwodwi souview

The FEELWORLD F6 Plus V2 is a 6-inch field monitor designed for DSLR cameras, featuring a 3D LUT touch screen with a 1920x1080 IPS display. It supports 4K HDMI input and output, and includes a tilt arm for flexible mounting. This manual provides instructions for setup, operation, and maintenance of your F6 Plus V2 monitor.

Image 1.1: FEELWORLD F6 Plus V2 6-inch field monitor.

2. Pake kontni

Verifye ke tout atik ki nan lis anba a yo enkli nan pakè ou a:

• FEELWORLD F6 Plus V2 Monitor
• Mikwo HDMI kab
• Sou entènèt jwèt Sun Shade
• Panche bra
• Manyèl operasyon

Image 2.1: Included accessories with the FEELWORLD F6 Plus V2 monitor.

3. Gid Enstalasyon

3.1 Fizik Plis paseview

Familiarize yourself with the ports and controls of the F6 Plus V2 monitor.

• Bò anwo: Power/Touch button, 3/4-inch screw mount, Menu rocker wheel.
• Bò Goch: HDMI In, HDMI Out (4K pass-through up to 24Hz), DC Out 8V.
• Bottom Side: SD Card slot (for 3D LUT upload and firmware upgrade), DC In 12V, 1/4-inch screw mount, Headphone monitor jack.
• Bò dèyè: Standard F970 battery slot.

Imaj 3.1: Anlè view of the monitor with power/touch button and menu wheel.

Imaj 3.2: Kote view of the monitor displaying various input/output ports.

3.2 Alimente monitè a

The F6 Plus V2 can be powered via the F970 battery slot on the back or through the DC In 12V port. Ensure the battery is charged or the power adapter is connected before use.

3.3 Enstalasyon Monitè a

The monitor can be mounted using the included tilt arm via the hot shoe mount or 1/4"-20 thread. This allows for flexible positioning, such as on top of your camera or on a gimbal.

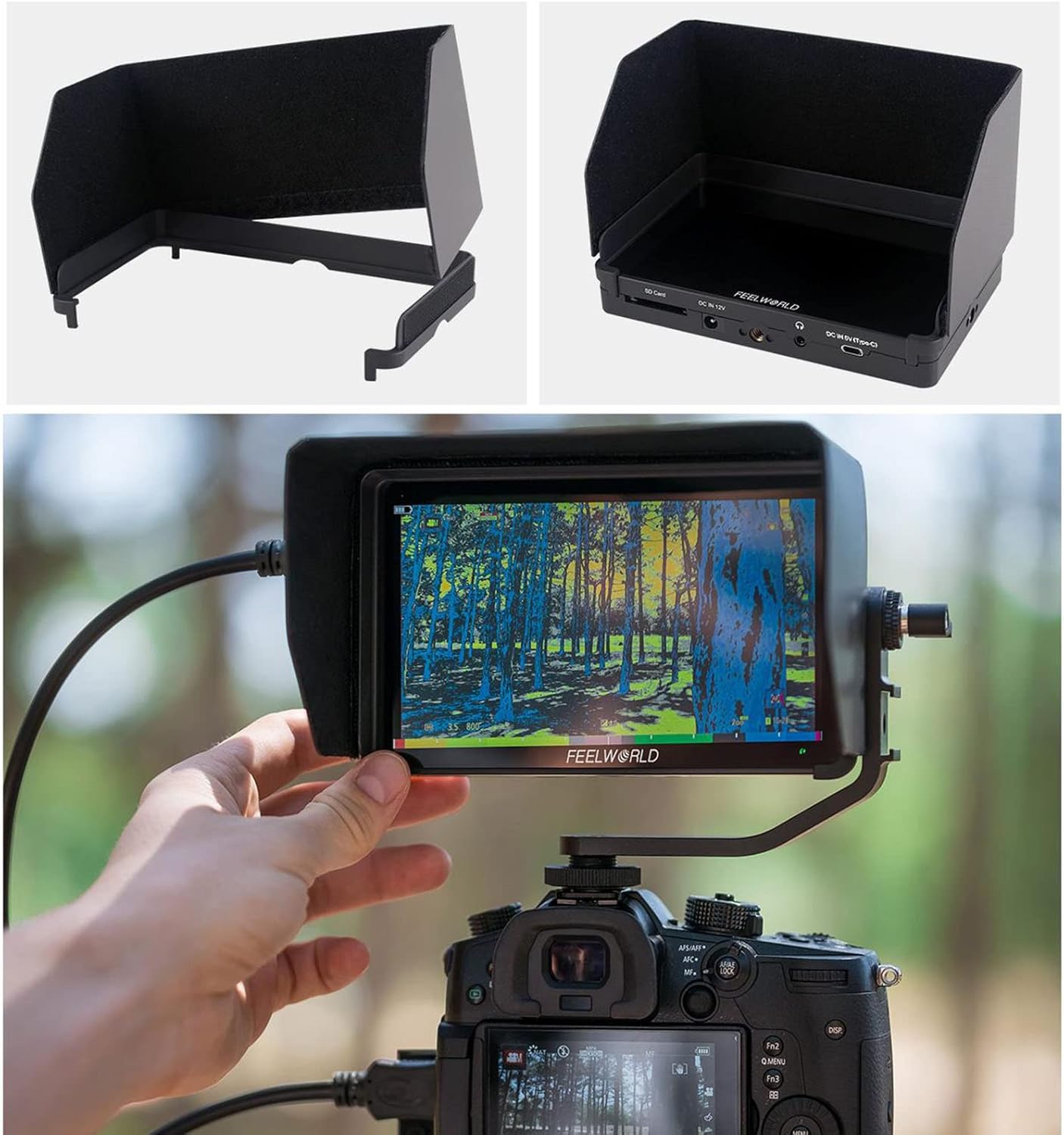

Image 3.3: Monitor mounted on a camera with the tilt arm and sunshade.

4. Operasyon Enstriksyon

4.1 Operasyon debaz

Press the Power/Touch button to turn the monitor on or off. The touch screen allows for intuitive control of all parameters.

4.2 Navigasyon meni

Tap twice on the screen to enter the menu system. The menu rocker wheel can also be used to navigate and select options. The menu is organized into several categories:

• Anviwònman imaj: Adjust display parameters.
• Anviwònman Fonksyonalite yo: Access monitoring tools.
• Anviwònman sistèm: Configure general monitor options.

4.3 Monitoring Tools and Features

The F6 Plus V2 includes a variety of professional monitoring tools to assist with your video production:

• Waveform Monitoring: Choose from RGB Parade, Y Parade, vectorscope, histogram, and audio phase/level displays for broadcast-accurate signal monitoring.
• Focus Assist (Peaking): Highlights in-focus areas to aid in sharp focusing.
• Koulè fo: Displays exposure levels using color overlays.
• Istogram: Graphical representation of tonal distribution.
• Audio Meter: Monitors audio input levels.
• Monokrom: Displays the image in black and white.
• Makè sekirite: Provides frame guides for various aspect ratios (e.g., 4:3, 16:9, 2.35:1).
• Sant Makè: Montre yon vizè nan sant ekran an.
• Anamorphic Mode: De-squeezes anamorphic footage (1.33x, 2.0x).
• Imaj Flip: Ranvèse imaj la orizontalman oswa vètikalman.
• Zoom: Magnifies a portion of the screen for detailed inspection.
• Glase: Holds the current frame on the screen.
• Pixel-to-Pixel: Montre imaj la nan rezolisyon natif natal li san li pa chanje echèl la.
• Screenshot & Video Overlay: Capture screenshots and compare them with real-time video using semi-transparent overlay. (Requires SD card)

Image 4.1: Waveform monitoring and other analysis tools on the F6 Plus V2.

Image 4.2: Screenshot and video overlay function for composition comparison.

4.4 3D LUT Color Calibration

The monitor supports 3D LUT (Look Up Table) import via SD card, allowing you to preview your desired color grades in real-time. It comes with pre-loaded LUTs for various log profiles like S-Log2/3, V-Log, and Log-C.

1. To import custom LUTs, save your .cube LUT files onto an SD card.
2. Mete kat SD a nan fant kat SD monitè a.
3. Navigate to the LUT Import section in the menu and select "Initialize" to load the LUTs.
4. Once imported, you can select your desired LUT from the list for live preview.

Image 4.3: Real-time 3D LUT preview for color calibration.

4.5 Ajisteman Ekspozisyon

You can adjust various display parameters to suit your viewing preferences and shooting environment:

• Color Temperature (e.g., 6500K)
• Ekleraj
• Klète
• Kontras
• Saturasyon
• Hue
• Netite

5. Antretyen

To ensure the longevity and optimal performance of your FEELWORLD F6 Plus V2 monitor, follow these maintenance guidelines:

• Netwayaj: Use a soft, dry cloth to clean the monitor screen and body. For stubborn smudges, a slightly damp cloth with a mild, non-abrasive cleaner can be used, ensuring no liquid enters the ports.
• Depo: Store the monitor in a cool, dry place away from direct sunlight and extreme temperatures. Use the provided sunshade or a protective case when not in use to prevent scratches and dust accumulation.
• Swen batri: If using rechargeable batteries, follow the manufacturer's instructions for charging and storage. Remove batteries if the monitor will not be used for an extended period.
• Mizajou mikrolojisyèl: Periodically check the FEELWORLD official website for firmware updates to ensure your monitor has the latest features and bug fixes. Follow the provided instructions for safe updating via the SD card slot.

NAN. Depanaj

If you encounter issues with your FEELWORLD F6 Plus V2 monitor, refer to the following common troubleshooting steps:

• Pa gen pouvwa: Ensure the battery is fully charged or the power adapter is securely connected. Check the power button operation.
• Pa gen siyal: Verify that the HDMI cable is correctly connected to both the camera and the monitor. Check the camera's HDMI output settings. Ensure the correct input source is selected on the monitor.
• Image Distortion/Incorrect Colors: Check the HDMI cable for damage. Reset display settings to default in the monitor menu. Ensure no incorrect LUTs are applied.
• Ekran manyen pa reponn: Try restarting the monitor. Ensure the touch function is enabled via the Power/Touch button.
• Echèk Mizajou Firmwèr: Ensure the SD card is properly formatted and the firmware file is correctly placed. Follow the update instructions precisely.

For persistent issues, contact FEELWORLD customer support or refer to the official websit pou plis asistans.

7. Espesifikasyon

8. Videyo pwodwi ofisyèl la

9. Garanti ak sipò

For warranty information, technical support, or service inquiries, please refer to the official FEELWORLD websit la oubyen kontakte sèvis kliyan yo dirèkteman. Kenbe resi acha w la kòm prèv acha pou reklamasyon garanti.
