1. Pwodwi souview
The Jectse 2-in-1 Chlorine PH Meter is an essential tool designed for quick and accurate measurement of pH and chlorine (Cl2) levels in swimming pools and spas. This portable device ensures your water remains within safe and ideal ranges for optimal enjoyment and health.
Karakteristik kle:
- Essential Tool: Provides quick and accurate pH and chlorine (Cl2) level measurements.
- Fasil pou itilize: Features a large screen display for clear and accurate readings, simplifying operation.
- Konstriksyon dirab: Made of high-quality plastic materials, ensuring wear resistance, waterproofing, and long service life.
- Konsepsyon pòtab: Compact and lightweight for convenient handling and storage.
2. Enfòmasyon sou Sekirite
- Kenbe aparèy la lwen limyè solèy la dirèk ak tanperati ekstrèm.
- Do not immerse the main body of the meter in water. Only the probe is designed for water contact.
- Sere aparèy la nan yon kote ki sèk, fre lè li pa itilize.
- Kenbe soti nan atenn timoun yo.
- Ensure proper battery disposal according to local regulations.
3. Pake kontni
Verifye ke tout atik yo prezan nan pakè a:
- 1 x CL2 Chlorine & PH Analysis Meter (Main Body)
- 1 x Probe with Cable
4. Pwodwi konpozan
Figi 4.1: Main unit and probe assembly. The main unit features a large display for readings, and the probe connects via a coiled cable.

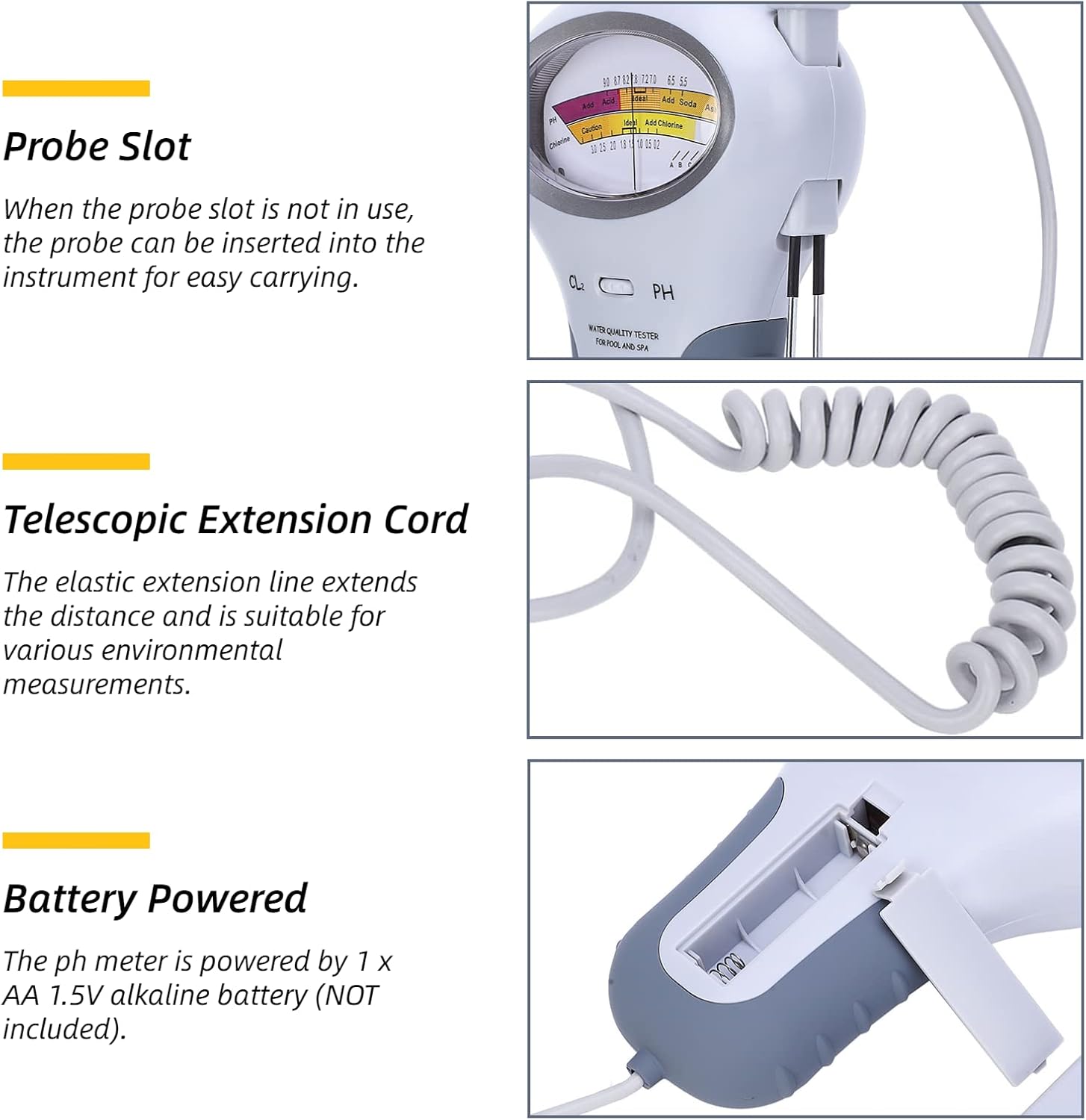

Figi 4.2: Detaye view of the meter's features, including the convenient probe slot for storage, the flexible telescopic extension cord, and the battery compartment for power.
- Kò prensipal: Houses the display, control buttons, and battery compartment. Dimensions: 190 x 120mm / 7.5 x 4.7in.
- Sonde: The sensing element that is immersed in water. Probe Length: 48mm / 1.9in (excluding black belt). Handle probe length: 150mm / 5.9in.
- Kab: Connects the probe to the main body. Cable Length: 130mm / 5.1in.
5. Enstalasyon
5.1 Enstalasyon batri
- Jwenn lòj batri a sou do inite prensipal la.
- Louvri kouvèti batri a.
- Insert one (1) AA 1.5V alkaline battery, ensuring correct polarity (+/-). (Batri pa enkli)
- Fèmen kouvèti batri a byen.
5.2 Premye Preparasyon
- Connect the probe cable to the designated port on the main unit.
- Ensure the probe is clean and dry before first use.
6. Operasyon Enstriksyon
6.1 Measuring pH and Chlorine Levels
Figi 6.1: Proper technique for immersing the probe in pool water for accurate readings.

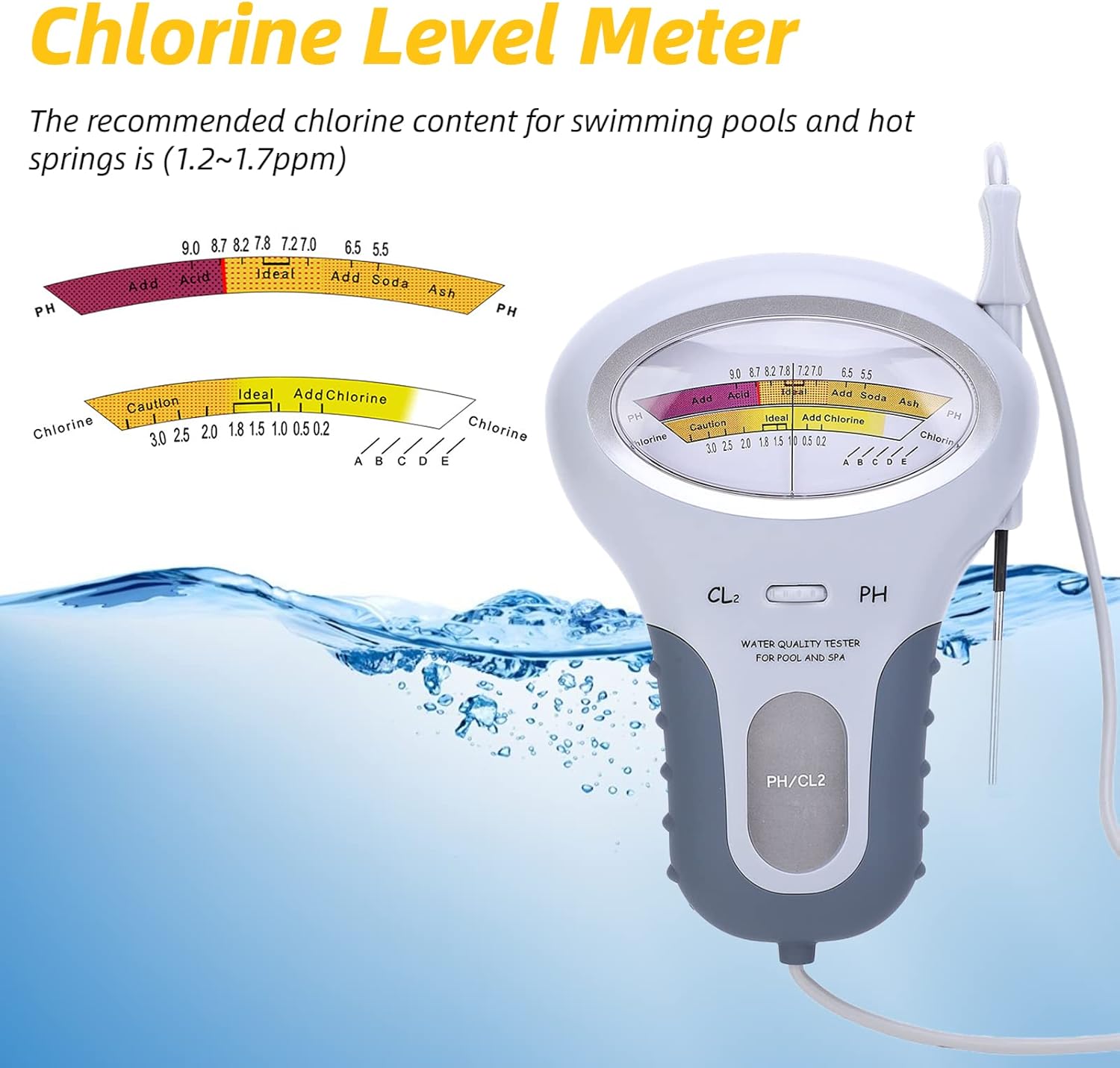

Figi 6.2: The chlorine level scale on the meter, indicating ideal and caution ranges. The recommended chlorine content for swimming pools and hot springs is 1.2~1.7ppm.
Figi 6.3: The pH level scale on the meter, showing acid, ideal, and alkaline ranges. The recommended pH for swimming pools and spas is 7.2-7.8.
- Before testing, ensure the water sample is still and free of debris.
- Press the 'PH/CL2' button to turn on the meter.
- Plonje sond lan nan dlo aample, ensuring both metal electrodes are fully submerged.
- Wait for the reading to stabilize on the large display.
- Read the pH and chlorine (CL2) levels directly from the meter's scale.
- Compare the readings with the ideal ranges indicated on the meter's display (e.g., for chlorine: 1.2-1.7ppm; for pH: 7.2-7.8).
- After use, remove the probe from the water and wipe it clean and dry.
- Press the 'PH/CL2' button again to turn off the meter.
6.2 Kalibrasyon
Accurate calibration is crucial for reliable readings. Please follow these steps carefully:
- You need to prepare a 1.5 PPM (parts per million) chlorine solution in the pool water for initial calibration. This serves as your reference point.
- If you are unsure if the chlorine content is exactly 1.5 PPM, or if you cannot easily create a precise calibration point, it is recommended to use a traditional test strip or a professionally verified water sample to confirm the 1.5 PPM chlorine level.
- Once the pool water has been calibrated with the 1.5 PPM chlorine solution, there is generally no need to recalibrate unless you change to measure a different pool's water or if you suspect the meter's accuracy has drifted.
7. Antretyen
7.1 Netwayaj
- After each use, gently wipe the probe electrodes with a soft, clean cloth to remove any water residue or contaminants.
- Do not use abrasive cleaners or solvents on the meter or probe.
- Keep the main body dry. If it gets wet, wipe it immediately with a dry cloth.
7.2 Depo
- Store the meter and probe in a cool, dry place, away from direct sunlight and extreme temperatures.
- If storing for an extended period, remove the battery to prevent leakage and damage to the device.
- Utilize the probe slot on the main unit for secure storage of the probe when not in use.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Kontè a pa limen. | Batri mouri oswa mal enstale. | Replace the AA 1.5V battery, ensuring correct polarity. |
| Lekti ki pa egzak oswa ki pa konsistan. |
|
|
| Ekran an fèb oswa li ap tranble. | Ba pouvwa batri. | Replace the AA 1.5V battery. |
9. Espesifikasyon
| Spesifikasyon | Valè |
|---|---|
| Gwosè Kò prensipal la | 190 x 120mm / 7.5 x 4.7in |
| Handle Probe Length | 150mm / 5.9in |
| Probe Length (excluding black belt) | 48mm / 1.9in |
| Longè kab | 130mm / 5.1in |
| Pwovizyon pou pouvwa | 1 x AA 1.5V alkaline battery (NOT included) |
| Materyèl | Plastik |
| Pwa atik | 10.6 ons |
| Dimansyon pwodwi | 7.48 x 4.72 x 1.97 pous |
10. Garanti ak sipò
Jectse is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in this manual, if you encounter any issues or have questions regarding your Jectse 2-in-1 Chlorine PH Meter, please contact Jectse customer support through the retailer's platform or the official Jectse website. Our team will endeavor to provide a complete solution within 24 hours.
Pou plis enfòmasyon, vizite a Jectse Store on Amazon.
