Manyèl Itilizatè Solisyon Chanm Reyinyon KONFTEL C20Ego a

Entwodiksyon

The Konftel C20Ego is a comprehensive video collaboration solution designed for small huddle rooms. This kit integrates a 4K conference camera, a high-quality speakerphone with OmniSound audio, and a central hub for simplified connectivity. It provides an efficient and high-performance setup for video meetings, ensuring clear audio and sharp video.

This manual provides detailed instructions for setting up, operating, and maintaining your Konftel C20Ego system. Please read it thoroughly before use to ensure optimal performance and longevity of your device.

Ki sa ki nan bwat la

Carefully unpack all components and verify that all items listed below are present and undamaged.

Image: Konftel C20Ego Huddle Room Solution components. This image displays the Konftel Cam20 4K camera, the Konftel Ego speakerphone, and the Konftel OCC Hub, along with the necessary USB cables for connection.

• Konftel Ego Speakerphone (Part No. 910101081)
• USB cable for Konftel Ego (Part No. 900103388)
• Soft case for Konftel Ego
• Konftel Cam20 4K Conference Camera (Part No. 931201001)
• 5m USB cable (Type A/Type B) for Konftel Cam20
• Remote control with two AAA batteries for Konftel Cam20
• Konftel OCC Hub (Part No. 900102149)
• 3m USB cable for Konftel OCC Hub
• 5m USB cable (Type A/mini B) for Konftel 55/55Wx/300IPx/300Wx/300Mx (Note: This cable is included but may not be used with the Konftel Ego)
• 5m USB cable (Type A/micro B) for Konftel Ego
• AC adapter (EU, US, AU, UK plugs included)
• Velcro kasèt
• Mikrofibr Netwayaj twal
• Quick guides and safety declarations for each component
• Gid enstalasyon

Enstalasyon

Follow these steps to set up your Konftel C20Ego Huddle Room Solution. The Konftel OCC Hub simplifies connectivity, requiring only a single USB cable to your laptop.

1. Position the Konftel Cam20: Place the Konftel Cam20 camera on top of your display screen or on a flat surface in the meeting room. Ensure it has a clear view nan tout patisipan yo.

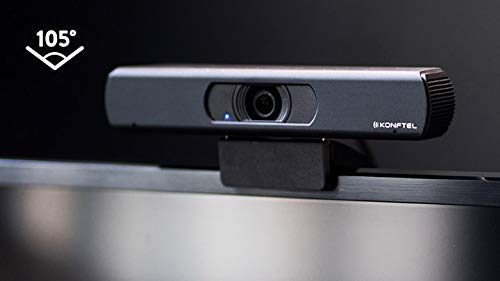

   Image: Konftel Cam20 camera with a 105-degree field of view. This image highlights the wide-angle lens of the camera, suitable for capturing all participants in a huddle room.

2. Connect the Konftel Cam20 to the OCC Hub: Use the provided 5m USB cable (Type A/Type B) to connect the Konftel Cam20 to one of the USB ports on the Konftel OCC Hub.
3. Position the Konftel Ego Speakerphone: Place the Konftel Ego speakerphone in the center of your meeting table for optimal audio pickup and distribution.
4. Connect the Konftel Ego to the OCC Hub: Use the provided 5m USB cable (Type A/micro B) to connect the Konftel Ego speakerphone to another USB port on the Konftel OCC Hub.

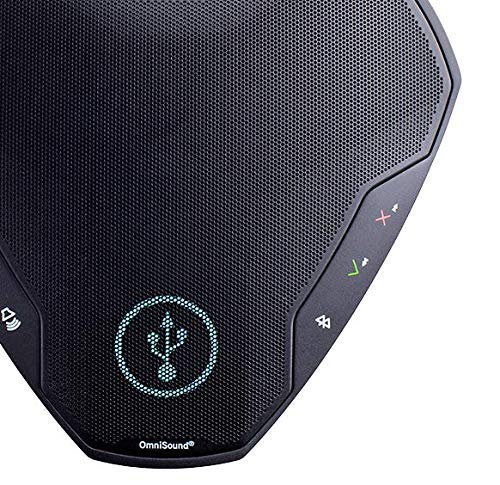

   Image: Close-up of Konftel Ego speakerphone controls. This image shows the illuminated touch controls on the speakerphone, including volume, mute, and call handling buttons.

5. Power the OCC Hub: Connect the AC adapter to the Konftel OCC Hub and plug it into a power outlet.
6. Connect the OCC Hub to your Laptop: Use the provided 3m USB cable to connect the Konftel OCC Hub to a USB port on your laptop. This single connection will provide video, audio, and control signals.


   Image: Laptop connected via USB cable to the Konftel OCC Hub. This image illustrates the simplicity of connecting the entire system to a laptop using a single USB cable.
7. Konekte Ekspozisyon an (Si ou vle): If you wish to use an external display, connect it to your laptop as usual. The Konftel C20Ego system integrates with your laptop's video output.
8. Rekonesans lojisyèl: Your operating system should automatically recognize the Konftel Cam20 and Konftel Ego as a camera and audio device, respectively. No special drivers are typically required.

Enstriksyon Operasyon

The Konftel C20Ego system is designed for intuitive operation with your preferred collaboration software.

Using with Collaboration Software

The system is compatible with various collaboration platforms.

Image: Laptop screen displaying compatibility with various collaboration software. This image illustrates the broad compatibility of the Konftel C20Ego with popular platforms such as Zoom, Skype for Business, Microsoft Teams, and Webansyen.

1. Launch your Collaboration Application: Open your preferred video conferencing application (e.g., Zoom, Microsoft Teams, Google Meet, Skype for Business, Webex).
2. Select Devices: In the application's settings (usually under Audio/Video or Devices), select "Konftel Cam20" as your camera and "Konftel Ego" as your microphone and speaker.
3. Start/Join Meeting: Initiate or join your video conference.

Konftel Ego Speakerphone Controls

The Konftel Ego speakerphone features intuitive touch controls:

• Volim monte/desann: Ajiste volim oratè a.
• Mikwofòn bèbè: Mute or unmute the microphone. An indicator light will show the microphone status.
• Reponn/Fen Apèl: Jere apèl yo dirèkteman nan oratè a.
• Bluetooth mak: The Konftel Ego also supports Bluetooth for connecting to mobile devices. Refer to the Konftel Ego quick guide for detailed Bluetooth pairing instructions.

Konftel Cam20 Camera Operation

The Konftel Cam20 offers high-quality video and digital zoom capabilities.

Image: Konftel Cam20 camera and its accessories. This image shows the Konftel Cam20 camera, its USB cable, the remote control, and two AAA batteries for the remote.

• Kontwòl Remote: Use the included remote control to adjust camera settings such as zoom (up to 8x digital zoom), pan, and tilt.
• Rezolisyon 4K: The camera provides 4K Ultra HD video quality, ensuring sharp and clear images even when digitally zoomed.
• Wide Field nan View: Chan 105 degre a view captures all participants in a small huddle room.

Antretyen

Proper maintenance ensures the longevity and optimal performance of your Konftel C20Ego system.

• Netwayaj: Use the provided microfiber cleaning cloth to gently wipe the camera lens and speakerphone surfaces. Do not use abrasive cleaners or solvents.
• Jesyon kab: Ensure cables are not kinked or strained. Proper cable routing prevents damage and ensures reliable connections.
• Depo: When not in use for extended periods, store the components in a cool, dry place, ideally in their original packaging or a protective case.
• Mizajou lojisyèl: Periodically check the Konftel official website for any firmware or software updates for the Konftel Cam20, Konftel Ego, or Konftel OCC Hub. Keeping software updated can improve performance and add new features.

Depanaj

If you encounter issues with your Konftel C20Ego system, refer to the common problems and solutions below.

Espesifikasyon

Garanti ak sipò

Your Konftel C20Ego Huddle Room Solution is covered by a manufacturer's warranty. Please refer to the warranty information provided in the original packaging for specific terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact Konftel support or your authorized reseller.

• Konftel Official Websit: www.konftel.com (for product information, downloads, and support contacts)
• Sipò pou Revendeur: Contact Global Teck Worldwide or your point of purchase for direct support.

Please have your product model number (KON-C20EGO-C) and serial number ready when contacting support.
