1. Pwodwi souview
The Jectse Timer Soft Starter is a versatile delay relay motor starter designed for efficient motor start control. It features adjustable delay ranges and wide working voltage compatibility, making it suitable for various industrial and scientific applications.
Figi 1: Devan view of the Jectse Timer Soft Starter, showing the control knobs and indicator lights.
2. Karakteristik kle
- Adjustable Start Delay (T1): Range from 0.1 seconds to 10 minutes, set via knob.
- Adjustable Conversion Time (T2): Range from 0.1 seconds to 1 second, set via knob.
- Volim Travay Lajtage: Supports AC/DC 12V to 240V.
- Endikatè ki ap dirije: Clearly shows the working status of the relay.
- Konsepsyon kontra enfòmèl ant: Super small size, only 18mm wide, designed for 35mm rail mounting.
Figure 2: The soft starter unit highlighting its compact size and adjustable settings.
3. Enfòmasyon sou Sekirite
Tanpri li epi konprann tout enstriksyon sekirite yo anvan ou enstale oswa itilize aparèy sa a. Si ou pa swiv enstriksyon sa yo, sa ka lakòz chòk elektrik, dife oswa blesi grav.
- Ensure power is disconnected before any installation or wiring.
- Enstalasyon ta dwe fèt sèlman pa pèsonèl kalifye.
- Verify kòrèk voltage and current ratings before connecting to a power source.
- Pa ekspoze aparèy la nan imidite oswa tanperati ekstrèm.
- Asire bon koneksyon atè kote sa nesesè.
4. Pake kontni
Pake a gen ladan:
- 1 x Jectse Timer Soft Starter
5. Enstalasyon ak Enstalasyon
The Jectse Timer Soft Starter is designed for 35mm DIN rail mounting. Follow these steps for proper installation:
- Ensure all power to the circuit is turned off at the main breaker.
- Mount the soft starter securely onto a standard 35mm DIN rail. The red clips on the side facilitate easy mounting and removal.
- Connect the power supply to terminals A1 and A2. The device supports AC/DC 12-240V.
- Connect the motor control wiring to the output terminals (15, 16, 18, 25, 26, 28) as per your application's wiring diagram. Refer to the diagram on the side of the unit for specific connections.
- Ensure all wiring connections are secure and meet the specified wiring capacity (1x2.5mm² or 2x 1.5mm²).
- Tcheke an doub tout koneksyon anvan retabli kouran.

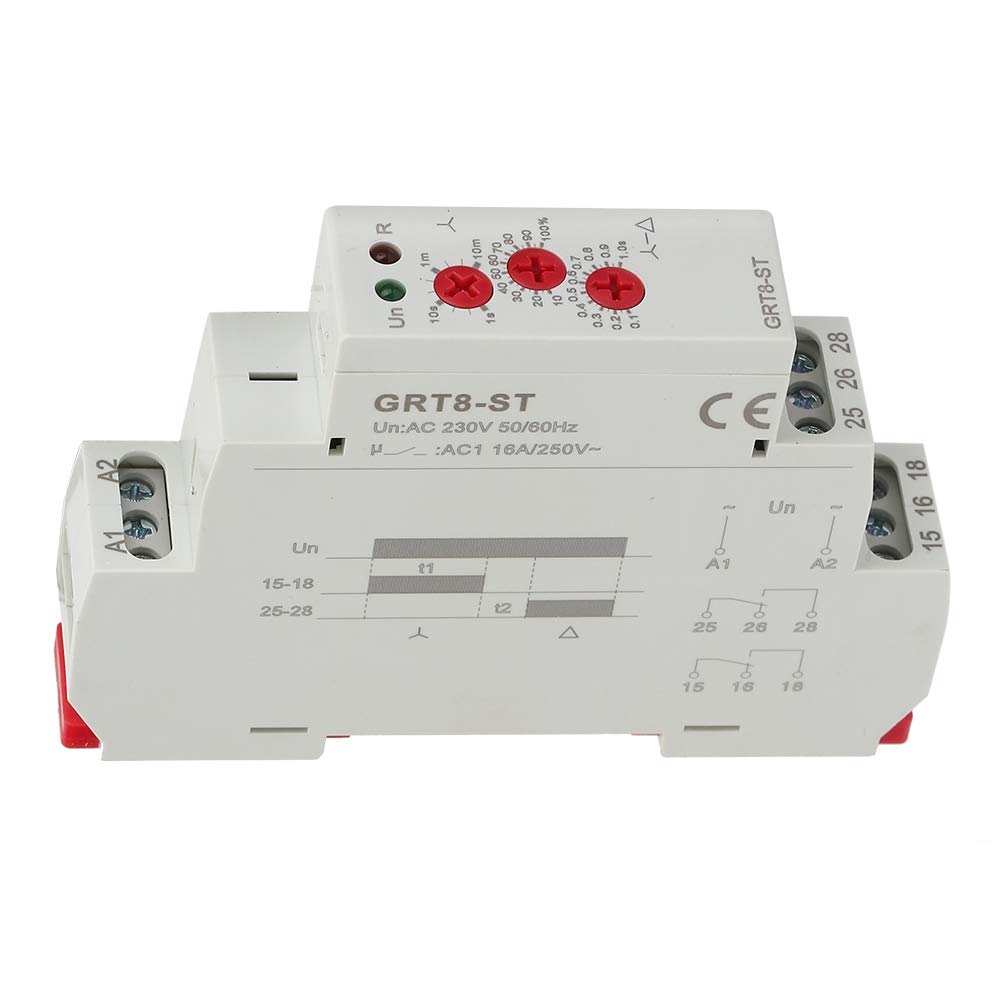

Figi 3: Close-up view of the wiring terminals and the integrated wiring diagram on the unit.
Figi 4: Side view illustrating the red clips for DIN rail mounting.
6. Operasyon Enstriksyon
Once installed and powered, the Timer Soft Starter operates based on its configured delay settings.
- Setting Start Delay (T1): Use the knob labeled 'T1' to adjust the initial start delay from 0.1 seconds to 10 minutes. This delay determines how long the soft starter waits before initiating the motor start sequence.
- Setting Conversion Time (T2): Use the knob labeled 'T2' to set the conversion time from 0.1 seconds to 1 second. This time is crucial for the smooth transition during the motor's soft start phase.
- Endikatè ki ap dirije:
- A green LED indicates the power status (Un).
- A red LED indicates the relay's working status (R).
Videyo 1: Yon overview of the Jectse Timer Soft Starter, demonstrating its features and appearance.
7. Antretyen
The Jectse Timer Soft Starter is designed for long-term reliability with minimal maintenance. However, regular checks can ensure optimal performance:
- Periodically inspect wiring connections for tightness and signs of wear or corrosion.
- Kenbe aparèy la pwòp epi san pousyè ak debri. Sèvi ak yon twal sèk epi mou pou netwaye.
- Asire w ke anviwònman operasyon an rete nan limit tanperati ak imidite espesifye yo.
- Do not attempt to open or repair the unit yourself. Refer to qualified service personnel.
NAN. Depanaj
If you encounter issues with your Timer Soft Starter, consider the following common problems and solutions:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Unit not powering on (Green LED off) | No power supply; Incorrect wiring; Faulty unit. | Check power source; Verify A1/A2 wiring; Contact support if power is present and wired correctly. |
| Motor not starting after delay | Incorrect output wiring; Relay not activating; Motor issue. | Check output terminals (15, 16, 18, 25, 26, 28) connections; Observe red LED for relay status; Test motor independently. |
| Delay times are inaccurate | Knob settings incorrect; Environmental factors. | Re-adjust T1 and T2 knobs carefully; Ensure stable operating environment. |
If the problem persists after attempting these solutions, please contact Jectse customer support.
9. Espesifikasyon
| Paramèt | Valè |
|---|---|
| Kalite | AC/DC 12V~240V |
| Rated Control Power Supply Voltage | AC/DC 12-240V (50/60Hz) |
| Konsomasyon pouvwa | AC 0.7-3VA / DC 0.5-1.7W |
| Starting Delay (T1) | 0.1s - 10min |
| Conversion Delay (T2) | 0.1s - 1s |
| Anviwònman Presizyon | 5% |
| Repete Presizyon | 0.2% |
| Sòti | Two sets of conversion contacts 16A/AC250VAC |
| Minimum Switching Power | 500mW |
| Lavi mekanik | 1 x 10,000,000 cycles |
| Electrical Life (Load) | 1,000,000 sik |
| Reyajiste Tan | 200ms maksimòm |
| Tanperati anviwònman k ap travay | -20 °C ~ 55 °C |
| Tanperati Depo ak Transpò | -35 °C ~ 75 °C |
| Enstalasyon | 35mm aliye ray |
| Nivo Pwoteksyon | IP20 |
| Altitid Enstalasyon | 2000 mèt |
| Nivo Polisyon | 2 |
| Kapasite fil elektrik | 1x2.5mm² or 2x 1.5mm² |
| Dimansyon | 90 x 18 x 64mm (3.5 x 0.7 x 2.5in) |
| Konfòm ak estanda a | GB14048.5.IEC/EN 60255-1 |
| Pwa | Apeprè. 96g (3.4oz) |
10. Garanti ak sipò
For warranty information or technical support, please contact Jectse customer service. Keep your purchase receipt for any warranty claims.
Manifakti: Jectse
Nimewo Modèl: Jectseh4tnewb30y-03
Dat premye disponib: 4 me 2019
