MEE audio BTX2 Bluetooth Wireless MMCX Adapter Cable

Pwodwi souview

The MEE audio BTX2 Bluetooth Wireless MMCX Adapter Cable allows you to convert your favorite MMCX-compatible earphones or in-ear monitors into wireless Bluetooth devices. This adapter is designed for seamless audio streaming with phones, tablets, computers, and other Bluetooth stereo audio transmitters. It features Qualcomm aptX and aptX Low Latency codecs for high-quality wireless audio and improved lip-syncing. The BTX2 also includes dynamic audio enhancement with three selectable modes, a built-in microphone for calls, and integrated controls for media playback. Its IPX5 sweat- and weather-resistant design ensures durability for various activities.

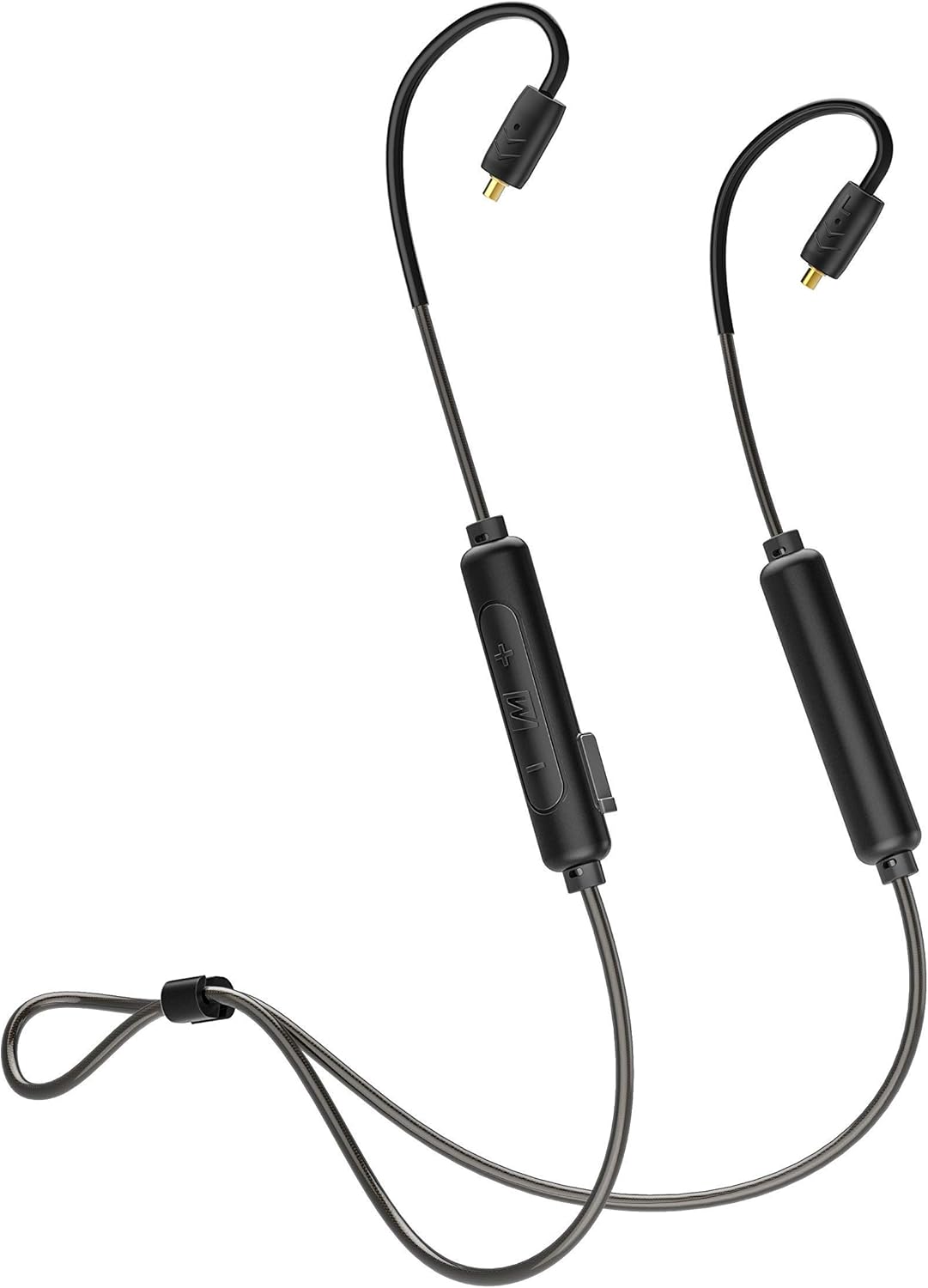

Image: The MEE audio BTX2 Bluetooth Wireless MMCX Adapter Cable, showcasing its design with ear hooks and inline controls.

Image: A graphic highlighting the universal MMCX Bluetooth adapter, emphasizing its compatibility with various MMCX earphones.

Ki sa ki nan bwat la

Lè w ap ouvri pake a, tanpri asire w ke tout bagay sa yo la:

• BTX2 Bluetooth Wireless MMCX adapter
• Mikwo-USB chaje kab
• Manyèl itilizatè (dokiman sa a)

Image: The retail box of the BTX2 adapter, showing the adapter, charging cable, and user manual.

Gid Enstalasyon

1. Connecting Your Earphones

The BTX2 adapter uses standard Micro-Miniature Coaxial (MMCX) connectors. To attach your earphones:

1. Identify the left (L) and right (R) connectors on the BTX2 cable and your earphones. The control unit side of the BTX2 is typically for the right earbud, and the battery side for the left.
2. Align the MMCX connector on the BTX2 cable with the corresponding port on your earphone.
3. Gently push the earphone onto the connector until you feel a secure click. Do not force the connection.
4. To disconnect, firmly grasp the earphone and the connector (not the cable) and pull them apart.

Imaj: Yon gwo plan view of the universal MMCX connectors, showing how they attach to compatible earphones.

2. Charging the BTX2

Before first use, fully charge the BTX2 adapter. A full charge takes approximately 2 hours.

1. Locate the Micro-USB charging port on the control unit.
2. Connect the supplied Micro-USB charging cable to the port.
3. Branche lòt bout kab USB a nan yon sous kouran USB (pa egzanp, yon pò USB òdinatè, yon adaptè USB nan miray).
4. The LED indicator will glow red while charging and turn blue when fully charged.

A full charge provides up to 7 hours of talk time and 8 hours of music playback.

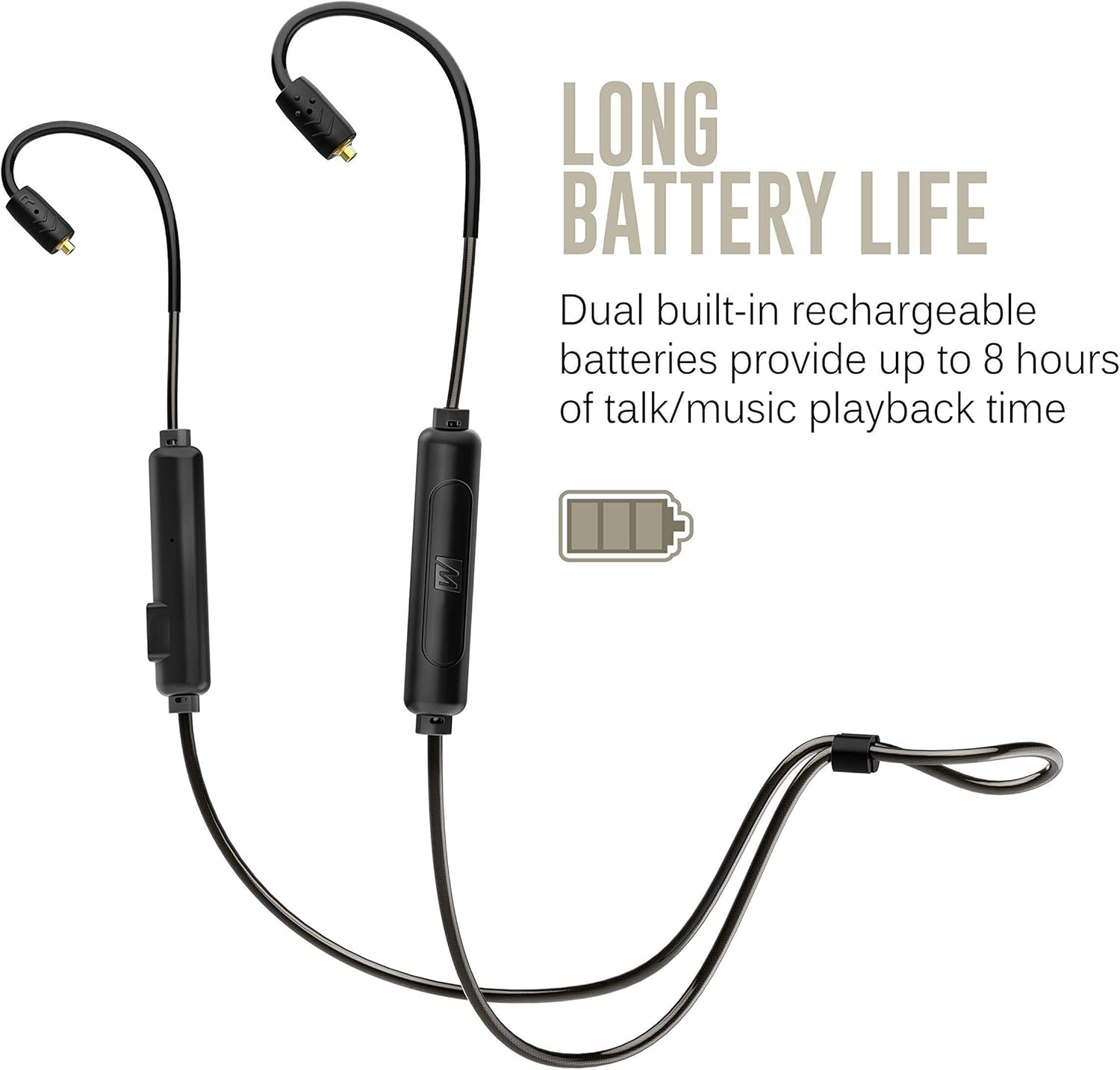

Image: The BTX2 adapter illustrating its long battery life capability, with a battery icon indicating extended usage.

3. Pè Bluetooth

To connect the BTX2 to your device:

1. Ensure the BTX2 is turned off.
2. Press and hold the Multifunction button (M) for approximately 4 seconds until the LED indicator flashes red and blue, and you hear the voice prompt "Pairing".
3. On your audio device (smartphone, tablet, computer), enable Bluetooth and search for new devices.
4. Select "MEE audio BTX2" from the list of available devices.
5. Once connected, the LED indicator will flash blue slowly, and you will hear "Connected".

The BTX2 supports multipoint connectivity, allowing it to be connected to two devices simultaneously.

Enstriksyon Operasyon

Kontwòl ak Fonksyon

The BTX2 features an intuitive 3-button remote control for managing audio playback and calls.

Image: A close-up of the BTX2's inline control unit, showing the volume and multifunction buttons.

Amelyorasyon odyo dinamik

The BTX2 offers three audio modes to customize your listening experience:

• Natirèl: Provides unenhanced audio for a balanced sound profile.
• Bass ranfòse: Enhances bass response for deeper and more impactful low frequencies.
• Ranfòsman Vokal: Boosts speech and vocals for improved clarity and intelligibility, ideal for podcasts or audiobooks.

To cycle through these modes, press and hold both the Volume Up (+) and Multifunction (M) buttons simultaneously for 2 seconds.

Fè ak Resevwa Apèl

The BTX2 features a built-in microphone and remote for seamless phone call management.

• Reponn yon apèl: Press the Multifunction (M) button once.
• Fini yon apèl: Press the Multifunction (M) button once during a call.
• Rejte yon apèl: Press and hold the Multifunction (M) button for 2 seconds.
• Asistan vwa: Double-press the Multifunction (M) button to activate your device's voice assistant (e.g., Siri, Google Assistant).

Image: The BTX2 control unit positioned next to a smartphone, illustrating its built-in headset capabilities for calls and media control.

Swen ak Antretyen

Rezistans swe ak move tan

The BTX2 features an IPX5 sweat- and weather-resistant design. This means it is protected against low-pressure water jets from any direction, making it suitable for use during workouts or in light rain. However, it is not designed for submersion in water.

• Do not immerse the BTX2 in water.
• Ensure the Micro-USB charging port cover is securely closed when not charging to maintain water resistance.
• After exposure to sweat or moisture, wipe the adapter clean with a soft, dry cloth before charging or storing.

Image: A close-up of the BTX2 control unit with water droplets, demonstrating its IPX5 sweat- and weather-resistant design.

Swen Jeneral

• Clean the BTX2 with a soft, slightly damp twal. Pa sèvi ak pwodui chimik piman bouk oswa pwodui netwayaj abrazif.
• Sere adaptè a nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.
• Evite lage adaptè a oswa soumèt li a gwo enpak.

Depanaj

If you encounter issues with your MEE audio BTX2, please refer to the following common problems and solutions:

Reset faktori

If you experience persistent issues, a factory reset may resolve them. This will clear all previous pairings.

1. Ensure the BTX2 is powered off.
2. Press and hold the Multifunction (M) button and the Volume Up (+) button simultaneously for approximately 5 seconds until you hear a voice prompt indicating a reset.
3. The BTX2 will then enter pairing mode. You can now attempt to re-pair with your desired device.

Espesifikasyon pwodwi

Non modèl:

BTX2-BK

Koneksyon Teknoloji:

Bluetooth 5.0

Jack kas ekoutè:

Mikwo USB (pou chaje)

Aparèy konpatib:

Phones, Tablets, Computers, and other Bluetooth stereo audio transmitters

Eleman ki enkli:

BTX2 Bluetooth Wireless MMCX adapter, Micro-USB charging cable, User manual

Lavi batri:

Up to 7 hours talk time, 8 hours music playback

Tan pou chaje:

Apeprè 2 èdtan

Nivo rezistans dlo:

IPX5 (Rezistan a swè ak move tan)

Pwa atik:

0.3 ons (apeprè 8.5 gram)

Dimansyon pwodwi:

6.77 x 4.72 x 1.18 pous

Karakteristik espesyal:

Lightweight, Microphone Included, Universal Phone Control, Dynamic Audio Enhancement (Natural, Bass Boost, Vocal Boost modes)

UPC:

616312625062

Garanti ak sipò

Garanti manifakti a

The MEE audio BTX2 Bluetooth Wireless MMCX Adapter Cable is covered by a 1-year manufacturer's warranty from the date of original purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or normal wear and tear.

Tanpri kenbe prèv ou achte pou reklamasyon garanti.

Sipò pou Kliyan

For technical assistance, warranty inquiries, or additional support, please visit the official MEE audio websit oswa kontakte depatman sèvis kliyan yo.

Official MEE audio Store: MEE audio Amazon Store

For the most up-to-date support information, please refer to the MEE audio official websit.
