lightmaXX LED PAR 54 54x 1W RGBW Spot Instruction Manual

1. Entwodiksyon

Thank you for choosing the lightmaXX LED PAR 54 54x 1W RGBW Spot. This manual provides essential information for the safe and efficient operation of your new lighting fixture. Please read this manual thoroughly before installation and use, and retain it for future reference.

The lightmaXX LED PAR 54 is a versatile and powerful LED spotlight designed for various stage, event, and decorative lighting applications. It features 54 x 1W RGBW LEDs, offering a wide spectrum of colors and effects.

2. Enstriksyon Sekirite

• Sekirite elektrik: Always connect the device to a grounded power outlet. Ensure the voltage matches the specifications of the unit. Disconnect from power before cleaning or servicing.
• Vantilasyon: Asire w ke gen ase vantilasyon toutotou aparèy la pou anpeche l chofe twòp. Pa bloke ouvèti vantilasyon yo.
• Anviwònman: This device is intended for indoor use only. Protect it from moisture, rain, and extreme temperatures.
• Manyen: Avoid direct eye exposure to the light source. Do not operate the unit if the power cord or housing is damaged.
• Itilizasyon pwofesyonèl: Installation and operation should be performed by qualified personnel familiar with stage ekipman ekleraj.

3. Pake kontni

Tanpri verifye ke tout atik yo prezan epi yo an bon kondisyon lè w ap debale yo:

• 1x lightmaXX LED PAR 54 54x 1W RGBW Spot
• 1x pouvwa kab
• 1x Manyèl Enstriksyon (dokiman sa a)

4. Pwodwi souview

The lightmaXX LED PAR 54 is designed for robust performance and ease of use. Below are key visual references to help you identify components.

Figi 4.1: Devan view of the lightmaXX LED PAR 54, showing the array of 54 RGBW LEDs.

Figi 4.2: Side view of the lightmaXX LED PAR 54, illustrating its compact design and adjustable mounting bracket.

Figure 4.3: Rear panel of the lightmaXX LED PAR 54, featuring DMX In/Out, power input, and control buttons.

Figure 4.4: Close-up of the control panel, showing the digital display and 'MENU', 'UP', 'DOWN', 'ENTER' buttons for navigation.

5. Enstalasyon

5.1 Montaj

The LED PAR 54 can be mounted in various positions using its adjustable bracket. Ensure the mounting surface or truss is capable of supporting the weight of the fixture. Always use a safety cable when suspending the unit overhead.

1. Attach the mounting bracket securely to a truss or stand using appropriate clamps (pa enkli).
2. Adjust the angle of the fixture using the side knobs on the bracket.
3. Secure the safety cable to the designated safety point on the fixture and to the mounting structure.

5.2 Koneksyon pouvwa

Connect the supplied power cable to the 'POWER-IN' socket on the rear panel of the fixture and then to a suitable 110-220V AC power outlet. Ensure the power source is stable and grounded.

5.3 Koneksyon DMX (Si ou vle)

For DMX control, connect a DMX cable from your DMX controller's output to the 'DMX IN' socket on the first fixture. For multiple fixtures, daisy-chain them by connecting the 'DMX OUT' of the first fixture to the 'DMX IN' of the next, and so on. Terminate the last fixture in the chain with a DMX terminator if experiencing signal issues.

6. Operating the LED PAR 54

6.1 Fonksyon Panel Kontwòl

The rear control panel allows you to navigate through the menu and select operating modes and settings:

• MENI: Press to enter the main menu or to go back to the previous menu level.
• LEVE: Increases the value of a setting or moves up through menu options.
• DESANN: Decreases the value of a setting or moves down through menu options.
• ANTRE: Confirms the selected option or value.

6.2 Mòd Fonksyònman

The LED PAR 54 typically offers several operating modes:

• Mòd oto: Aparèy la fonksyone otomatikman atravè montre limyè pre-pwograme yo.
• Son aktive mòd: The light show reacts to ambient sound detected by the built-in microphone.
• DMX mòd: Allows external control of all functions (color, dimming, strobe, programs) via a DMX controller. Refer to the DMX chart in the specifications section for channel assignments.
• Mòd Koulè Estatik: Select a fixed color using the RGBW mixing capabilities.

6.3 Color Mixing (RGBW)

The fixture uses Red, Green, Blue, and White LEDs to create a wide range of colors. In DMX mode, you can control the intensity of each color channel independently. In static color mode, you can often select preset colors or adjust RGBW values directly from the control panel.

Figure 6.1: The lightmaXX LED PAR 54 projecting a vibrant red light beam.

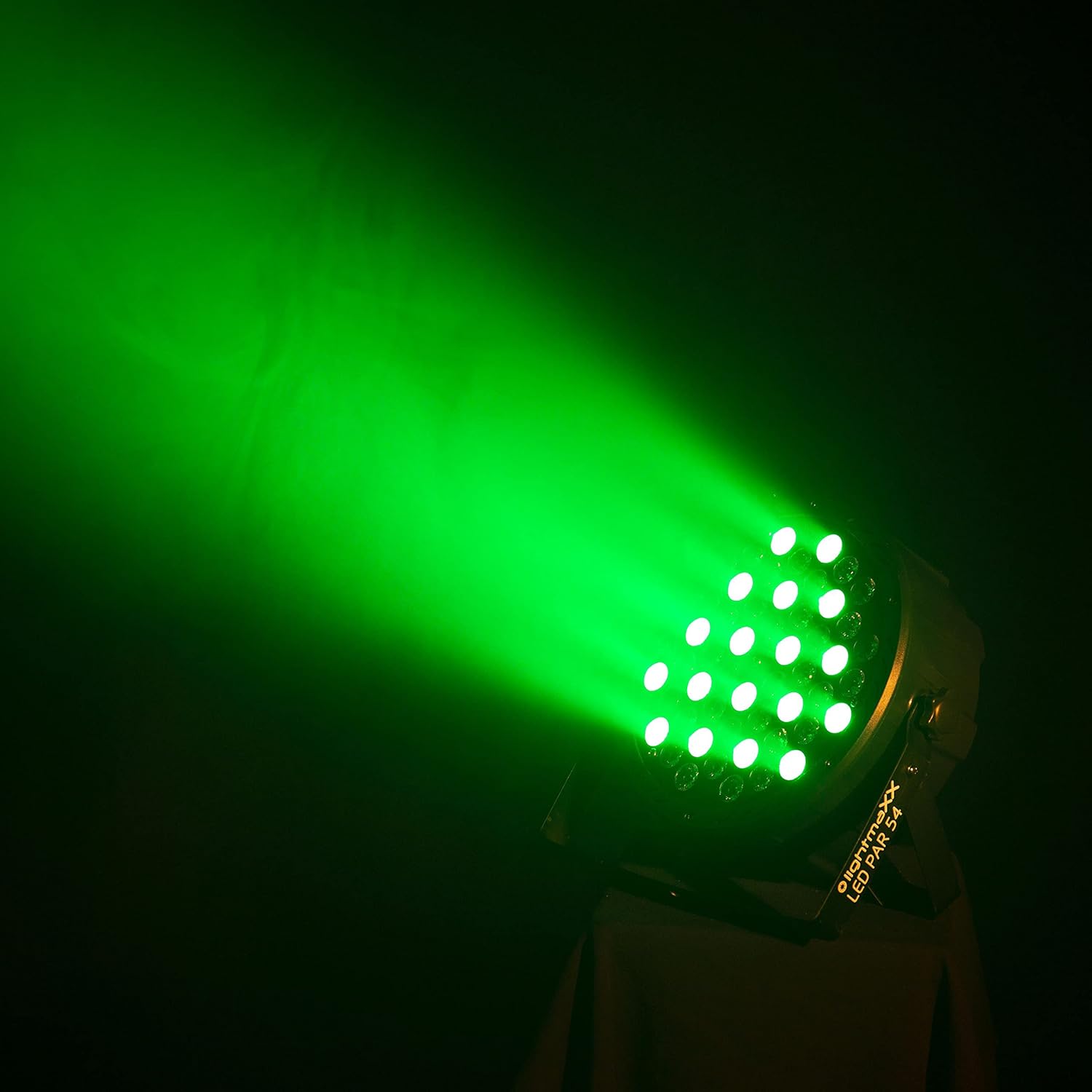

Figure 6.2: The lightmaXX LED PAR 54 projecting a bright green light beam.

Figure 6.3: The lightmaXX LED PAR 54 projecting a deep blue light beam.

6.4 Videyo pwodwi yo

Watch these videos to see the lightmaXX LED PAR 54 in action and understand its various lighting effects.

7. Antretyen

7.1 Netwayaj

Regular cleaning helps maintain optimal light output and extends the lifespan of the fixture.

• Disconnect the unit from power before cleaning.
• Use a soft, lint-free cloth to wipe the exterior and lens. Do not use abrasive cleaners or solvents.
• Periodically clean the ventilation openings to ensure proper airflow.

7.2 Ranplasman Fuse

If the unit does not power on, the fuse may need replacement. The fuse holder is located near the power input socket on the rear panel.

• Dekonekte inite a soti nan pouvwa.
• Carefully open the fuse holder.
• Replace the old fuse with a new one of the exact same type and rating (e.g., 250V fuse as indicated on the unit).
• Fèmen pòt fizib la byen fèm.

NAN. Depanaj

If you encounter issues with your LED PAR 54, refer to the table below for common problems and solutions.

9. Espesifikasyon

10. Garanti ak sipò

For warranty information and technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
