Grifema G14001 Removable Kitchen Faucet Instruction Manual

1. Entwodiksyon

Thank you for choosing the Grifema G14001 Removable Kitchen Faucet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new kitchen faucet. Please read these instructions carefully before installation and keep them for future reference.

2. Enfòmasyon sou Sekirite

• Toujou fèmen tiyo prensipal dlo a anvan ou kòmanse nenpòt travay enstalasyon oswa antretyen.
• Asire w tout koneksyon yo byen fèm pou anpeche flit.
• Si ou pa sèten sou nenpòt pati nan pwosesis enstalasyon an, konsilte yon plonbye kalifye.
• Pa sèvi ak pwodui netwayaj abrazif oswa pwodui chimik ki fò sou fini wobinèt la, paske sa ka domaje li.

3. Pake kontni

Verifye ke tout konpozan yo prezan anvan ou kòmanse enstalasyon an:

• 1 x Grifema G14001 Kitchen Faucet
• 1 x Mixer tap washer kit
• 2 x 40 cm Connection Hoses (Hot and Cold)
• Mounting hardware (gasket, fixing nut, etc.)

Figi 3.1: All components included in the Grifema G14001 package. This image displays the main faucet body, two flexible connection hoses, a washer kit, and various mounting hardware pieces.

4. Espesifikasyon

Figi 4.1: Dimensional drawing of the Grifema G14001 faucet, showing key measurements for height, reach, and base width.

5. Setup / Installation

Follow these steps for proper installation of your Grifema G14001 kitchen faucet. Ensure the main water supply is turned off before starting.

1. Prepare the Sink Hole: Ensure your sink has a single mounting hole with a diameter of approximately Ø35mm.
2. Mete wobinè a: Place the faucet body into the mounting hole on your sink or countertop. Ensure the base gasket is correctly positioned.
3. Fikse Robine a: From underneath the sink, slide the rubber gasket and metal washer onto the threaded shank of the faucet. Secure it tightly with the fixing nut.
4. Konekte Kawotchou Dlo: Connect the hot (H) and cold (C) water supply hoses to the corresponding inlets on the faucet and to your hot and cold water supply lines. Ensure connections are hand-tightened, then use a wrench for a final quarter turn, being careful not to overtighten.
5. Attach Pull-Out Hose Weight: Attach the counterweight to the pull-out spray hose underneath the sink. This ensures the spray head retracts smoothly.
6. Tès pou Fuites: Turn on the main water supply and check all connections for leaks. Operate the faucet to ensure proper water flow and temperature control.

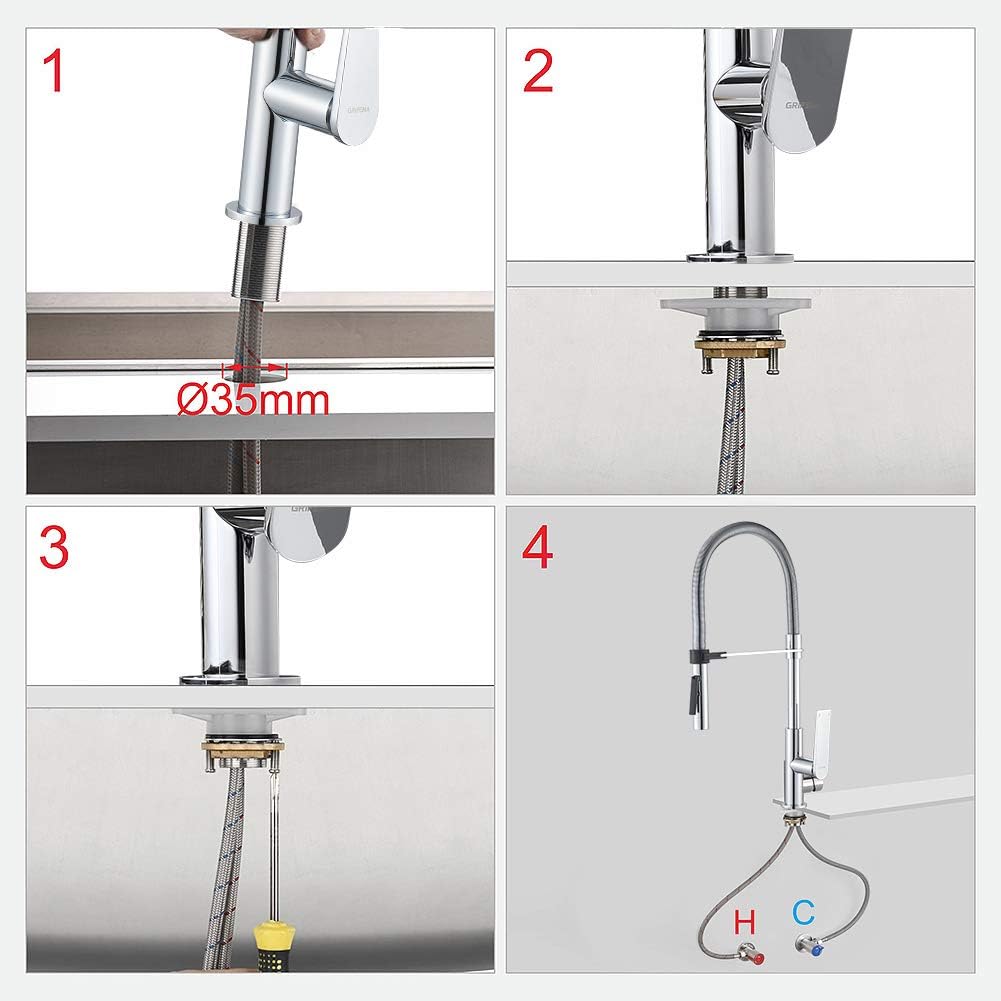

Figi 5.1: Step-by-step visual guide for installing the Grifema G14001 kitchen faucet, showing the insertion into the sink hole, securing the base, and connecting the water lines.

6. Operasyon Enstriksyon

Your Grifema G14001 faucet is designed for ease of use and versatility.

• Kontwòl koule dlo ak tanperati: The single lever handle controls both water flow and temperature. Lift the handle to increase flow, and move it left for hot water or right for cold water.
• Mòd Doub Espre: The pull-out spray head features two distinct spray modes. Press the button on the spray head to switch between a powerful shower jet and a steady aerated stream.
• Flexible Pull-Out Hose: The ultra-flexible hose simplifies daily tasks, providing extended reach and greater operating space within your sink area.
• Wotasyon 360 degre: The faucet spout can rotate 360 degrees, offering maximum flexibility and convenience for various sink configurations and tasks.

Figi 6.1: The Grifema G14001 faucet demonstrating its two spray modes: a concentrated stream and a wide spray pattern.

Figi 6.2: The Grifema G14001 faucet illustrating its 360-degree rotatable spout for enhanced flexibility.

7. Antretyen

Proper care will ensure the longevity and appearance of your Grifema G14001 faucet.

• Netwayaj Fini an: Clean the faucet regularly with a soft cloth and mild soap and water. Rinse thoroughly and dry with a soft cloth to prevent water spots. Avoid abrasive cleaners, ammonia, bleach, or acid-based cleaners, as these can damage the chrome finish.
• Netwaye Aeratè a: If water flow becomes restricted, the aerator may be clogged. Unscrew the aerator from the spray head, clean any debris or mineral deposits, and rinse thoroughly before reattaching.
• Katouch seramik: The faucet is equipped with a durable ceramic cartridge designed for long-term, drip-free performance. No regular maintenance is typically required for the cartridge itself.

Figi 7.1: The Grifema G14001 faucet highlighting its water-saving aerator, which can be removed for cleaning.

NAN. Depanaj

Gade seksyon sa a pou pwoblèm komen ak solisyon yo.

9. Garanti ak sipò

GRIFEMA products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your product or visit the official GRIFEMA website. Please have your model number (G14001) and purchase date available when contacting support.
