Entwodiksyon
This manual provides essential information for the proper setup, operation, and maintenance of your Audio-Technica 3000 Series Wireless System (ATW-3212/C710EE1). This fourth-generation frequency-agile, True Diversity UHF wireless microphone system is designed to deliver clear, natural audio performance while minimizing interference, making it suitable for various applications including live stage, television, lectures, and event presentations. Please read this manual thoroughly before using the system to ensure optimal performance and longevity.
Kontni pake
Your Audio-Technica 3000 Series Wireless System (ATW-3212/C710EE1) package should include the following components:
- ATW-R3210 True Diversity Receiver: The core unit for receiving wireless signals.
- ATW-T3202 Handheld Transmitter: The wireless microphone unit.
- ATW-C710 Cardioid Condenser Microphone Capsule: The interchangeable microphone head for the handheld transmitter.
- Ekipman pouvwa pou reseptè
- Antèn
- Rack-mount adapters (if applicable)
- Manyèl Itilizatè (dokiman sa a)

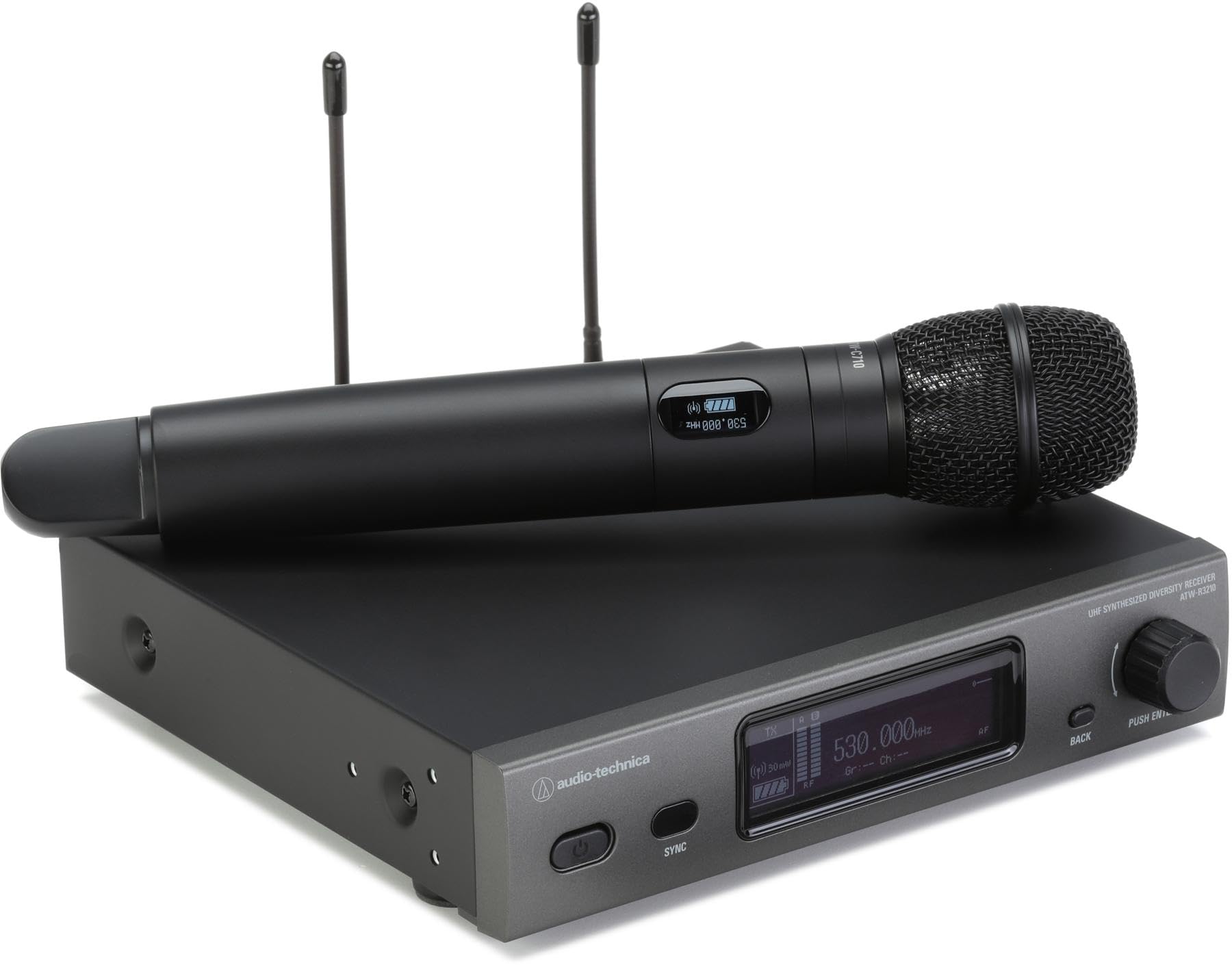

This image displays the complete Audio-Technica 3000 Series Wireless System, including the ATW-R3210 True Diversity Receiver and the ATW-T3202 Handheld Transmitter equipped with the ATW-C710 Cardioid Condenser Microphone Capsule.
Enstalasyon
1. Receiver Placement and Connection (ATW-R3210)
- Pozisyon: Place the ATW-R3210 receiver in a location free from obstructions and away from other wireless devices or strong electromagnetic fields. Ensure good line-of-sight to the intended operating area of the transmitter.
- Koneksyon antèn: Attach the supplied antennas to the ANT1 and ANT2 connectors on the rear panel of the receiver. Position them vertically for optimal reception.
- Sòti odyo: Connect the receiver's XLR audio output to your mixer or amplifier using a balanced XLR cable.
- Koneksyon pouvwa: Connect the supplied AC adapter to the DC input jack on the receiver and then to an appropriate AC power outlet. Do not power on yet.
2. Transmitter Setup (ATW-T3202 Handheld)
- Enstalasyon batri: Unscrew the lower body of the ATW-T3202 handheld transmitter to access the battery compartment. Insert two fresh AA alkaline batteries, observing the correct polarity (+/-).
- Mikwofòn kapsil: Ensure the ATW-C710 cardioid condenser microphone capsule is securely screwed onto the top of the handheld transmitter.
- Pouvwa sou: Press and hold the power button on the transmitter until the display illuminates.
Opere
1. Limen epi premye eskanè a
- Pouvwa reseptè: Turn on the ATW-R3210 receiver. The display will show the current operating status.
- Frequency Scan: Access the receiver's menu to perform a frequency scan. This will identify clear, interference-free channels in your operating environment. Select an available channel.
- Transmitter Sync: With the transmitter powered on, use the IR sync function on the receiver to automatically transfer the selected frequency to the handheld transmitter. Follow the on-screen instructions on the receiver.
2. Ajiste Anviwònman
- Akeri kontwòl: Adjust the input gain on the transmitter (usually accessible within the battery compartment) to prevent distortion. Speak into the microphone at your typical volume while monitoring the receiver's audio level indicators.
- Sòti Nivo: Adjust the audio output level on the receiver to match the input requirements of your mixer or amplifier.
- Fonksyon bèbè: The handheld transmitter features a programmable button (often located near the antenna) that can be configured for mute, lock, or other functions via the internal menu. Refer to the receiver's menu for configuration.
3. Best Practices for Performance
- Kenbe liy vizyon ant antèn transmetè a ak reseptè a.
- Avoid placing the receiver near large metal objects or other wireless devices.
- Always use fresh, high-quality AA alkaline batteries for the transmitter.
- Perform a frequency scan before each use, especially in new environments.
Antretyen
- Netwayaj: Wipe the exterior of the receiver and transmitter with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and mild soap, then wipe dry. Do not use abrasive cleaners or solvents.
- Ranplasman batri: Replace the transmitter batteries when the low battery indicator appears on the transmitter or receiver display. Always replace both batteries simultaneously. Remove batteries if the system will not be used for an extended period.
- Depo: Sere sistèm nan nan yon kote ki fre epi sèk, lwen limyè solèy dirèk ak tanperati ekstrèm.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Pa gen son oswa son fèb |
|
|
| Entèferans oswa pèt pèfòmans |
|
|
| Odyo defòme |
|
|
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Nimewo Modèl | ATW-3212/C710EE1 |
| Kalite sistèm | UHF True Diversity Wireless Microphone System |
| Bandwidth frekans | 60 MHz UHF Tuning Bandwidth |
| Frekans ki disponib | 2400 selectable frequencies |
| Range opere | 328 feet (100 meters) typical, line-of-sight |
| Mikwofòn kapsil | ATW-C710 Cardioid Condenser |
| Sous pouvwa transmetè | 2 AA batteries (alkaline recommended) |
| Siyal-a-bwi Pwopòsyon | 60 dB |
| Frequency Response (lower bound) | 31 Hz |
| Sòti Connector | XLR (Receiver) |
| Dimensions (Handheld Transmitter) | Approx. 7 x 1 x 4 inches (L x W x H) |
| Pwa (Sistèm) | Approx. 1 pound |
| Itilizasyon Rekòmande | Viv Stage Performance, Television, Lecture, Event Presentation, House of Worship |
Garanti ak sipò
Audio-Technica products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official Audio-Technica website. For technical support, service, or replacement parts, please contact your authorized Audio-Technica dealer or Audio-Technica customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
Resous sou entènèt: For the most up-to-date information, FAQs, and additional resources, please visit the Audio-Technica official websit.
