SERVO 225 Mobile Phone User Manual

1. Entwodiksyon

This user manual provides comprehensive instructions for the operation and maintenance of your new SERVO 225 mobile phone. Please read this manual carefully before using the device to ensure proper functionality and to maximize its lifespan. The SERVO 225 is a compact and reliable mobile phone featuring dual SIM capability, a 2.4-inch display, and essential functions for daily communication.

Figi 1.1: Devan ak dèyè view of the SERVO 225 mobile phone, showcasing its compact design and keypad.

2. Enfòmasyon sou Sekirite

• Pa demonte oswa modifye aparèy la.
• Kenbe aparèy la lwen dlo ak imidite.
• Use only original or approved accessories.
• Evite tanperati ekstrèm.
• Pa sèvi ak telefòn nan pandan w ap kondwi.
• Jete pil yo ak aparèy la yon fason responsab dapre règleman lokal yo.
• Before first use, ensure to remove any insulating tape from the battery terminals.

3. Pake kontni

Tanpri verifye sa ki nan pakè w la. Si gen nenpòt atik ki manke oswa ki domaje, kontakte machann ou an.

• 1 x SERVO 225 Mobile Phone
• 1 x Battery (1400 mAh Li-ion)
• 1 x Chargeur
• 1 x ka pwoteksyon
• 1 x Manyèl Itilizatè (dokiman sa a)

Figure 3.1: The SERVO 225 package contents, including the phone, battery, charger, and protective case.

4. Pwodwi souview

The SERVO 225 features a classic candy bar design with a physical keypad and a 2.4-inch display. It supports dual SIM cards for flexible network usage.

4.1. Karakteristik fizik

• Ekspozisyon: 2.4-inch VGA screen.
• Klavye: Standard alphanumeric keypad with navigation keys.
• Kamera: 0.3 Megapixel CMOS camera with flash on the rear.
• Kouvri dèyè: Features a mechanical back cover, available in various colors like Black, Brown, and Gold.
• Dimansyon: Apeprè 122 x 52 x 11 mm (4.80 x 2.05 x 0.43 pous).
• Pwa: Apeprè 80 gram.

Figure 4.1: Close-up of the SERVO 225's rear, highlighting the camera and dual LED flash for improved low-light photography.

Figure 4.2: Various color options for the SERVO 225, demonstrating the 2.4-inch screen size.

5. Enstalasyon

5.1. Enstalasyon ak Chaje Batri

1. Retire kouvèti dèyè telefòn nan lè w rale l dousman nan fant lan.
2. If present, remove the insulating tape from the battery terminals.
3. Insert the 1400 mAh Li-ion battery into the battery compartment, ensuring the gold contacts align with the phone's terminals.
4. Remèt kouvèti dèyè a, peze byen fèm jiskaske li fè yon klik an plas.
5. Connect the charger to the phone's charging port and plug it into a power outlet. Charge the battery fully before first use.

Figure 5.1: The 1400 mAh battery and the phone's zinc alloy paint shell design.

5.2. Mete Kat SIM ak Kat Memwa

The SERVO 225 supports dual SIM cards (Dual GSM) and a T-Flash memory card (up to 32GB, not included).

1. With the back cover and battery removed, locate the SIM card slots. The phone supports two SIM cards.
2. Carefully insert your SIM cards into the designated slots with the gold contacts facing down.
3. Locate the T-Flash (microSD) card slot. Insert the memory card until it clicks into place.
4. Remete batri a ak kouvèti dèyè a.

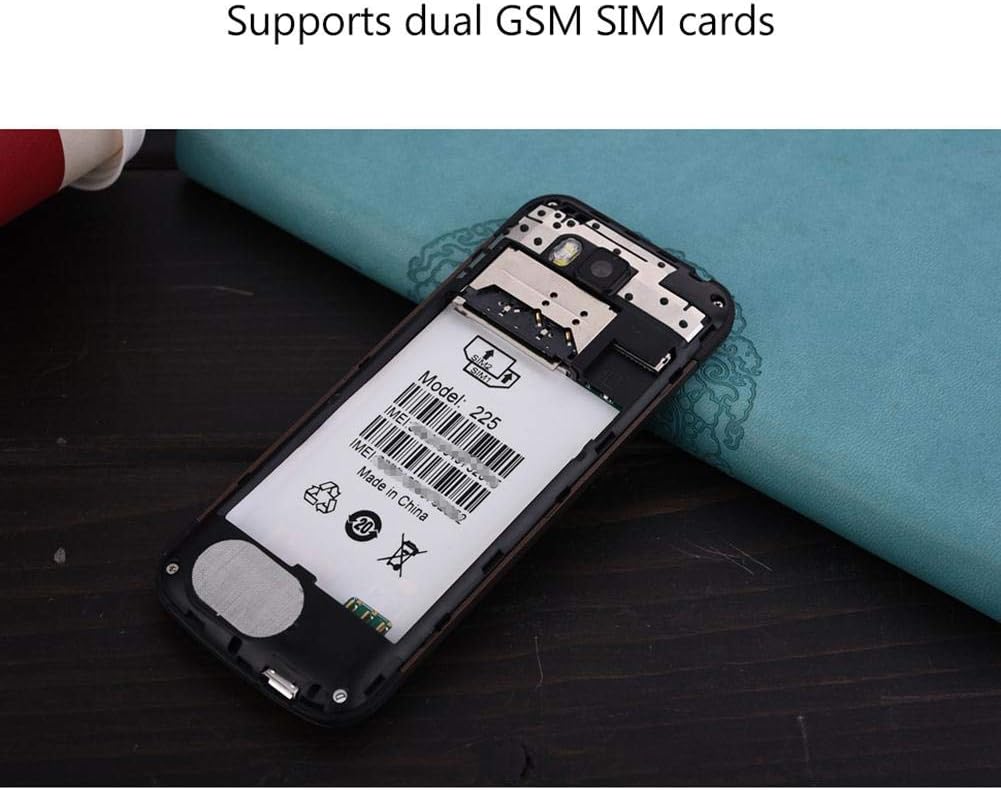

Figi 5.2: Entèn view of the SERVO 225, illustrating the dual SIM card slots and the memory card slot.

6. Operasyon Enstriksyon

6.1. Power On/Off

• Pou limen: Peze epi kenbe bouton Pouvwa/Fen Apèl la jiskaske ekran an limen.
• Pou etenn: Press and hold the Power/End Call key until the power off options appear, then select "Power off".

6.2. Fonksyon debaz yo

• Fè apèl: Antre nimewo telefòn nan avèk klavye a epi peze bouton Apèl la.
• Reponn apèl: Peze bouton Apèl la lè telefòn nan sonnen.
• Voye Mesaj: Navigate to the "Messages" menu, select "Write message", enter your text, and send to the desired recipient.
• Navigasyon nan meni: Use the navigation keys (up, down, left, right) to browse through menus and the center key to select.

6.3. Karakteristik kle

• Bluetooth: Connect to other Bluetooth-enabled devices for file transfè oswa kominikasyon men lib.
• Radyo FM: Listen to your favorite radio stations. Requires headphones to be plugged in as an antenna.
• MP3/MP4 Player: Jwe odyo ak videyo fileyo estoke sou kat memwa ou.
• GPRS/WAP: Access basic internet services and WAP sites.
• Kamera: Capture photos with the 0.3MP rear camera.
• Lòt zouti: Calendar, Sound Recorder, Calculator, World Clock, Alarm.

7. Antretyen

• Netwayaj: Sèvi ak yon twal mou epi sèk pou netwaye sifas telefòn nan. Pa sèvi ak pwodui netwayaj likid oswa ayewosòl.
• Depo: Sere telefòn nan nan yon kote ki fre epi sèk lè w pa itilize li pou yon bon bout tan.
• Swen batri: Avoid overcharging or completely draining the battery frequently to prolong its life.

NAN. Depanaj

9. Espesifikasyon

10. Garanti ak sipò

Your SERVO 225 mobile phone comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact your point of purchase or the official SERVO customer service channels.

Kenbe resi acha ou a kòm prèv acha pou rezon garanti.
