The TP-Link TL-PoE4824G is a passive Power over Ethernet (PoE) adapter designed to supply power and transmit data simultaneously to compatible passive PoE devices. This includes devices such as TP-Link's EAP245 3.0, EAP225 3.0, and CPE610. Its design incorporates convenient wall-mounting brackets for easy installation.
Karakteristik kle:
- 48V passive PoE support for compatible devices.
- Automatic determination of necessary power requirements.
- Convenient wall-mounting design for flexible placement.
- Gigabit speed support for high-speed data transmission.
- Plug-and-Play functionality, requiring no complex configuration.
- Ethernet connectivity technology.
Kontni pake
Verifye ke pake ou a gen atik sa yo:
- 48V 24W Passive PoE Adapter (TL-PoE4824G)
- Kòd pouvwa
- Wall Mounting Kit
Pwodwi souview
The TL-PoE4824G PoE Injector features a compact design with essential ports and indicators for easy operation.
Figi 1: Anwo-anba view of the TP-Link TL-PoE4824G Passive PoE Injector.
Pò ak Endikatè:
- Pò PoE: Connects to the passive PoE device to deliver both power and data.
- Pò LAN: Connects to your network device (e.g., router, switch) for data input.
- Antre pouvwa: Connects to the provided power cord for electrical supply.
- Endikatè ki ap dirije: Provides status information (e.g., power, connection activity).

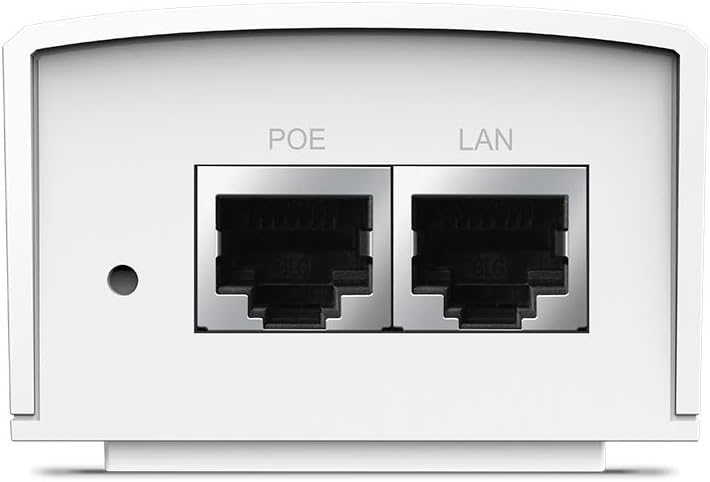

Figi 2: Close-up view of the PoE and LAN data ports.
Figi 3: Close-up view of the power input port.
Figi 4: Side view showing the LED indicator for device status.
Enstalasyon
The TL-PoE4824G is designed for simple plug-and-play installation. Follow these steps to set up your PoE injector:
- Konekte ak pouvwa: Plug the provided power cord into the power input port of the TL-PoE4824G and then into a standard electrical outlet.
- Konekte sou rezo a: Connect an Ethernet cable from your network device (e.g., router, switch) to the LAN port on the TL-PoE4824G.
- Connect to PoE Device: Connect another Ethernet cable from the PoE port on the TL-PoE4824G to your passive PoE-compatible device (e.g., access point, IP camera).
- Verifye Koneksyon: Check the LED indicator on the TL-PoE4824G. A solid light typically indicates a successful power and data connection.
Figure 5: Connection diagram for the TL-PoE4824G, illustrating data and power flow to a passive PoE device.
Montaj mi:
The TL-PoE4824G includes wall-mounting kits for secure installation. Refer to the diagram below for the mounting process:
Figure 6: Wall-mounting steps for the TL-PoE4824G using the provided brackets.
Opere
Once properly connected, the TL-PoE4824G operates automatically. It provides 48V DC passive PoE to the connected device, eliminating the need for a separate power adapter for the PoE device. Data transmission occurs at Gigabit speeds through the Ethernet connection.
The injector is designed to auto-determine the necessary power requirements for the connected passive PoE device, ensuring efficient and safe operation.
Antretyen
- Netwayaj: Sèvi ak yon twal mou epi sèk pou netwaye aparèy la. Pa sèvi ak pwodui netwayaj likid oswa ayewosòl.
- Plasman: Ensure the device is placed in a well-ventilated area, away from direct sunlight, heat sources, and moisture.
- Jesyon kab: Keep all cables neatly organized to prevent damage and ensure proper airflow.
- Mizajou mikrolojisyèl: Tcheke enfòmasyon ofisyèl TP-Link yo detanzantan. websit la pou nenpòt mizajou firmwèr ki disponib pou asire pèfòmans ak sekirite optimal.
Depanaj
No Power/LED Indicator Off:
- Ensure the power cord is securely connected to both the injector and a working electrical outlet.
- Teste priz elektrik la ak yon lòt aparèy pou konfime si l ap bay kouran.
No Data Connection:
- Verify that the Ethernet cables are securely connected to the LAN port (from your network) and the PoE port (to your device).
- Ensure the connected passive PoE device is functioning correctly and is compatible with 48V passive PoE.
- Check the status of your network device (router/switch) to ensure it is providing an active network connection.
- Try using different Ethernet cables to rule out cable defects.
Device Not Receiving Power:
- Confirm that your end device is a passive PoE device and supports 48V DC input. This injector is not compatible with 802.3af/at active PoE standards.
- Ensure the cable length does not exceed 100 meters (325 feet) for optimal power and data delivery.
Espesifikasyon
| Modèl | TL-PoE4824G |
| Mak | TP-Link |
| PoE estanda | 48V DC Passive PoE |
| Pousantaj Transfè Done | 1000 Mbps (Gigabit Ethernet) |
| Koneksyon Teknoloji | Ethernet |
| Pò | 1x LAN (Data In), 1x PoE (Data & Power Out) |
| Max Kab Longè | Jiska 100 mèt (325 pye) |
| Dimansyon (LxWxH) | 4.33 x 2.24 x 1.41 pous |
| Pwa | 5.6 ons |
Garanti ak sipò
For warranty information, technical support, and product registration, please visit the official TP-Link websit la oubyen kontakte sèvis kliyan yo. Kenbe resi acha w la pou reklamasyon garanti.
- Sipò TP-Link Websit: www.tp-link.com/us/support/
- Kontakte: Refer to the TP-Link websit pou enfòmasyon kontak rejyonal yo.
