1. Entwodiksyon
This manual provides essential information for the safe and effective use of your BSEED Voltage Protector Model 008. This device is designed to safeguard your valuable home appliances from various electrical fluctuations, including high and low voltage, brownouts, spikes, instant surges, and power failures. Please read this manual thoroughly before installation and operation.
2. Enfòmasyon sou Sekirite
- Sekirite elektrik: Toujou asire vol latage protector is plugged into a properly grounded 125V AC outlet. Do not use with ungrounded outlets or adapters.
- Itilize andedan kay la sèlman: This device is intended for indoor use in dry locations. Do not expose to moisture, rain, or extreme temperatures.
- Prevansyon Surcharge: Do not exceed the maximum rated capacity of 1875W. Overloading can cause damage to the unit and connected appliances, and may pose a fire hazard.
- Timoun ak bèt kay: Kenbe aparèy la lwen timoun ak bèt kay.
- Enspeksyon domaj: Before each use, inspect the unit for any signs of damage. Do not use if the casing is cracked, the prongs are bent, or if there are any exposed wires.
- Demonte: Do not attempt to open or repair the unit. Refer all servicing to qualified personnel.
3. Pwodwi souview
The BSEED Voltage Protector Model 008 is a compact, wall-mount power suppressor featuring three outlets and intelligent protection mechanisms. Its design prioritizes ease of use and robust appliance safeguarding.
Figi 3.1: Devan view of the BSEED Voltage Protector Model 008, showing its three standard outlets and the indicator lights at the top right.
Karakteristik kle:
- Three Outlets: Provides power and protection for up to three appliances simultaneously.
- Endikatè ki ap dirije: Four distinct LED lights provide real-time status of the power conditions.
- 3-Minute Delay: Incorporates a crucial 3-minute waiting cycle to protect appliance compressors after power interruptions.
- Materyèl ki reziste flanm dife: Constructed from PC flame retardant material for enhanced safety.
4. Enstalasyon ak Enstalasyon
Installing the BSEED Voltage Protector is a straightforward process:
- Dekonpoze: Carefully remove the voltage protector from its packaging.
- Chwazi Kote: Choose a standard 125V AC wall outlet that is easily accessible and in a dry indoor environment. Ensure there is sufficient space around the outlet for the protector and connected appliance plugs.
- Ploge nan: Insert the prongs of the voltage protector firmly into the wall outlet.
- Obsève Endikatè yo: Upon plugging in, the LED indicators will illuminate to show the current power status. Initially, the "Waiting Cycle" LED will light up.
- Konekte aparèy yo: Once the "Normal Voltage" LED is illuminated (after the 3-minute waiting cycle), you can plug your appliances into the three outlets of the protector.
Figi 4.1: Vol latage protector installed in a kitchen, demonstrating its compact design when plugged into a wall outlet.
5. Operasyon Enstriksyon
The BSEED Voltage Protector operates automatically to safeguard your appliances. Understanding the LED indicators is key to monitoring its status.
Gid endikatè ki ap dirije:
- Nòmal Voltage (Green): Indicates that the incoming voltage is within safe operating limits (125V) and power is being supplied to the outlets.
- Plis pase Voltage (Red): Illuminates when the incoming voltage exceeds safe levels. The protector will cut power to connected appliances to prevent damage.
- Low Voltage (Red): Illuminates when the incoming voltage drops below safe levels. The protector will cut power to connected appliances.
- Waiting Cycle (Yellow/Orange): Indicates that the device is in a delay period (approximately 3 minutes) before restoring power. This occurs after initial plug-in or after a power fluctuation event, allowing appliance compressors to equalize pressure.

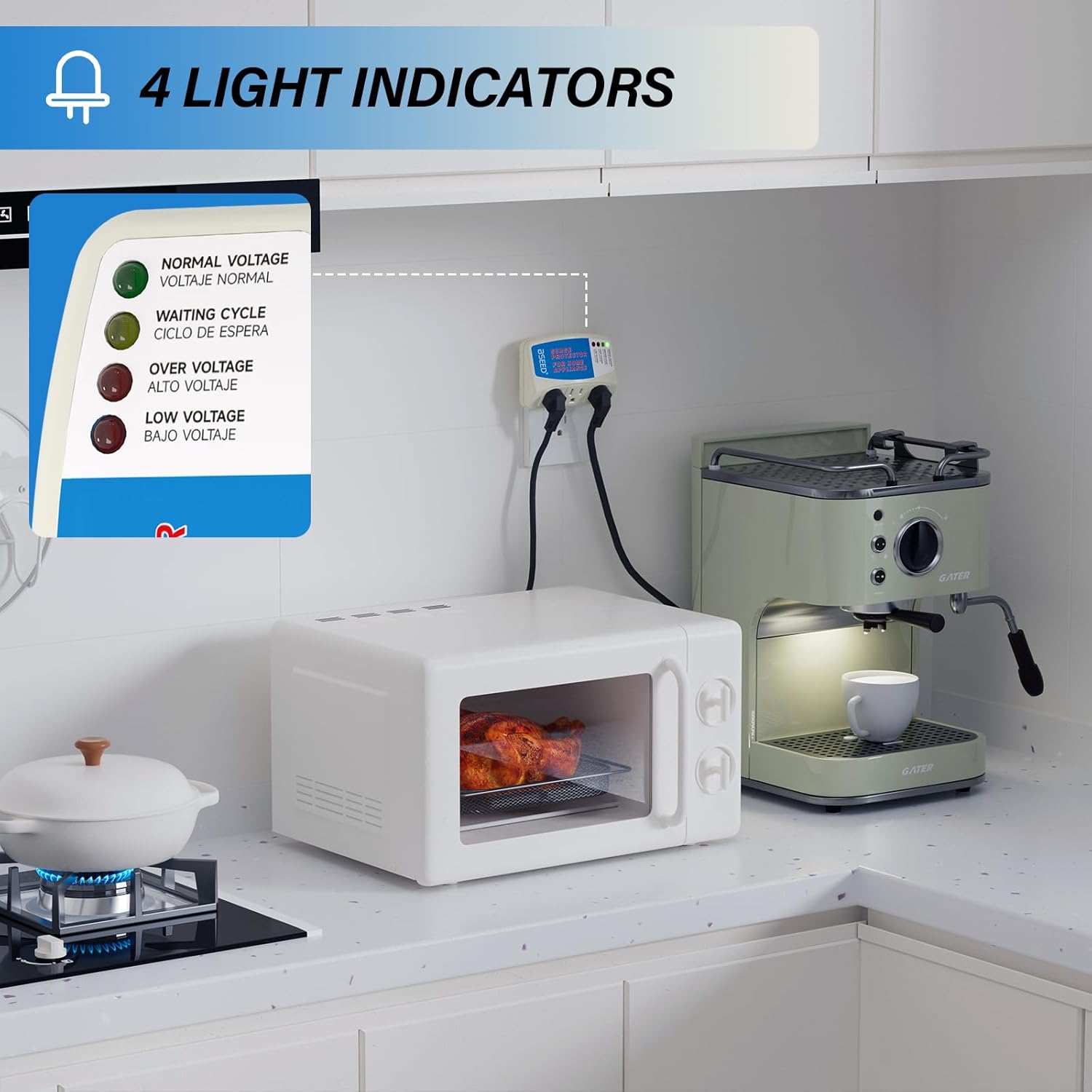

Figi 5.1: Detaye view of the four LED indicators and their corresponding labels, providing clear status information.
3-Minute Delay Function:
The 3-minute delay is a critical feature, especially for appliances with compressors like refrigerators, freezers, and air conditioners. After a power outage or fluctuation, the protector will wait for approximately 3 minutes before restoring power. This delay allows the compressor's internal pressures to stabilize, preventing potential damage from rapid power cycling.
Figi 5.2: Visual representation of the 3-minute delay feature, emphasizing its role in protecting appliances like refrigerators.
6. Applicable Appliances
The BSEED Voltage Protector is suitable for a wide range of home appliances, particularly those sensitive to voltage fluctuations. These include:
- Frijidè
- È kondisyone
- Frizè
- Makè glas
- Machin pou lave
- Televisions (TVs)
- Personal Computers (PCs)
- Fou Mikwo ond
- Machin kafe
- Dishwasher
Figi 6.1: Examples of common household appliances that can be protected by the BSEED Voltage Pwotektè.
7. Pwoteksyon Karakteristik
Your BSEED Voltage Protector offers comprehensive protection against various electrical anomalies:
- Segondè Voltage Pwoteksyon: Automatically disconnects power when voltage exceeds a safe threshold.
- Low Voltage Pwoteksyon: Automatically disconnects power when voltage drops below a safe threshold.
- Spike/Surge Protection: Guards against sudden, short-duration increases in voltage (spikes and surges).
- Power-Back Surge Protection: Protects against surges that can occur when power is restored after an outage.
- Pwoteksyon Zeklè: Offers a degree of protection against electrical damage caused by lightning strikes.
Figi 7.1: Plis paseview of the five types of electrical protection provided by the device.
8. Antretyen
The BSEED Voltage Protector requires minimal maintenance to ensure optimal performance and longevity:
- Netwayaj: Disconnect the unit from the wall outlet before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or abrasive materials.
- Enspeksyon: Periodically check the unit for any physical damage, loose connections, or discoloration. If any issues are found, discontinue use and contact customer support.
- Depo: If storing the unit for an extended period, keep it in a cool, dry place away from direct sunlight and moisture.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| No power to appliances, no LEDs lit. | Unit not properly plugged in; Wall outlet has no power; Unit is damaged. | Ensure unit is firmly plugged in. Check wall outlet with another device. If still no power, unit may be damaged; contact support. |
| "Waiting Cycle" LED remains lit for more than 3 minutes. | Pèsistan voltage instability; Internal fault. | Unplug the unit, wait 30 seconds, and plug it back in. If the issue persists, the voltage in your area may be unstable, or the unit may have an internal fault. |
| "Over Voltage" or "Low Voltage" LED is lit, no power to appliances. | Incoming voltage is outside safe operating range. | This indicates the protector is functioning correctly. Wait for the voltage to stabilize. If the condition persists, contact your electricity provider. |
| Appliances are not receiving power, but "Normal Voltage" LED is lit. | Appliance issue; Loose connection. | Check if the appliance is properly plugged into the protector. Test the appliance directly in a wall outlet (if safe to do so). If the appliance works directly, the protector may be faulty. |
10. Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Nimewo Modèl | 7545886604 |
| Mak | GRENN BSEED |
| Antre Voltage | 125V AC |
| Maksimòm pouvwa | 1875W |
| Plòg pouvwa total | 3 |
| Karakteristik espesyal | Surge Protection, Voltage Protection (High/Low), 3-Minute Delay |
| Pwa atik | 5 ons |
| Dimansyon pwodwi | 6.54 x 7.32 x 11.97 pous |
| Materyèl | PC Flame Retardant Material |
| Premye Dat ki disponib | 17 jiyè 2018 |
Figi 10.1: Detailed product dimensions for both horizontal and vertical plug orientations.
11. Garanti ak sipò
BSEED stands behind the quality of its products. Your BSEED Voltage Protector comes with a 3-ane garanti. For any questions, technical assistance, or warranty claims, please contact BSEED customer service. Our dedicated support team is available 24/7 to assist you.
For further information or to contact support, please refer to the official BSEED websit la oswa dokiman acha ou a.
