1. Entwodiksyon
Thank you for choosing the Sangean LB-100 Compact AM/FM Ultra Rugged Radio Receiver. This manual provides essential information for the proper setup, operation, and maintenance of your radio. Please read these instructions thoroughly before using the device to ensure optimal performance and longevity.
2. Pwodwi souview
The Sangean LB-100 is designed for durability and reliable performance in various environments. Its rugged construction, including a roll-cage design and rubber shock-blocks, provides resistance against impacts, dust, and rain. The radio features a digital PLL tuner for precise AM/FM reception and dynamic loudness for clear audio output.
Figi 2.1: Devan view of the Sangean LB-100 radio. This image displays the main speaker grille, the digital display for frequency, tuning knobs, and the preset buttons (1-5), band selector, and power button.

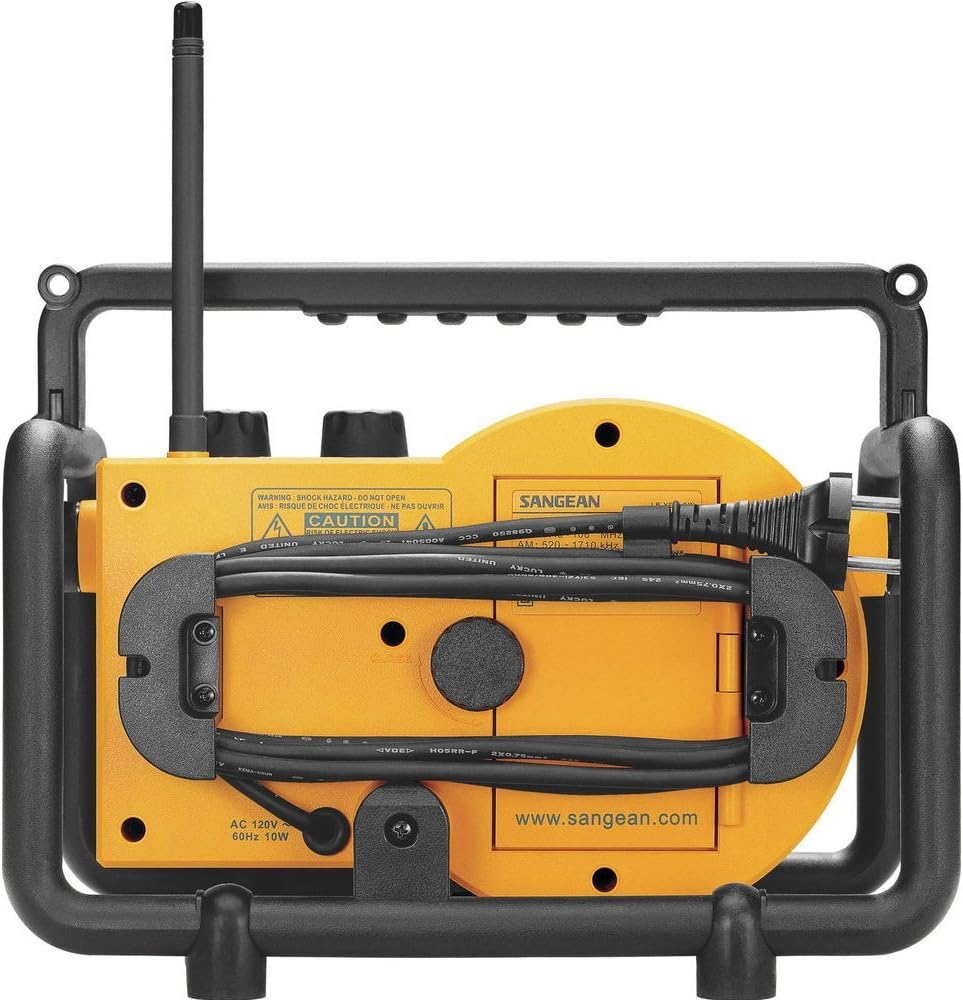

Figi 2.2: Retounen view of the Sangean LB-100 radio. This image highlights the integrated power cord storage and the AC power input port, along with warning labels.
3. Enstalasyon
3.1 Debake
Carefully remove the radio and all accessories from the packaging. Verify that the following items are included:
- Sangean LB-100 Radio Receiver
- Manyèl Pwopriyetè a (dokiman sa a)
- Rubber FM Antenna
- 6-foot AC Power Cord
3.2 Mete aparèy la an fonksyon
The Sangean LB-100 operates using AC power.
- Locate the integrated power cord storage on the back of the radio (refer to Figure 2.2).
- Unwind the 6-foot AC power cord.
- Insert the power cord into a standard 120V AC wall outlet.
3.3 Enstalasyon antèn
For optimal reception, properly position the antenna.
- Resepsyon FM: Attach the provided rubber FM antenna to the antenna jack on the top of the radio. Extend and adjust its position for the best FM signal.
- Resepsyon AM: The radio features a built-in AM antenna. For improved AM reception, rotate the entire radio unit until the desired station is clear.
4. Operasyon Enstriksyon
4.1 Power On/Off
Peze a Pouvwa button (red circle with a line) located on the front panel to turn the radio on or off.
4.2 Selecting a Band (AM/FM)
Peze a BAND button on the front panel to switch between AM and FM radio bands. The selected band will be indicated on the digital display.
4.3 Akor sou yon estasyon
Sèvi ak la Akor Knob (typically the right knob on top) to manually scan for radio stations. Rotate the knob clockwise to increase the frequency and counter-clockwise to decrease it. The frequency will be shown on the digital display.
4.4 Ajiste Volim
Vire a Volim bouton (typically the left knob on top) to adjust the audio output level. Turn clockwise to increase volume and counter-clockwise to decrease it. The radio features dynamic loudness for enhanced sound quality.
4.5 Mete ak Rale Prereglaj yo
The radio allows you to store and quickly access your favorite stations using the preset buttons (1-5).
- Pou mete yon predefinisyon:
a. Tune to the desired station using the tuning knob.
b. Press and hold one of the preset buttons (1-5) for approximately 2 seconds until you hear a beep or see an indication on the display. The station is now saved to that preset number. - Pou Raple yon Prereglaj:
a. Briefly press the desired preset button (1-5). The radio will immediately tune to the saved station.
5. Antretyen
5.1 Netwayaj
Pou netwaye radyo a, sèvi ak yon mou, damp cloth. Do not use abrasive cleaners, solvents, or strong detergents, as these can damage the finish or internal components. Ensure the radio is unplugged from the power source before cleaning.
5.2 Depo
When not in use for extended periods, store the radio in a cool, dry place away from direct sunlight and extreme temperatures. You may wrap the power cord around its integrated storage area on the back of the unit.
5.3 Swen Jeneral
The Sangean LB-100 is designed to be rugged, rain-resistant, dust-resistant, and shock-resistant. However, avoid submerging the unit in water or exposing it to excessive force. Always ensure the power cord is properly secured to prevent damage.
NAN. Depanaj
If you experience issues with your Sangean LB-100 radio, consult the following table for common problems and solutions.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Radyo a pa limen. | Kòd kouran an pa byen konekte. | Asire w ke kòd kouran AC a byen branche nan radyo a ak nan yon priz miray ki fonksyone. |
| Resepsyon pòv oswa pa gen. | Antenna not extended/positioned correctly; weak signal area. | For FM, extend and adjust the rubber FM antenna. For AM, rotate the entire radio. Try moving the radio to a different location. |
| Pa gen son ki soti nan oratè a. | Volume too low; radio muted. | Increase the volume using the Volume Knob. Ensure the radio is not in a muted state (if applicable, though this model does not have a dedicated mute button). |
| Ekspozisyon dijital la pa fonksyone. | Pwoblèm kouran; pann entèn. | Check power connection. If the issue persists, contact customer support. |
If the problem persists after attempting these solutions, please contact Sangean customer support for further assistance.
7. Espesifikasyon
The following are the technical specifications for the Sangean LB-100 radio:
Figi 7.1: Sangean LB-100 radio with key dimensions indicated.
| Karakteristik | Detay |
|---|---|
| Nimewo Modèl | LB-100 |
| Mak | Sangean |
| Tuner Teknoloji | AM/FM Digital PLL |
| Bann Radyo Sipòte | AM, FM |
| Sous pouvwa | Fil elektrik (AC 120V, 60Hz) |
| Karakteristik espesyal | Built-In AM Antenna, 6' Power Cord, Dynamic Loudness, Rain/Dust/Shock Resistant, Rubber Shock-Blocks |
| Koneksyon Teknoloji | Oksilyè |
| Dimansyon pwodwi (L x W x H) | 12.76 x 9.15 x 9.15 pous |
| Pwa atik | 6.75 liv |
| Koulè | Jòn |
| Konpozan ki enkli | Owner's Manual, Rubber FM Antenna, 6' Power Cord |
8. Garanti & Sipò
8.1 Enfòmasyon sou Garanti
This Sangean LB-100 radio is a Certified Refurbished product. It has been tested and certified to look and work like new. The refurbishing process includes functionality testing, basic cleaning, inspection, and repackaging. This product ships with a minimum 90-day warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
8.2 Sipò pou Kliyan
For technical assistance, warranty service, or any questions regarding your Sangean LB-100 radio, please contact Sangean customer support. Refer to the official Sangean websit la oswa anbalaj pwodwi a pou jwenn enfòmasyon kontak ki pi resan yo.
Nòt: Do not attempt to repair the unit yourself. Unauthorized repairs may void your warranty.
