VILTROX VL-200T LED Video Light User Manual

1. Entwodiksyon

Thank you for choosing the VILTROX VL-200T Ultra Thin Bi-Color Dimmable LED Video Light. This manual provides detailed instructions to help you effectively set up, operate, and maintain your device. Please read this manual thoroughly before use to ensure optimal performance and longevity of your product.

2. Ki sa ki nan bwat la

Verifye ke tout atik ki nan lis anba a yo enkli nan pakè ou a:

• 1 x VILTROX VL-200T LED Light Panel
• 1 x Power Supply Adapter
• 1 x Kontwolè Remote San Fil
• 1 x Universal 1/4" Cold Shoe Adapter

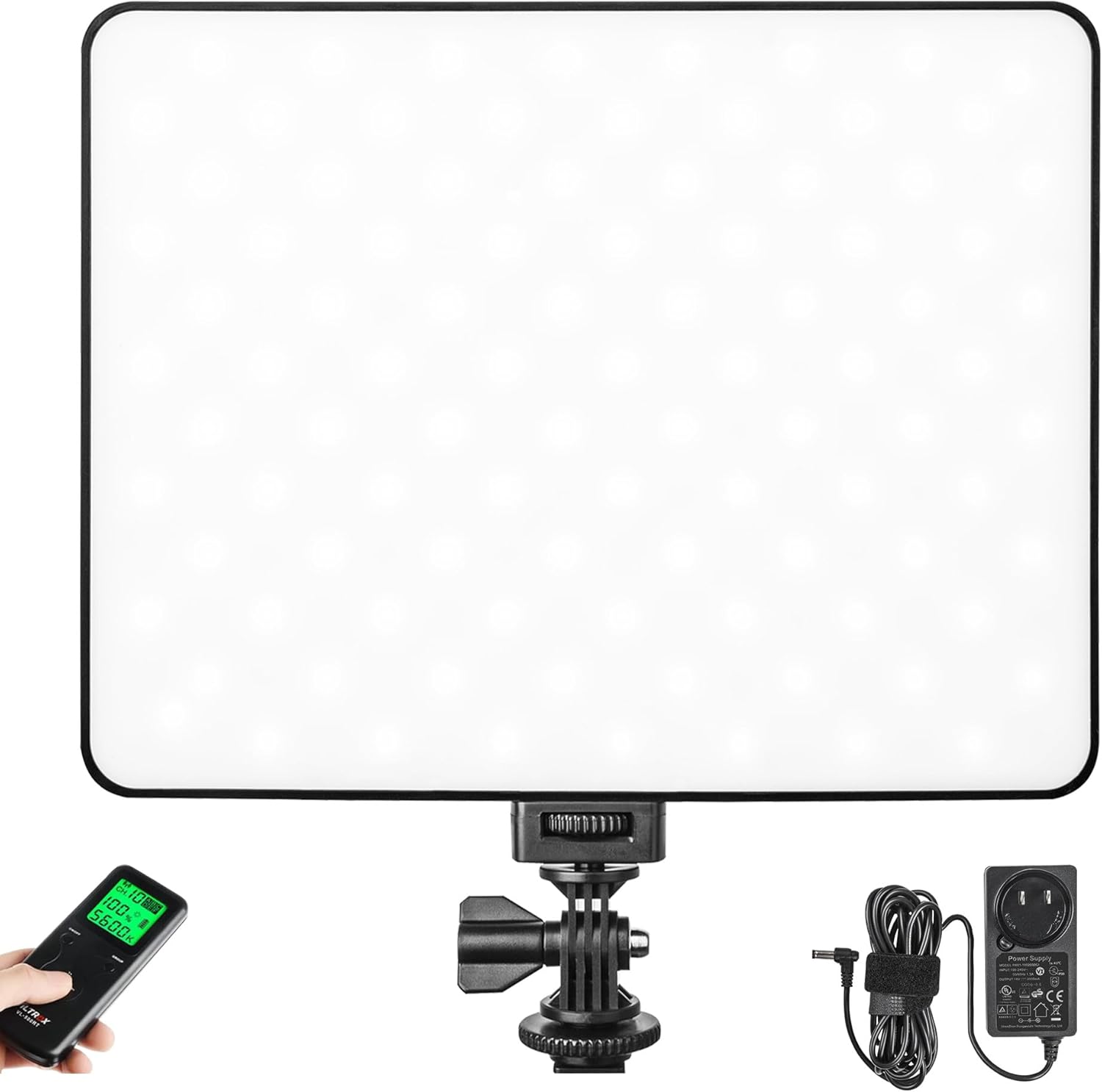

Image: The VILTROX VL-200T LED Video Light, showing the main panel, remote controller, and power supply.

3. Pwodwi Features

The VILTROX VL-200T LED Video Light offers a range of features designed for professional and amateur photographers and videographers:

• Bi-color Dimmable LED: Equipped with 96pcs (3300K) and 96pcs (5600K) SMD lamp beads, providing a versatile lighting source. Adjust color temperature from 3300K (warm yellow) to 5600K (cool white) and brightness from 20% to 100%. Max. Brightness: 2500LM. Power: 30W.
• Wireless Remote Control: Features an FSK 2.4GHz wireless remote control system with a range of up to 20 meters. Supports 6 groups and 19 channels for professional multi-light setups.
• Mòd ekipman pou pouvwa doub: Can be powered by the included DC power adapter for indoor use or by NP-F series batteries (not included) for outdoor portability.
• Built-in LCD Display: A clear LCD screen displays brightness, color temperature, channel (CH), and battery level for easy monitoring.
• Kontra enfòmèl ant ak pòtab: Super lightweight and thin (260mm x 200mm x 22mm), making it convenient for travel and on-location shoots.
• Montaj inivèsèl: Includes a 1/4" cold shoe adapter for secure mounting on light stands, tripods, cameras, camcorders, or light brackets, allowing for various lighting angles.
• Endèks rann koulè segondè (CRI): CRI 95+ ensures accurate color rendition and clear photographic images.

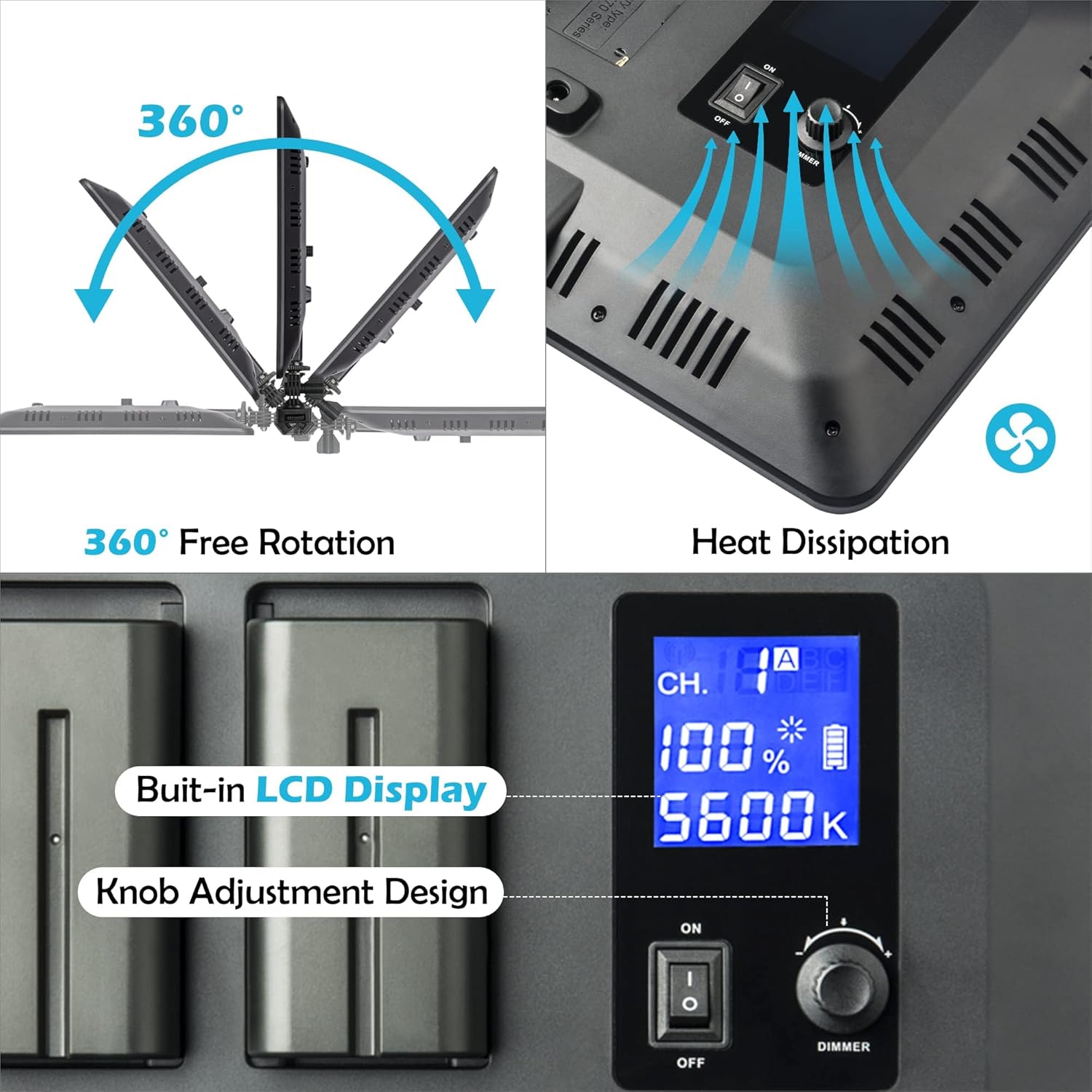

Imaj: Detaye view of the VILTROX VL-200T's features, including its 360-degree rotation capability, efficient heat dissipation design, clear built-in LCD display, and intuitive knob adjustment for settings.

4. Gid Enstalasyon

4.1 Bay Limyè a Alimantasyon

The VL-200T offers two power options:

1. DC Power Adapter (Included):

   For continuous indoor use, connect the provided DC power adapter to the light's DC input port and plug it into a standard wall outlet. Ensure the power switch on the light is in the "OFF" position before connecting.
2. NP-F Series Batteries (Not Included):

   For portable outdoor use, insert two compatible NP-F series lithium-ion batteries (e.g., NP-F550/570/960/970) into the battery slots on the back of the light. Ensure the batteries are fully charged and inserted correctly according to polarity markings.

Image: Illustration of the dual power supply options for the VL-200T, highlighting both the DC power adapter for indoor use and the battery slots for portable outdoor operation.

4.2 Enstalasyon Limyè a

The VL-200T comes with a universal 1/4" cold shoe adapter for flexible mounting:

1. Attach the 1/4" cold shoe adapter to the bottom mounting point of the VL-200T.
2. Secure the adapter onto a light stand, tripod, camera hot shoe, or other compatible mounting bracket. Tighten the locking knob to ensure stability.

Image: The VILTRO0X VL-200T mounted on a light stand, illustrating its compact size and how it can be integrated into a portable lighting setup.

5. Operasyon Enstriksyon

5.1 Operasyon debaz

1. Limen/Etenyen: Flip the power switch on the back of the light to the "ON" position to turn it on. The LCD screen will illuminate. Flip to "OFF" to power down.
2. Ajiste klète: Rotate the "DIMMER" knob on the back of the light to adjust the brightness level from 20% to 100%. The current brightness percentage ap parèt sou ekran LCD a.
3. Ajiste Tanperati Koulè: Press the "SET" button (or the central button on the knob) to switch between brightness and color temperature adjustment modes. Once in color temperature mode, rotate the "DIMMER" knob to change the color temperature from 3300K to 5600K. The current Kelvin value will be displayed.

Image: Close-up of the VL-200T's control panel, illustrating the LCD display and the multi-function knob for adjusting brightness and color temperature.

5.2 Itilizasyon Kontwòl Remot San Fil la

The included remote control allows for convenient adjustment of light settings from a distance.

1. Pairing Remote a: If the remote is not already paired, ensure both the light and remote are powered on. On the remote, press and hold the "GROUP" button until the display flashes. On the light, press and hold the "SET" button until the display flashes. They should then pair automatically.
2. Selecting Group/Channel: Use the "CH" button on the remote to cycle through channels (1-19) and the "GROUP" button to select a group (A-F). This allows you to control multiple lights individually or as a synchronized group.
3. Adjusting Brightness/Color Temperature: Use the "B+" / "B-" buttons to increase/decrease brightness and "T+" / "T-" buttons to increase/decrease color temperature.
4. Power On/Off (Remote): Use the "ON/OFF" button on the remote to turn the light on or off. Note: The light's internal LCD screen may remain dimly lit even when turned off via remote. For complete power off, use the physical switch on the light.

Image: A user demonstrating the wireless remote control functionality of the VL-200T, highlighting its convenience for adjusting light settings remotely in a photography setup.

5.3 Videyo pwodwi ofisyèl la

Gade videyo sa a pou yon ti pale rapidview of the VILTROX VL-200T LED light's features and operation:

Video: A #GenuineReview of Viltrox VL-200T Ultra Thin LED Light. This video provides a user's perspective on the light's features, including its simple controls, battery options, and universal mounting capabilities. It also demonstrates the light's brightness and how it can be toned down.

6. Antretyen

To ensure the longevity and optimal performance of your VILTROX VL-200T LED Video Light, follow these maintenance guidelines:

• Netwayaj: Use a soft, dry cloth to clean the light panel and body. Do not use abrasive cleaners or solvents, as they may damage the surface or internal components.
• Depo: When not in use, store the light in a cool, dry place, away from direct sunlight and extreme temperatures. If using batteries, remove them for long-term storage to prevent leakage.
• Manyen: Handle the light with care. Avoid dropping it or subjecting it to strong impacts, which can damage the LED beads or internal circuitry.
• Vantilasyon: Ensure the ventilation slots on the back of the light are not obstructed during operation to allow for proper heat dissipation.

NAN. Depanaj

If you encounter issues with your VILTROX VL-200T, refer to the following common problems and solutions:

8. Espesifikasyon

9. Garanti ak sipò

For warranty information and technical support, please refer to the official VILTROX websit la oubyen kontakte sèvis kliyan yo dirèkteman. Kenbe resi acha w la kòm prèv acha pou nenpòt reklamasyon garanti.
