La Crosse Technology WS6825 Weather Station User Manual

1. Entwodiksyon

Thank you for choosing the La Crosse Technology WS6825 Weather Station. This device provides accurate indoor and outdoor temperature and humidity readings, along with a weather forecast, time, and date. This manual will guide you through the setup, operation, and maintenance of your new weather station to ensure optimal performance.

The WS6825 features a clear, colorful display and includes three wireless outdoor sensors for comprehensive environmental monitoring.

2. Pake kontni

Please ensure all components are present before proceeding with the setup:

• 1 x Display Unit (Main Station)
• 3 x Temperature/Humidity Sensors (Wireless Outdoor Sensors)
• 1 x USB Cable (for optional power)
• 1 x Manyèl Enstriksyon (dokiman sa a)

Image 1: La Crosse Technology WS6825 Weather Station with main display unit and three wireless outdoor sensors.

3. Pwodwi souview

3.1 Inite ekspozisyon prensipal la

The main display unit shows all collected data, including indoor and outdoor temperatures, humidity, time, date, and weather forecast. It features a color screen for easy readability and several control buttons.

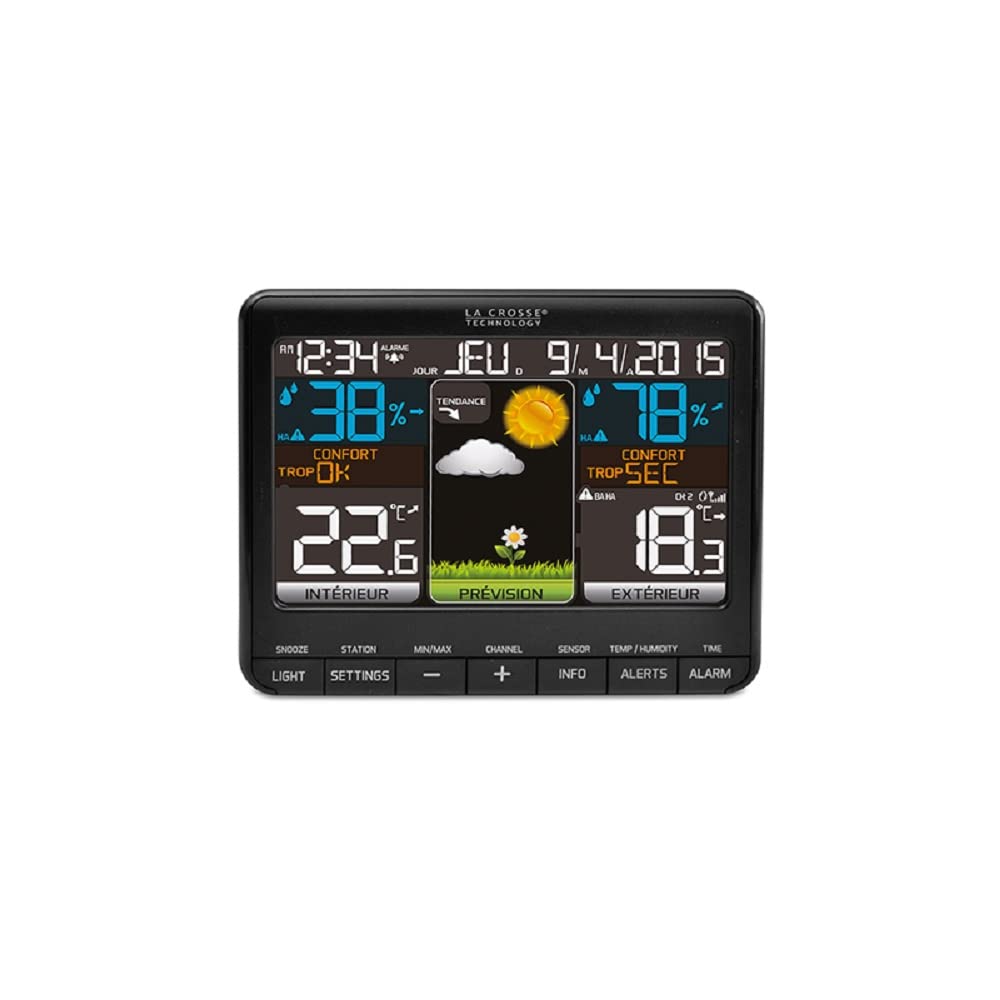

Imaj 2: Gwo plan view of the WS6825 main display unit, illustrating various data points.

3.2 Wireless Outdoor Sensors

The three wireless sensors transmit temperature and humidity data to the main unit via 433 MHz radio frequency. Each sensor can be placed in a different location to monitor various outdoor conditions.

3.3 Bouton Kontwòl

The main unit features several buttons for configuration and data access:

• SNOOZE / limyè: Activates snooze for alarms or adjusts backlight.
• Anviwònman: Enters setup mode for time, date, and other preferences.
• MIN / MAX: Displays minimum and maximum recorded values.
• +/-: Adjusts values during setup or navigates channels.
• CHANNEL: Switches between data from different outdoor sensors.
• CAPTEUR: Manually searches for outdoor sensors.
• ENFO: Displays additional information like heat index or dew point.
• Alèt: Sets temperature/humidity alerts.
• ALAM: Sets and activates time alarms.

4. Enstalasyon

4.1 Alimante Inite Prensipal la

1. Insert 3 AAA batteries (not included) into the main display unit, observing polarity.
2. Alternatively, connect the provided USB cable to the main unit and a power adapter (not included) for continuous power.
3. The display will light up and begin searching for sensors.

4.2 Installing Batteries in Outdoor Sensors

1. Open the battery compartment on each of the three outdoor sensors.
2. Insert 2 AA batteries (not included) into each sensor, observing polarity.
3. Fèmen konpatiman batri yo byen.

4.3 Koneksyon Capteur

The main unit should automatically detect and pair with the outdoor sensors once they are powered on. If pairing does not occur within a few minutes:

• Ensure the sensors are within range (up to 100 meters in open air).
• Peze a CAPTÈ button on the main unit to initiate a manual search.
• On each outdoor sensor, there is a small reset button (often labeled 'TX' or 'RESET'). Press this button to force a signal transmission.

4.4 Initial Settings (Time, Date, Units)

1. Peze epi kenbe la PARAMÈT bouton pou antre nan mòd konfigirasyon an.
2. Sèvi ak la +/- buttons to adjust values (e.g., hour, minute, year, month, day).
3. Peze PARAMÈT again to confirm each setting and move to the next.
4. You can typically set 12/24-hour format, Celsius/Fahrenheit units, and language preference during this process.
5. Exit setup mode by pressing PARAMÈT repeatedly until the normal display returns, or wait for it to time out.

4.5 Capteur plasman

Pou lekti deyò ki egzat, konsidere bagay sa yo:

• Place sensors in a shaded area, away from direct sunlight, to prevent inaccurate temperature readings.
• Ensure sensors are protected from direct rain or snow.
• Mount sensors vertically to allow for proper drainage.
• Avoid placing sensors near large metal objects, electrical appliances, or sources of heat/cold that could interfere with readings or transmission.
• Keep sensors within the effective transmission range of the main unit.

5. Fonksyònman Estasyon Meteo a

5.1 Montre Enfòmasyon

The display is divided into several sections, showing:

• Lè ak Dat: Current time, day of the week, and date.
• Indoor Conditions: Tanperati ak imidite andedan kay la.
• Outdoor Conditions: Outdoor temperature and humidity from the selected sensor.
• Pwedi metewolojik: Icons representing predicted weather conditions (e.g., sunny, cloudy, rainy).
• Nivo Konfò: An indicator of indoor comfort based on temperature and humidity.
• Endikatè tandans: Arrows showing if temperature or humidity is rising, falling, or stable.

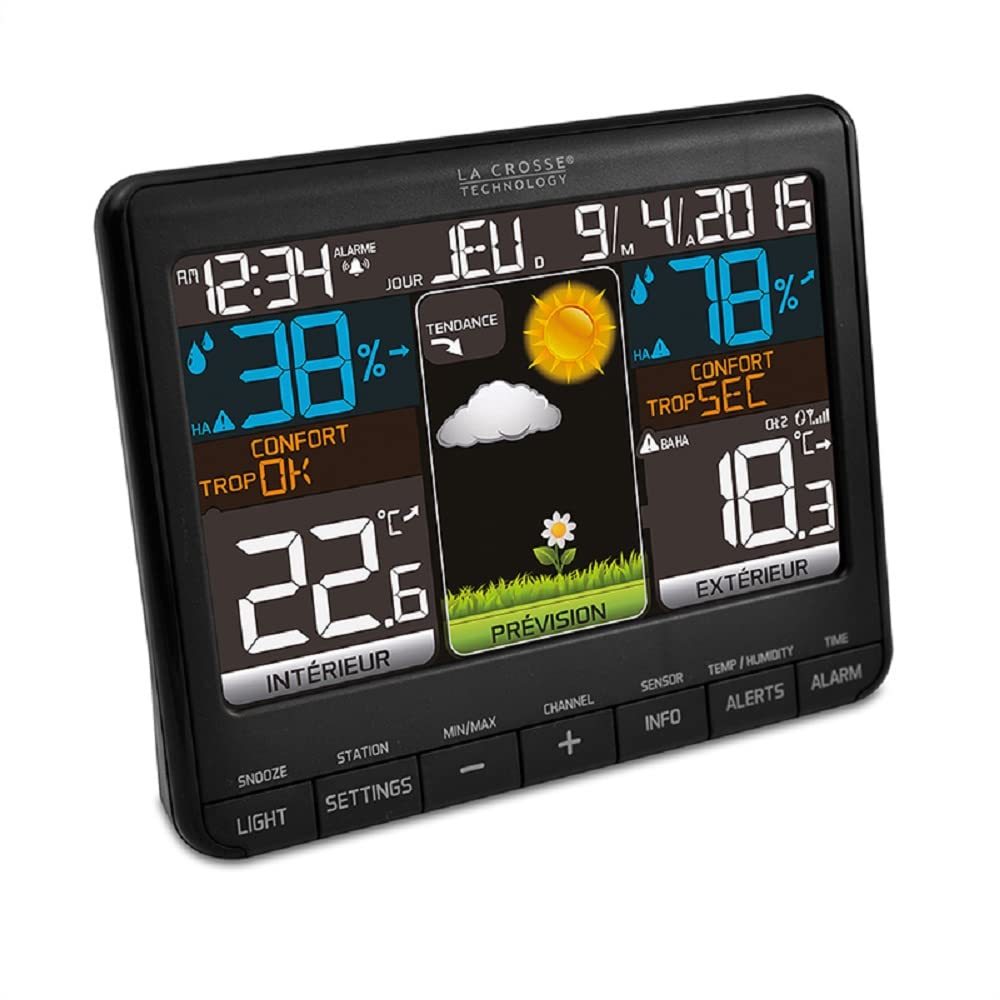

Imaj 3: Angle view of the WS6825 display, showing the clear segmentation of information.

5.2 Viewing Multiple Outdoor Sensors

Peze a CHANNEL button to cycle through the readings from the three connected outdoor sensors (CH1, CH2, CH3). The display will indicate which channel's data is currently shown.

5.3 Minimum/Maximum Readings

Peze a MIN / MAX bouton pou view the highest and lowest recorded indoor and outdoor temperatures and humidity levels since the last reset. Press again to cycle through MIN, MAX, and current readings. To reset the MIN/MAX values, press and hold the MIN / MAX bouton pandan viewing yo.

5.4 Mete Alam yo

1. Peze a ALAM bouton pou view tan alam la.
2. Peze epi kenbe la ALAM bouton pou antre nan mòd anviwònman alam.
3. Sèvi ak la +/- bouton pou ajiste lè a ak minit la.
4. Peze ALAM konfime chak anviwònman.
5. Peze ALAM once more to activate or deactivate the alarm (an alarm icon will appear/disappear).

5.5 Temperature/Humidity Alerts

The station may support setting high/low alerts for temperature and humidity. Refer to the on-screen prompts or the Alèt yo button functionality for detailed instructions on setting these thresholds.

6. Antretyen

6.1 Ranplasman batri

• Replace batteries in the main unit and sensors when the low battery indicator appears on the display.
• Always replace all batteries in a unit at the same time with new batteries of the same type.
• Jete ansyen pil yo yon fason responsab selon règleman lokal yo.

6.2 Netwayaj

Siye inite ekspozisyon an ak detèktè yo ak yon twal mou,amp cloth. Do not use abrasive cleaners or solvents, as these may damage the surfaces or electronic components.

6.3 Konsiderasyon Anviwònman

Periodically check the placement of your outdoor sensors to ensure they remain protected from extreme weather and are still providing accurate readings. Clear any debris that may accumulate around the sensors.

NAN. Depanaj

8. Espesifikasyon

9. Garanti ak sipò

La Crosse Technology products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your purchase or visit the official La Crosse Technology website. If you encounter any issues not covered in this manual, please contact La Crosse Technology customer support for assistance.

Tanpri konsève prèv acha ou a pou nenpòt reklamasyon garanti.
