1. Entwodiksyon
This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your Braytron 12W Warm White LED Recessed Spotlights. These ultra-slim LED panels are designed for various indoor applications, offering high luminous power and energy efficiency.
The product features a compact, flat design with a low installation depth, making it suitable for ceilings in living rooms, kitchens, offices, and commercial spaces.
2. Enfòmasyon sou Sekirite
- Toujou dekonekte kouran an anvan enstalasyon, antretyen, oswa netwayaj.
- Se yon elektrisyen kalifye ki dwe fè enstalasyon an dapre kòd elektrik lokal yo.
- Pa modifye pwodwi a nan okenn fason. Modifikasyon san otorizasyon ka anile garanti a epi poze risk pou sekirite.
- Ensure the product is suitable for the intended environment. This product has an IP20 rating, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. It is intended for indoor use only.
- Kenbe materyèl anbalaj yo pa rive jwenn timoun yo.
- Do not look directly into the LED light source when it is illuminated.
3. Pake kontni
Pake a gen ladan eleman sa yo:
- 2 x Braytron 12W Warm White LED Slim Panels
- 2 x Integrated Transformers (pre-mounted)
- 2 x Mounting Clips (pre-mounted)

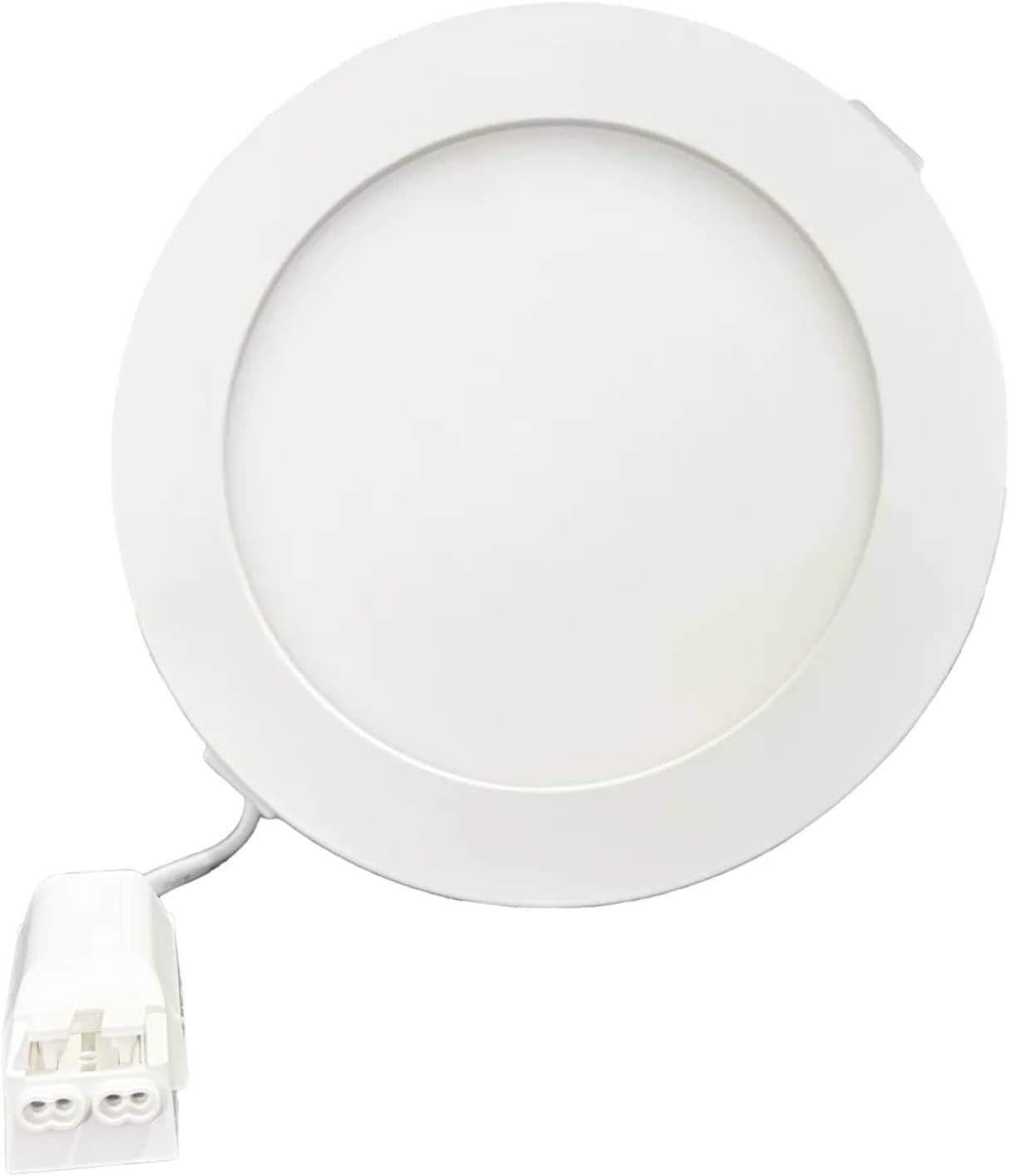

Figure 1: Braytron 12W Warm White LED Recessed Spotlight (front view).

Figi 2: Dèyè view of the LED spotlight showing the pre-mounted transformer and spring clips for installation.
4. Enstalasyon ak Enstalasyon
- Preparasyon: Asire w ke ekipman pou kouran nan zòn enstalasyon an koupe nan disjonktè prensipal la.
- Koupe: Create a circular opening in the ceiling with a diameter of approximately 155 mm (6.1 inches). Refer to Figure 3 for detailed dimensions.
- Fil elektrik: Connect the pre-mounted transformer to the AC 220-240V / 50/60 Hz power supply. Ensure all connections are secure and insulated.
- Montaj: Gently push the spring-loaded mounting clips on the sides of the spotlight upwards. Insert the spotlight into the prepared ceiling opening. The clips will spring back into place, securing the spotlight firmly against the ceiling.
- Tcheke final la: Once installed, restore power and test the light.

Figure 3: Dimensional drawing. Outer diameter: 172mm, Inner diameter (cut-out): 155mm, Height: 20mm.
5. Operasyon Enstriksyon
The Braytron LED Recessed Spotlight operates by connecting to a standard wall switch. Once properly installed and connected to the power supply, simply use the wall switch to turn the light on or off. The LED panel provides instant full brightness without any warm-up delay.
This product is not dimmable according to the product data sheet (Figure 4).
6. Antretyen
- Netwayaj: Asire w ke kouran an koupe anvan ou netwaye. Sèvi ak yon twal mou, sèk oswa yon ti kras mouye.amp cloth to wipe the surface of the LED panel. Do not use abrasive cleaners or solvents.
- Enspeksyon: Periodically check for any visible damage to the light fixture or wiring. If damage is found, disconnect power and consult a qualified technician.
- Lamp Ranplasman: The LED light source is integrated and not user-replaceable. The product has a long average lifespan of 30,000 hours.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Limyè pa limen. | Pa gen ekipman pou pouvwa. Koneksyon fil elektrik ki lach. Defo switch. | Tcheke brekè a. Asire w tout koneksyon fil yo byen fèm (ak kouran an koupe). Test the switch or consult an electrician. |
| Limyè flickers. | Ekipman kouran enstab. Koneksyon ki lach. | Asire ekipman pou pouvwa ki estab. Tcheke koneksyon fil yo (lè kouran an etenn). |
| Limyè fèb. | Incorrect voltage. Akimilasyon pousyè. | Verifye ekipman pou pouvwa a voltage se 220-240V AC. Clean the surface of the LED panel. |
If the problem persists after attempting these solutions, please contact a qualified electrician or the product supplier for assistance.
8. Espesifikasyon
| Karakteristik | Spesifikasyon |
|---|---|
| Mak | Braytron |
| Nimewo Modèl | LD-426-2x |
| Konsomasyon pouvwa | 12 W |
| Flux lumineux | 910 lm |
| Tanperati Koulè | 3000 K (blan cho) |
| Angle gwo bout bwa | 110° |
| Antre Voltage | AC 220-240 V / 50/60 Hz |
| Klas efikasite enèji | F (formerly A+) |
| Fòm | Round |
| Materyèl | Aluminum frame, Glass diffuser |
| Dyamèt Eksteryè | 172 mm |
| Koupe Dyamèt | 155 mm |
| Wotè | 20 mm |
| Evalyasyon IP | IP20 |
| Viv Mwayèn | 30,000 èdtan |
| Sètifikasyon | CE, RoHS |
| Dimmable | Non |

Figure 4: Product Data Sheet (German). For detailed energy information, refer to the EPREL baz done.

Figure 5: EU Energy Label indicating energy efficiency class F (new rating system).
9. Garanti ak sipò
Information regarding specific warranty terms and conditions for this product is not provided in this manual. Please refer to your purchase documentation or contact your retailer for details on warranty coverage and customer support.
For technical assistance or inquiries, please contact Braytron customer service or your local distributor.
