1. Entwodiksyon
This instruction manual provides essential information for the installation, operation, and maintenance of the Eastar Oil Pump and Cover Kit. This kit is an aftermarket replacement designed to fit various Chinese chainsaw models, ensuring proper lubrication for optimal chainsaw performance.
Konpatibilite: This kit is compatible with Chinese Chainsaw models 4500, 5200, 5800, 45cc, and 52cc.
2. Pake kontni
Tanpri verifye ke tout konpozan ki nan lis anba a yo prezan nan pake ou a:
- 1 x Ponp lwil oliv
- 1 x Oil Pump Cover
- 1 x Oil Pump Pipe
- 1 x Worm Gear
Figi 2.1: Plis paseview of the Eastar Oil Pump and Cover Kit, showing the oil pump, oil pump cover, oil pump pipe, and worm gear.
3. Enfòmasyon sou Sekirite
Always prioritize safety when working with power tools and their components. Failure to follow safety guidelines can result in serious injury or damage to equipment.
- Dekonekte pouvwa: Before performing any installation or maintenance, ensure the chainsaw engine is off and the spark plug wire is disconnected to prevent accidental starting.
- Mete ekipman pwoteksyon: Always wear appropriate personal protective equipment (PPE), including gloves and eye protection.
- Travay nan yon zòn ki byen vantile: If working with fuel or oil, ensure adequate ventilation.
- Sèvi ak zouti ki kòrèk yo: Use only the appropriate tools for disassembly and assembly to avoid damaging components.
- Handle Fluids Carefully: Be mindful of oil and fuel spills. Clean up any spills immediately.
- Consult Chainsaw Manual: Refer to your chainsaw's original instruction manual for specific disassembly and reassembly procedures.
4. Enstriksyon Enstalasyon
This section outlines the general steps for replacing the oil pump and cover kit. Specific chainsaw models may have slight variations.
4.1. Anvan w kòmanse
- Ensure the chainsaw is cool and clean.
- Drain any remaining oil from the oil tank.
- Gather necessary tools (e.g., screwdrivers, wrenches).
4.2. Enstalasyon etap pa etap
- Access the Oil Pump Area: Depending on your chainsaw model, you may need to remove the clutch cover, clutch, and/or other components to gain access to the existing oil pump and worm gear. Refer to your chainsaw's service manual for precise instructions.
- Retire ansyen konpozan yo: Carefully remove the old oil pump cover, oil pump, oil pump pipe, and worm gear. Note their orientation for correct installation of the new parts.
- Install New Worm Gear: Place the new worm gear onto the crankshaft. Ensure it seats correctly and can rotate freely.
- Install New Oil Pump: Position the new oil pump into its housing. Ensure the drive shaft of the oil pump engages with the worm gear. The oil pump pipe connection should face the oil tank.
- Connect Oil Pump Pipe: Attach the new oil pump pipe to the oil pump and route it into the oil tank. Ensure a secure and leak-free connection.
- Install New Oil Pump Cover: Place the new oil pump cover over the oil pump and worm gear area. Align any mounting holes and secure it with the appropriate screws. Do not overtighten.
- Reassemble Chainsaw: Reinstall any other components that were removed, such as the clutch and clutch cover.
- Tès pou fonksyonalite: Refill the oil tank with appropriate chainsaw bar and chain oil. Start the chainsaw and observe if oil is being properly dispensed to the bar and chain. Adjust oil flow if your chainsaw model allows.
Figi 4.1: The oil pump and worm gear components.
Figi 4.2: The oil pump cover and worm gear, showing how they fit together.
Figi 4.3: Underside of the oil pump cover, showing the internal mechanism for the worm gear.
5. Operasyon Enstriksyon
Once the oil pump and cover kit is installed, proper operation is crucial for chainsaw longevity and performance.
- Check Oil Level Regularly: Before each use, ensure the oil tank is filled with fresh, clean bar and chain oil. Never operate the chainsaw with an empty oil tank.
- Monitor Oil Flow: During operation, periodically check that oil is being dispensed onto the guide bar and chain. This can often be observed by holding the tip of the bar near a light-colored surface while the chain is running at a safe distance. A fine line of oil should be visible.
- Use Recommended Oil: Always use the type of bar and chain oil recommended by your chainsaw manufacturer.
6. Antretyen
Regular maintenance of the oil pump system helps ensure consistent lubrication and extends the life of your chainsaw.
- Clean Oil Passages: Periodically inspect and clean the oil passages on the guide bar and the oil outlet port on the chainsaw body to prevent blockages.
- Enspekte eleman yo: During routine chainsaw maintenance, visually inspect the oil pump, pipe, and worm gear for any signs of wear, damage, or leaks. Replace components as needed.
- Kenbe zòn pwòp: Ensure the area around the oil pump and cover is free from sawdust, dirt, and debris, which can interfere with proper operation.
NAN. Depanaj
If you encounter issues with oil flow after installing the kit, refer to the following table:
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| No oil flow to bar/chain | Tank lwil oliv vid | Refill oil tank. |
| No oil flow to bar/chain | Oil passages blocked | Clean oil outlet port and guide bar oil holes. |
| No oil flow to bar/chain | Oil pump not engaging worm gear | Recheck installation of oil pump and worm gear. Ensure they are correctly aligned. |
| No oil flow to bar/chain | Oil pipe kinked or disconnected | Inspect oil pipe for damage or improper connection. |
| Oil leaks from cover area | Improperly seated cover or damaged seal | Ensure cover is correctly installed and screws are tightened. Check for any damaged seals or gaskets. |
8. Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Mak | Eastar |
| Nimewo Modèl | YTL0263 |
| Materyèl | Plastik, metal, kawotchou |
| Konpatibilite | Chinese Chainsaw 4500, 5200, 5800, 45cc, 52cc |
| Atik ki enkli | 1 x Oil Pump, 1 x Oil Pump Cover, 1 x Oil Pump Pipe, 1 x Worm Gear |

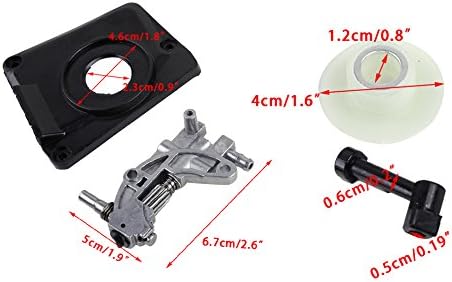

Figi 8.1: Approximate dimensions of the oil pump, cover, and worm gear components.
9. Garanti ak sipò
As an aftermarket replacement part, specific warranty details may vary. For any questions regarding installation, compatibility, or product performance, please contact the seller or manufacturer directly through your purchase platform. Always refer to your original chainsaw manufacturer's guidelines for overall chainsaw warranty information.
