Entwodiksyon
This manual provides detailed instructions for the proper use, care, and maintenance of your Sigma 14-24mm F2.8 DG HSM Art Lens for Canon. Please read this manual thoroughly before using the lens to ensure optimal performance and longevity.
The Sigma 14-24mm F2.8 DG HSM Art lens is an ultra-wide-angle zoom lens designed for full-frame DSLR cameras. It features a fast F2.8 constant aperture, making it suitable for various shooting conditions, including low light and landscape photography. This lens is part of Sigma's esteemed Art line, known for its high optical performance.
Kontni pake
Lè w ap ouvri pake a, tanpri verifye si tout atik ki nan lis anba a yo la epi yo an bon eta:
- Sigma 14-24mm F2.8 DG HSM Art Lens (Canon Fit)
- Lens Cap (Front)
- Dèyè Cap
- Ka lantiy
- Manyèl Enstriksyon (dokiman sa a)
- Kat Garanti
Image: The included padded lens case, designed for safe transport and storage of the Sigma 14-24mm F2.8 DG HSM lens.
Enstalasyon
Tache Lantiy la
- Asire w ke ni kamera a ni lantiy la etenn.
- Remove the rear lens cap from the Sigma 14-24mm F2.8 DG HSM lens and the body cap from your Canon camera.
- Align the red mounting index mark on the lens barrel with the corresponding red index mark on your camera's lens mount.
- Insert the lens into the camera mount and rotate it clockwise until it clicks securely into place. Do not force the lens.

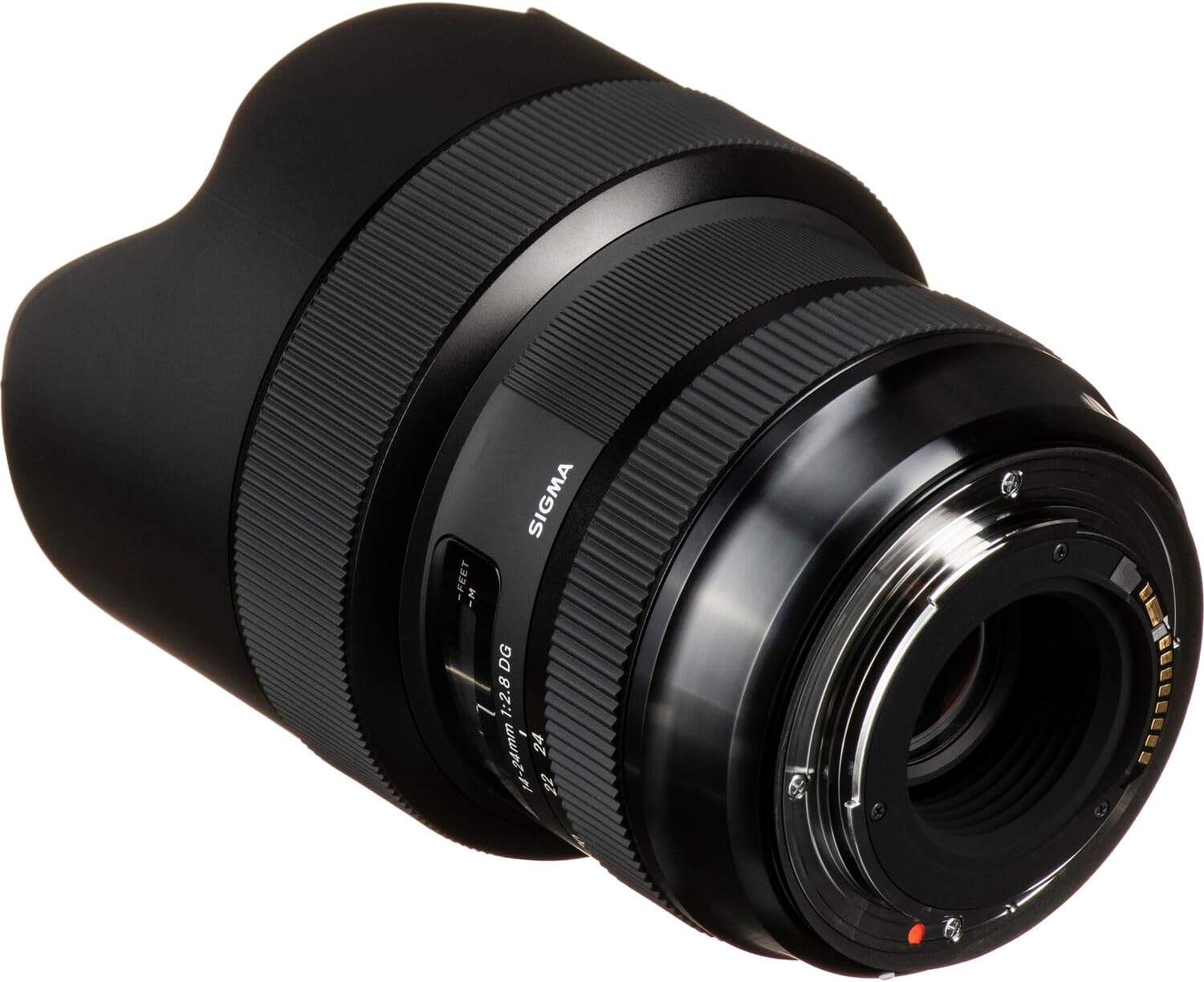

Image: The rear of the Sigma 14-24mm F2.8 DG HSM lens, highlighting the lens mount for attachment to a Canon camera body.
Retire lantiy la
- Pouvwa kamera a.
- While pressing the lens release button on the camera body, rotate the lens counter-clockwise until it detaches from the mount.
- Immediately attach the rear lens cap to the lens and the body cap to the camera to protect the sensors and lens elements from dust.
Fonksyone Lantiy la
Konsantre mòd switch
The lens features an AF/MF switch on its barrel. This switch allows you to select between Autofocus (AF) and Manual Focus (MF) modes.
- AF (Otofokus): The camera will automatically focus on the subject. This is the standard mode for most shooting situations.
- MF (Fokus Manyèl): You can manually adjust the focus by rotating the focus ring on the lens. This mode is useful for precise focusing or when autofocus struggles in very low light or with low-contrast subjects.
Image: The Sigma 14-24mm F2.8 DG HSM lens, showcasing its wide-angle design and the focus distance scale.
Zooming
To change the focal length, rotate the zoom ring on the lens barrel. The lens offers a versatile range from 14mm (ultra-wide) to 24mm (wide-angle), suitable for landscapes, architecture, and general wide-angle photography.
Imaj: Yon pwofesyonèl bò kotefile of the Sigma 14-24mm F2.8 DG HSM lens, illustrating the textured rings for zoom and focus adjustments.
Sèvi ak Lens Hood la
The Sigma 14-24mm F2.8 DG HSM lens features a built-in petal-shaped lens hood. This hood is designed to block stray light from entering the lens, which can cause flare and ghosting, thereby improving image contrast and color saturation. The hood also provides some physical protection to the front element.
Imaj: Yon ansyenample of a wide-angle landscape photograph captured with the Sigma 14-24mm F2.8 DG HSM lens, demonstrating its ability to render expansive scenes with clarity.
Antretyen ak Swen
- Netwaye lantiy la: Sèvi ak yon twal mou ki pa gen pousyè, espesyalman fèt pou sifas optik, pou netwaye eleman lantiy yo. Pou tach ki difisil pou retire, sèvi ak yon ti kantite likid netwayaj lantiy pou aplike sou twal la, pa dirèkteman sou lantiy la.
- Retire pousyè: Use a blower brush to remove dust from the lens surface before wiping. Avoid using compressed air, which can damage coatings.
- Depo: When not in use, store the lens with both front and rear caps attached in its protective case, away from direct sunlight, high humidity, and extreme temperatures.
- Manyen: Always handle the lens by its barrel, not by the front element or lens hood. Avoid dropping or subjecting the lens to strong impacts.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Lantiy la pa tache ak kamera a | Incorrect alignment; debris on mount | Ensure red index marks align; clean mount; do not force. |
| Autofocus pa travay | Lens switch set to MF; poor lighting; low contrast subject | Set switch to AF; use manual focus; ensure adequate light/contrast. |
| Imaj yo flou | Incorrect focus; camera shake; dirty lens element | Check focus; use faster shutter speed or tripod; clean lens. |
| Lens not recognized by camera | Improper attachment; firmware issue | Re-attach lens; check camera/lens firmware updates. |
Espesifikasyon
- Modèl: 212954
- Longè Fokal: 14-24mm
- Maksimòm Ouverture: F2.8
- Kalite lantiy: Ultra-Wide-Angle Zoom
- Montaj konpatib: Canon EF
- Dimansyon (Pwodwi): 5.32 x 3.8 x 3.8 pous
- Pwa atik: 2.5 liv
- Manifakti: Sigma Corporation of America
Garanti ak sipò
This Sigma lens comes with a manufacturer's warranty. Please refer to the included Warranty Card for specific terms, conditions, and registration information. For technical support, service, or warranty claims, please contact Sigma Corporation of America directly or visit their official websit.
Sigma Corporation of America: www.sigmaphoto.com
