Gima 32901 Andon Digital Blood Pressure Monitor User Manual

1. Entwodiksyon

Thank you for choosing the Gima 32901 Andon Digital Blood Pressure Monitor. This manual provides essential information for the proper setup, operation, and maintenance of your device. Please read this manual thoroughly before using the monitor to ensure accurate readings and safe operation. Keep this manual for future reference.

2. Enfòmasyon sou Sekirite

Sekirite ou pi enpòtan. Tanpri obsève prekosyon sa yo:

• Consult a Medical Professional: This device is intended for home use to measure blood pressure and pulse rate. It is not a substitute for medical consultation. Always consult your doctor for diagnosis and treatment of any health condition.
• Itilizasyon apwopriye: Use the device only as described in this manual. Misuse may lead to inaccurate readings or device damage.
• Avoid Self-Diagnosis: Do not use the measurement results for self-diagnosis or self-treatment.
• Timoun ak bèt kay: Kenbe aparèy la lwen timoun ak bèt kay.
• Kondisyon anviwònman: Do not use the device in extreme temperatures, high humidity, or direct sunlight.
• Entèferans: Kenbe aparèy la lwen jaden elektwomayetik fò.
• Antretyen: Pa eseye repare oswa modifye aparèy la tèt ou. Konfye tout antretyen bay pèsonèl kalifye.

3. Pake kontni

Lè w ap debale, tanpri verifye si tout atik sa yo ladan l:

• Gima 32901 Digital Blood Pressure Monitor Unit
• Standard Adult Arm Cuff (22-30 cm)
• Storage/Carrying Case
• Manyèl Itilizatè (dokiman sa a)

Figi 3.1: The included black zippered carrying case for convenient storage and transport of the blood pressure monitor.

4. Pwodwi souview

Familiarize yourself with the components of your Gima 32901 Blood Pressure Monitor:

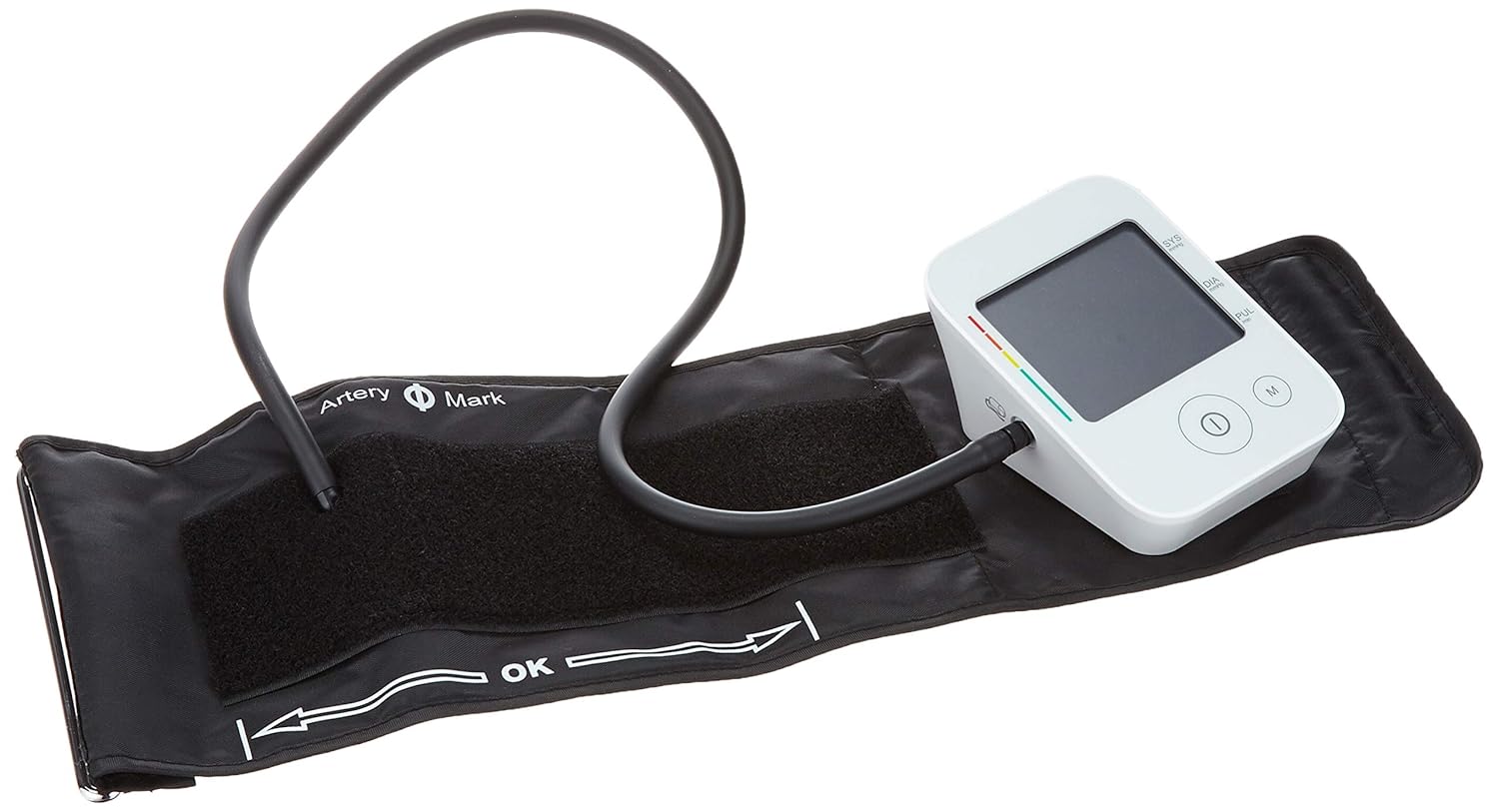

Figi 4.1: The Gima 32901 monitor unit connected to its arm cuff, showing the large LCD display and control buttons.

• Siveye Inite: Features a large, easy-to-read LCD display, power button, and memory button.
• Menòt bra: A standard adult cuff (22-30 cm) designed for upper arm placement, with an integrated air tube.
• Ekspozisyon LCD: Shows blood pressure readings (systolic, diastolic), pulse rate, and various indicators.
• Bouton pouvwa (1): Used to turn the device on and off, and to start a measurement.
• Memory Button (M): Used to access stored measurement results.

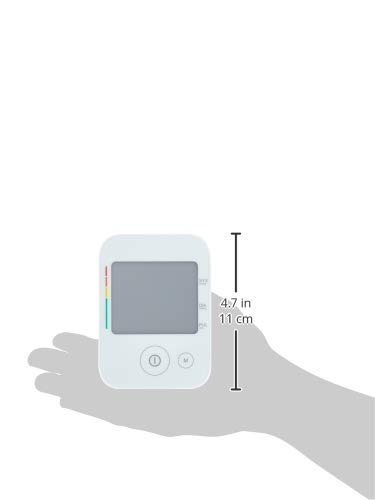

Figi 4.2: The compact size of the Gima 32901 monitor unit, measuring approximately 11 cm (4.7 inches) in height.

5. Enstalasyon

Follow these steps to prepare your blood pressure monitor for first use:

5.1. Enstalasyon batri

1. Locate the battery compartment on the back or bottom of the monitor unit.
2. Louvri kouvèti lòj batri a.
3. Insert four (4) AA alkaline batteries (not included), ensuring the correct polarity (+/-) as indicated inside the compartment.
4. Fèmen kouvèti lòj batri a byen.

5.2. Konekte braslè a

1. Locate the air tube connector on the arm cuff.
2. Insert the air tube connector firmly into the air jack located on the side of the monitor unit. Ensure a snug fit to prevent air leakage during measurement.

Figi 5.1: The arm cuff's air tube properly connected to the side port of the Gima 32901 monitor unit.

6. Operasyon Enstriksyon

Swiv etap sa yo pou mezire egzat tansyon:

6.1. Anvan Mezi a

• Evite manje, bwè alkòl, fimen, fè egzèsis, ak benyen pou 30 minit anvan mezi.
• Repoze pou omwen 5 minit anvan ou pran yon mezi.
• Sit in a comfortable position with your back supported and feet flat on the floor. Do not cross your legs.
• Mete bra ou sou yon sifas plat pou braslè a nan nivo kè a.

6.2. Aplike manchèt bra a

1. Glise bra gòch ou nan bouk manchèt la. Tib lè a ta dwe desann anndan bra ou.
2. Position the cuff so the bottom edge is approximately 1-2 cm (0.4-0.8 inches) above your elbow joint.
3. Align the artery mark (usually a small circle or arrow) on the cuff with your brachial artery, which is typically on the inside of your arm.
4. Wrap the cuff snugly around your upper arm, securing it with the hook-and-loop fastener. Ensure it is not too tight or too loose; you should be able to insert two fingers between the cuff and your arm.

Figi 6.1: Proper arm cuff placement on the left arm, indicating the position relative to the elbow and the brachial artery mark.

6.3. Pran yon mezi

1. Once the cuff is correctly applied and you are in a relaxed position, press the Power button (1) to start the measurement.
2. Braslè a ap gonfle otomatikman. Rete an plas epi an silans pandan mezi a.
3. After inflation, the cuff will slowly deflate, and your blood pressure (systolic and diastolic) and pulse rate will be displayed on the LCD.
4. The device will automatically shut off after approximately 1 minute of inactivity to conserve battery life.

6.4. Fonksyon memwa

The Gima 32901 monitor can store up to 4 groups of 30 measurements each, including date and time.

• Pou view stored measurements, press the Memory button (M) when the device is off.
• Press the Memory button repeatedly to scroll through the stored readings.
• Consult the full user manual for detailed instructions on managing memory groups and clearing data, if applicable.

7. Antretyen

Proper care and maintenance will ensure the longevity and accuracy of your device:

• Netwayaj: Wipe the monitor unit and cuff with a soft, dry cloth. If necessary, use a cloth lightly dampened with water or a mild detergent, then wipe dry immediately. Do not use abrasive cleaners or immerse the device in water.
• Depo: Store the device in its carrying case in a cool, dry place, away from direct sunlight, extreme temperatures, and humidity.
• Ranplasman batri: When the low battery indicator appears on the display, replace all four AA batteries with new ones. Do not mix old and new batteries or different types of batteries. Remove batteries if the device will not be used for an extended period.
• Swen manchèt: Do not wash the cuff. If it becomes soiled, wipe it clean as described above.

NAN. Depanaj

Si ou rankontre pwoblèm ak monitè tansyon ou a, gade pwoblèm ak solisyon komen sa yo:

Si pwoblèm nan pèsiste apre ou fin eseye solisyon sa yo, tanpri kontakte sèvis kliyan.

9. Espesifikasyon

Technical specifications for the Gima 32901 Andon Digital Blood Pressure Monitor:

• Nimewo Modèl: 32901
• Metòd mezi: Osilometrik
• Ekspozisyon: Large LCD Digital Display
• memwa: 4 x 30 measurement groups with date and time
• Gwosè manchèt: Standard Adult Cuff (22-30 cm)
• Sous pouvwa: 4 x AA pil (pa enkli)
• Otomatik fèmen: Wi
• Dimansyon pake: 18.03 x 12.19 x 9.4 cm (7.1 x 4.8 x 3.7 pous)
• Pwa pwodwi: Apeprè 400 gram (0.88 liv)
• Manifakti: Gima

10. Garanti ak sipò

Pou enfòmasyon sou garanti a oswa sipò teknik, tanpri kontakte machann nan oswa manifakti a dirèkteman. Kenbe resi acha ou kòm prèv acha.

Manifakti: Gima

For further assistance, please visit the official Gima websit oswa kontakte depatman sèvis kliyan yo.
