Vileda Turbo EasyWring and Clean Complete Set Instruction Manual

1. Pwodwi souview

The Vileda Turbo EasyWring and Clean Complete Set is designed for efficient and thorough floor cleaning. This system includes a bucket with a foot-pedal activated wringer, a telescopic mop handle, and a microfiber mop head. The unique design ensures optimal moisture control and effective dirt removal from various floor surfaces.

Figure 1: Vileda Turbo EasyWring and Clean Complete Set components: bucket with wringer, mop handle with head, and a spare mop head.

2. Enstalasyon

1. Asanble manch mop la: The telescopic handle comes in multiple pieces. Twist and connect the sections securely until they form a single, sturdy handle. Adjust the length to your preference by twisting the locking mechanism on the handle.
2. Mete tèt mop la: Align the triangular mop head with the base of the mop handle. Press firmly until it clicks into place. Ensure it is securely attached before use.
3. Prepare bokit la: Place the bucket on a flat, stable surface. Fill the bucket with water and your preferred cleaning solution, ensuring the water level does not exceed the maximum fill line.

Figure 2: Attaching or detaching the mop head by pressing the red button on the mop base.

3. Operasyon Enstriksyon

1. Wet the Mop: Dip the microfiber mop head into the water and cleaning solution in the bucket.
2. Wring the Mop: Place the wet mop head into the wringer basket. Hold the mop handle upright and press the foot pedal repeatedly to activate the spinning mechanism. The more you press, the drier the mop head will become. Adjust the moisture level according to your floor type and cleaning needs.
3. Pase mop sou planche a: Begin mopping your floor. The triangular mop head and flexible joint allow for effective cleaning in corners and under furniture.
4. Rense epi repete: Periodically rinse the mop head in the bucket and wring it out to remove collected dirt before continuing to mop.

Figure 3: Activating the foot pedal for efficient wringing.

Figure 4: The triangular mop head reaches into corners for thorough cleaning.

Figure 5: The mop is effective on diverse floor surfaces.

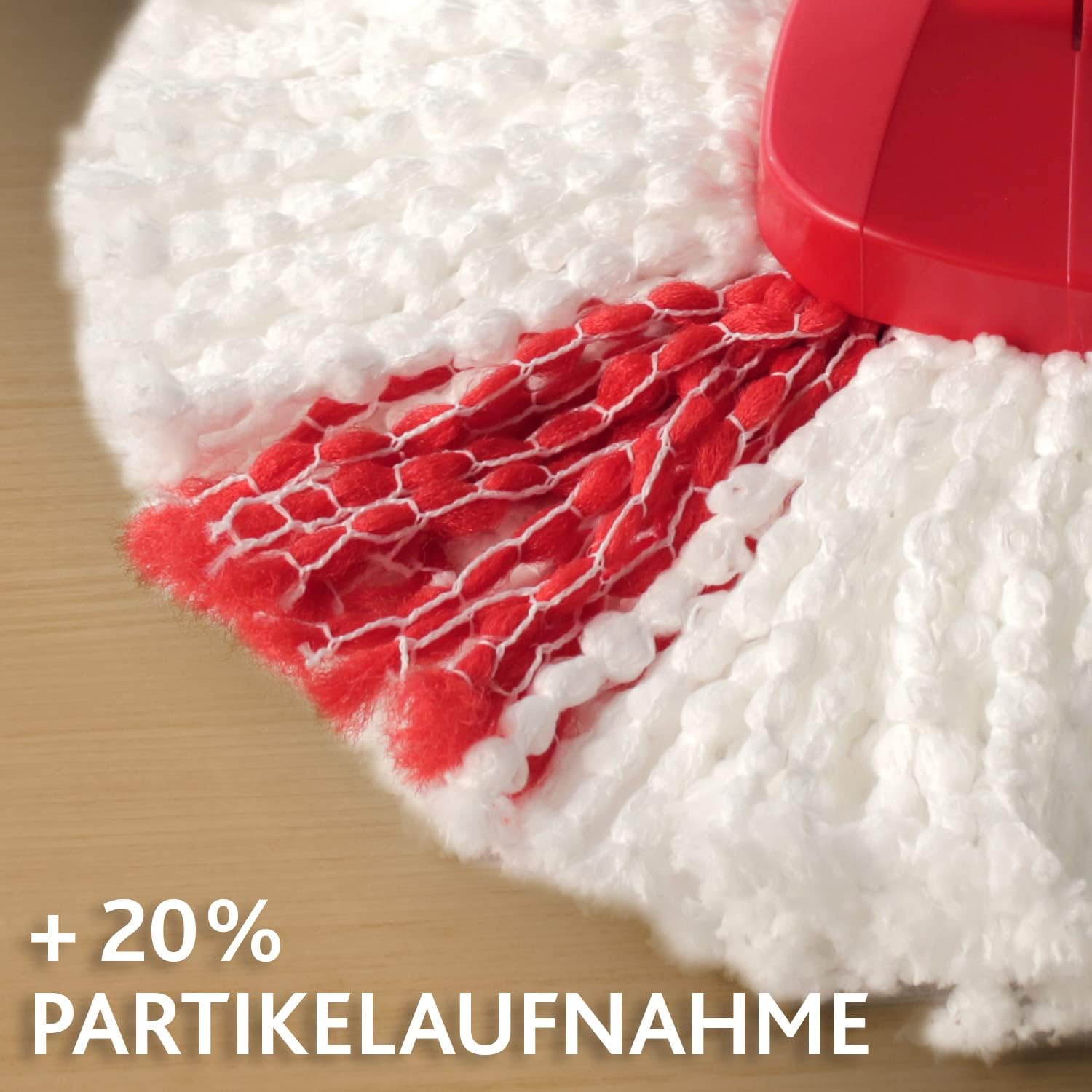

Figure 6: Microfiber strands designed for enhanced particle pickup.

4. Antretyen

• Cleaning the Mop Head: The microfiber mop head is machine washable. Detach the mop head from the handle and wash it in a washing machine at a maximum temperature of 60°C (140°F). Do not use fabric softener or bleach. Air dry the mop head.
• Bucket Care: After each use, empty the dirty water from the bucket using the practical spout. Rinse the bucket thoroughly with clean water and allow it to air dry to prevent odor and mildew buildup.
• Mop Head Replacement: For optimal cleaning performance, it is recommended to replace the mop head every 6 months, or sooner depending on usage frequency and condition.

Figure 7: The mop head is machine washable.

Figure 8: Recommended mop head replacement every 6 months.

NAN. Depanaj

• Mop head not wringing effectively: Ensure the mop head is properly seated in the wringer basket. Press the foot pedal firmly and consistently. If the issue persists, check for any obstructions in the wringer mechanism.
• Mop head detaches during use: Verify that the mop head is securely clicked onto the mop handle base. If it continues to detach, inspect the attachment mechanism for damage.
• Streaks on floor: This can be caused by too much cleaning solution, insufficient wringing, or a dirty mop head. Try using less solution, wringing the mop more thoroughly, or washing/replacing the mop head.
• Foot pedal not working: Check for any visible damage or obstructions around the foot pedal mechanism. If the pedal is jammed or broken, contact customer support.

6. Espesifikasyon

7. Garanti ak sipò

For warranty information, product support, or to purchase replacement parts, please refer to the official Vileda website or contact Vileda customer service directly. Keep your proof of purchase for any warranty claims.

Vileda Customer Service: Tanpri vizite www.vileda.com pou detay kontak espesifik nan rejyon ou an.
