Entwodiksyon
This manual provides detailed instructions for the setup, operation, and maintenance of the VILTROX JY-710-S2 Wireless Timer Remote Control. Please read this manual thoroughly before using the device to ensure proper function and to achieve optimal photographic results.
Image: The VILTROX JY-710-S2 Wireless Timer Remote Control system, including the transmitter, receiver, and camera connection cable.
Kontni pake
Verifye ke tout atik yo prezan nan pakè ou a:
- 1 x Timer Remote Control (Transmitter)
- 1 x Shutter Release Connection Cable (S2 type for Sony)
- 1 x reseptè
Karakteristik kle
- Supports single shooting, 1-second continuous shooting, BULB mode, delayed shooting, and scheduled timer functions.
- Integrated FSK 2.4GHz wireless remote control system with 4 channels.
- Wireless operating range of approximately 50-80 meters.
- Minimizes camera shake for improved image integrity and quality.
- BULB function allows for exposures up to 100 hours.
- Programmable number of shots, up to 399 or unlimited.
Pwodwi souview
Transmitter (Timer Remote Control)
The transmitter features an LCD display for settings, control buttons for navigation, and a shutter release button. It is powered by two AAA batteries.
Imaj: Devan view of the VILTROX JY-710-S2 transmitter, highlighting the LCD screen and control buttons.
Reseptè
The receiver connects to your camera's remote port and hot shoe. It receives signals from the transmitter and triggers the camera's shutter. It is also powered by two AAA batteries and has a channel selector switch.
Imaj: Gwo plan view of the VILTROX JY-710-S2 receiver, showing the channel switch and battery compartment.
Enstalasyon
1. Enstalasyon batri
Both the transmitter and receiver require two AAA 1.5V LR03 alkaline batteries.
- Open the battery compartment cover on the back of both the transmitter and receiver.
- Mete de pil AAA nan chak inite, asire polarite ki kòrèk la (+/-).
- Fèmen kouvèti lòj batri yo byen.
Image: The back of the VILTROX JY-710-S2 transmitter with the battery compartment open for AAA battery installation.
2. Connecting the Receiver to the Camera
- Mount the receiver onto your camera's hot shoe. This provides a secure attachment point but is not necessary for electrical connection.
- Connect one end of the provided S2 shutter release cable to the receiver's port.
- Connect the other end of the S2 cable to your camera's remote control port.
Image: The VILTROX JY-710-S2 receiver securely mounted on a Sony camera's hot shoe and connected via the S2 cable.
3. Setting Communication Channel
Ensure both the transmitter and receiver are set to the same channel (1-4) using the channel selector switch on the receiver and the corresponding setting on the transmitter (refer to transmitter display for channel setting).
Operasyon
Basic Shutter Release
The remote can be used for simple shutter release, either wired or wirelessly.
- Mwatye-laprès: Press the shutter button on the transmitter halfway down to activate autofocus.
- Plen laprès: Press the shutter button fully to trigger the camera's shutter.
Image: A hand demonstrating pressing the shutter button on the VILTROX JY-710-S2 transmitter.
Operasyon branche
For wired operation, connect the S2 cable directly from the transmitter to your camera's remote port. The receiver is not needed in this mode.
Image: The VILTROX JY-710-S2 transmitter connected directly to a camera for wired shutter control.
Operasyon san fil
For wireless operation, ensure the receiver is connected to the camera and both units are on the same channel. The transmitter can then control the camera remotely.

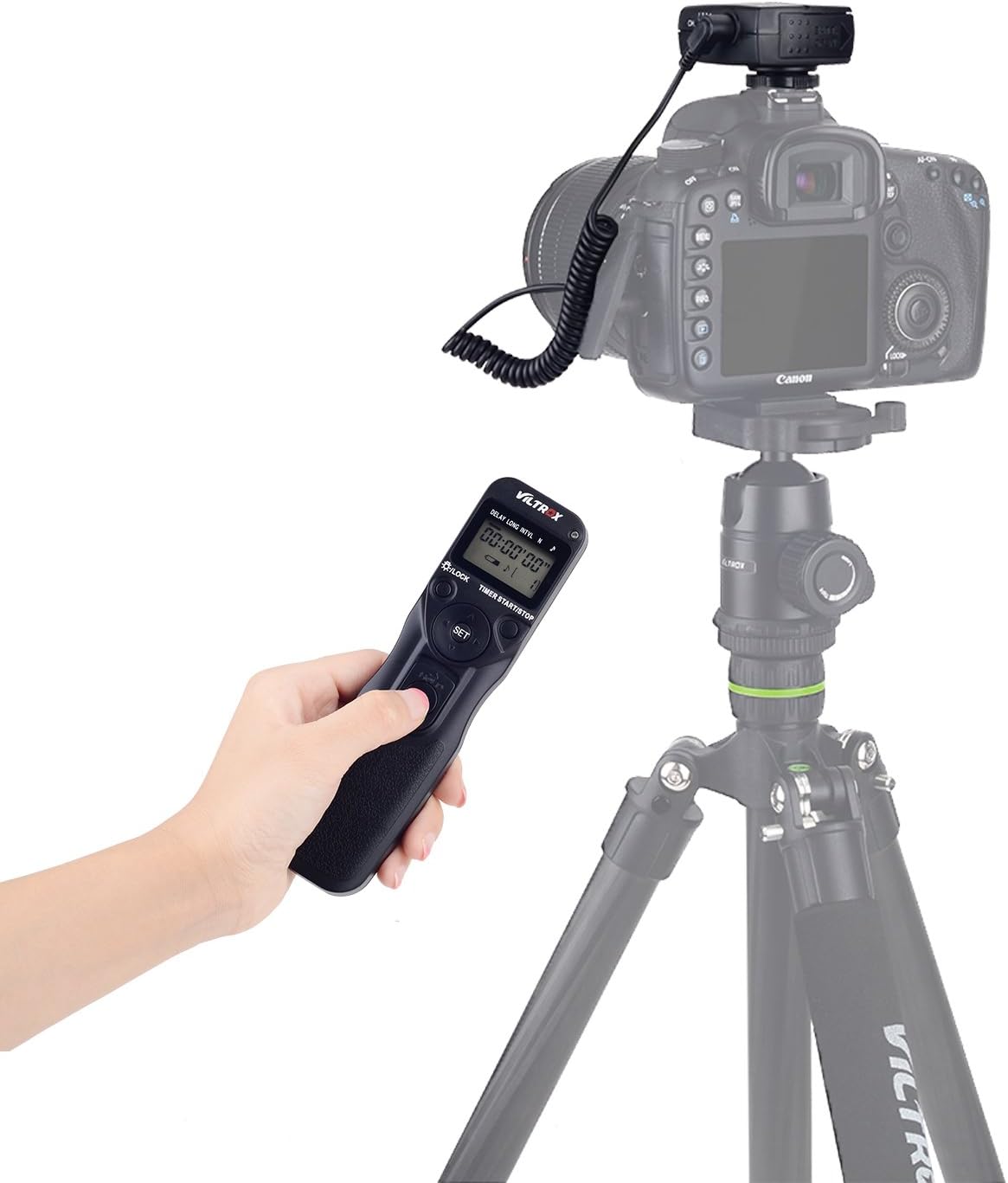

Image: A user operating the VILTROX JY-710-S2 transmitter wirelessly, with a camera mounted on a tripod in the background.
Fonksyon revèy
The transmitter allows for precise control over various shooting parameters:
- Delay (DEL): Sets the delay time before the first shot, from 0 seconds to 99 hours, 59 minutes, 59 seconds.
- Long Exposure (LONG): Sets the exposure duration for each shot, from 0 seconds to 99 hours, 59 minutes, 59 seconds. This is used for BULB mode.
- Interval (INTVL): Sets the time between consecutive shots, from 1 second to 99 hours, 59 minutes, 59 seconds.
- Number of Shots (N): Sets the total number of exposures, from 1 to 399, or '--' for unlimited shots.
Use the navigation buttons (up, down, left, right) and the SET button to adjust these parameters on the LCD display. Press the TIMER START/STOP button to begin or end the timed sequence.
Espesifikasyon
| Karakteristik | Spesifikasyon |
|---|---|
| Tan Reta | 0s to 99h 59min 59s (1s increments) |
| Moman kontak la | 0s to 99h 59min 59s (1s increments) |
| Tan entèval | 1s to 99h 59min 59s (1s increments) |
| Kantite vaksen | 1 to 399, or unlimited (--) |
| Sous pouvwa | 2 x AAA 1.5V LR03 alkaline batteries (for each unit) |
| Lavi batri | Approx. 2 months (under specific usage conditions) |
| Tanperati Fonksyònman | -20°C a +50°C (-4°F a +122°F) |
| Dimansyon (transmetè) | Apeprè 155 x 40 x 18 mm (6.1 x 1.6 x 0.7 pous) |
| Weight (with receiver) | Apeprè. 125 g (3.7 oz) |
| Longè kòd | Apeprè 850 mm (33.5 pous) |
| Koneksyon Teknoloji | FSK 2.4GHz Wireless, Infrared (Wired option) |
| Wireless Range | Jiska 80 mèt |
Konpatibilite
The VILTROX JY-710-S2 is compatible with various Sony camera models, including but not limited to:
- Sony a58, A7SM2, A7RM2, A7, A7M2, A7R, A7S
- Sony A3000, A5000, A5100, A6000, A6300, A6500
- Sony HX50, HX60, HX300, HX400
Antretyen
- Kenbe aparèy la pwòp lè w siye l avèk yon twal mou epi sèk. Evite itilize pwodui chimik oswa solvan ki agresif.
- Store the remote control in a dry, cool place away from direct sunlight and extreme temperatures.
- Retire pil yo si ou pa pral itilize aparèy la pou yon peryòd tan pwolonje pou anpeche flit.
- Evite jete oswa sibi aparèy la nan gwo enpak.
Depanaj
- Aparèy pa soumen: Tcheke enstalasyon pil yo epi asire w pil yo fre.
- Camera not triggering wirelessly: Verify that both transmitter and receiver have fresh batteries, are powered on, and are set to the same channel. Ensure the receiver is properly connected to the camera.
- Camera not triggering wired: Ensure the cable is securely connected to both the transmitter and the camera's remote port.
- Entèferans: If experiencing inconsistent wireless performance, try changing the channel on both the transmitter and receiver.
Garanti ak sipò
VILTROX provides a warranty for manufacturing or performance defects. Within the first 6 months, non-human damage may be covered free of charge for new products. The product is covered by a 2-year warranty for defects in workmanship or performance. During the justified period, all materials are covered.
For further support or warranty claims, please contact your retailer or visit the official VILTROX websit.
