Giantex KC40583DKBN Rolling Kitchen Island Cart Instruction Manual

Pwodwi souview

The Giantex Rolling Kitchen Island Cart is designed to provide additional counter space and storage in your kitchen or dining area. Featuring a durable wood countertop, two large drawers, and a storage cabinet with an adjustable shelf, this cart offers versatile functionality. Its rolling casters allow for easy mobility, while lockable wheels ensure stability when in use. A side towel rack adds convenience.

Karakteristik kle:

• Large Storage Cabinet & 2 Drawers: A two-door cabinet provides ample space for storing and displaying utensils and kitchenware. Two drawers offer private storage and slide out easily.
• Spacious Rubber Wood Counter Top: The tabletop is constructed from solid rubber wood, ensuring durability and stability. Dimensions are approximately 37.5 inches by 19 inches.
• Lockable Casters: Equipped with four large casters for easy movement. Two casters feature locks to keep the cart stable and secure when stationary.
• Multifunctional Side Handle: The side handle facilitates pushing or pulling the cart and can also serve as a towel rack.
• Etajè reglabl: The interior cabinet includes one adjustable shelf, offering two tiers of storage space that can be customized based on item size.

Enfòmasyon sou Sekirite

Always engage the locks on the casters when the cart is in a stationary position to prevent unintended movement. Exercise caution when moving the cart to avoid injury from the side handle or accidental collisions. Ensure all screws and fasteners are securely tightened during assembly and periodically check for any loosening to maintain structural integrity.

Lis Pati

Before beginning assembly, please verify that all components listed in your product's included manual are present and undamaged. If any parts are missing or damaged, please contact customer support for assistance.

Enstriksyon Asanble

For a visual guide to assembling your Giantex Kitchen Island Cart, please refer to the official assembly video below. Follow the steps carefully to ensure correct and secure construction.

Etap kle pou asanblaj la:

1. Prepare Konpozan yo: Unpack all parts and hardware. Identify each piece according to the included manual.
2. Rasanble tiwa yo: Construct the two drawers by attaching the sides and bottom panels. Install the drawer slides onto the drawer boxes.
3. Rasanble Panno Side: Attach the side panels to the base frame using the provided fasteners.
4. Install Towel Rack: Secure the towel rack assembly to the designated side of the cart.
5. Mete wou yo: Install the four casters to the bottom of the cart. Ensure the two lockable casters are placed in the front for easy access.
6. Install Internal Supports: Secure the internal support beams and the adjustable shelf pins within the cabinet section.
7. Tache Pòt Kabinèt yo: Install the hinges onto the cabinet doors and then attach the doors to the main frame.
8. Mete kontwa a: Carefully place the rubber wood countertop onto the assembled base and secure it with the appropriate fasteners.

Deskripsyon imaj: This image highlights the adjustable shelf feature within the kitchen island's cabinet. The shelf can be moved to different heights to accommodate various items, indicated by blue arrows.

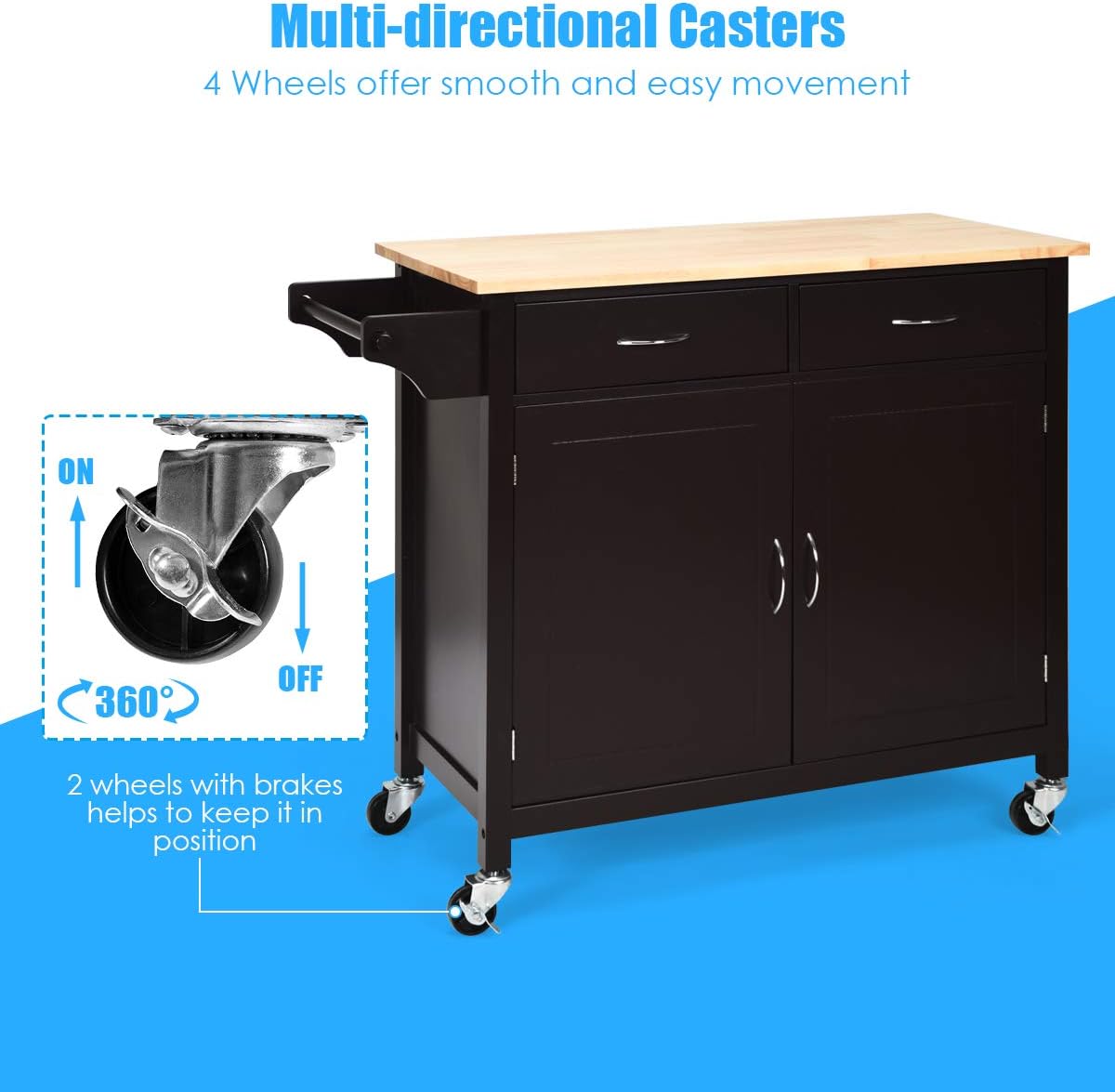

Deskripsyon imaj: This image illustrates the multi-directional casters of the kitchen island. It shows how two of the wheels are equipped with a locking mechanism, allowing the cart to be secured in place by pressing the 'ON' lever and unlocked by pressing 'OFF'.

Enstriksyon Operasyon

Using the Drawers and Cabinet:

• To open a drawer, gently pull the handle. To close, push until it is fully seated.
• To open the cabinet doors, pull the handles. To close, push firmly until the magnetic catches engage.
• The internal shelf can be adjusted to different heights by removing the shelf pins, repositioning the shelf, and reinserting the pins into the desired holes.

Moving and Securing the Cart:

• To move the cart, ensure all caster locks are disengaged. Use the side handle to push or pull the cart to your desired location.
• To secure the cart in place, engage the locks on the two front casters by pressing down on the lever. This will prevent the cart from rolling.

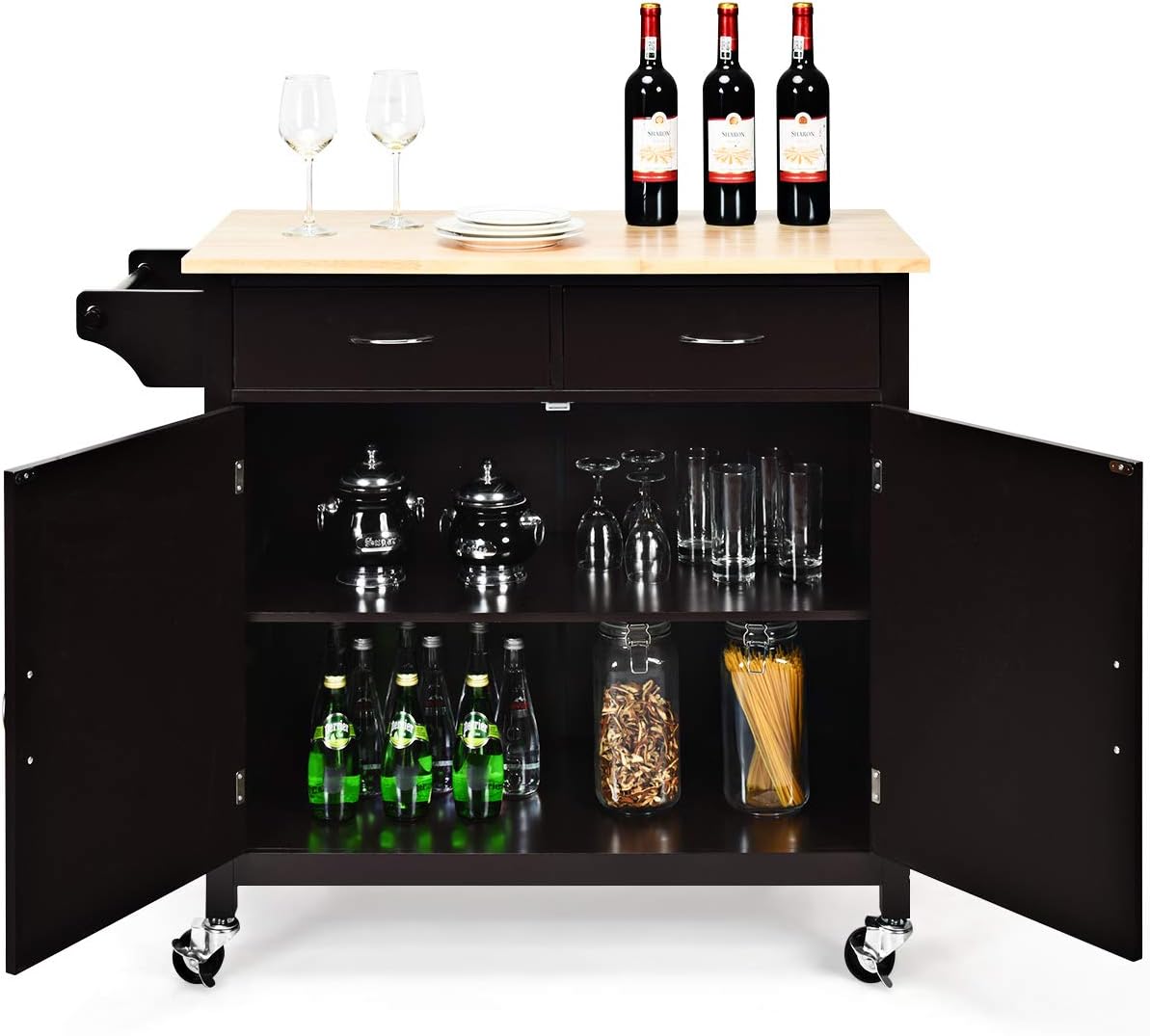

Deskripsyon imaj: This image displays the kitchen island with its cabinet doors open, showcasing various kitchen items neatly stored on the adjustable shelf and within the lower compartment. The two top drawers are closed.

Antretyen

• Netwayaj: Wipe the cart surfaces with a dry cloth to remove dust and spills. For stubborn marks, use a slightly damp cloth with mild soap, then dry immediately. Avoid abrasive cleaners.
• Swen kontwa an bwa: The rubber wood countertop should be regularly cleaned and can be treated with food-safe mineral oil to maintain its appearance and prevent drying.
• Materyèl: Tcheke tout vis ak eleman fikse yo detanzantan pou asire yo byen sere. Sere yo ankò jan sa nesesè pou kenbe estabilite.
• Woulèt: Keep casters free of debris to ensure smooth rolling. Lubricate if necessary.

Depanaj

• Charyo ki tranble: Ensure all assembly screws are tightened. Check that the casters are securely attached and that the cart is on a level surface.
• Tiwa yo pa glise fasilman: Verify that the drawer slides are correctly installed and aligned. Check for any obstructions in the tracks. Ensure screws holding the slides are not overtightened, which can cause binding.
• Pòt kabinèt yo pa fèmen byen: Check the alignment of the hinges and magnetic catches. Adjust hinges if necessary to ensure the doors close flush with the frame.
• Pati ki manke: If any parts were missing upon delivery, refer to the parts list in your manual and contact Giantex customer support for replacements.

Espesifikasyon

Deskripsyon imaj: This diagram provides detailed measurements of the Giantex Kitchen Island Cart, including its overall length (43"), width (19"), height (35.5"), and internal dimensions of drawers and cabinet compartments.

Garanti ak sipò

For warranty information or customer support, please refer to the documentation included with your purchase or visit the official Giantex websit. Kenbe resi acha ou pou reklamasyon garanti.
